10-1025

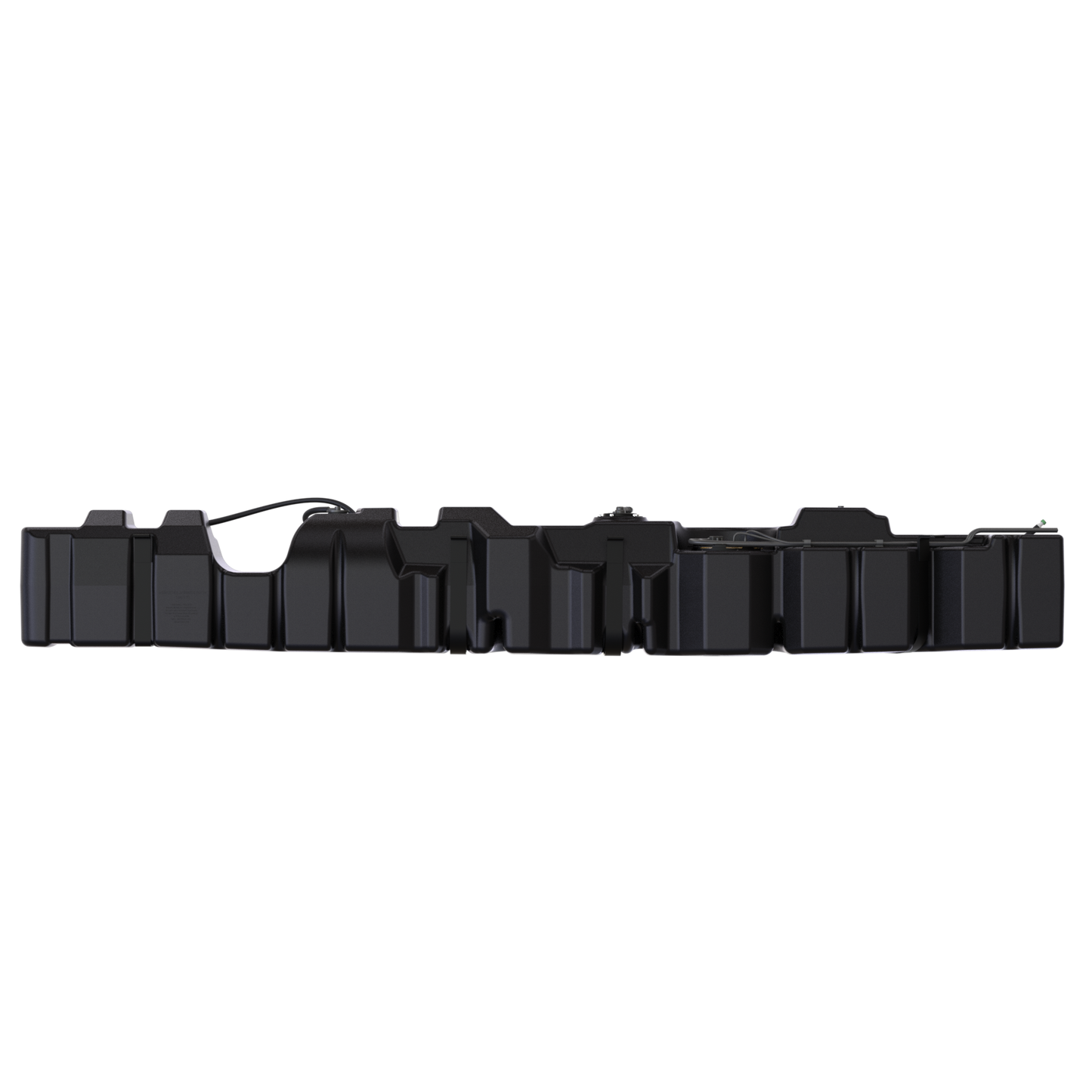

47 Gallon Replacement Fuel Tank for 2019-2022 Mercedes Sprinter 144" and 170" Wheelbase

Sale price
$1,549.00 USD
Regular price
Unit price  per
10-1025

47 Gallon Replacement Fuel Tank for 2019-2022 Mercedes Sprinter 144" and 170" Wheelbase

Sale price
$1,549.00 USD
Regular price
Unit price  per

This tank will NOT fit:

  • 144” Dually Vans
  • 170” Crew Vans (1 row of seats)
  • With plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.

Part # 10-1027 will work for both.

Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with your VIN, or consult with your installer to confirm if your van has J51.

In Stock!

Est. Delivery: ,
if ordered within hours and minutes
Not Shipping to ?

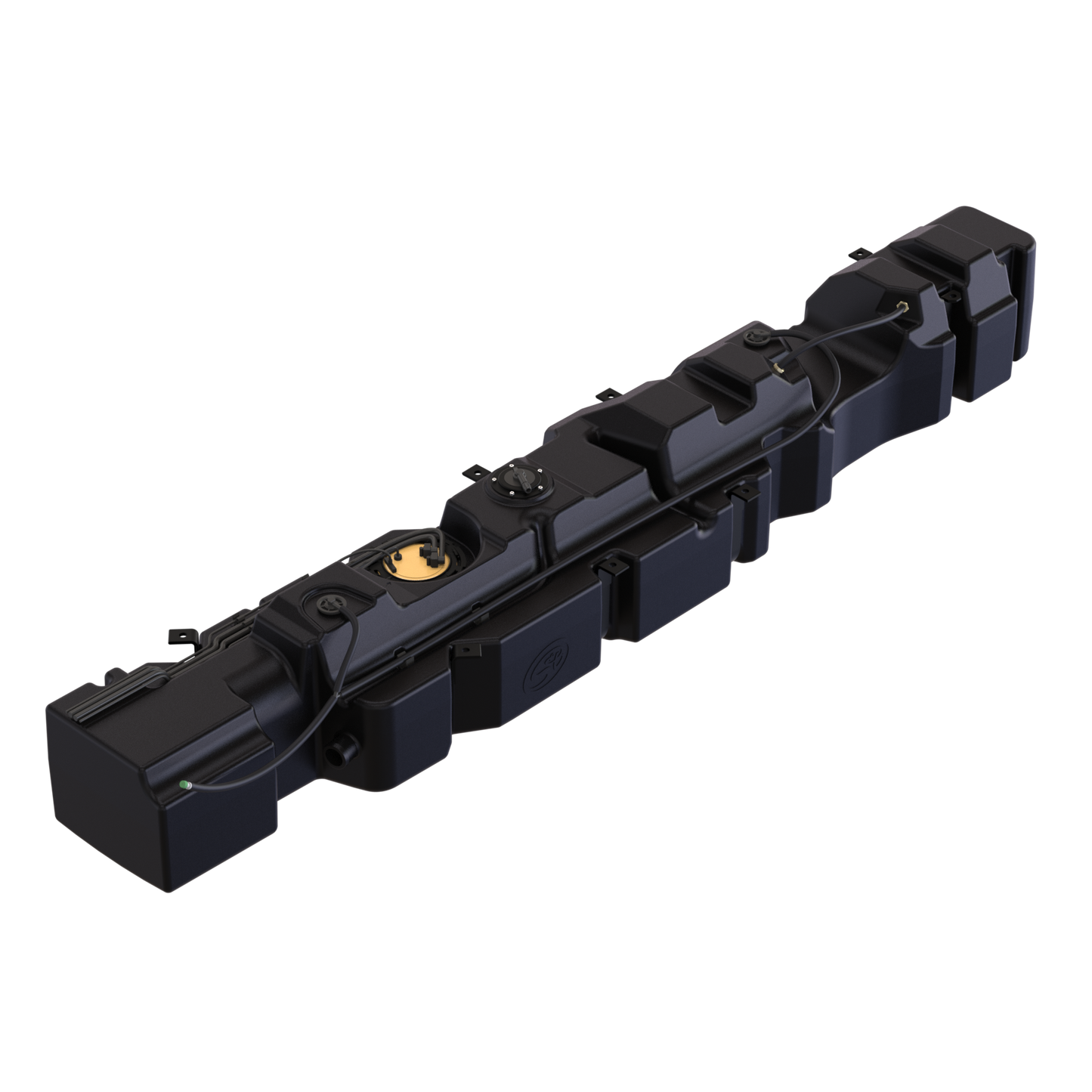

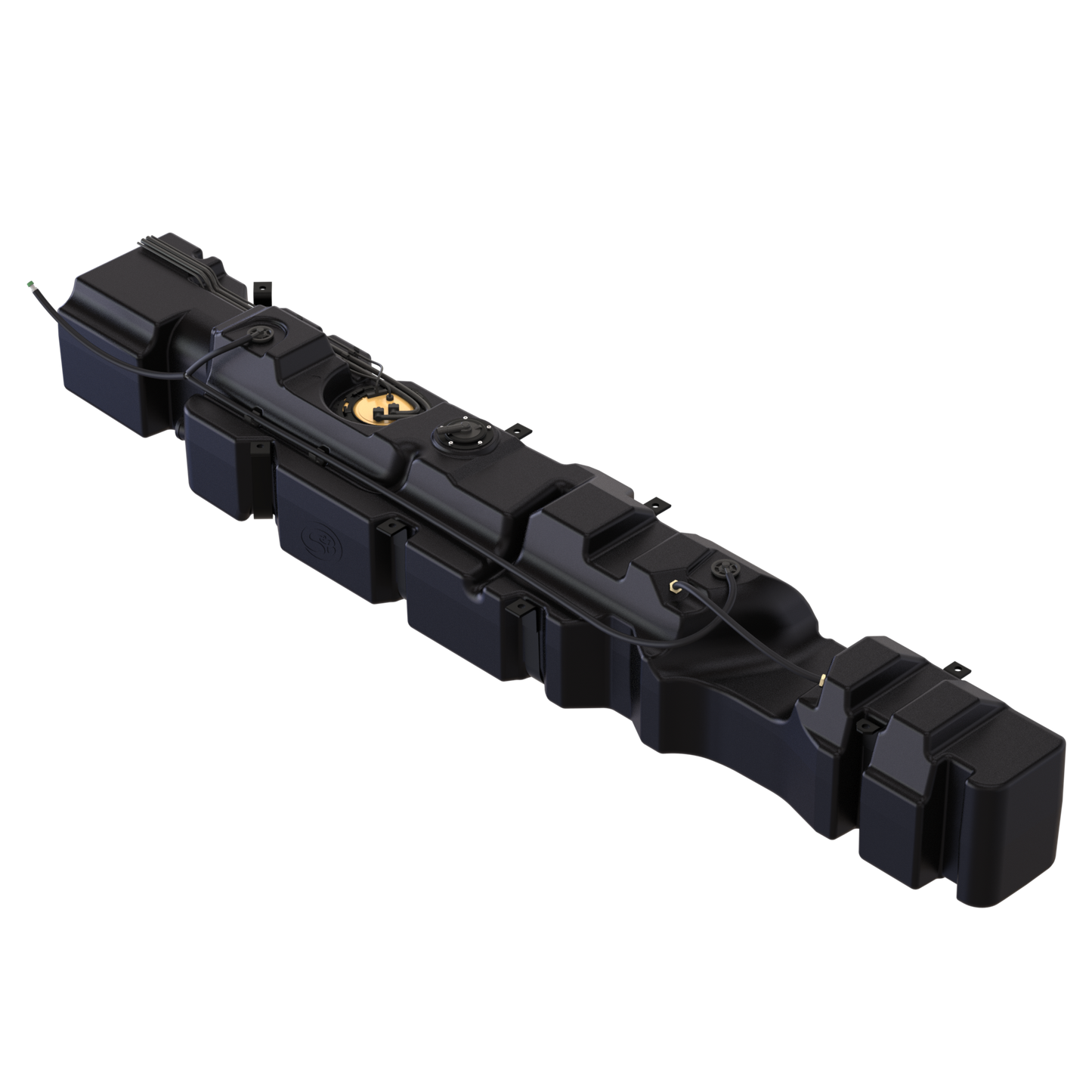

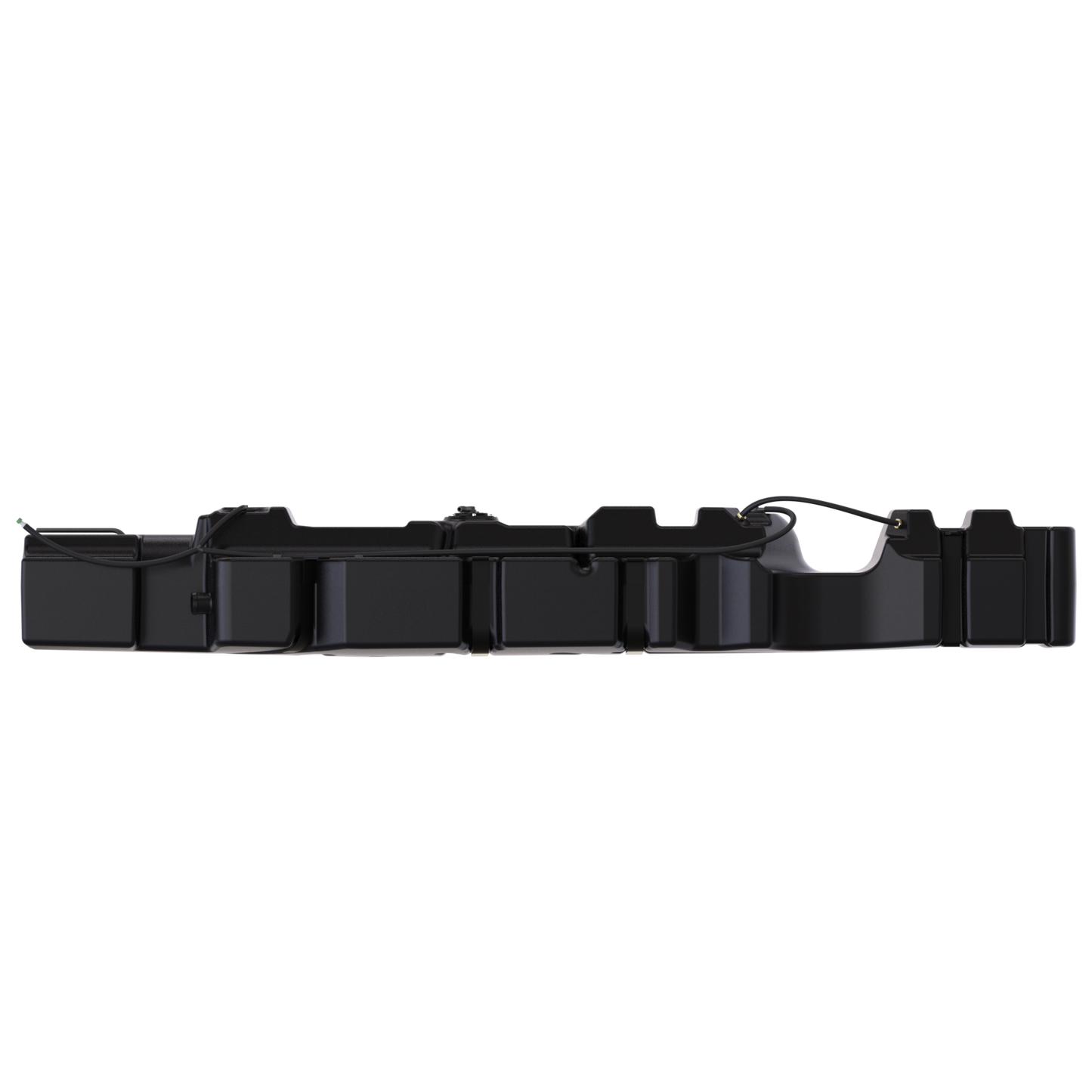

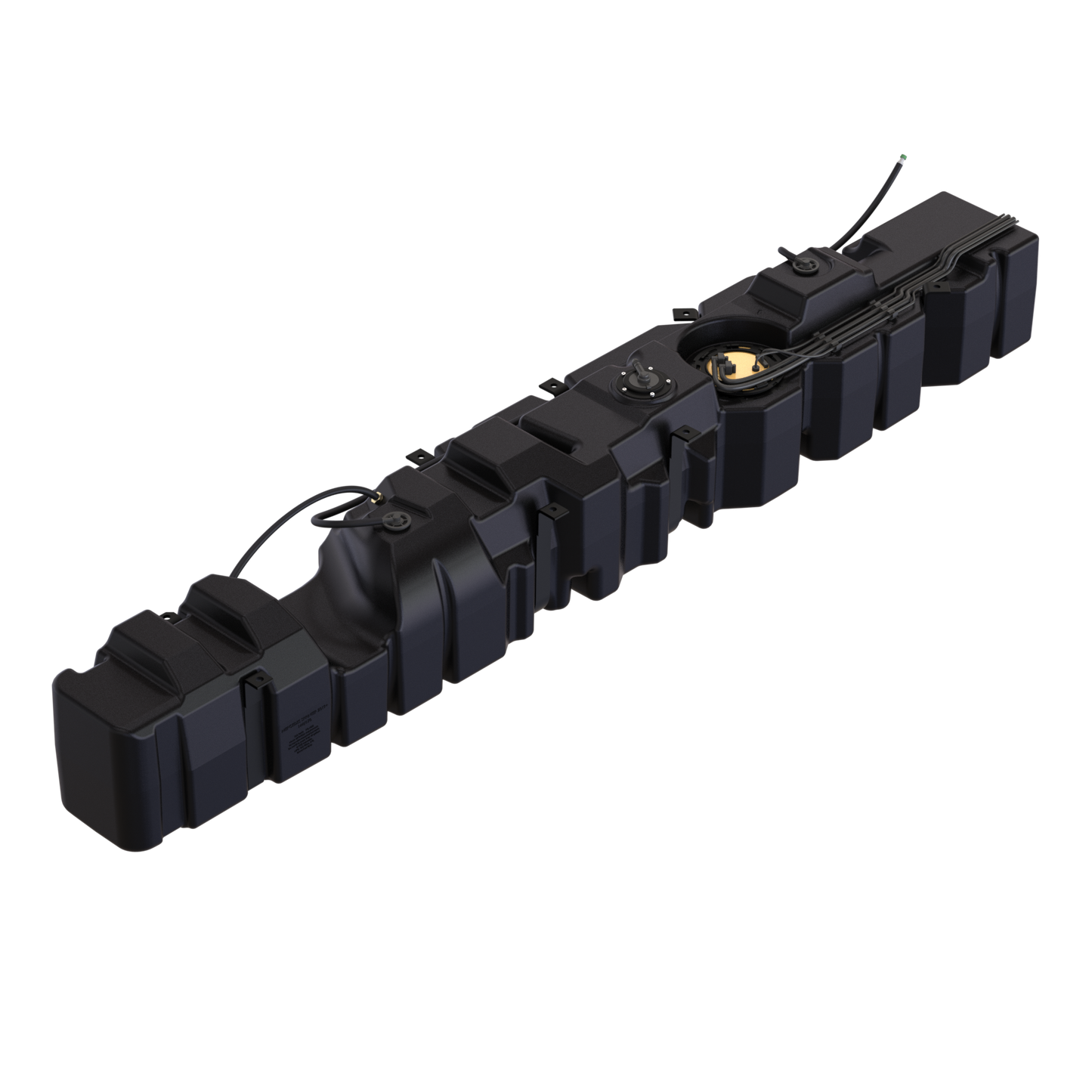

Dimensions 98.28" X 15.41" X 14.17"
Drain No
Ground clearance compare to oe tank 1.5"
Oem capacity 24 Gallons
Sending unit OE
Straps included Yes
Sump No
S&B Capacity (Approximate) 47 Gallons
Tank type Midship
Weight dry 45lbs
YearMakeModelEngine
2019-2022MercedesSprinter2.0L, Diesel
2019-2022MercedesSprinter3.0L, Diesel
2019-2022MercedesSprinter2.0L, Diesel
2019-2022MercedesSprinter3.0L, Diesel
2020-2022WinnebagoNavion3.0L, Diesel
2020-2022WinnebagoView3.0L, Diesel
2020-2023StorytellerClassic Mode 4x43.0L, Diesel
2021-2023StorytellerStealth Mode 4x43.0L, Diesel
2020-2023StorytellerBeast Mode 4x43.0L, Diesel
2022Pleasure-WayRekon 4x43.0L, Diesel

WARNING: This product can expose you to chemicals including carbon black, silica - crystalline, methylene chloride, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm.

MORE INFO at www.P65warnings.ca..gov
47 Gallon Replacement Fuel Tank for 2019-2022 Mercedes Sprinter 144" and 170" Wheelbase
Sale price
$1,549.00 USD
Regular price
Unit price  per
Sale price
$1,549.00 USD
Regular price
Unit price  per

PLUG AND PLAY INSTALLATION

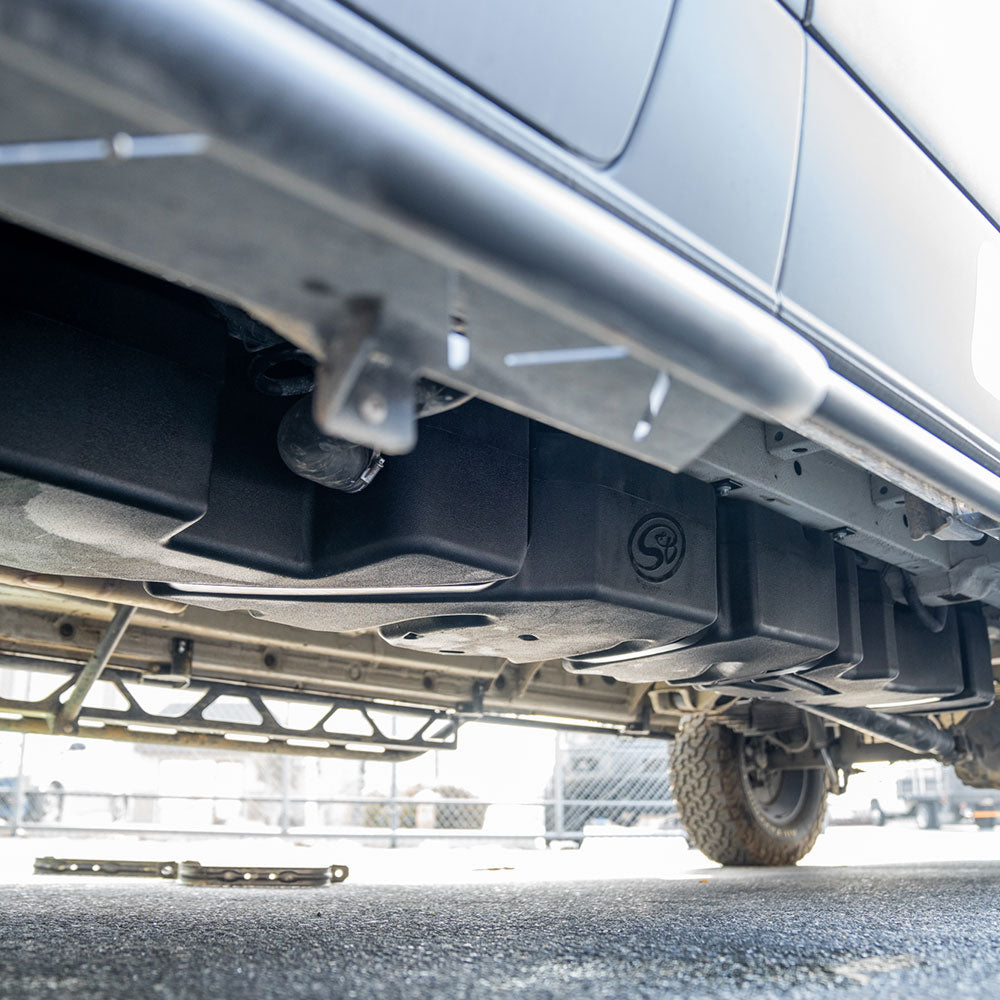

The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with our 47 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward (10.2 inches) and rearward (24.5 inches) of the original tank.

splide tile

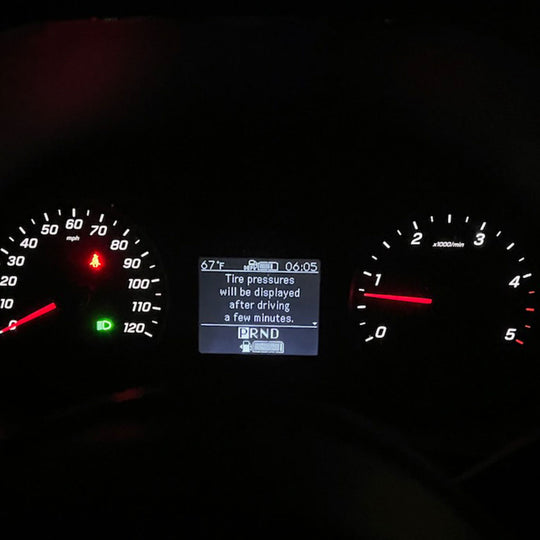

YOUR FUEL GAUGE WORKS AS NORMAL.

Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. The guage will stay on full for the first 5-7 gallons, but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (47 gallons) you will have 940 miles to empty but your vehicle will show you have 480 miles to empty.

splide tile

BUILT TO LAST. BACKED BY A LIFETIME WARRANTY.

Made out of ¼” thick crosslink polyethylene, these tanks are built to last and are backed by our lifetime warranty.

splide tile

WATCH THE INSTALLATION VIDEO.

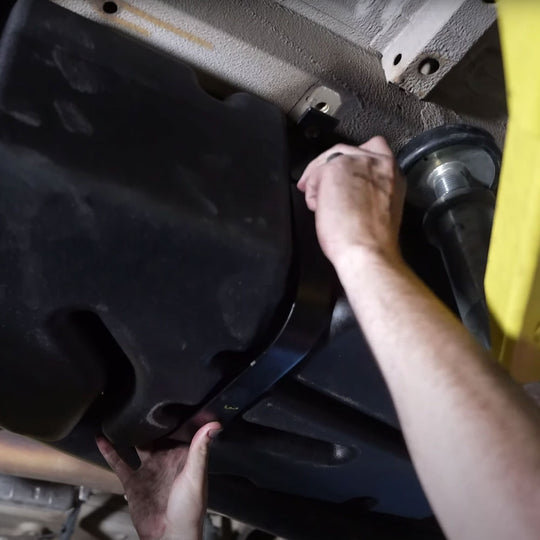

Planning on installing your S&B replacement tank yourself? Check out our step by step installation video and we'lll walk you through the complete process.

splide tile
