10-1031

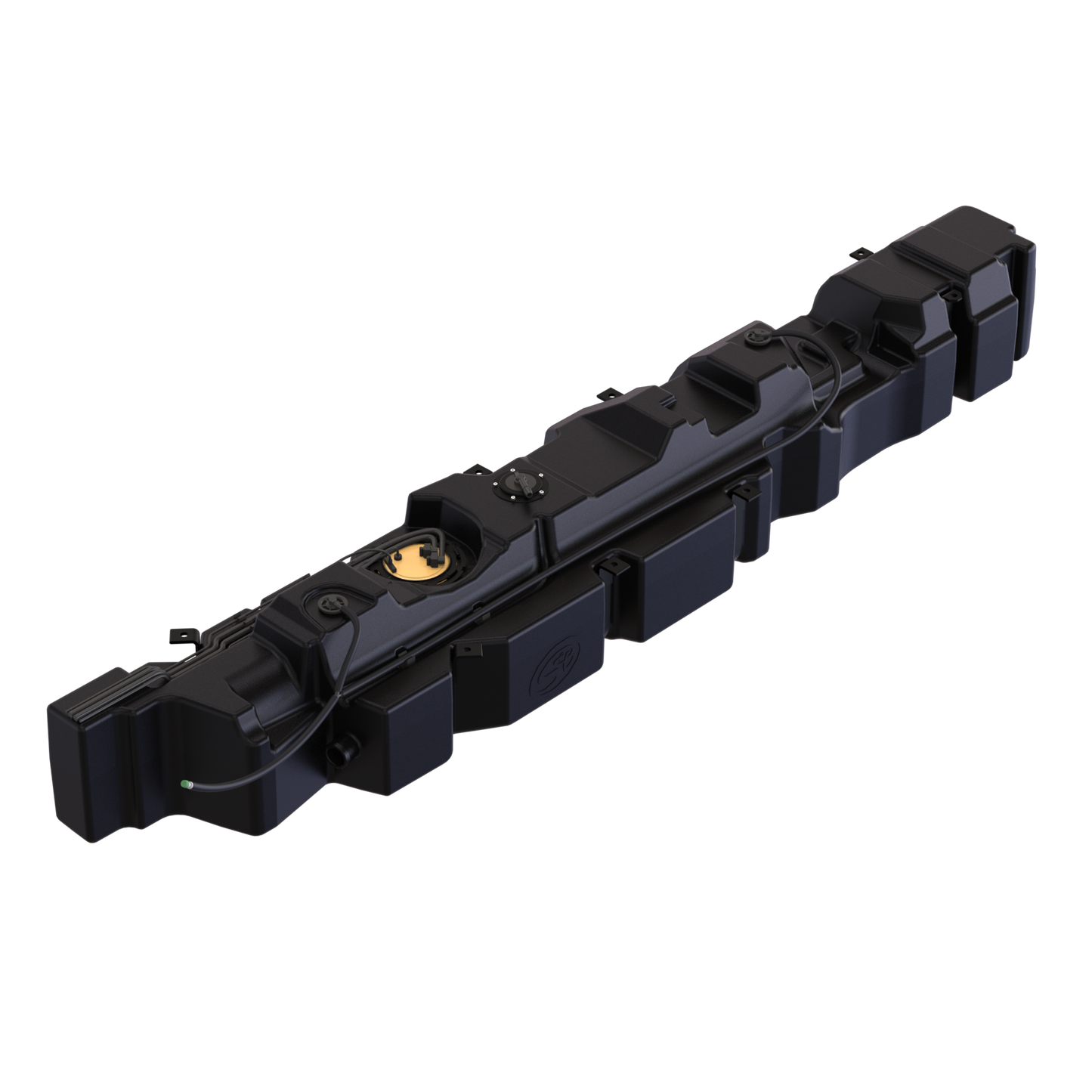

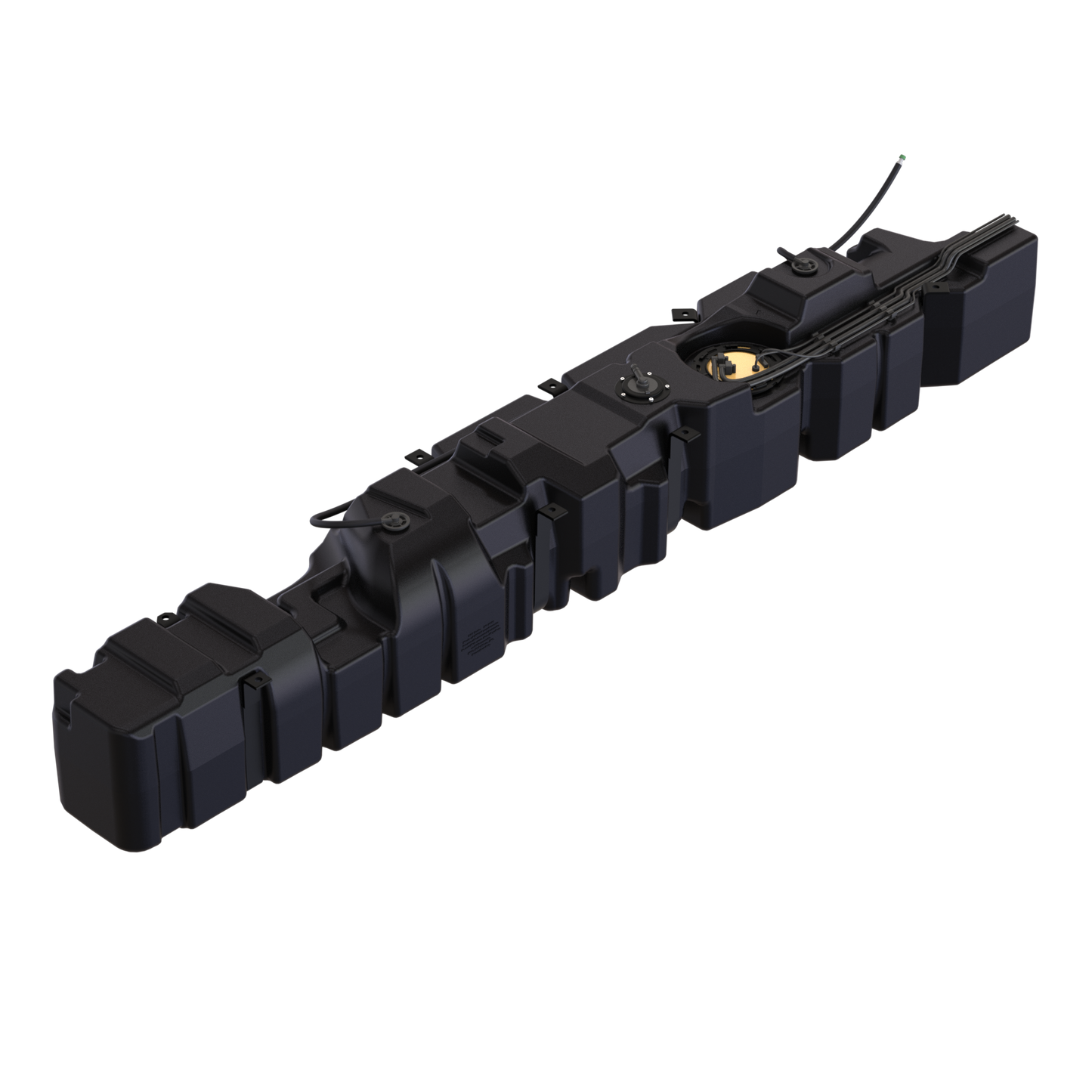

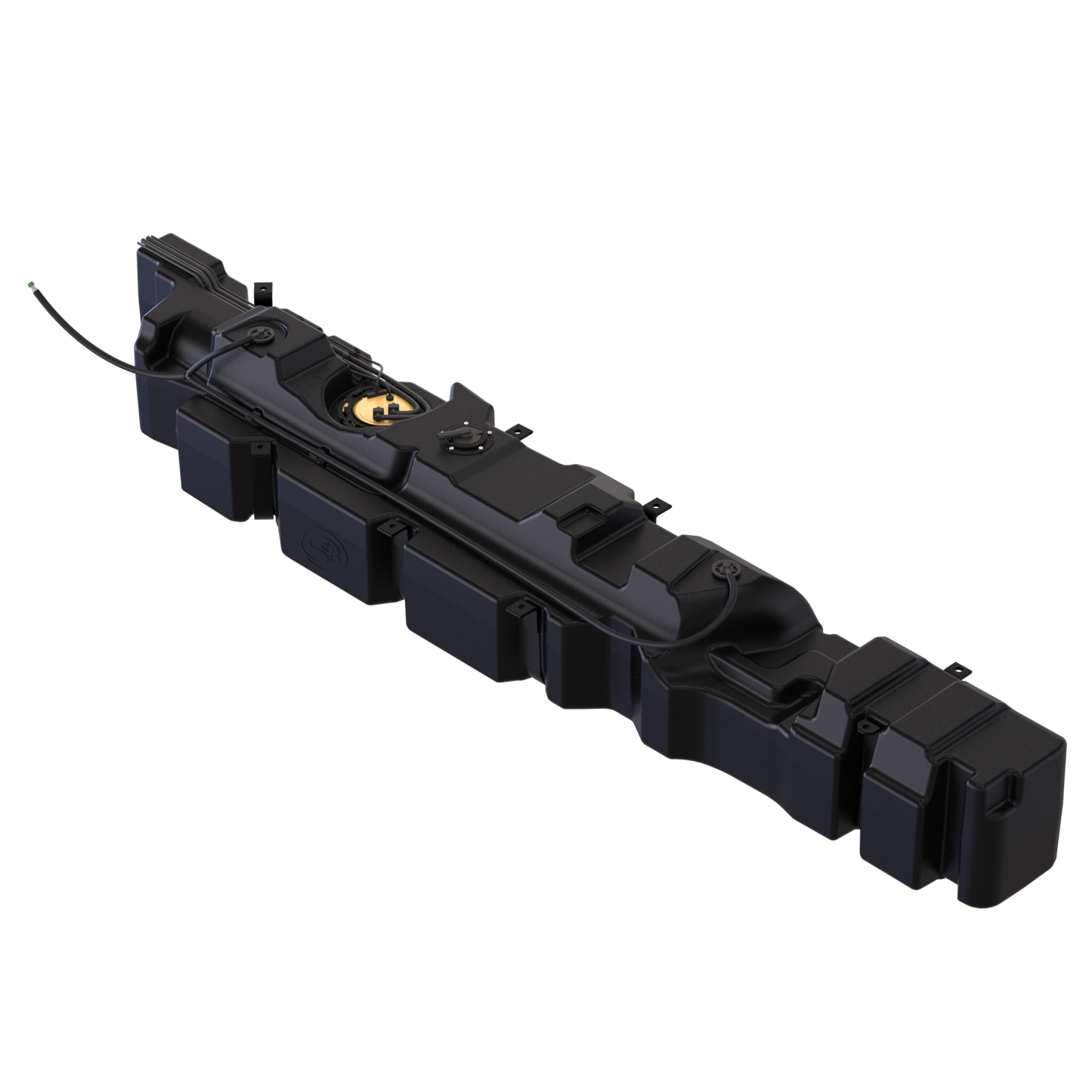

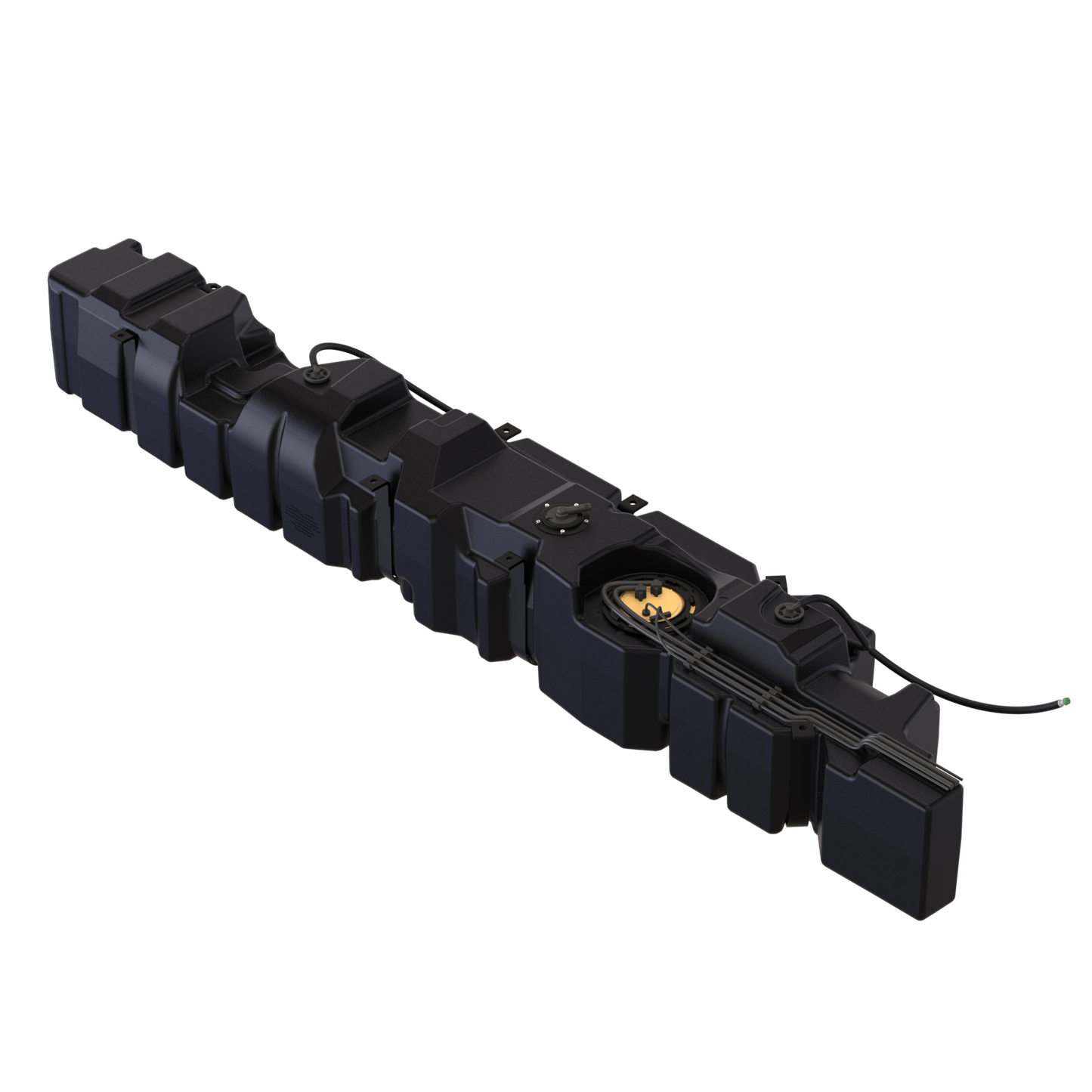

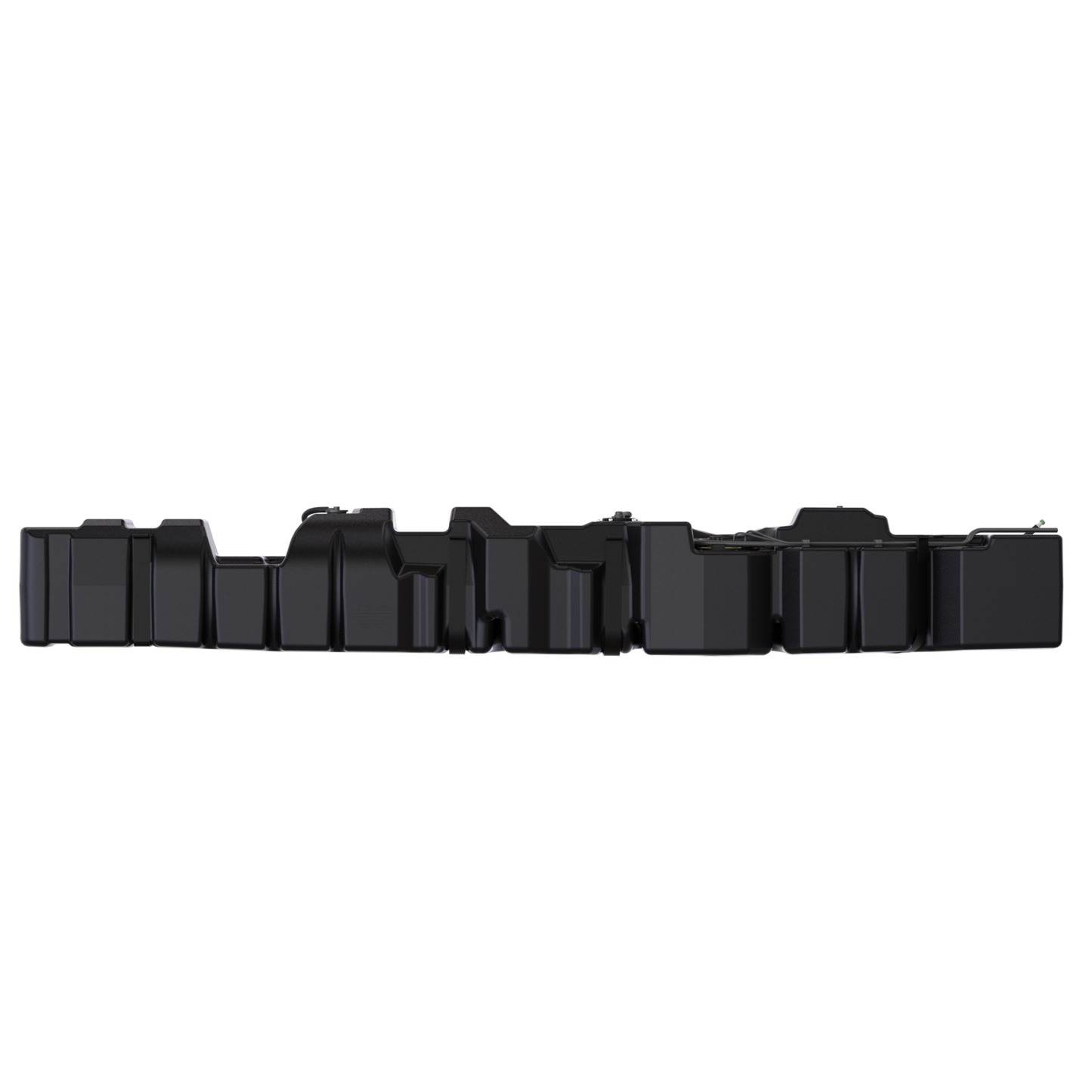

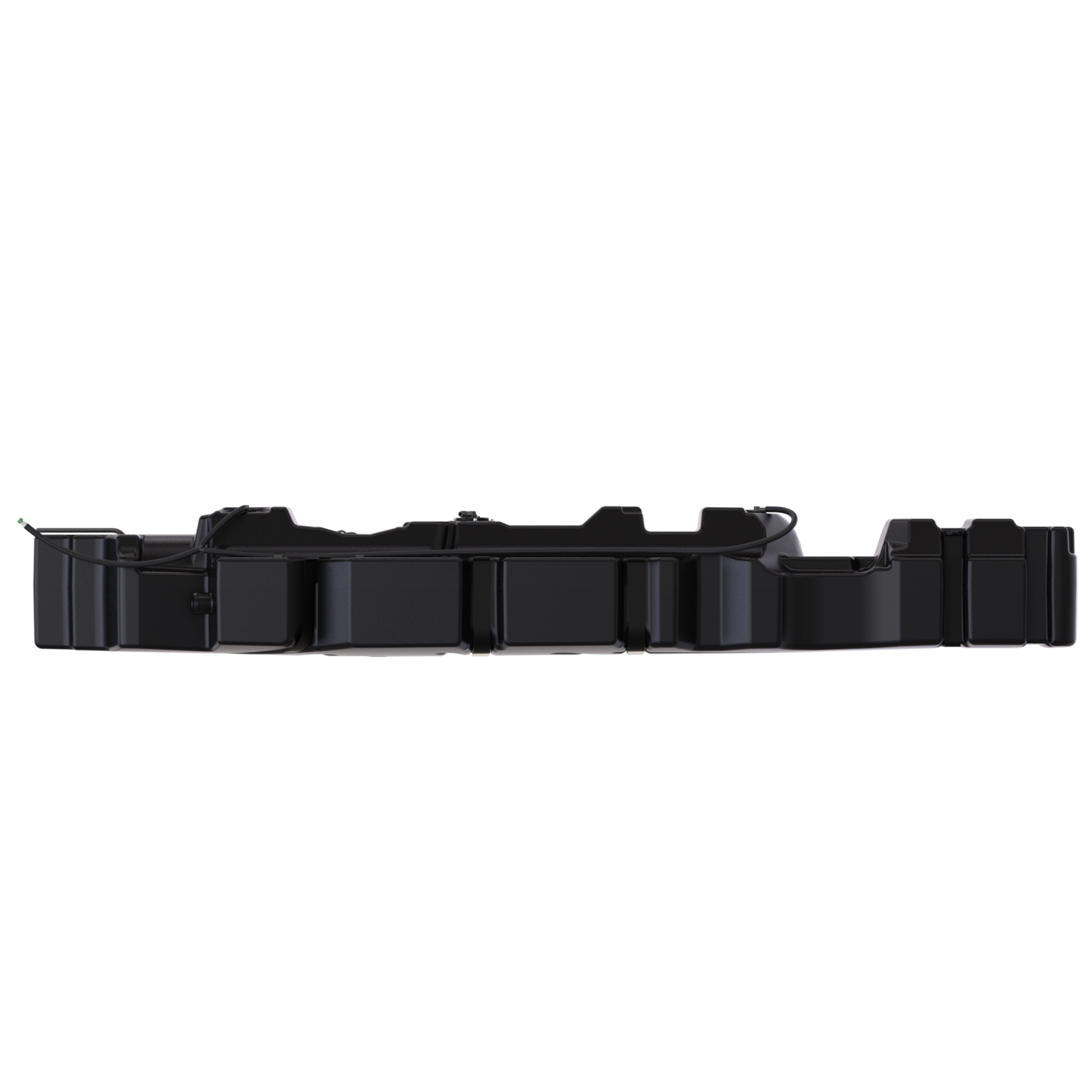

45 Gallon Replacement Fuel Tank for 2023-2024 Mercedes Sprinter 144" and 170" Wheelbase

$1,549.00 USD
10-1031

45 Gallon Replacement Fuel Tank for 2023-2024 Mercedes Sprinter 144" and 170" Wheelbase

$1,549.00 USD
This tank will NOT fit:
  • 144” Dually Vans
  • 170” Crew Vans (1 row of seats)

  • With plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.

  • Storyteller XO (accommodation coming soon)

Part # 10-1032 is a shorter 40 gallon tank and will work for 170" Crew Vans and vans with plumbing behind the tank

Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with your VIN, or consult with your installer to confirm if your van has J51.

When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Item is backordered, orders typically ship in two weeks.

Est. Delivery: ,
if ordered within hours and minutes
Not Shipping to ?
Dimensions 98.28" X 15.41" X 14.17"
Drain No
Ground clearance compare to oe tank 1.5"
Oem capacity 24 Gallons
Sending unit OE
Straps included Yes
Sump No
S&B Capacity (Approximate) 45 Gallons
Tank type Midship
Weight dry 45lbs
YearMakeModelEngine
2023-2024MercedesSprinter2.0L, Diesel
2023-2024StorytellerClassic Mode 4x43.0L, Diesel
2023-2024StorytellerStealth Mode 4x43.0L, Diesel
2023-2024StorytellerBeast Mode 4x43.0L, Diesel
2025WinnebagoEkko2.0L, Diesel
View Instructions

WARNING: This product can expose you to chemicals including carbon black, silica - crystalline, methylene chloride, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm.

MORE INFO at www.P65warnings.ca..gov
45 Gallon Replacement Fuel Tank for 2023-2024 Mercedes Sprinter 144" and 170" Wheelbase
$1,549.00 USD
$1,549.00 USD

PLUG AND PLAY INSTALLATION

The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with our 45 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward and rearward of the original tank and does not stick out anymore toward the driver side than the original tank.

YOUR FUEL GAUGE WORKS AS NORMAL.

Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. The gauge will stay on full for the first 5-7 gallons, but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (45 gallons) you will have 940 miles to empty but your vehicle will show you have 480 miles to empty.

BUILT TO LAST. BACKED BY A LIFETIME WARRANTY.

Made out of ¼” thick crosslink polyethylene, these tanks are built to last and are backed by our lifetime warranty.
