10-1024

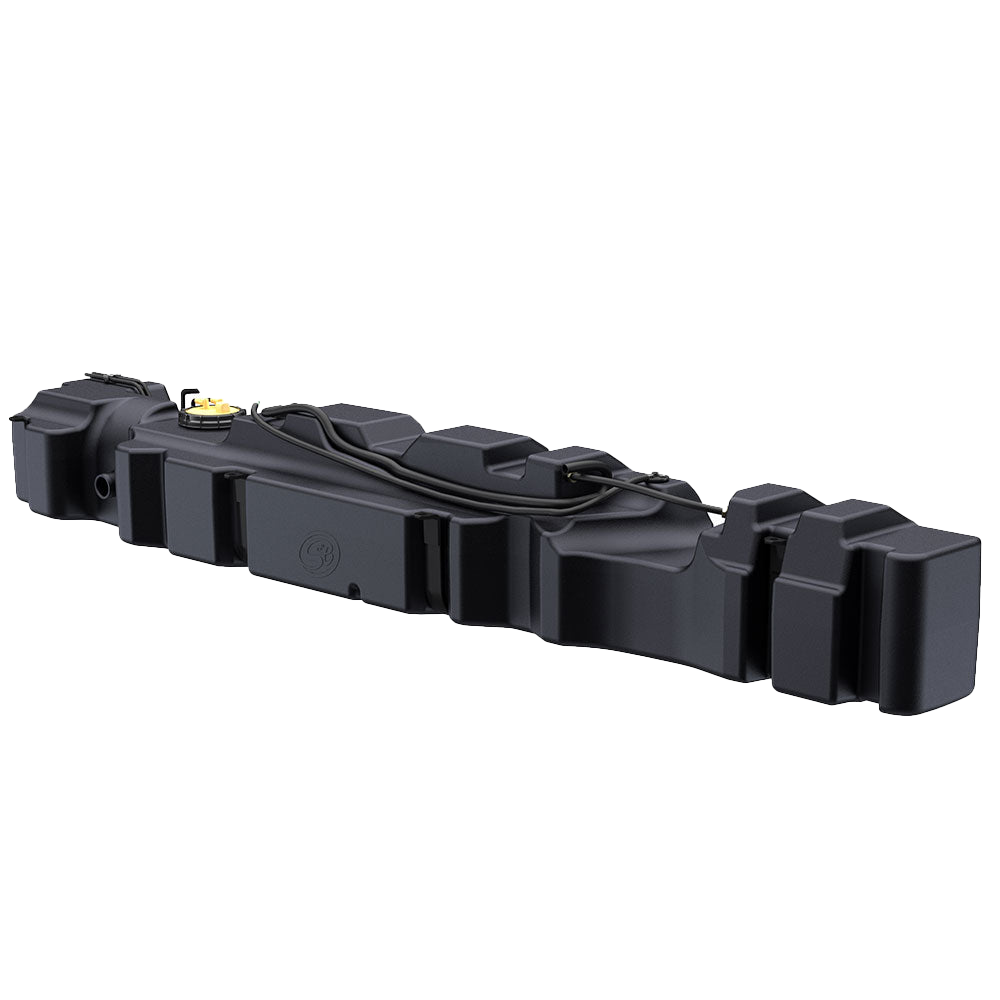

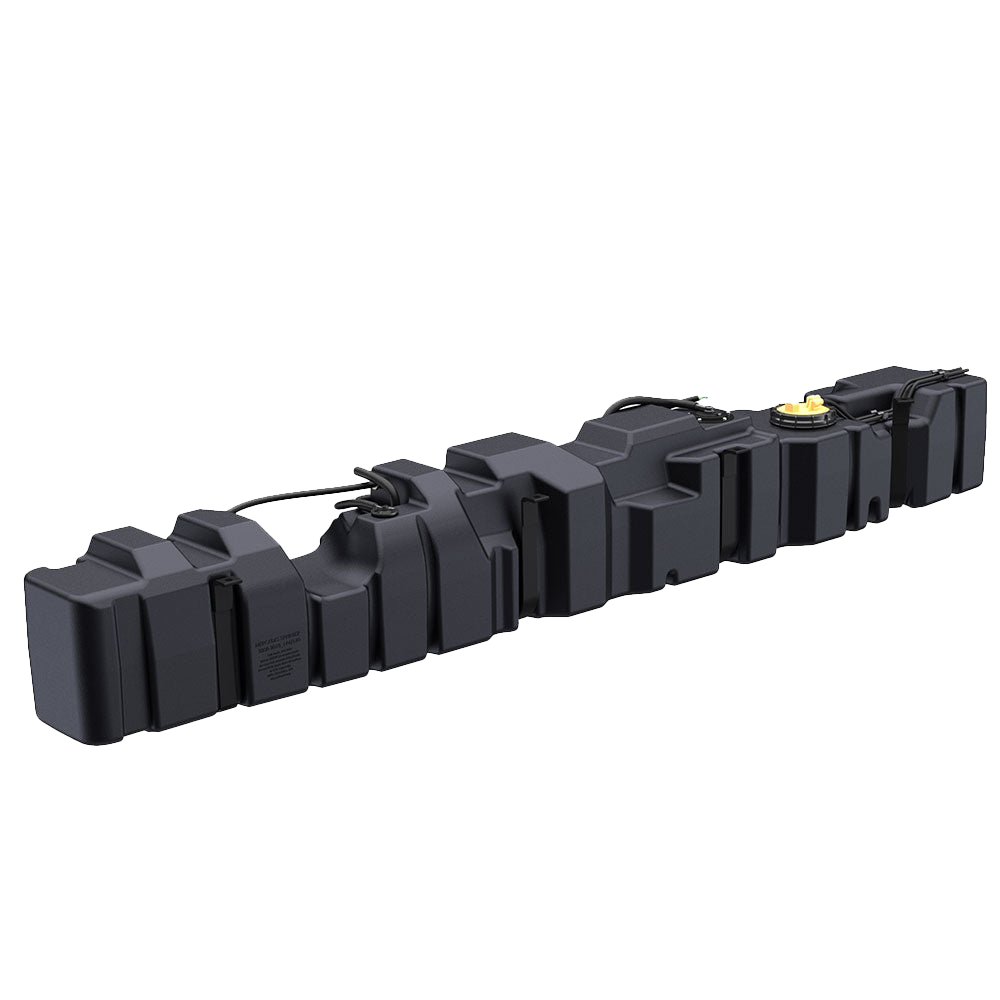

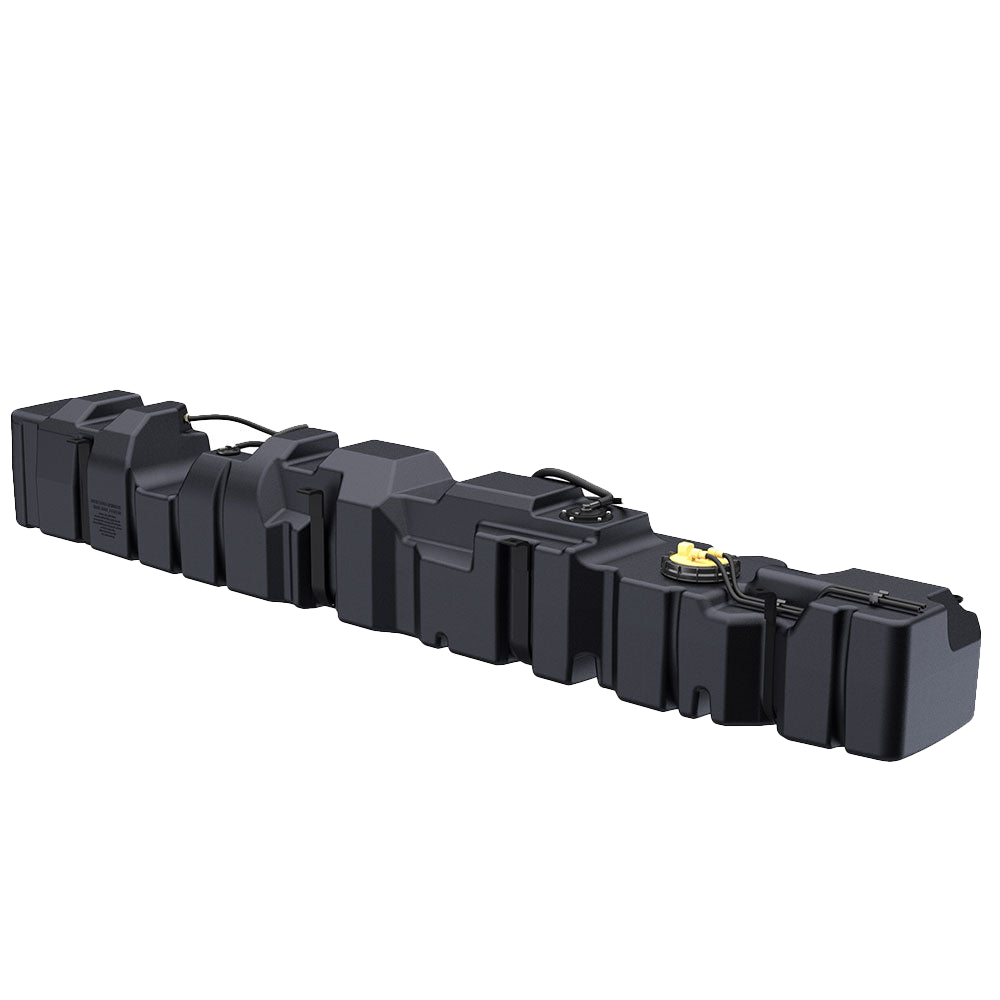

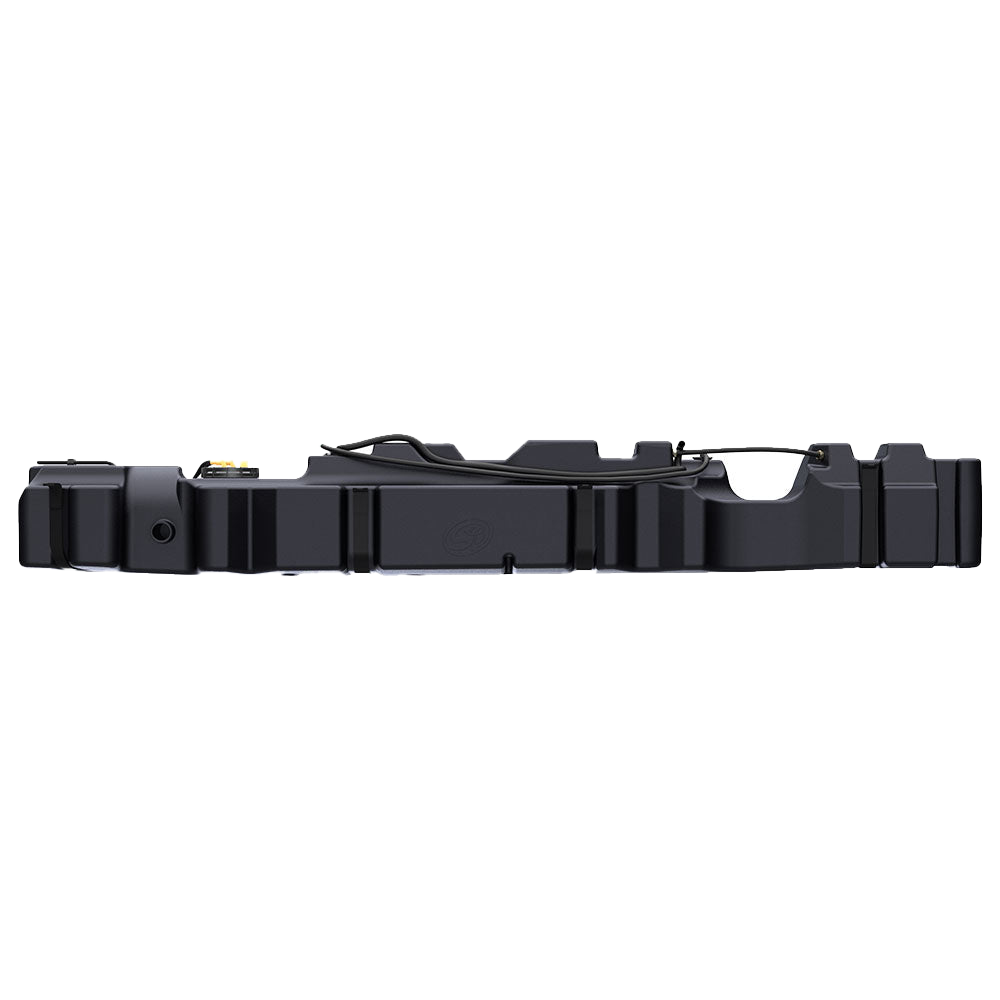

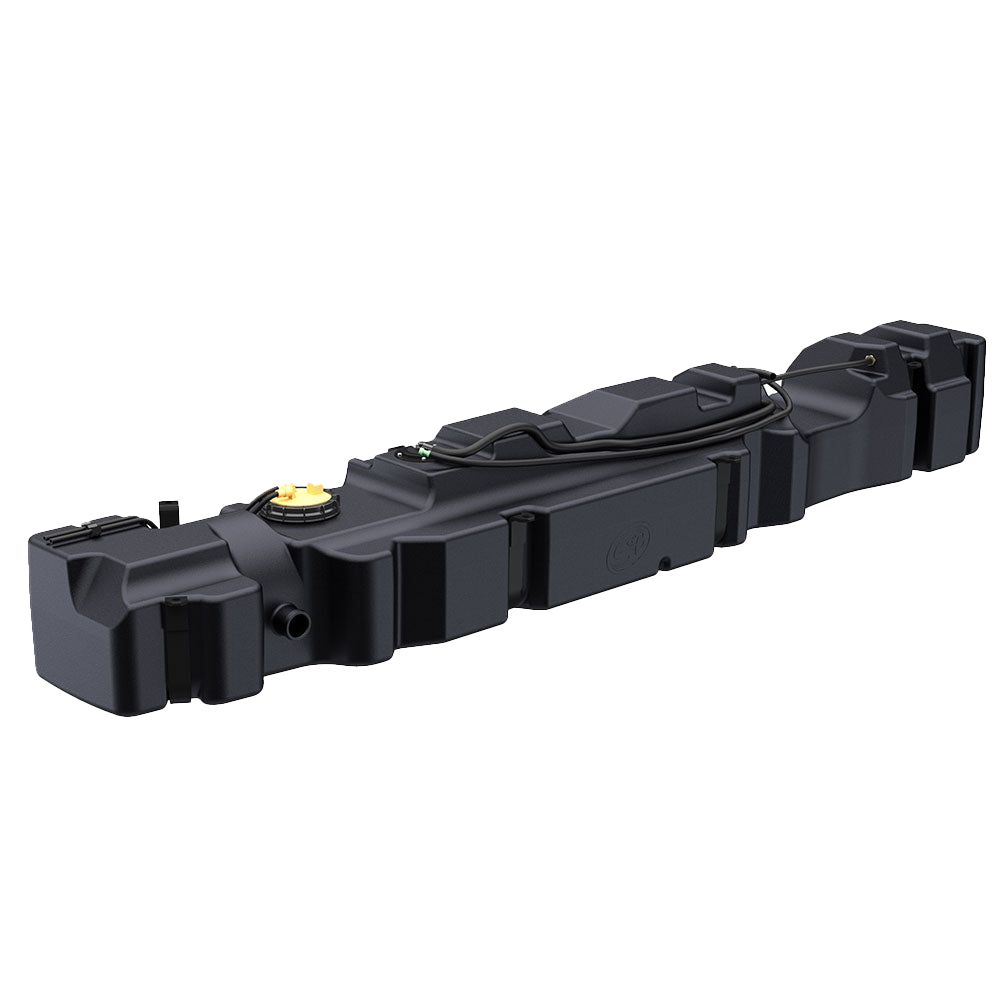

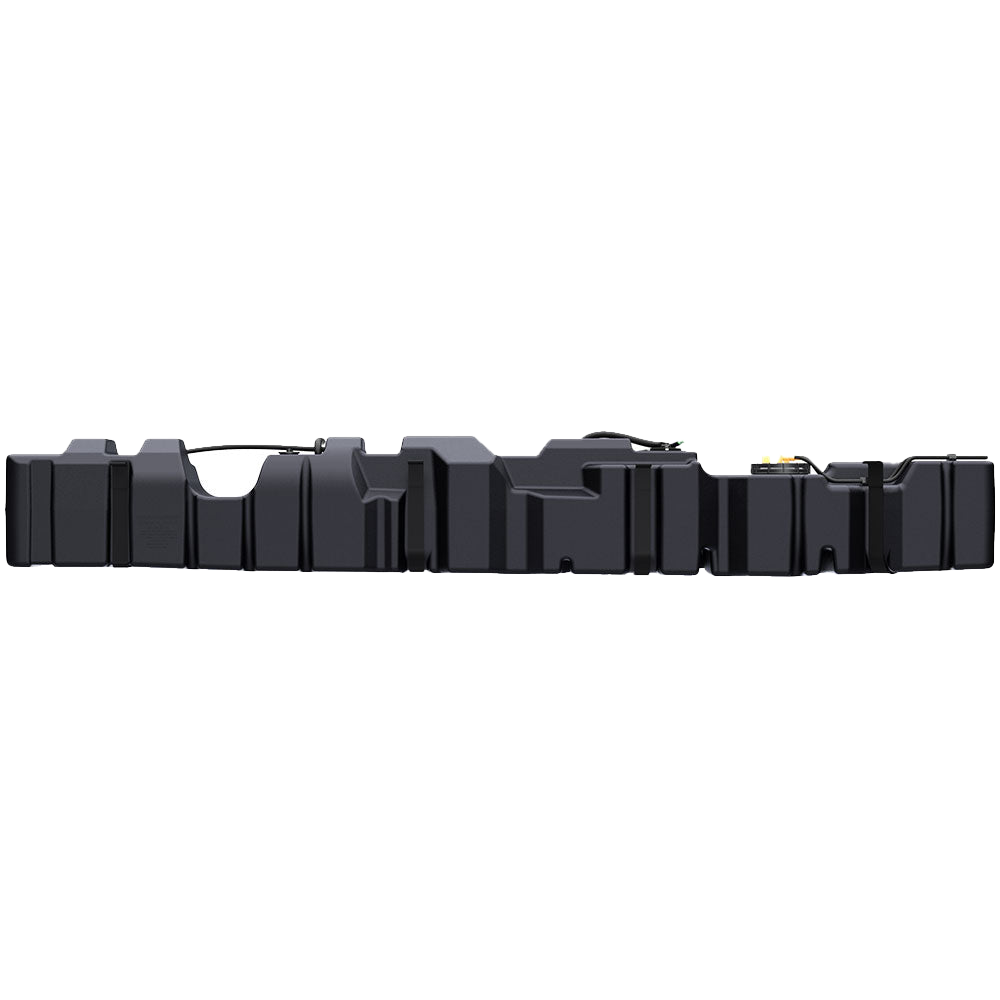

S&B 47 Gallon High-Capacity Fuel Tank for 2007-2018 Mercedes Sprinter 144" and 170" Wheelbase

$1,599.00 USD
10-1024

S&B 47 Gallon High-Capacity Fuel Tank for 2007-2018 Mercedes Sprinter 144" and 170" Wheelbase

$1,599.00 USD

This tank will NOT fit 170" Crew Vans or 144" Dually Vans, part # 10-1026 will work for the 170" Crew Vans and 144" Dually Vans. This tank will also not work with 144" vans that have ride height sensors connected to the rear axle, please see important note C on the instructions.

Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.

Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call your Mercedes dealer to confirm if you have this option.
Free Delivery ,
if ordered within hours and minutes
Shipping to
In Stock!

Frequently bought together

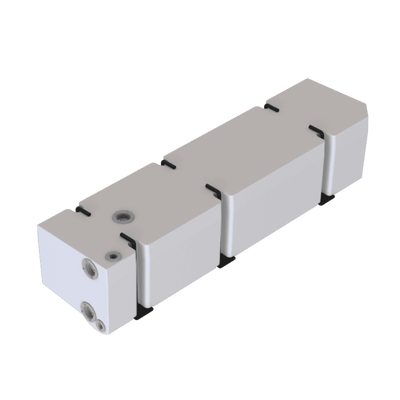

22 Gallon Driver Side Undercarriage Fresh Water Tank 2007-2026 Mercedes Sprinter 144" & 170" Wheelbase $349.00 Learn More

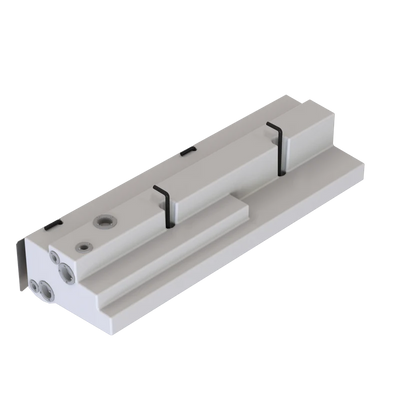

16 Gallon Passenger Side Undercarriage Fresh Water Tank 07-26 Mercedes Sprinter 144" & 170" $349.00 Learn More
Dimensions 98.28" X 15.41" X 14.28"
Drain No
Ground clearance compare to oe tank 1.5"
Oem capacity 24 Gallons
Sending unit OE
Straps included Yes
Sump No
S&B Capacity (Approximate) 47 Gallons
Tank type Midship
Weight dry 45lbs
YearMakeModelEngine
2007-2018MercedesSprinter3.0L, Diesel
20014-2017MercedesSprinter2.1L, Diesel
2009-2019CoachmenPrism3.0L, Diesel
2010-2018Forest RiverSolera3.0L, Diesel
View Instructions

WARNING: This product can expose you to chemicals including carbon black, silica - crystalline, methylene chloride, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm.

MORE INFO at www.P65warnings.ca..gov
S&B 47 Gallon High-Capacity Fuel Tank for 2007-2018 Mercedes Sprinter 144" and 170" Wheelbase
$1,599.00 USD
$1,599.00 USD

PLUG AND PLAY INSTALLATION

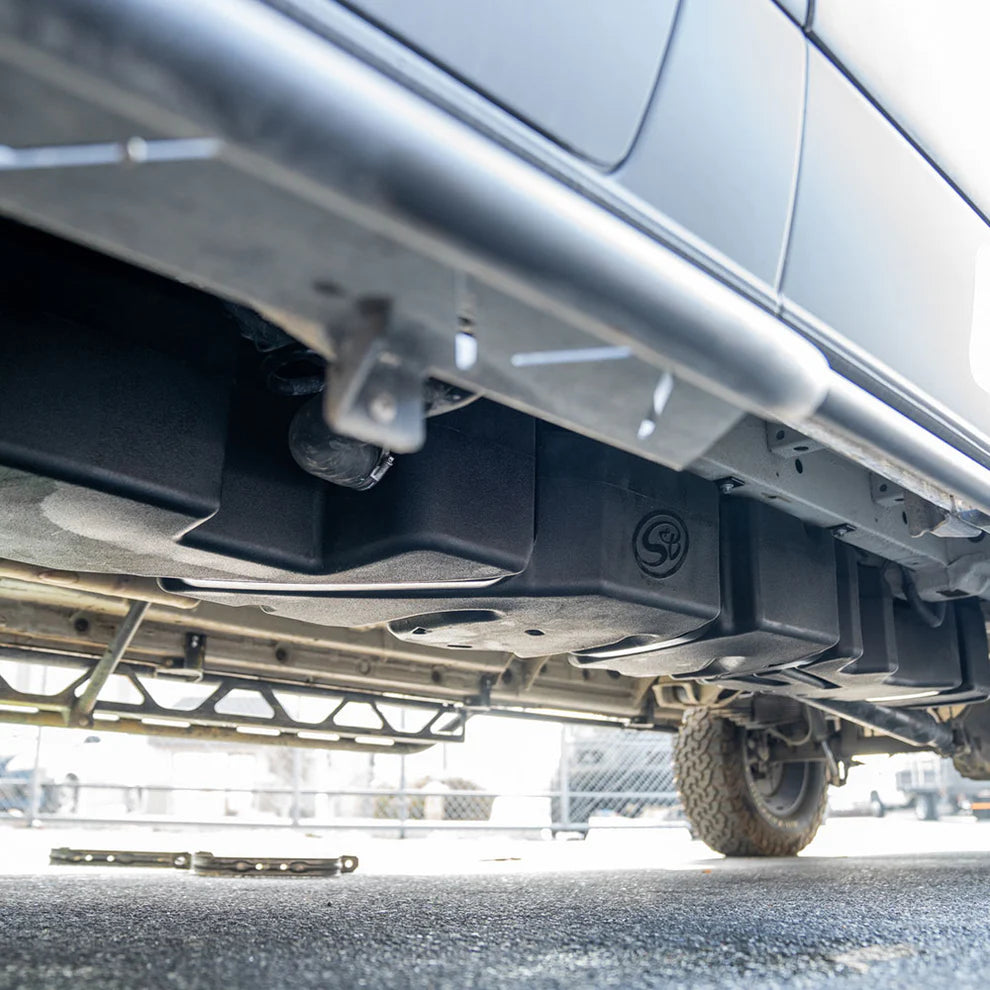

The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with our 47 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward (2.4 inches) and rearward (32.5 inches) of the original tank.

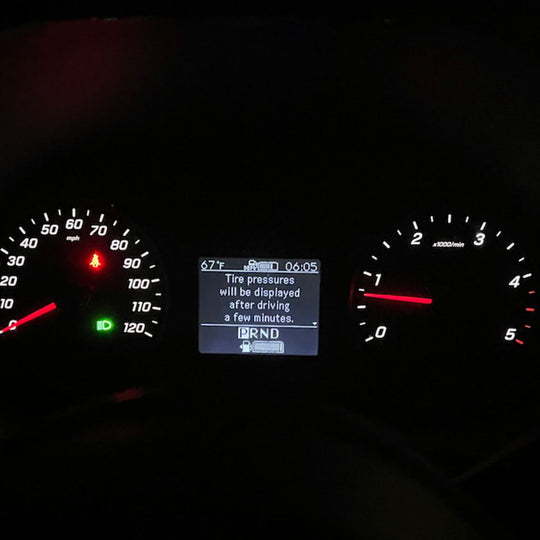

YOUR FUEL GAUGE WORKS AS NORMAL.

Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design.The guage will stay on full for the first 5-7 gallons, but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (47 gallons) you will have 940 miles to empty but your vehicle will show you have 480 miles to empty.

BUILT TO LAST. BACKED BY A LIFETIME WARRANTY.

Made out of ¼” thick crosslink polyethylene, these tanks are built to last and are backed by our lifetime warranty.

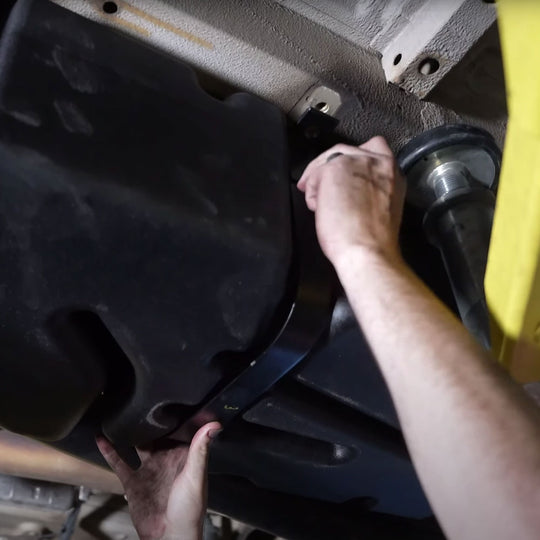

WATCH THE INSTALLATION VIDEO.

Planning on installing your S&B replacement tank yourself? Check out our step by step installation video and we'll walk you through the complete process.
