10-3009

16 Gallon Passenger Side Undercarriage Fresh Water Tank 07-24 Mercedes Sprinter 144" & 170"

Sale price
$299.00 USD
Regular price
Unit price  per
10-3009

16 Gallon Passenger Side Undercarriage Fresh Water Tank 07-24 Mercedes Sprinter 144" & 170"

Sale price
$299.00 USD
Regular price
Unit price  per

Tank Dimensions:
45.33" Length x 15.5" Width x 8.31" Height

Tank is confirmed to fit with Owl Side Steps. Will not work with AMP steps. There is .8" between the tank and body. (where the side steps mount)

If you have a question on whether it will fit with your side steps, please text pictures to 909.675.1313.

Please confirm you have inboard holes for hangers before ordering. This tank will not fit gas vans or vans with a DEF tank mounted under the van or amp steps.

TEI Tested & Listed / RVIA Approved.



Item is backordered. Orders typically ship in two weeks

Est. Delivery: ,
if ordered within hours and minutes
Not Shipping to ?
Kus level sensor height 6"
Kus level sensor part number S5U-6
Straps included YES
S&B Capacity (Approximate) 16
Tank type Passenger side undercarriage
Tei listed YES
Weight dry 20 LBS
YearMakeModelEngine
2007-2024MercedesSprinter2.0L, Diesel
2007-2024MercedesSprinter3.0L, Diesel
2007-2024MercedesSprinter2.0L, Diesel
2007-2024MercedesSprinter3.0L, Diesel

WARNING: This product can expose you to chemicals including carbon black, silica - crystalline, methylene chloride, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm.

MORE INFO at www.P65warnings.ca..gov
16 Gallon Passenger Side Undercarriage Fresh Water Tank 07-24 Mercedes Sprinter 144" & 170"
Sale price
$299.00 USD
Regular price
Unit price  per
Sale price
$299.00 USD
Regular price
Unit price  per

16 GALLON PASSENGER SIDE UNDERCARRAIGE FRESH WATER TANK

The S&B 16-gallon passenger side undercarriage fresh water tank is made from food-grade safe, BPA-free polyethylene plastic and is TEI listed. Our tanks are perfect for your home build or build needing RVIA certification. We make our tanks in-house and pressure test every tank.

splide tile

PRODUCT OVERVIEW VIDEO

Check out the video overview detailing the installation process and features and benefits for the S&B 16 Gallon water tank for the Mercedes Sprinter.

splide tile


KUS LEVEL SENSOR INSTALLATION VIDEO

Watch our step by step installation process for the KUS level sensor.

splide tile

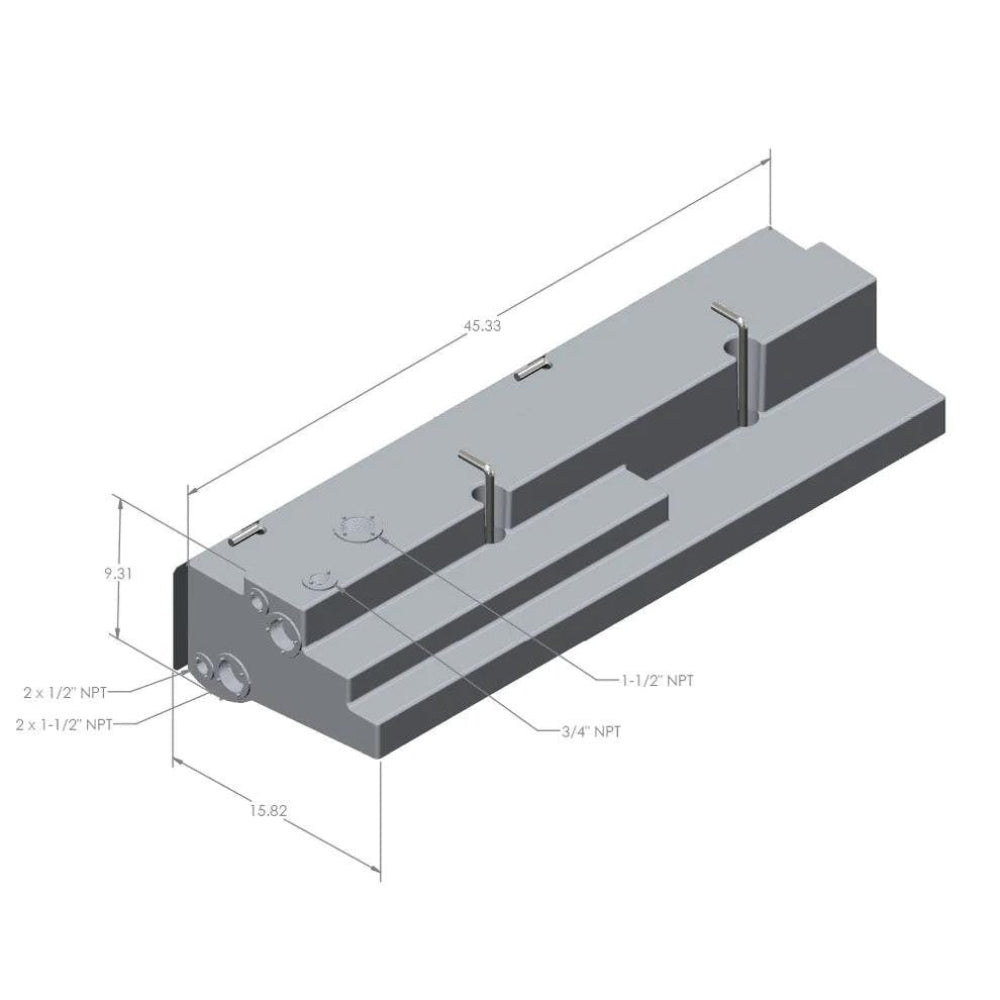

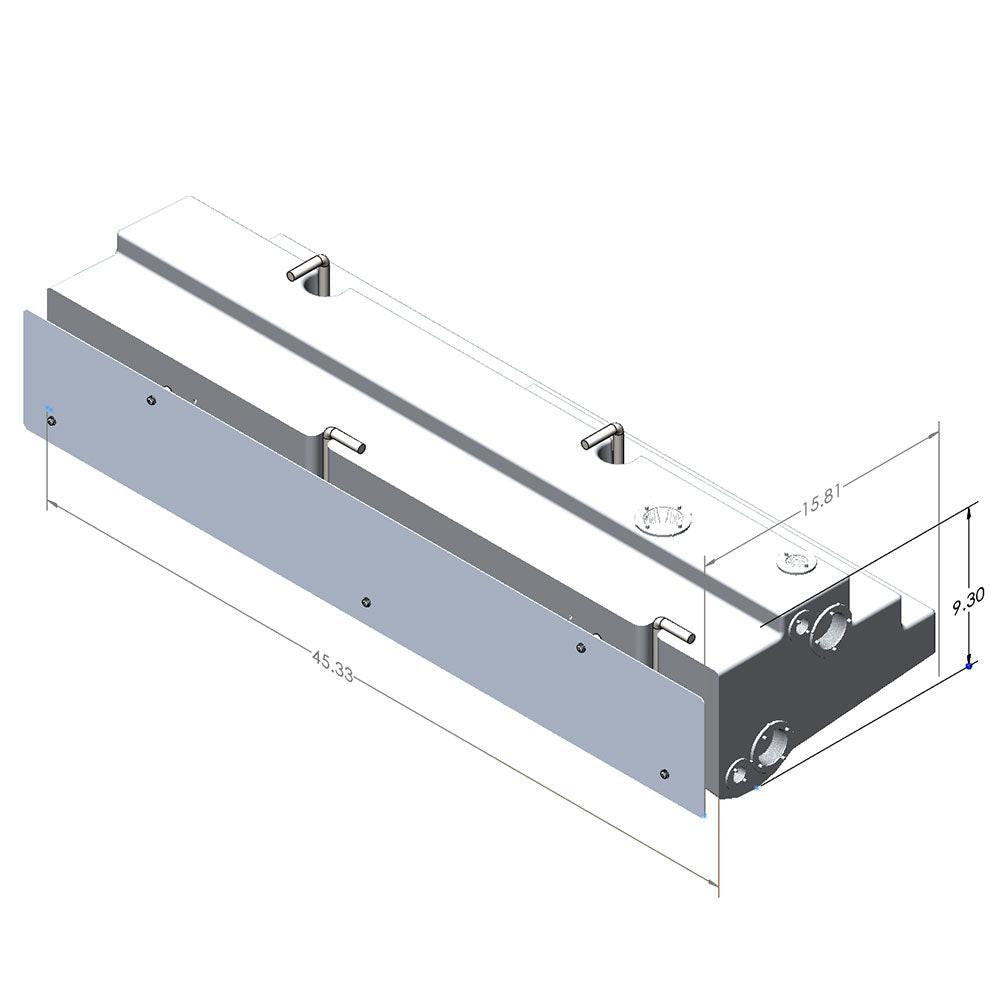

Dimensions

splide tile

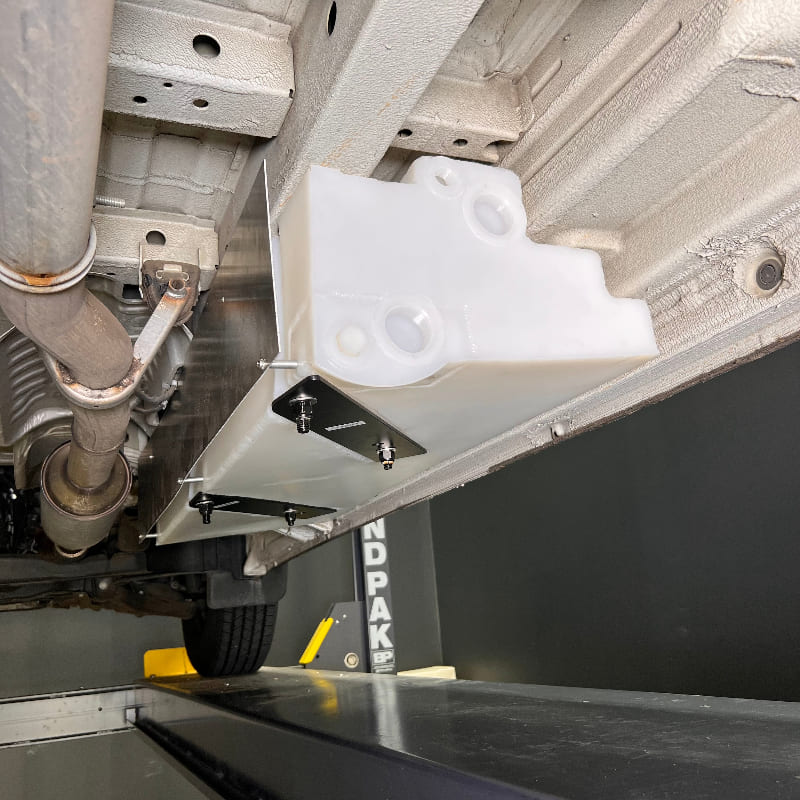

S&B Tanks Installed.

All 3 S&B water tanks install in this picture from the underside of the van looking towards the rear.

splide tile
