10-1032

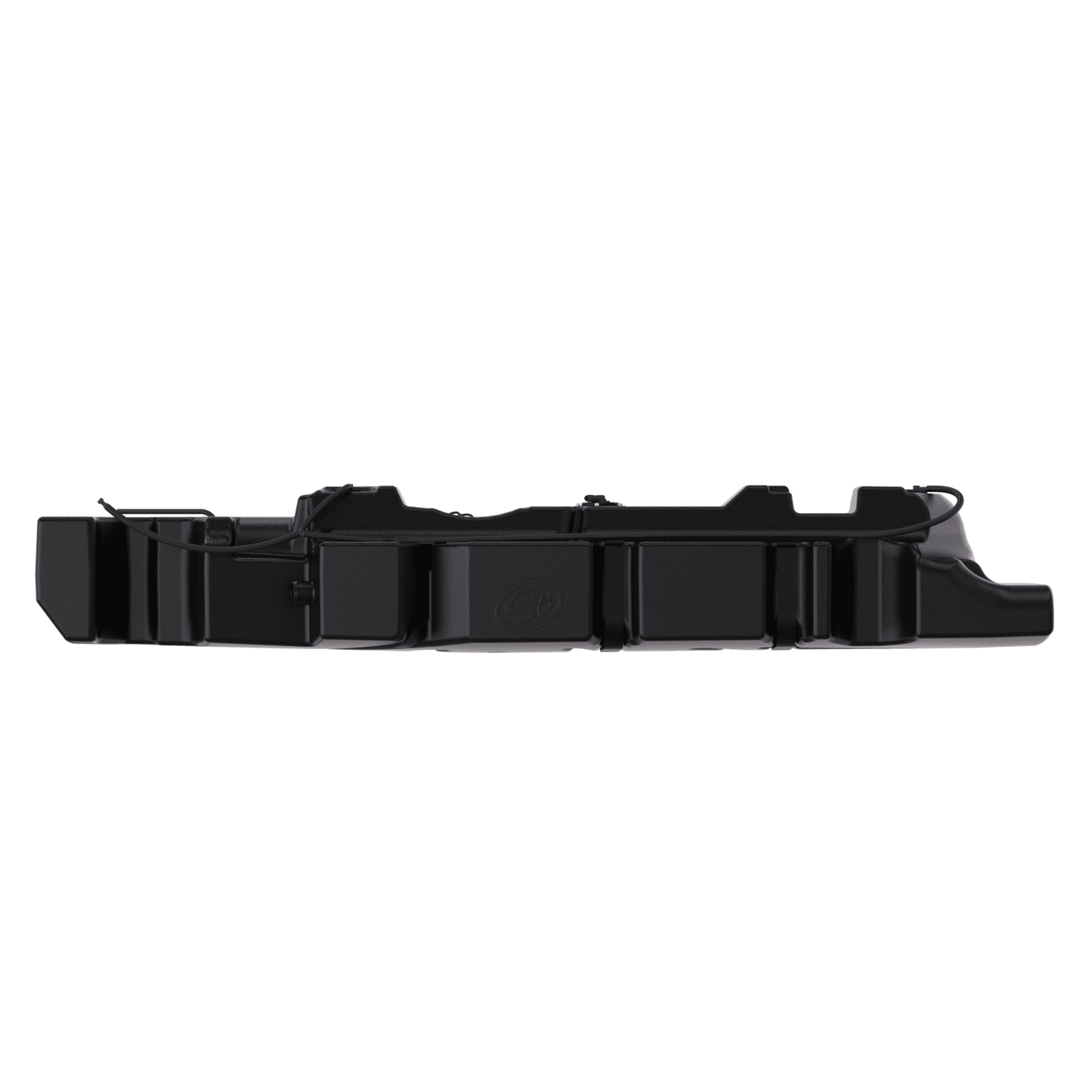

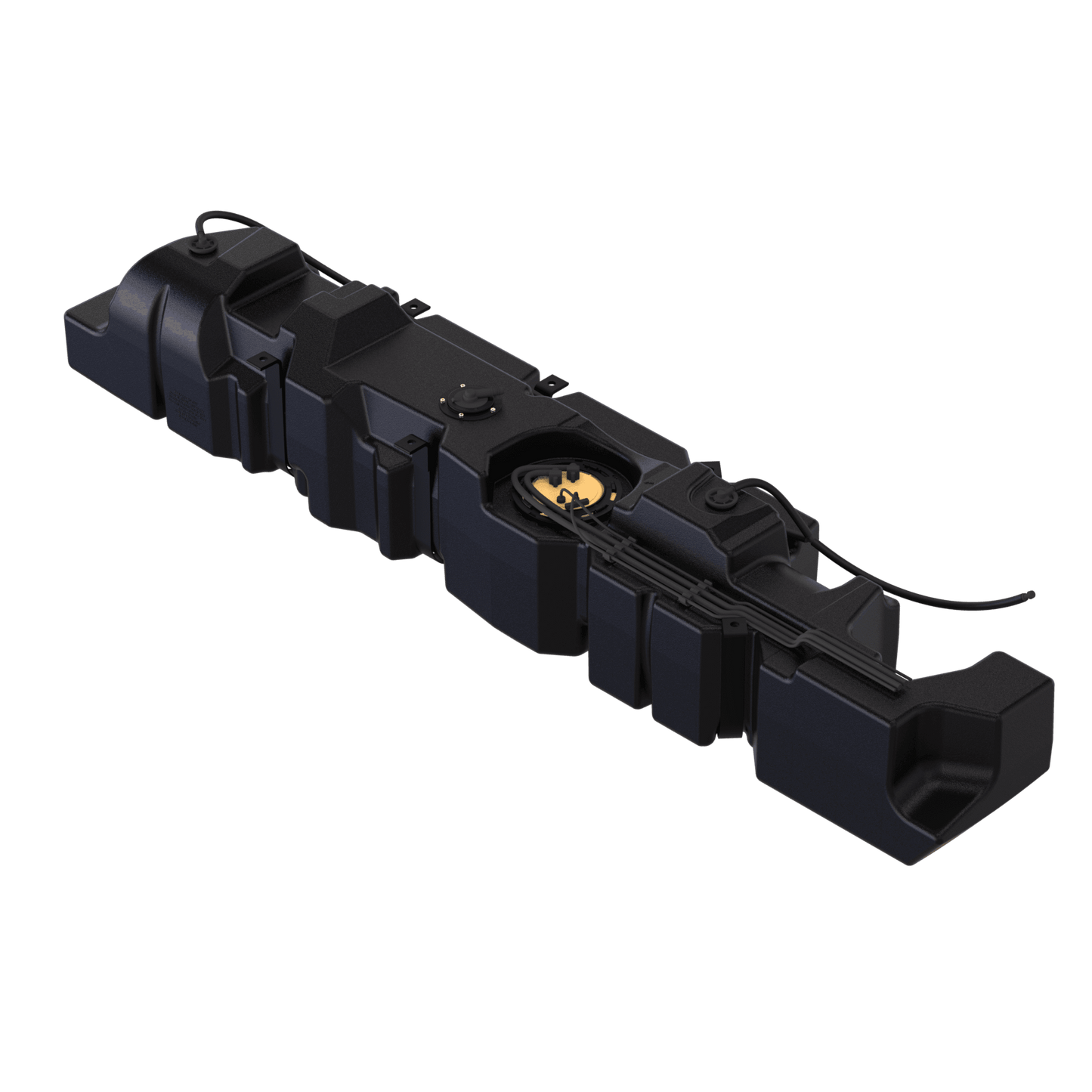

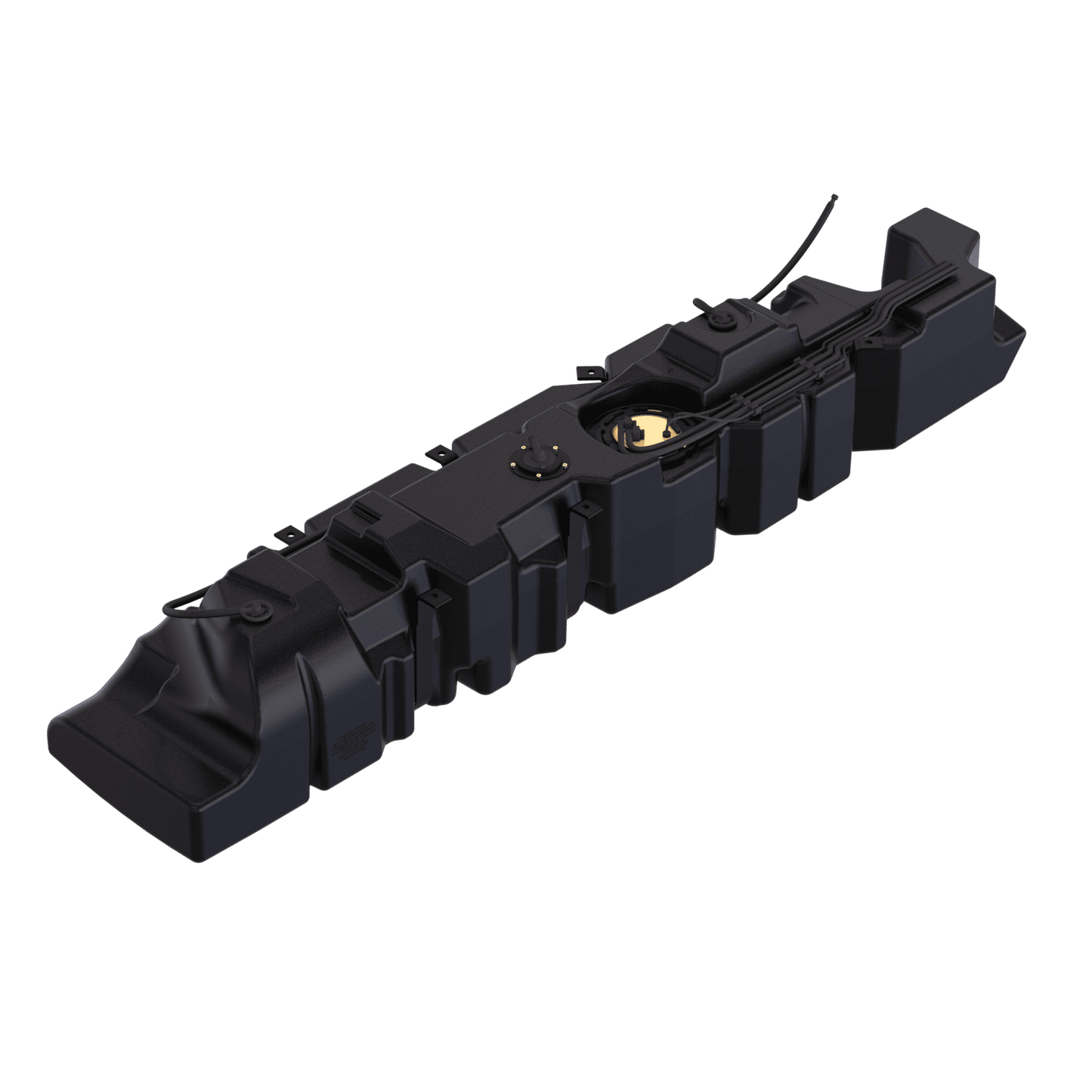

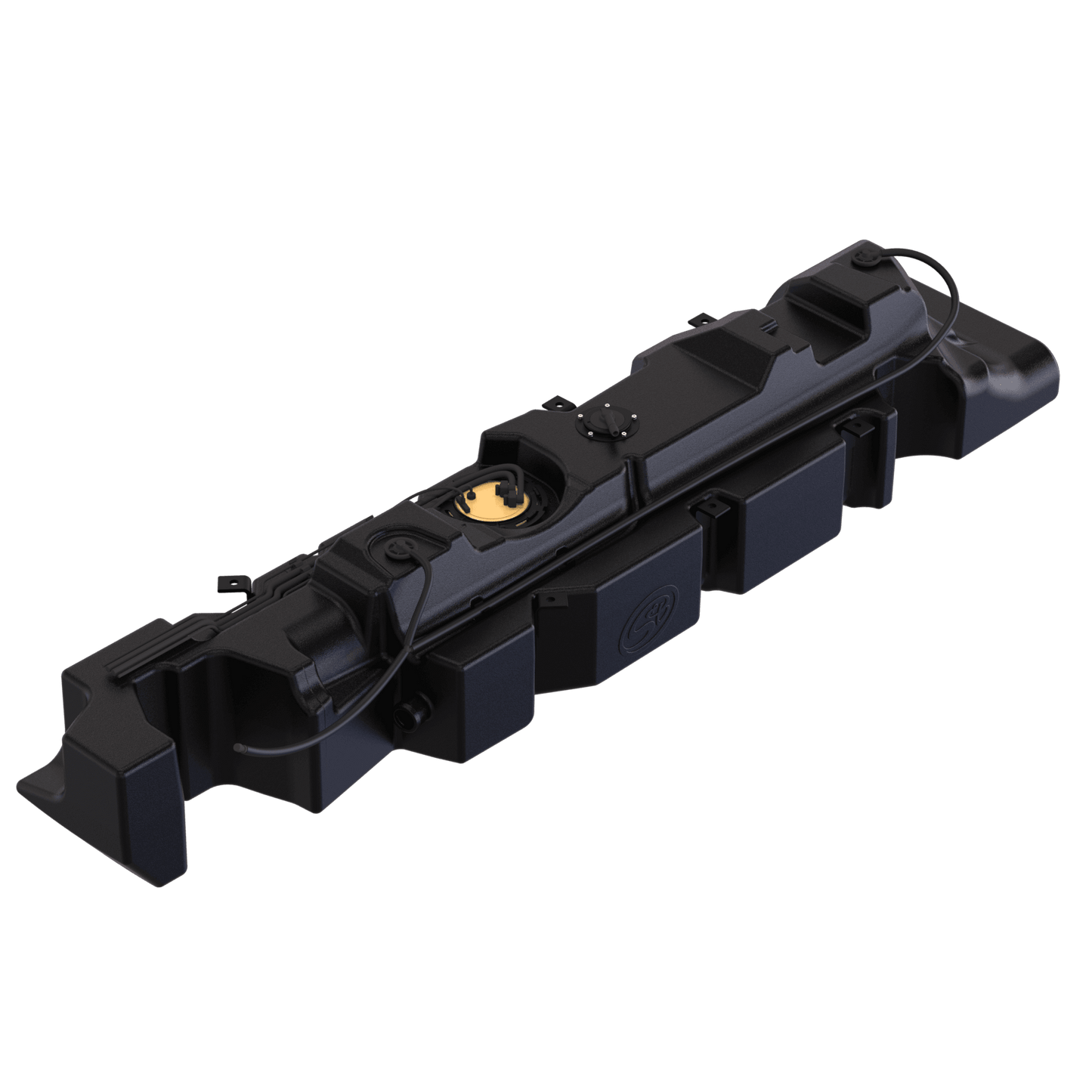

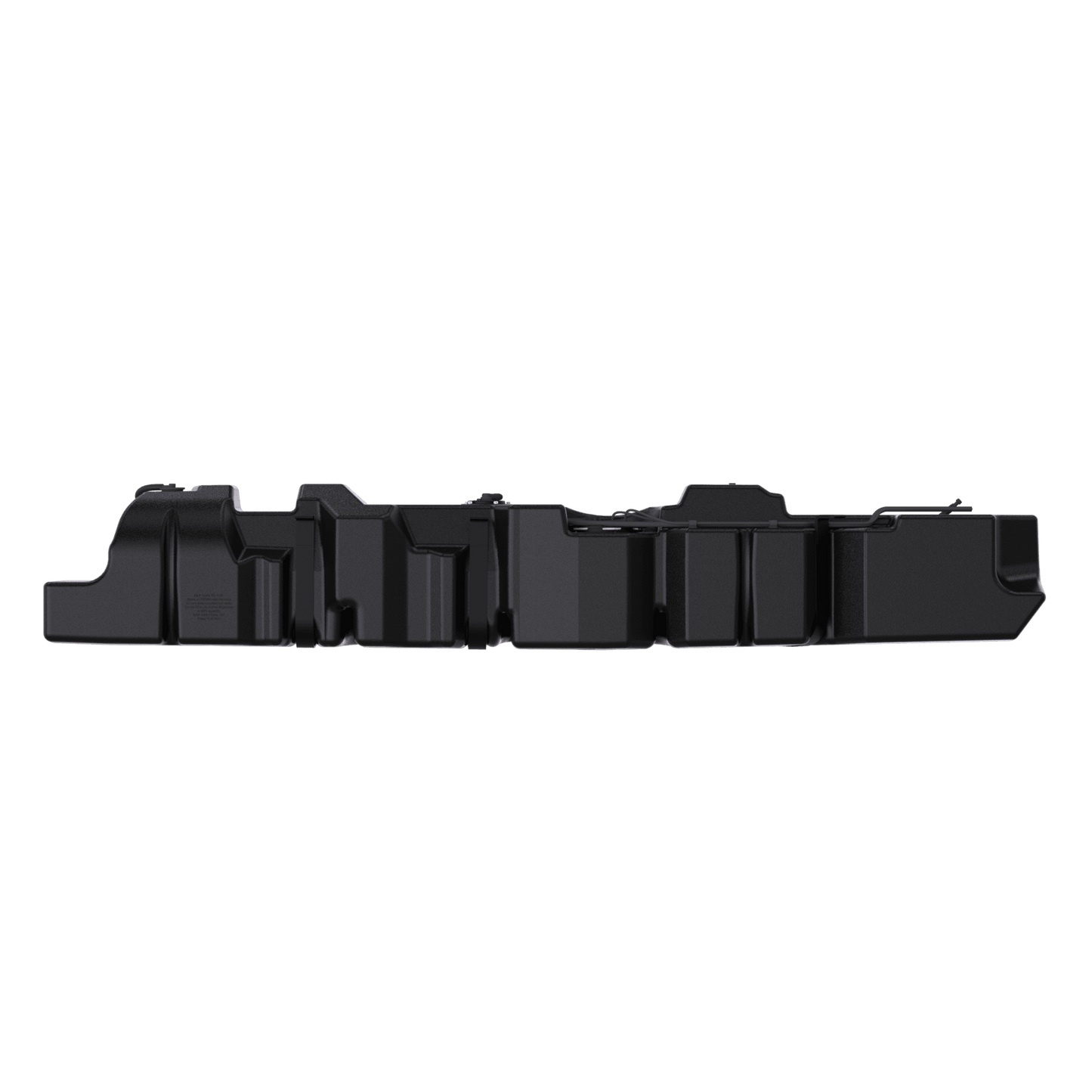

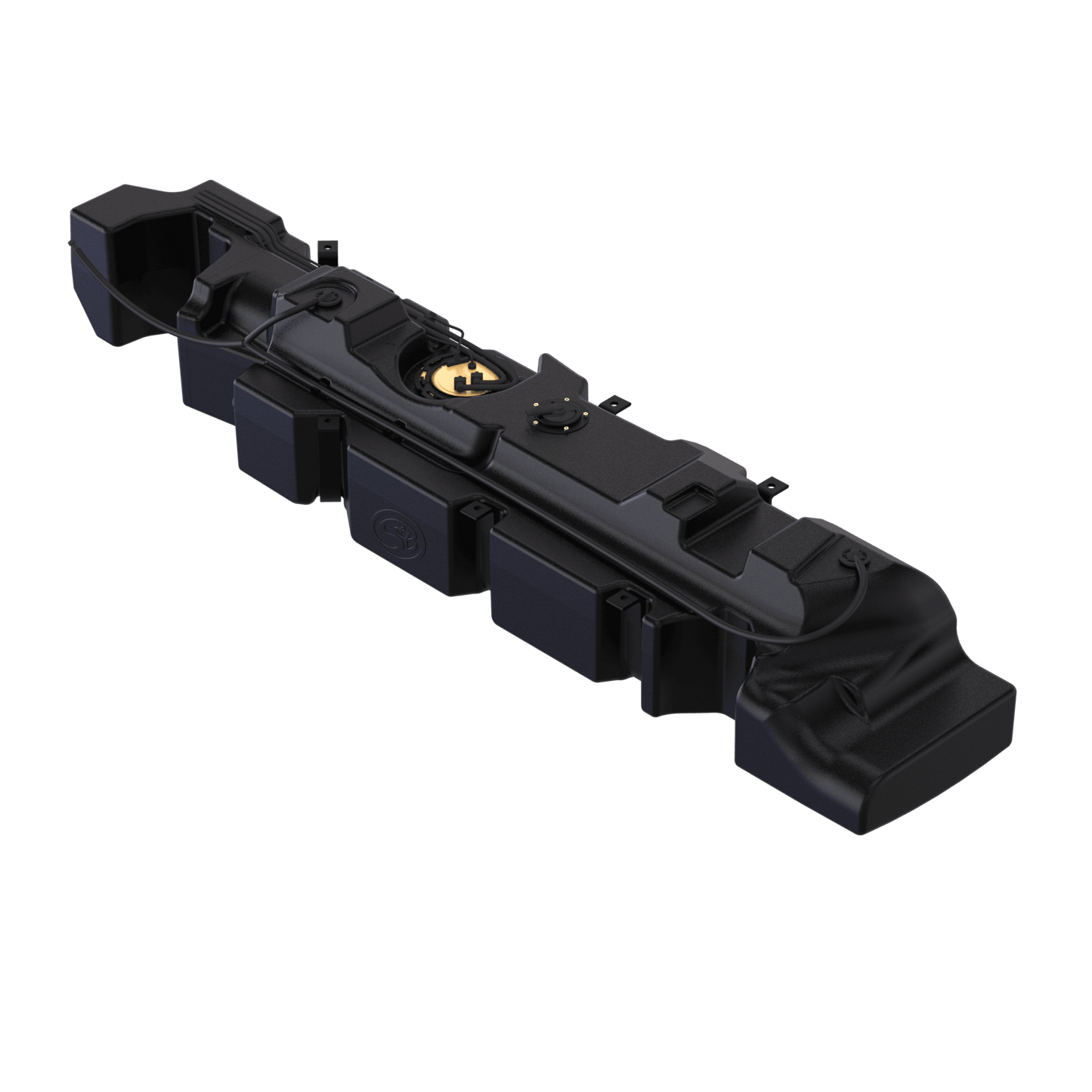

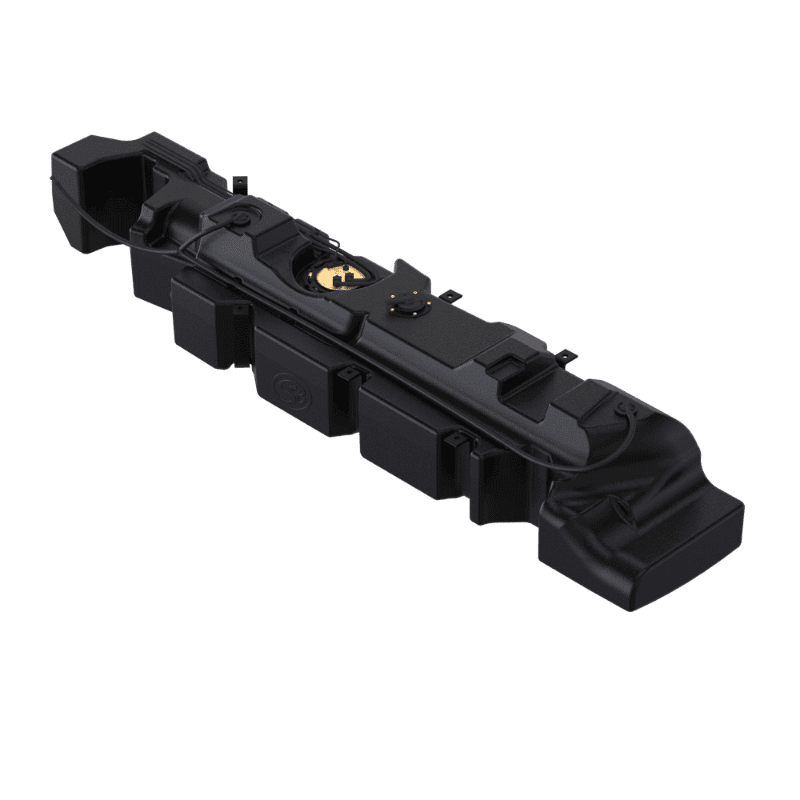

40 Gallon Replacement Fuel Tank for 2025 WINNEBAGO REVEL (AWD CHASSIS) 2.0L, DIESEL and more.

$1,549.00 USD
10-1032

40 Gallon Replacement Fuel Tank for 2025 WINNEBAGO REVEL (AWD CHASSIS) 2.0L, DIESEL and more.

$1,549.00 USD

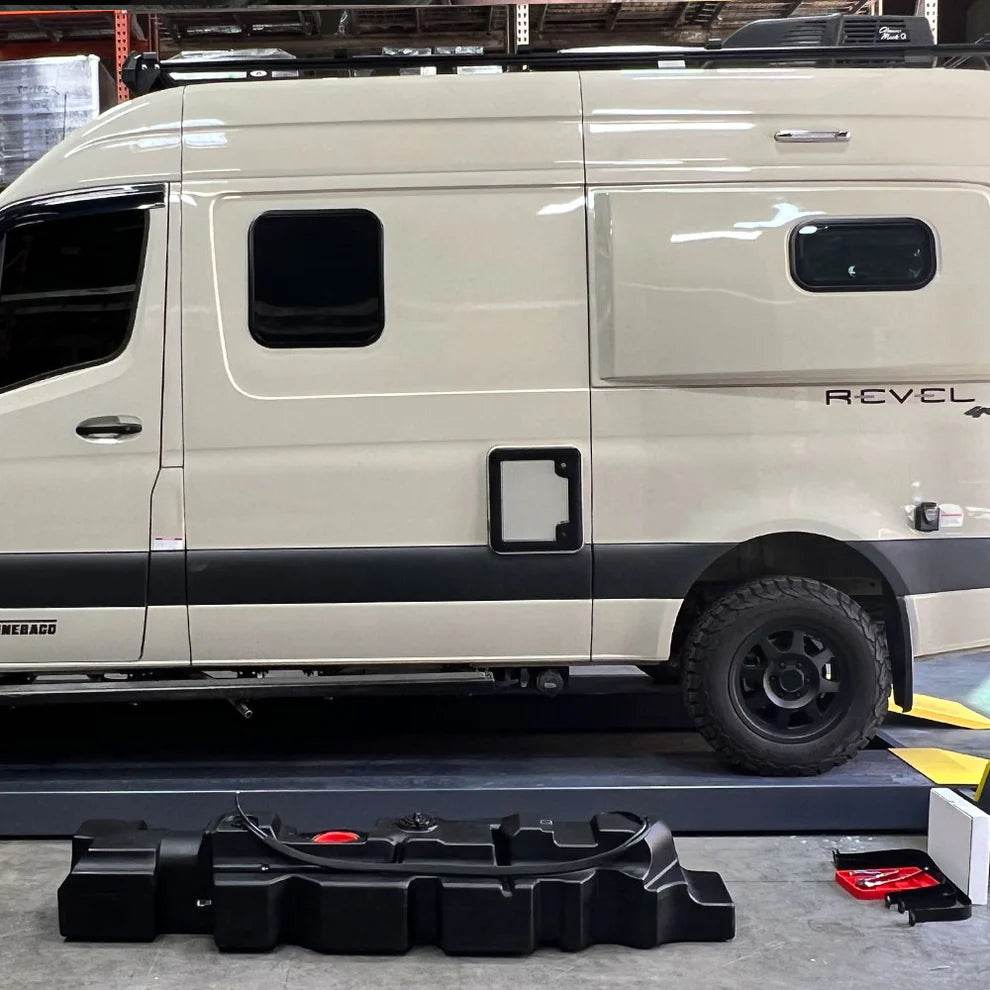

The S&B Tank for AWD vans fits 170" Crew, Sanctuary, Tranquility, Entegra Launch, Jayco Terrain, 2025+ Revels and any builds that have plumbing or interference behind the original fuel tank. Click here for more info.

When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.

Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). All 2020+ Revels should have been built with this option but please confirm by sending us your vin or consulting with your installer.

Note: Will not fit 144" Dually.
In Stock!

Est. Delivery: ,
if ordered within hours and minutes
Not Shipping to ?
Dimensions 79.91 x 15.94 x 14.18
Drain No
Ground clearance compare to oe tank 1.5"
Oem capacity 24 Gallons
Sending unit OE
Straps included Yes
Sump No
S&B Capacity (Approximate) 40 Gallons
Tank type Midship
Weight dry 37lbs
YearMakeModelEngine
2025WinnebagoRevel (AWD Chassis)2.0L, Diesel
2023-2024MercedesSprinter2.0L, Diesel
2024JaycoTerrain2.0L, Diesel
2024EntegraLaunch2.0L, Diesel
View Instructions

WARNING: This product can expose you to chemicals including carbon black, silica - crystalline, methylene chloride, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm.

MORE INFO at www.P65warnings.ca..gov
40 Gallon Replacement Fuel Tank for 2025 WINNEBAGO REVEL (AWD CHASSIS) 2.0L, DIESEL and more.
$1,549.00 USD
$1,549.00 USD

PLUG AND PLAY INSTALLATION.

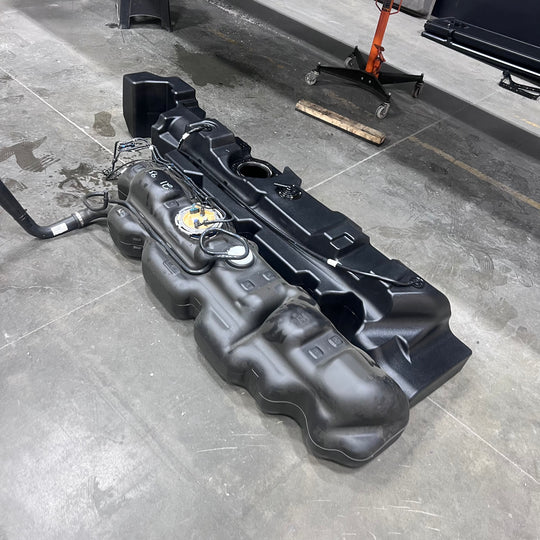

The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with our 40 gallon tank. The tank mounts in the stock location using the included straps. The tank occupies the space in between the OEM tank to transfer case and rearward (5.2 inches) of the original tank.

YOUR FUEL GAUGE WORKS AS NORMAL.

Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. The gauge will stay on full for the first 5-7 gallons, but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (47 gallons) you will have 940 miles to empty but your vehicle will show you have 480 miles to empty.

How the gauge works video.

BUILT TO LAST. BACKED BY A LIFETIME WARRANTY.

Made out of ¼” thick crosslink polyethylene, these tanks are built to last and are backed by our lifetime warranty.

WATCH THE INSTALLATION VIDEO.

Planning on installing your S&B replacement tank yourself? Check out our step by step installation video and we'll walk you through the complete process.
