10-1003

S&B 70 Gallon High-Capacity Fuel Tank for 2011-2016 Ford F-250 / F-350 / F-450, 6.7L Powerstroke, Crew Cab, Long Bed

$1,449.00 USD
10-1003

S&B 70 Gallon High-Capacity Fuel Tank for 2011-2016 Ford F-250 / F-350 / F-450, 6.7L Powerstroke, Crew Cab, Long Bed

$1,449.00 USD

Important Notes: The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically.

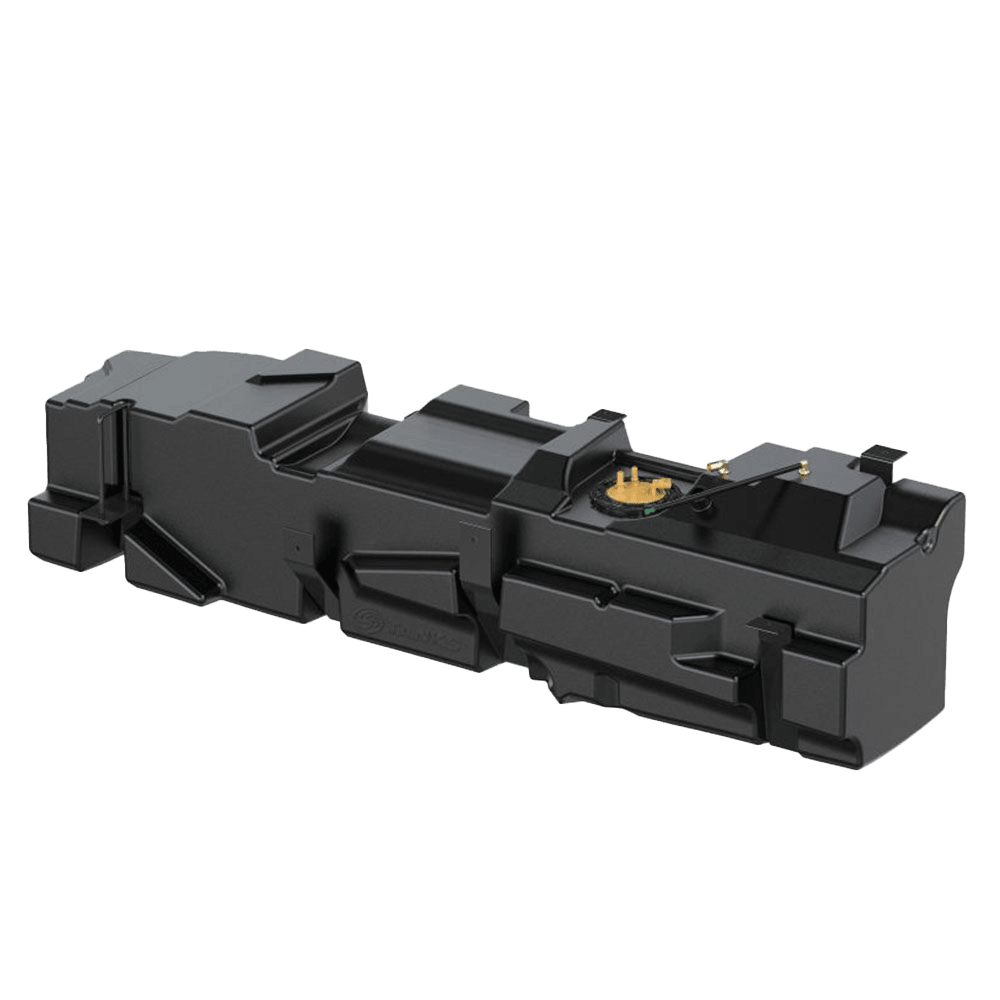

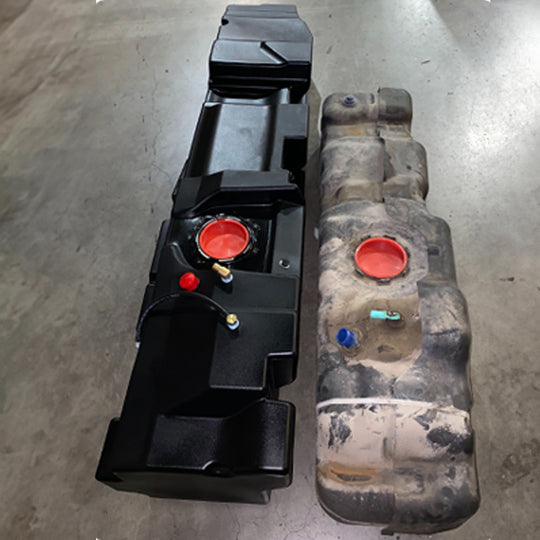

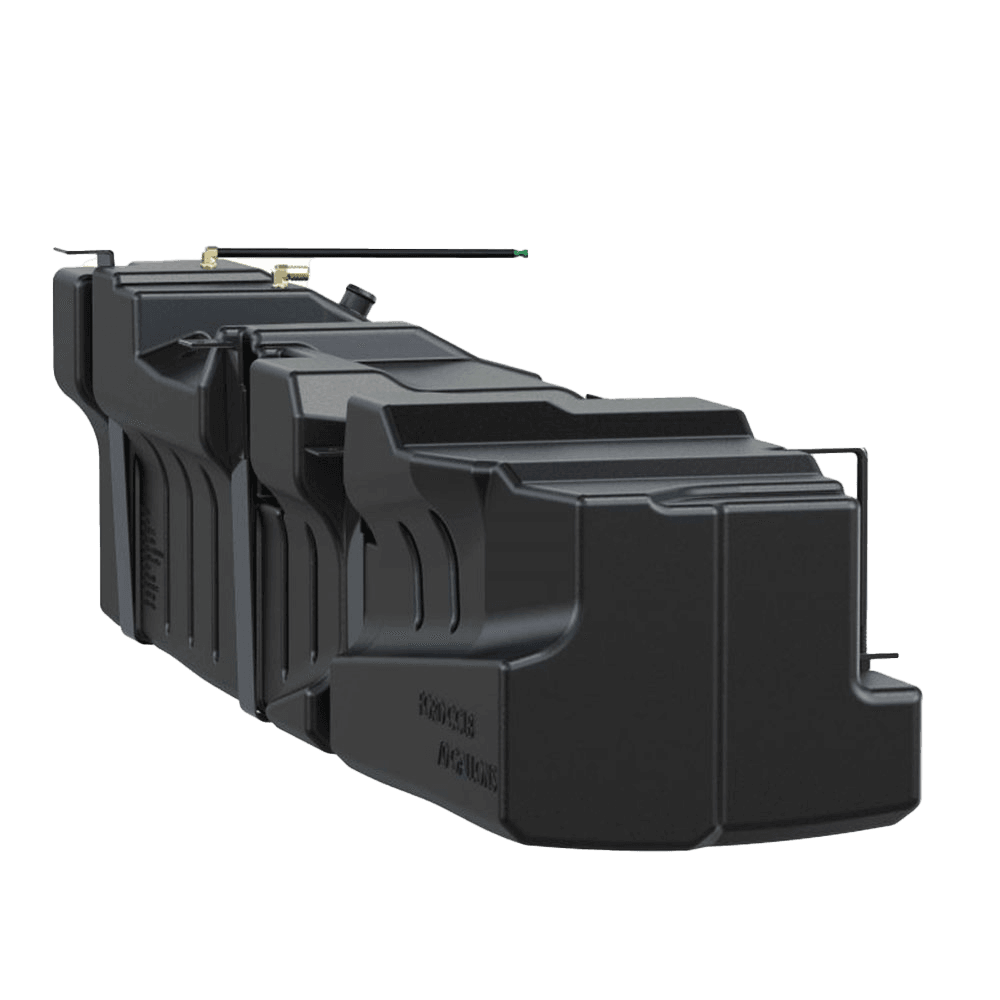

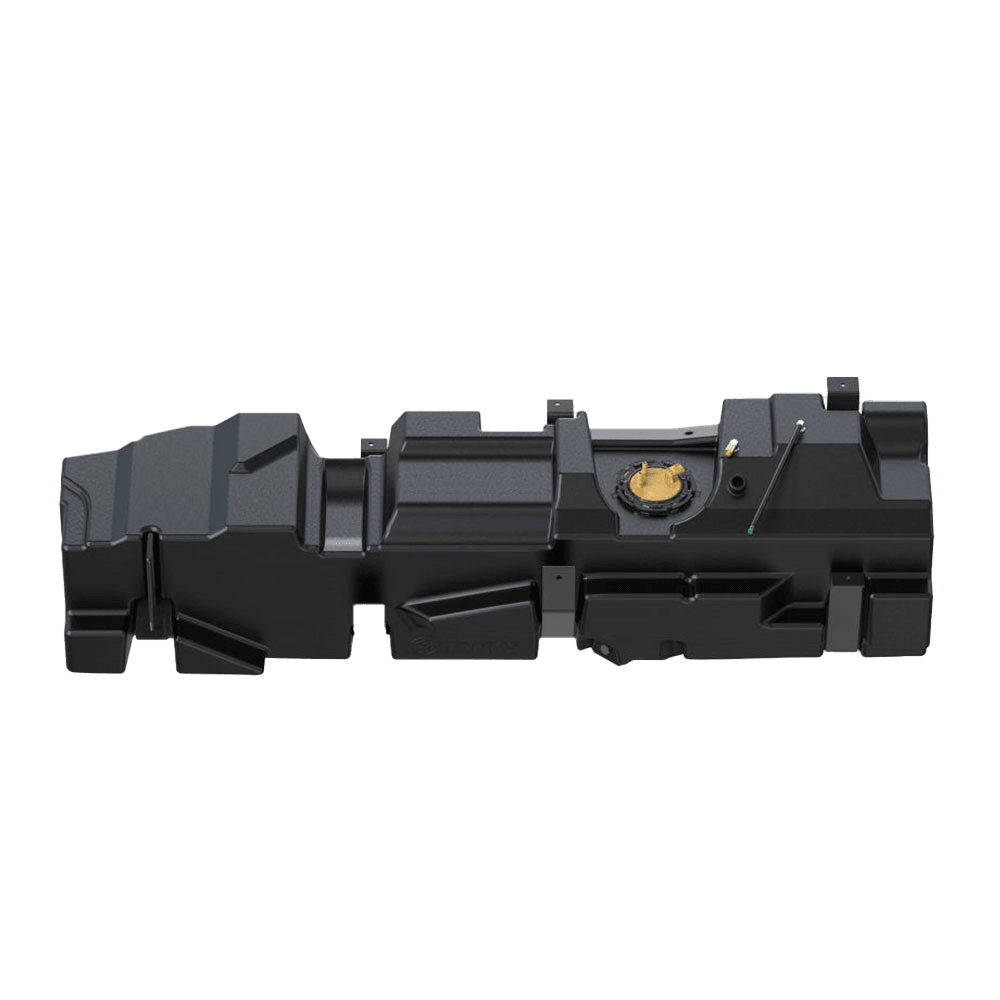

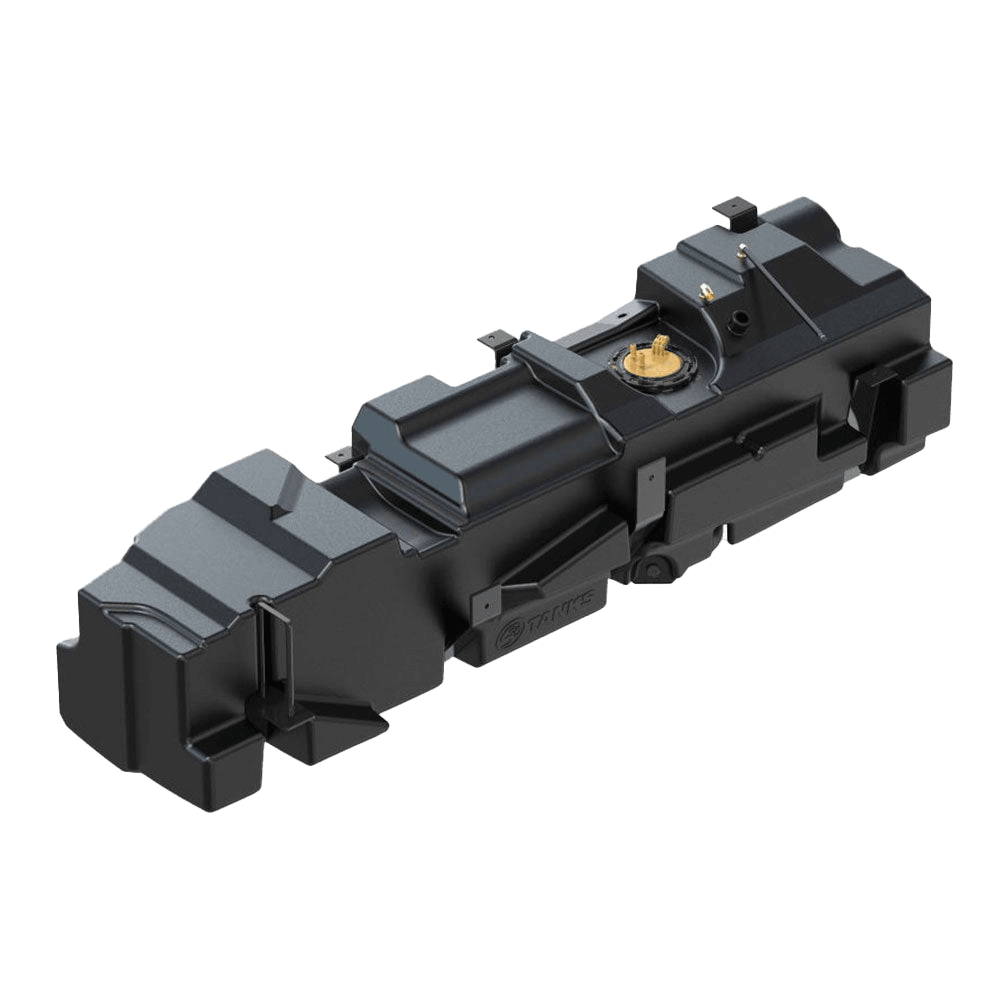

S&B's 70-gallon fuel tank replaces the OEM 35-gallon fuel tank. The replacement tank sits 3" below the OEM fuel tank shield and holds approximately 70 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 70-gallon tank with have a greater fuel reserve.

Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
Free Delivery ,
if ordered within hours and minutes
Shipping to
In Stock!

Frequently bought together

EZ Lynk AutoAgent 3.0 - Rental Unit $500.00 Learn More
Cold Air Intake for 2011-2016 Ford Super Duty, 6.7L Powerstroke $399.00 Learn More
Compatible with gooseneck and 5th wheel Yes
Compatible with oe skid plate No
Dimensions 80.82" X 19.18" X 20.79"
Drain No
Embedded fitting thread size 1/2" NPT
Ground clearance compare to oe tank 3" Lower
Sending unit OE
Straps included Yes
Sump No
S&B Capacity (Approximate) 70 gallons
Tank type Midship
Transfer pump ready Yes
Weight dry 53lbs
YearMakeModelEngine
2011-2016FordF-2506.7L, Diesel
2011-2016FordF-3506.7L, Diesel
2011-2016FordF-4506.7L, Diesel
View Instructions

WARNING: This product can expose you to chemicals including carbon black, silica - crystalline, methylene chloride, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm.

MORE INFO at P65warnings.ca.gov
S&B 70 Gallon High-Capacity Fuel Tank for 2011-2016 Ford F-250 / F-350 / F-450, 6.7L Powerstroke, Crew Cab, Long Bed
$1,449.00 USD
$1,449.00 USD

Double Your Range.

S&B Tanks more than double the range on your truck. The tank reuses the OEM sending unit and comes with new brackets and straps. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 5 more gallons than competitor tanks allowing you to save time, go further, and get more out of your truck!

EASY RECALIBRATION FOR DISTANCE TO EMPTY

We offer a free service to update the computer in your truck so the Distance to Empty (DTE) displays the accurate range.

SAVE TIME. GO FURTHER. GET MORE OUT OF YOUR TRUCK.

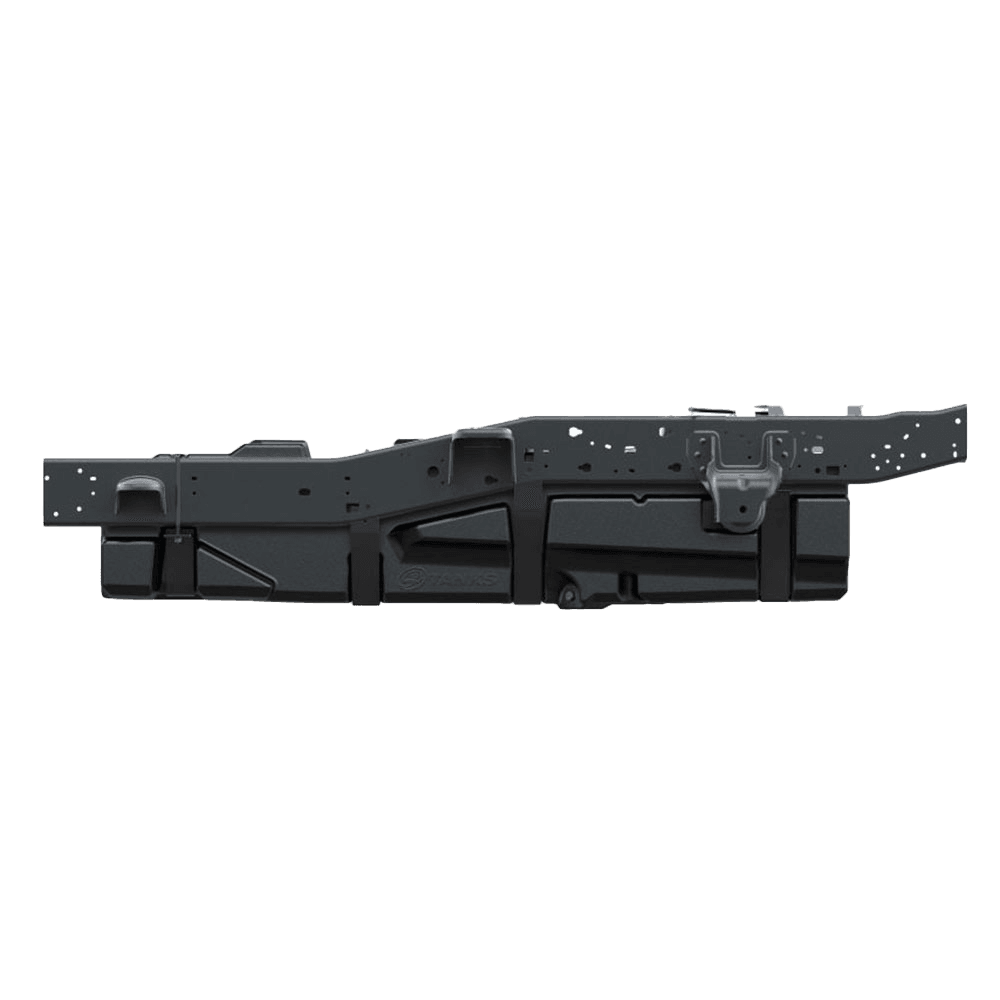

The tank sits 3" below the OEM fuel tank shield. Install can be done in 2-3 hours and does not require any cutting, drilling or modification.
