10-1017

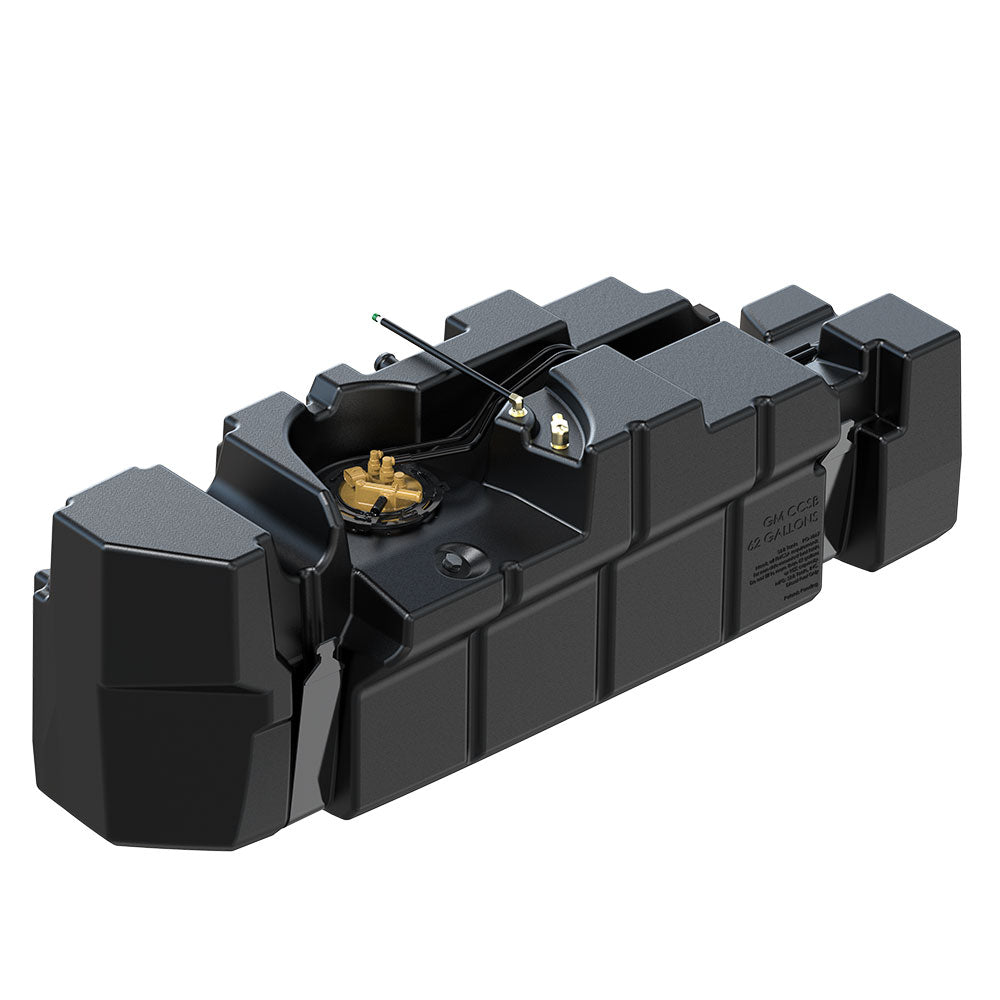

S&B 62 Gallon High-Capacity Fuel Tank for 2011-2023 GM Duramax 6.6L Crew Cab Short Bed - DISCONTINUED

10-1017

S&B 62 Gallon High-Capacity Fuel Tank for 2011-2023 GM Duramax 6.6L Crew Cab Short Bed - DISCONTINUED

This Product is Discontinued

Important Note about the Fuel Gauge Operation:
  • The distance to empty (DTE) on GM trucks can’t be reprogrammed, so it will show about half the mileage that is really left. You can multiple the displayed range by 2 to find your actual range.
  • The fuel gauge will operate properly. The fuel gauge will remain on full until about 4-5 gallons have been used and then the gauge will start to move normally. GM trucks monitor for an inoperative fuel gauge, so in some situations, until it starts to move, the truck’s computer will drop the gauge to empty to get the driver’s attention even though your tank is full. The gauge will return to its normal position after restarting the engine. We have seen cases when code P0463 appears due to the slow movement of the float, this can be cleared with a code reader. Once the fuel level drops 4-5 gallons from full, the fuel gauge will return to its normal operation
  • The bottom of the S&B tank has more surface area than the OE, so there will be a greater fuel reserve when the low fuel indicator comes on.

  • The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically.

Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
Compatible with gooseneck and 5th wheel Yes
Compatible with oe skid plate No
Dimensions 63.62" X 17.84" X 22.07"
Drain No
Embedded fitting thread size 1/2" NPT
Ground clearance compare to oe tank 3.5" Lower
Sending unit OE
Straps included Yes
Sump No
S&B Capacity (Approximate) 62 gallons
Tank type Midship
Transfer pump ready Yes
Weight dry 45lbs
YearMakeModelEngine
2017-2023ChevroletSilverado 25006.6L, Diesel, L5P
2017-2023ChevroletSilverado 35006.6L, Diesel, L5P
2017-2023GMCSierra 25006.6L, Diesel, L5P
2017-2023GMCSierra 35006.6L, Diesel, L5P
2011-2016ChevroletSilverado 25006.6L, Diesel, LML
2011-2016ChevroletSilverado 35006.6L, Diesel, LML
2011-2016GMCSierra 25006.6L, Diesel, LML
2011-2016GMCSierra 35006.6L, Diesel, LML
View Instructions

This product can expose you to chemicals including carbon black, silica - crystalline, methylene chloride, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to

MORE INFO at www.P65warnings.ca..gov
S&B 62 Gallon High-Capacity Fuel Tank for 2011-2023 GM Duramax 6.6L Crew Cab Short Bed - DISCONTINUED

ALMOST DOUBLE YOUR RANGE.

S&B's 62-gallon fuel tank directly replaces the OEM 36-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 5 more gallons than competitor tanks allowing you to save time, go further, and get more out of your truck!

INNOVATIVE BAFFLED DESIGN.

S&B Tanks were engineered with a built-in baffled design. This helps to minimize fuel sloshing. This helps to contain fuel around the fuel pick up and prevents unwanted tank sloshing noise.

LOCKED IN FOR A TRUE SEAL.

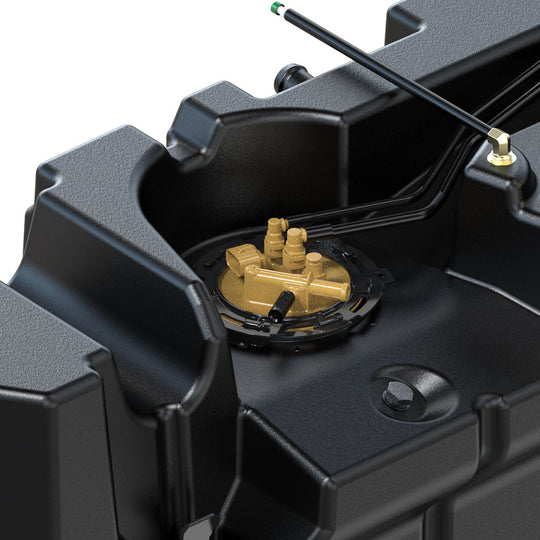

The S&B Fuel Tank was designed to use the OEM locking ring. This ensures a perfect seal and securely retains the fuel pump in the tank.

BUILT TO LAST.

S&B Tanks are made out of extremely strong crosslink polyethylene and backed by our lifetime warranty.
