Install Instructions for CAI-75-5169

Print

Before You Start

Note: This intake kit may not fit with the following Aftermarket Parts installed:

- Body Lift or Lowering Kit

- Custom Hood

- Throttle Body Spacer / Upgrade

Please read the entire product guide before proceeding.

- Ensure all parts are present.

- If you are missing any of the components, call our customer support at (909) 947-0015.

- Do not work on your vehicle while the engine is hot.

- Make sure the engine is turned off and the vehicle is in Park or the Parking Brake is set.

Required Tools

- 5/16 or 8mm socket/nut driver

- Flat head screw driver

-X-Acto knife

- Phillips Head screw driver

Step 1

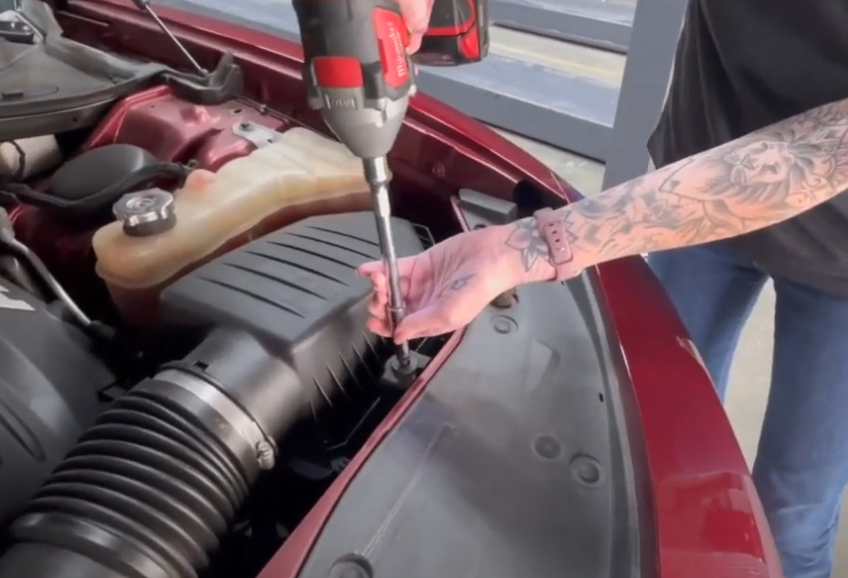

Remove the screw holding the airbox to the car.

Step 2

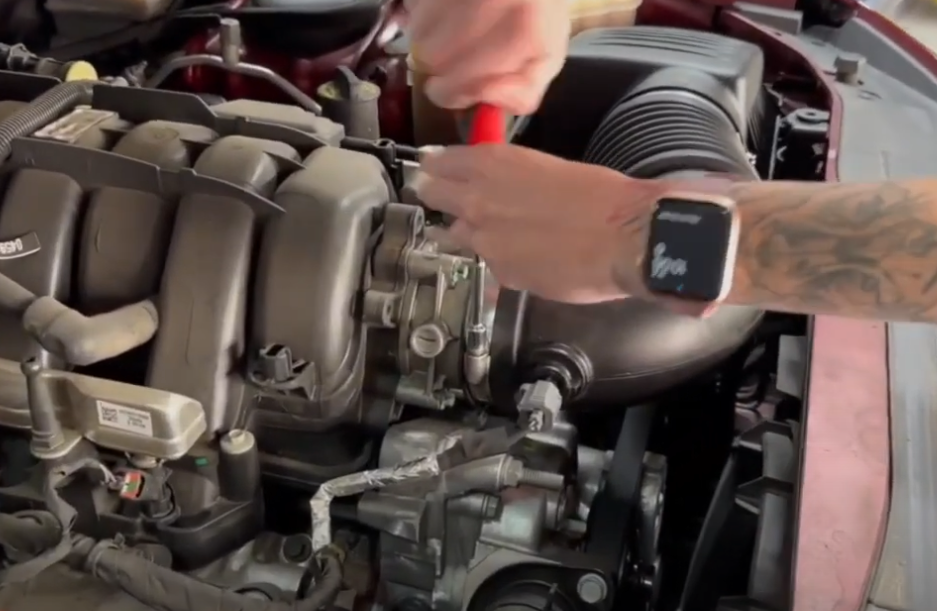

Remove the engine cover in order to gain access to the hose clamp and IAT sensor. Loosen the hose clamp and disconnect the IAT sensor.

Step 3

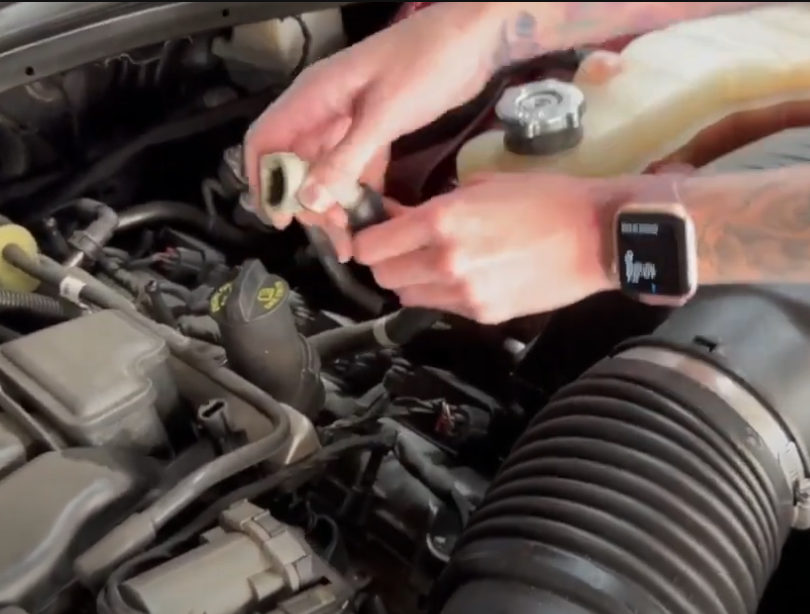

Disconnect the quick connect fitting or the hose (depending on the specific vehicle you have) from the airbox. If you have a quick connect fitting, then remove the fitting from the hose.

Step 4

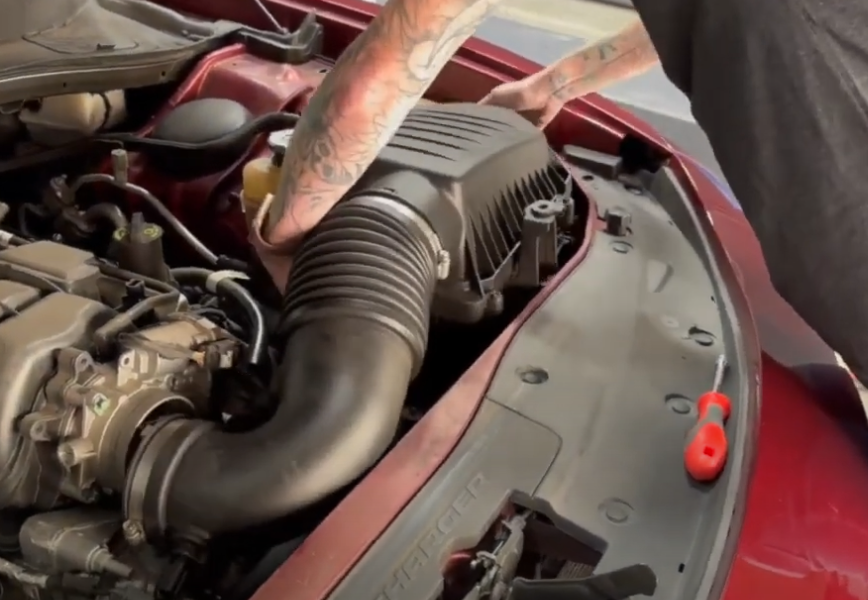

Remove the stock intake from the vehicle.

Step 5

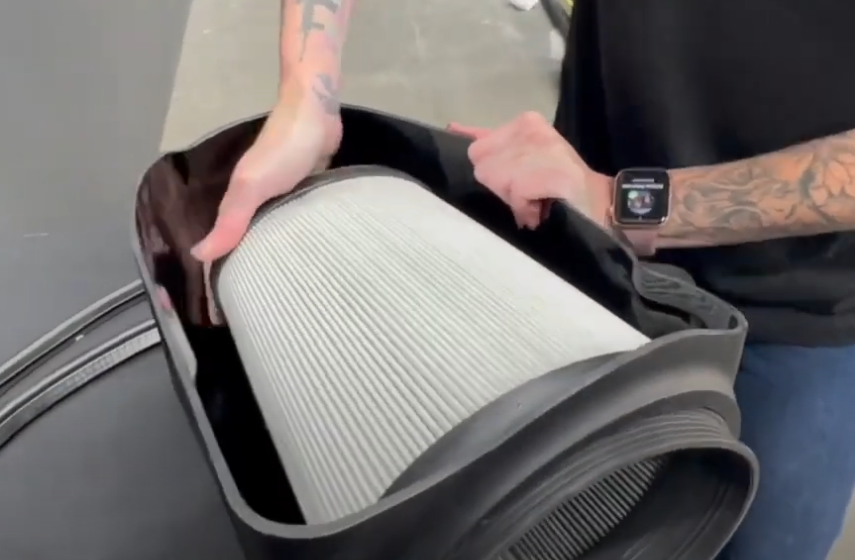

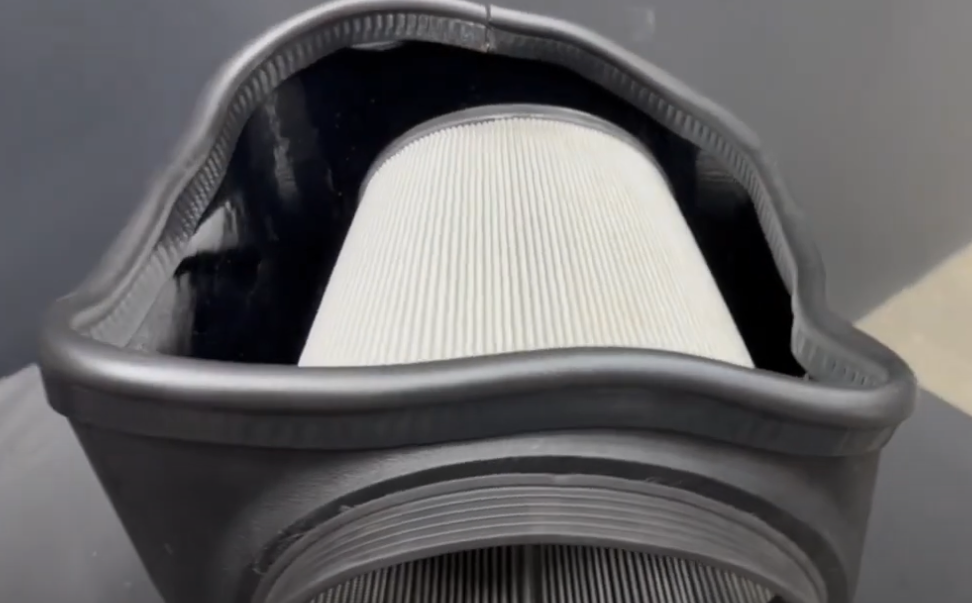

Install the filter into the JLT airbox.

Step 6

Install the edge trim on both the top and bottom of the airbox.

Step 7

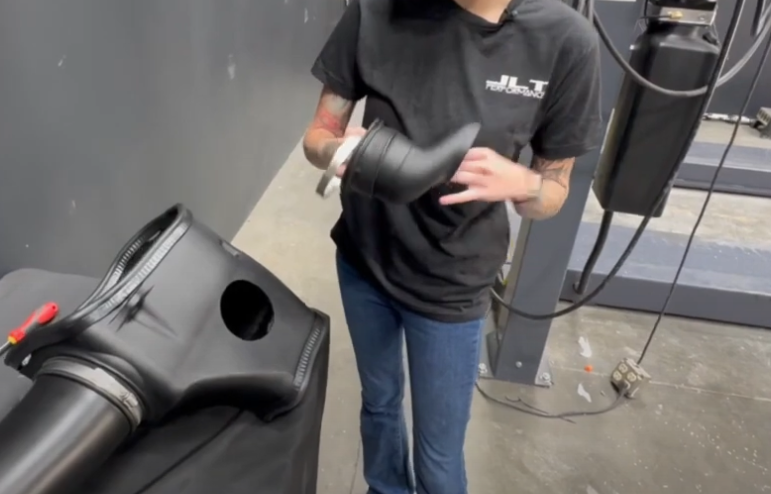

Install the mounting prong onto the bottom of the airbox.

Step 8

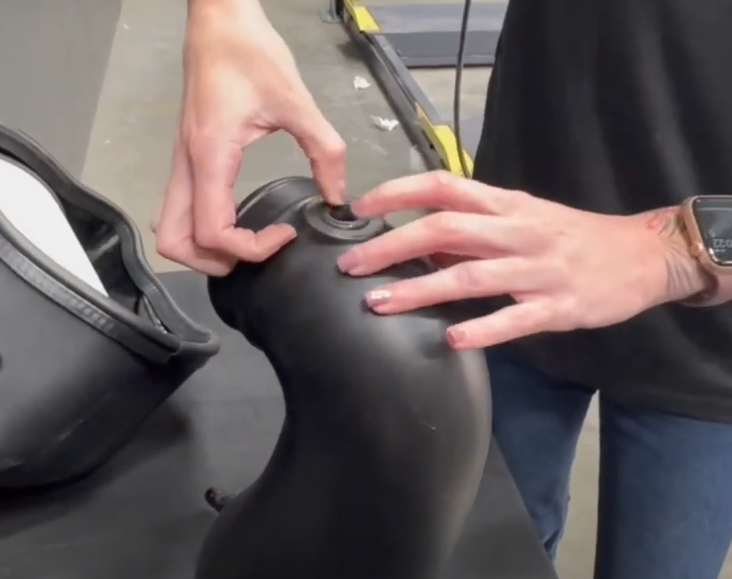

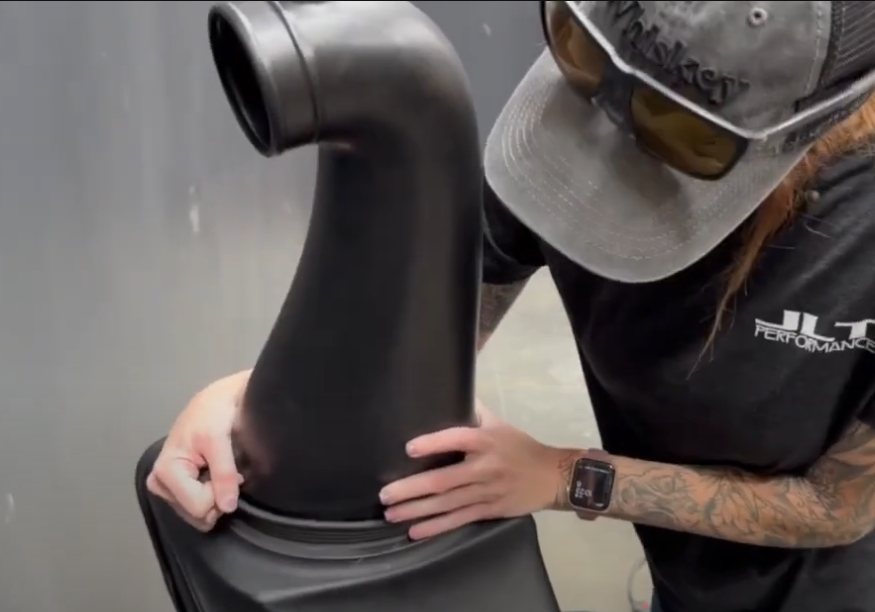

Install the grommet onto the JLT intake tube.

Step 9

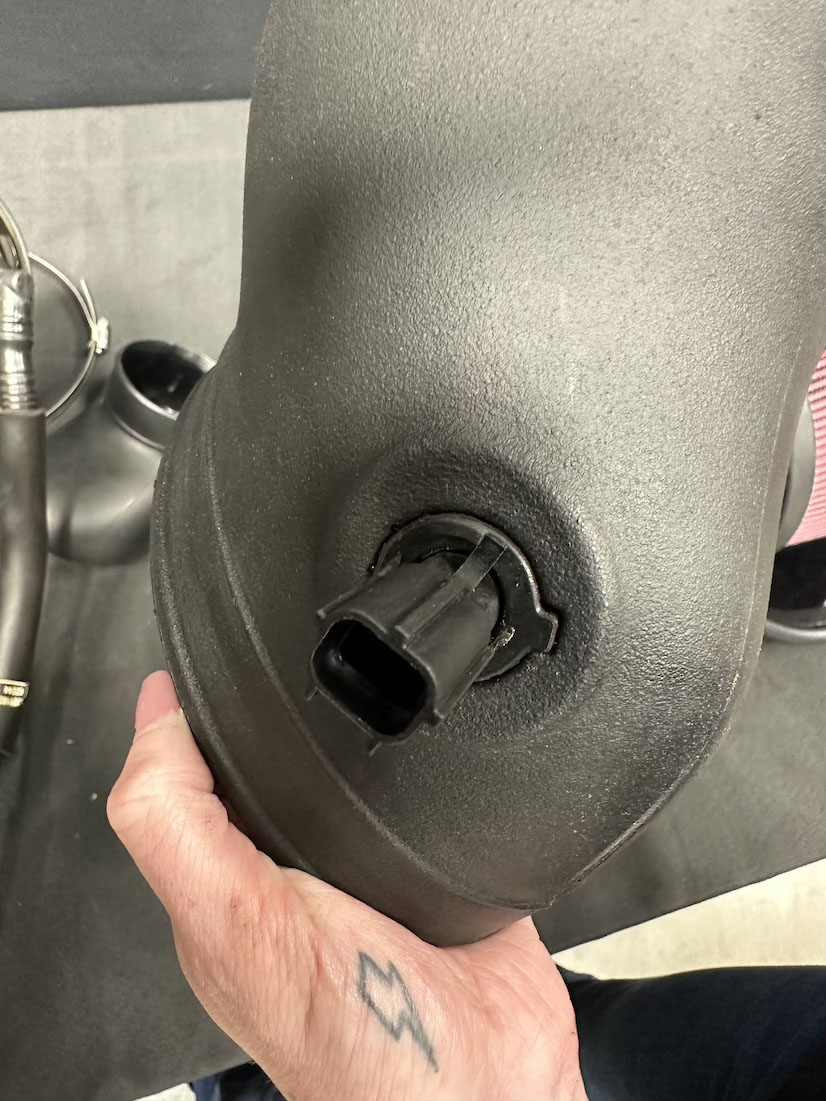

Care fully remove the IAT sensor from the stock tube. Then, install the IAT sensor into the JLT tube by twisting it so the tab is as shown.

Step 10

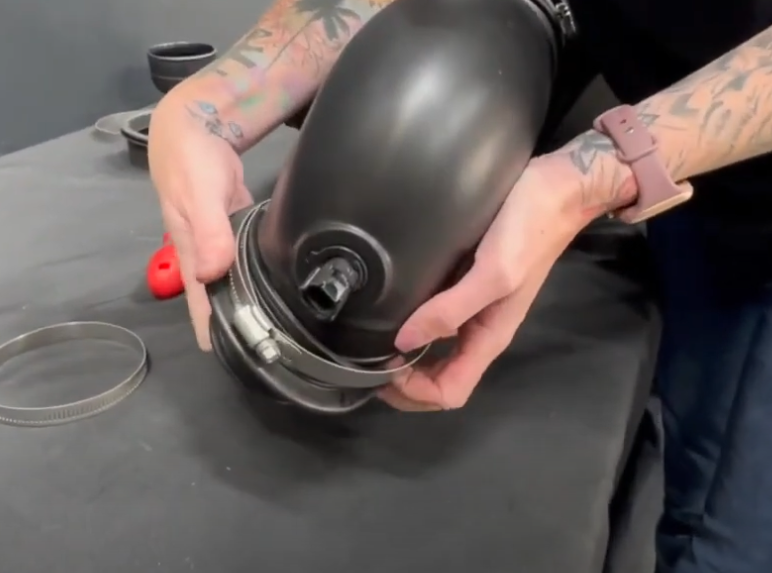

Install the Intake Tube into the filter then tighten down the hose clamps.

Step 11

If you have a Challenger with a functional headlight air scoop, install the provided scoop and seal, finally tightening the hose clamp. Make sure you line up the arrows with the airbox.

Otherwise, you can use the provided circular box plug or leave the box unplugged for additional airflow from the engine bay.

Step 12

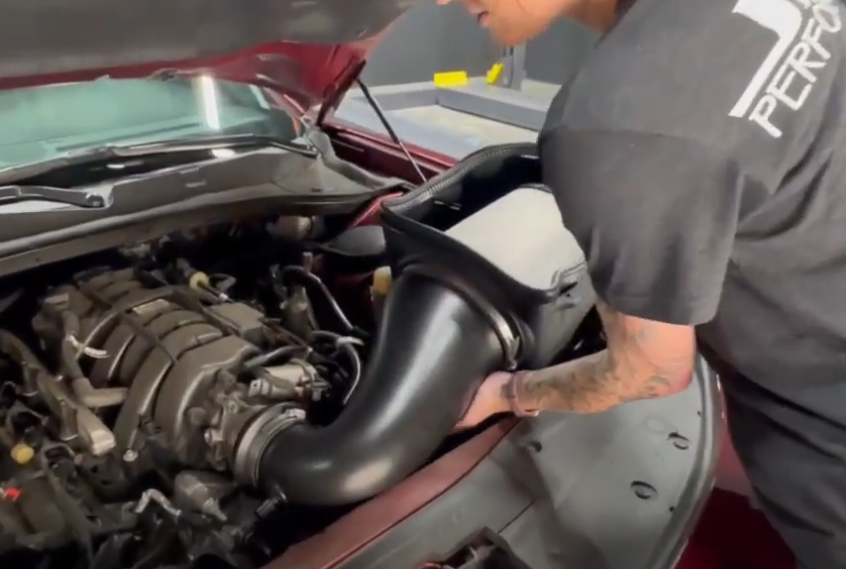

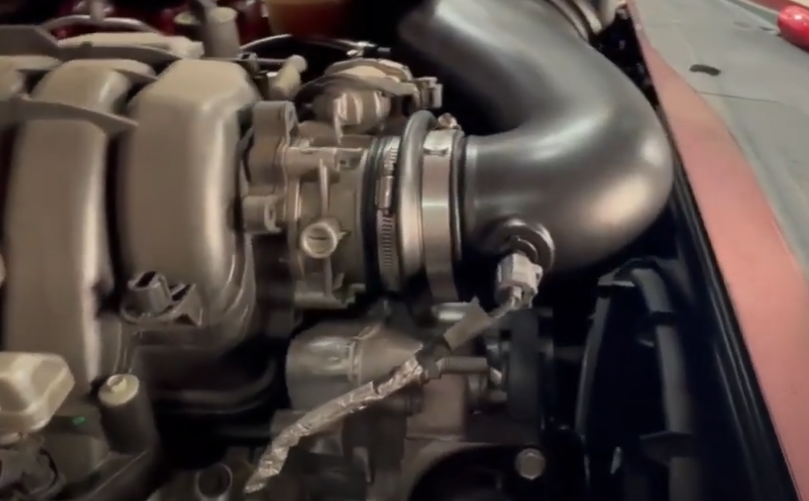

Install the Intake into the vehicle by fitting the mounting grommet into place on the vehicle and sliding the coupler over the throttle body.

Step 13

Install the intake into the vehicle. If you have a functional headlight scoop, you can remove the trim piece above the driver side headlight to allow you to visually guide the scoop into position.

Step 14

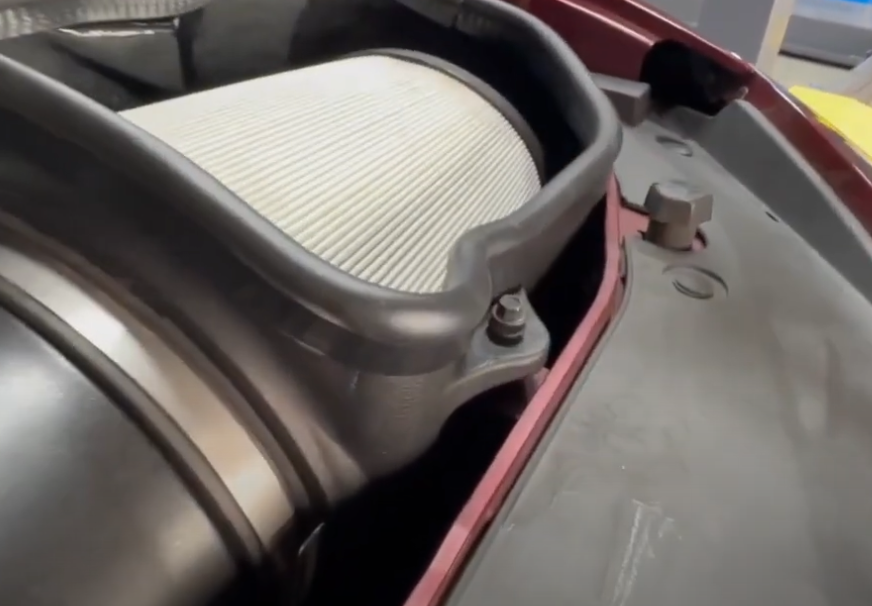

Once the intake is in place, reinstall the stock screw and tighten down.

STEP 15

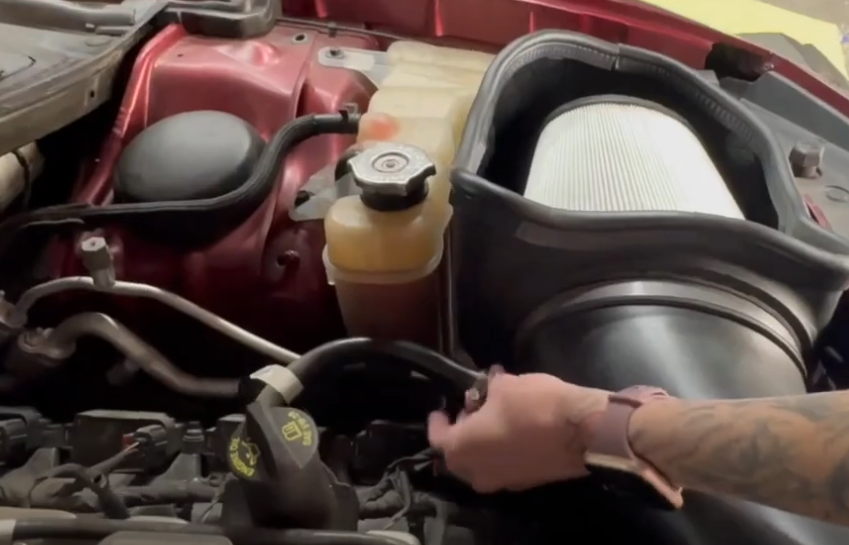

Connect the hose from step 3 onto the JLT intake tube.

STEP 16

Reconnect the IAT sensor harness.

STEP 17

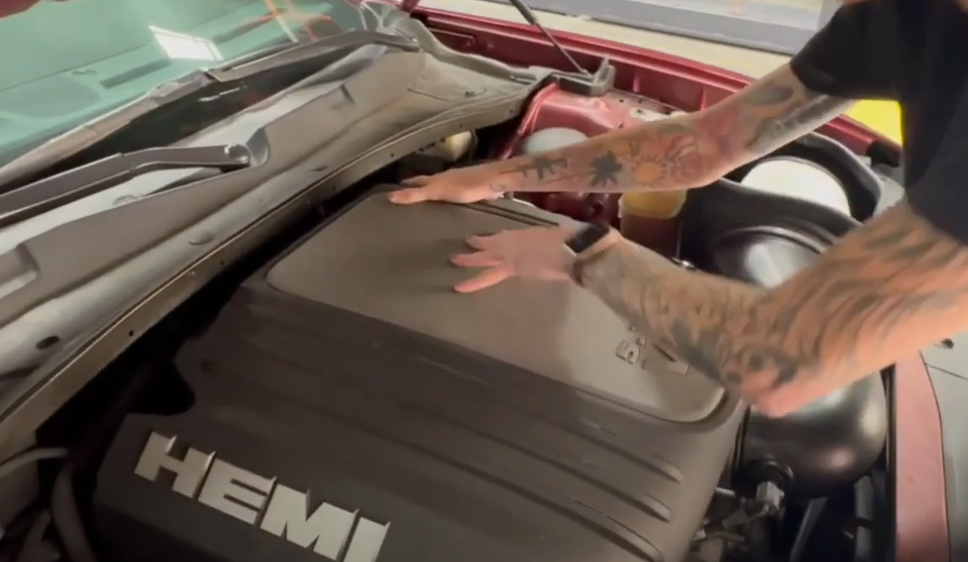

Reinstall the engine cover.

Step 18

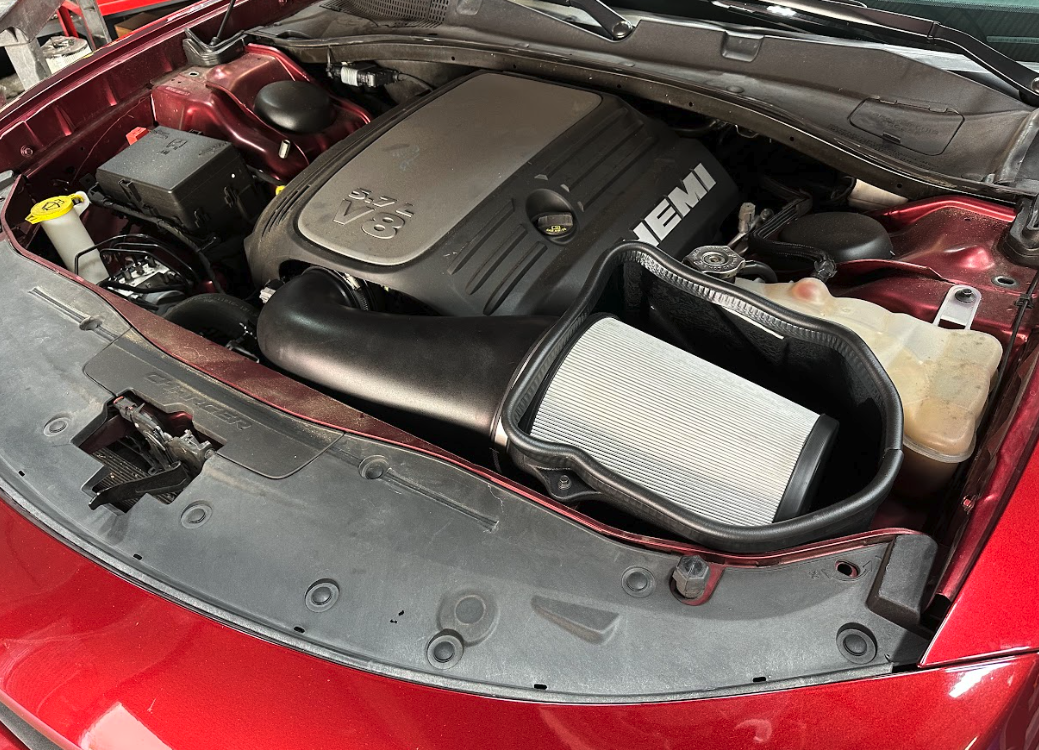

Inspect your installation. Make sure the kit is properly positioned and all fasteners and hose clamps are secured. Keep all stock parts in the event you would ever need to reinstall the stock intake assembly. If you are an installer, give the owner the QR code for the Installation Instructions so that he/she is aware of the Maintenance and Operation procedures are given at the beginning of the Instructions. The installation is now complete.
