Install Instructions for 10-5001

Print

Before You Start

  • Please read the entire product guide before proceeding.
  • Ensure all parts are present.
  • If you are missing any of the components, call our customer support at (909) 947-0015.

Required Tools

  • Pliers or Channel Locks
  • Allen Wrench Set
  • Drill with 9/16th Drill Bit
  • Included extended bolt with Plus Nut Activation Tool

Step 1:

Remove the detail tank from it's packaging.

Step 2:

Remove the mounting straps and hardware from inside of the tank.

Step 3:

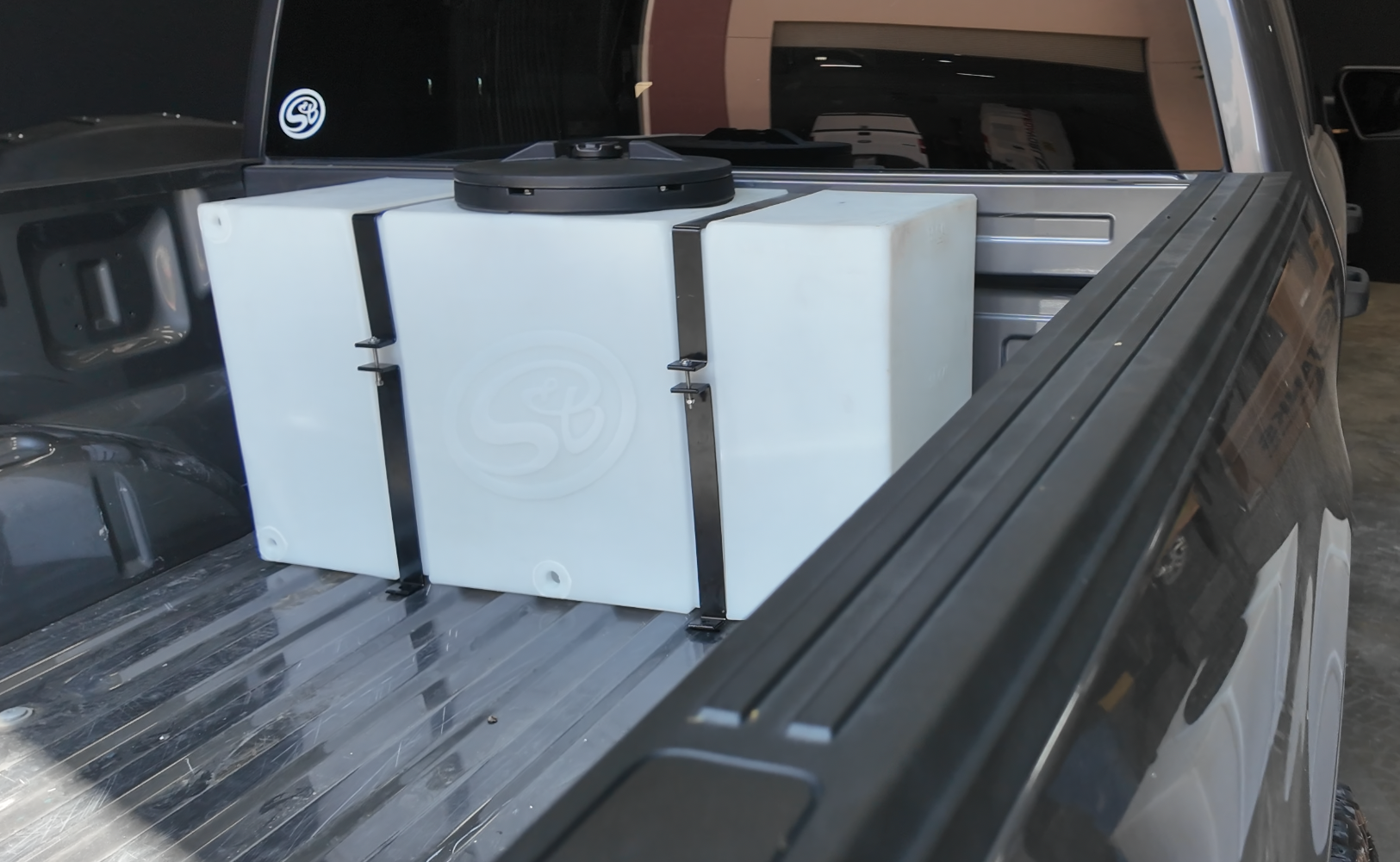

Use the stainless steel hardware to assemble both mounting straps to the detail tank. Then, mount the detail tank in it's desired location using the included mounting straps and hardware to find the exact location you'd like.

Step 4:

Mark the holes of the mounting straps with a marker to find your drill points.

Step 5:

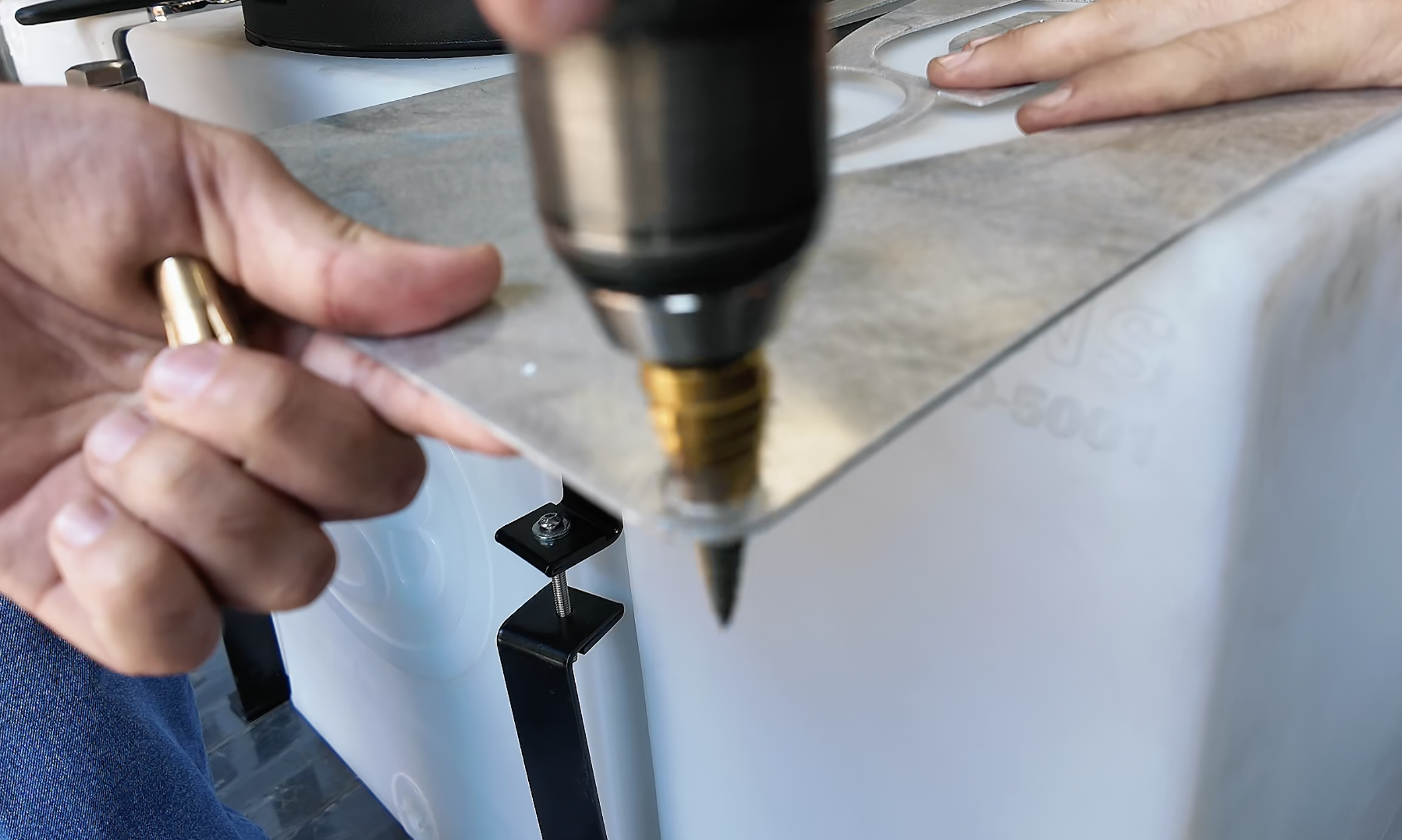

Drill into your application using your 9/16th drill bit.

Step 6:

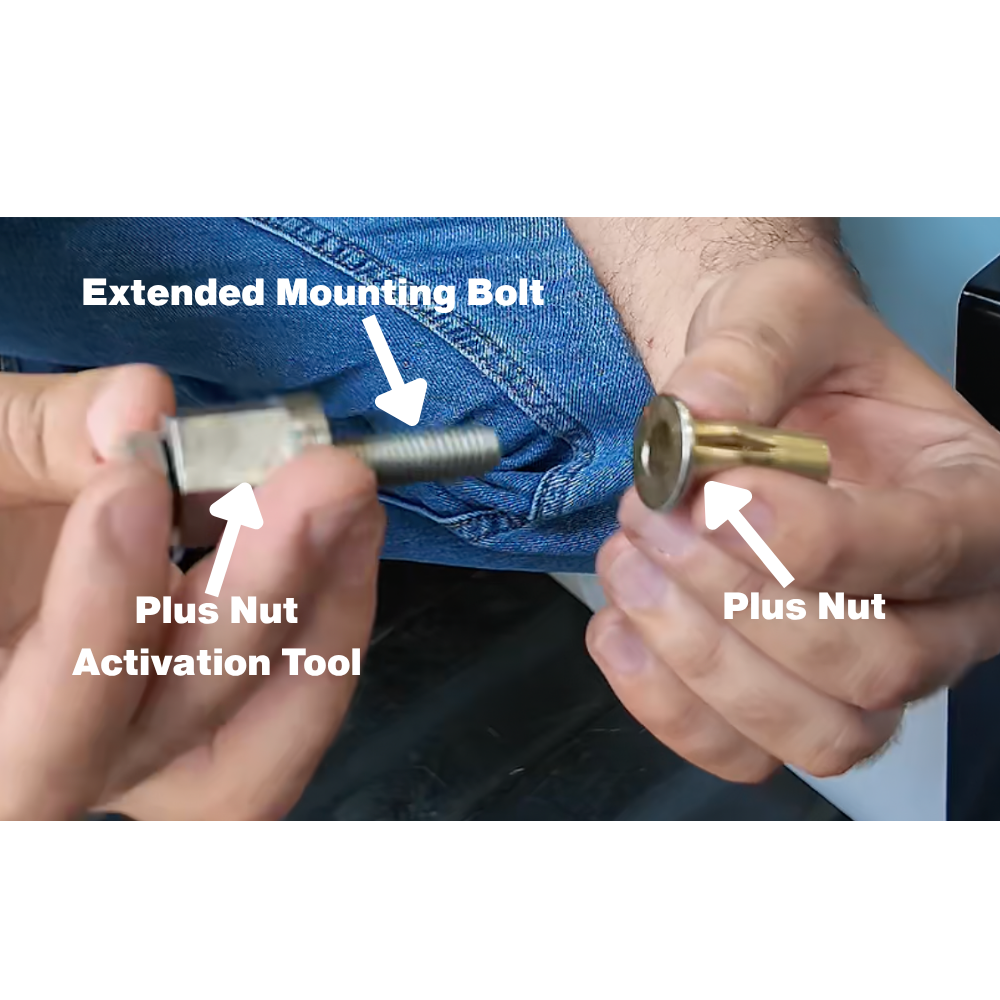

For the next step, you are going to need the included Plus Nuts, Plus Nut Activation Tool, & Extended Mounting Bolt.


Step 7:

Put together the Plus Nut Assembly before inserting into the mounting location.

Step 8:

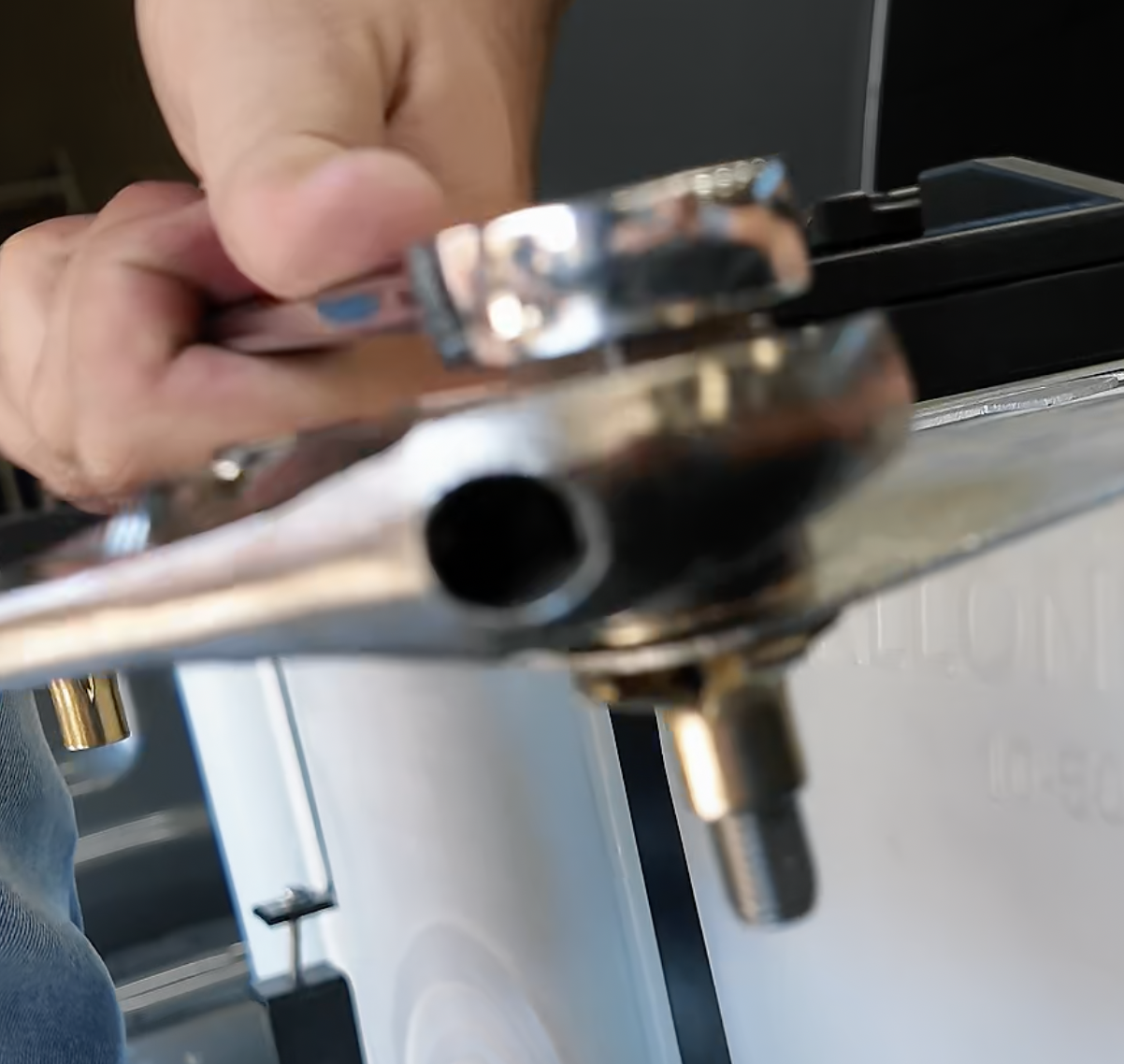

Take a 17mm ratchet wrench and adjustable wrench to collapse the plus nut into the mounting location. Once fully tightened, go ahead and back out the extended mounting bolt.

Step 9:

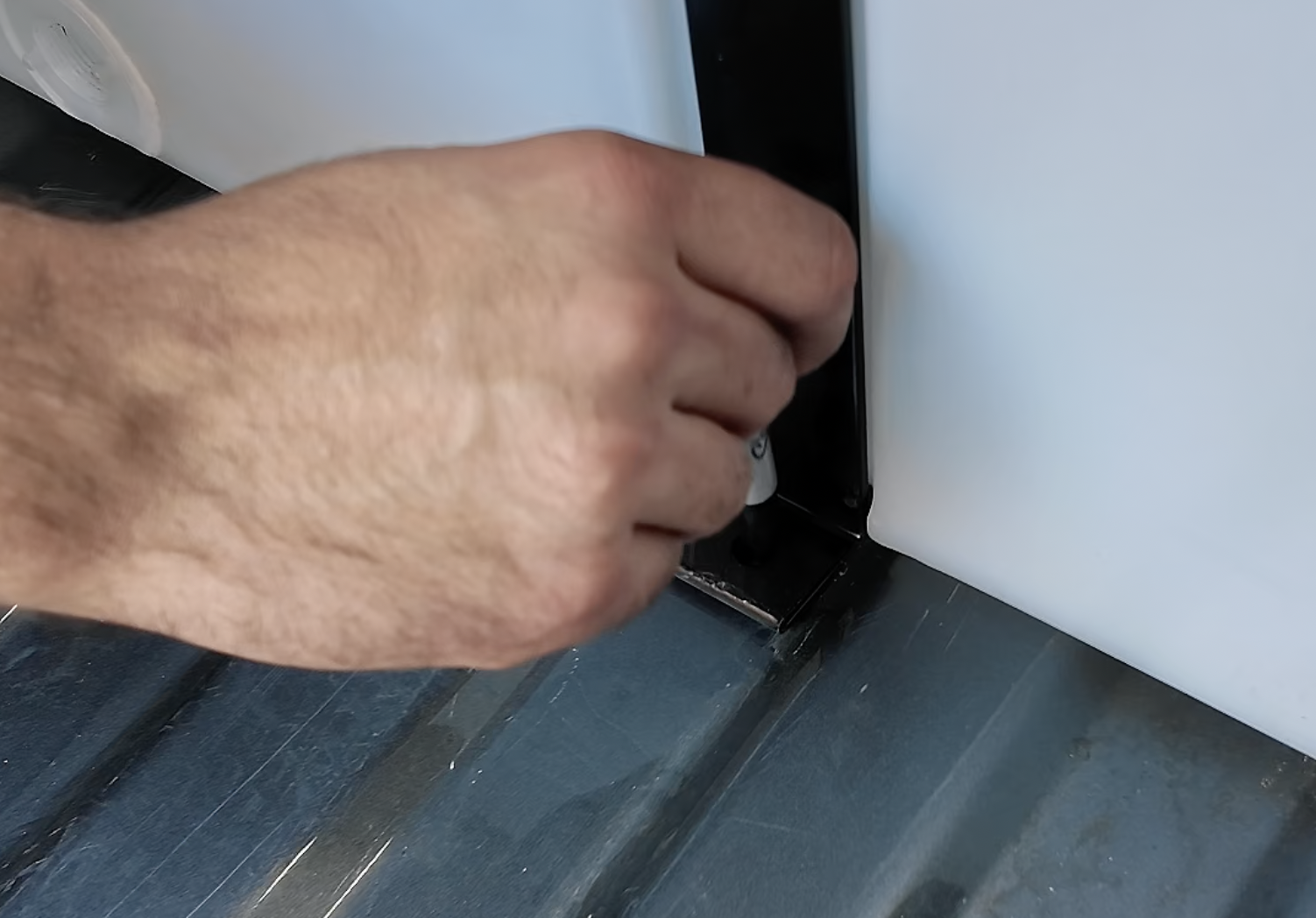

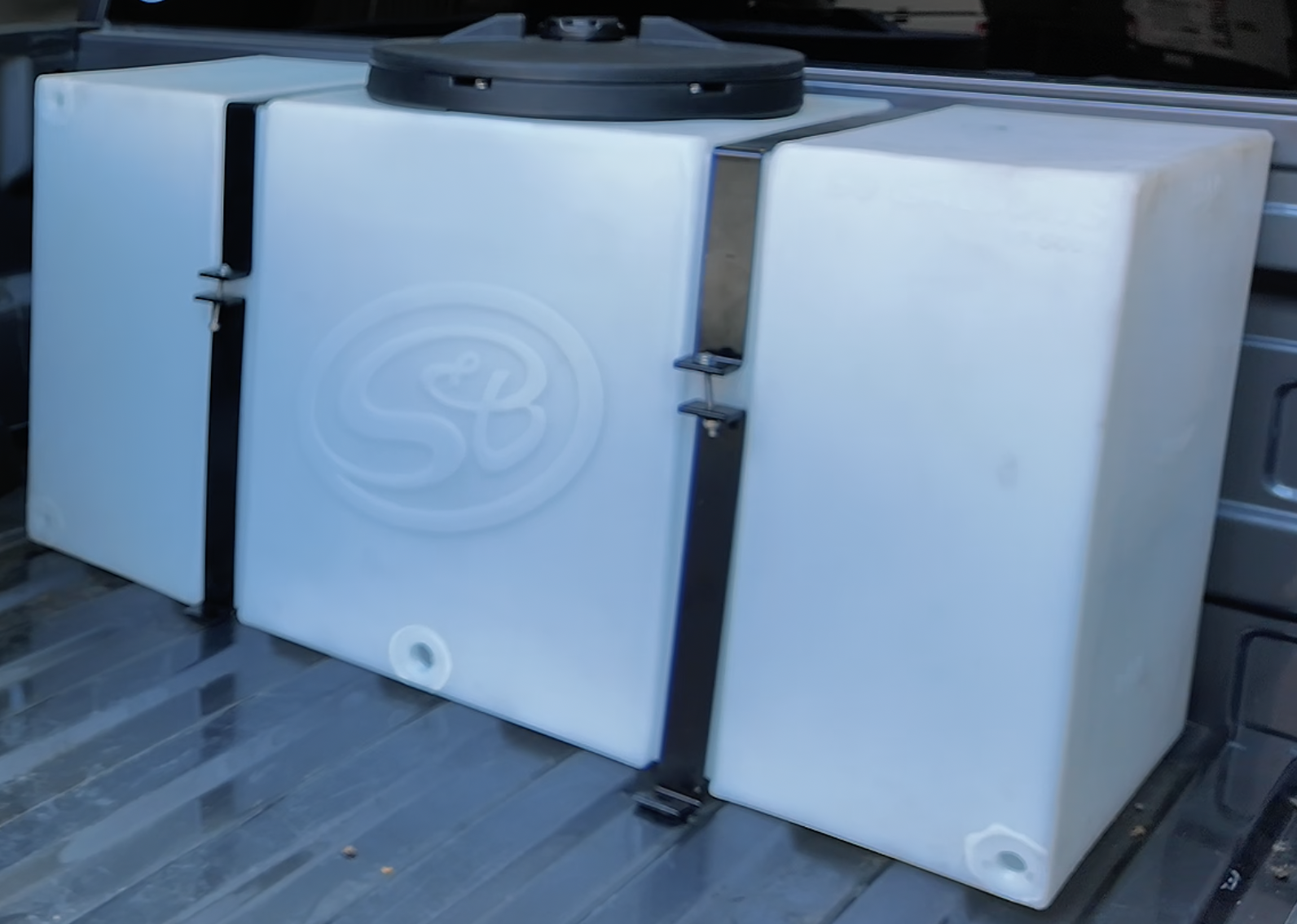

Lastly, take the included hardware to fully install your S&B Detail Tank.

Tip: Before filling up the detail tank with water, please ensure that the 4 ports are sealed using the included plugs for the 4 ports.
