Install Instructions for CAI-75-5172

Print

Before You Start

Note: This intake kit may not fit with the following Aftermarket Parts installed:

- Body Lift or Lowering Kit

- Custom Hood

- Throttle Body Spacer / Upgrade

Please read the entire product guide before proceeding.

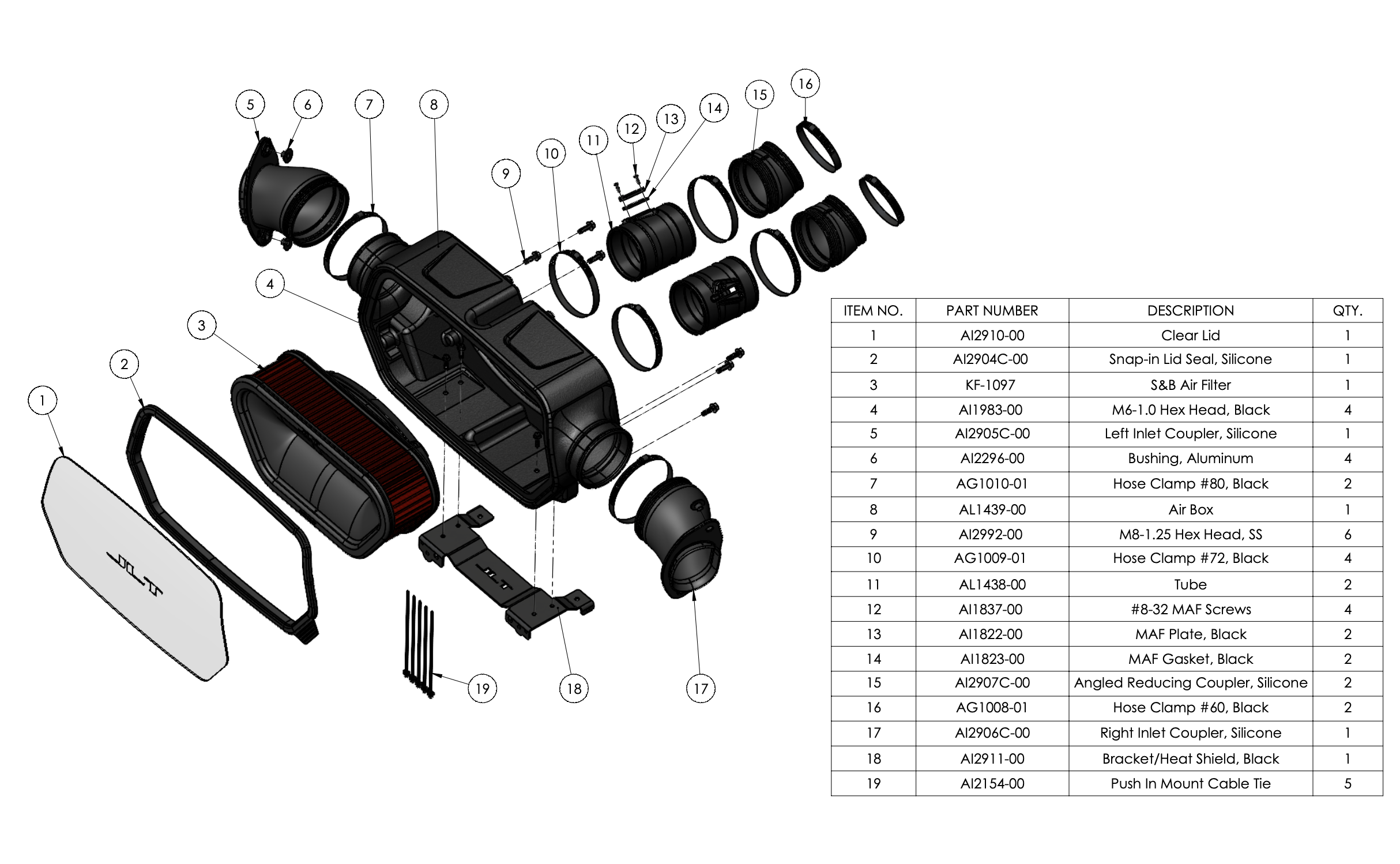

- Ensure all parts are present.

- If you are missing any of the components, call our customer support at (909) 947-0015.

- Do not work on your vehicle while the engine is hot.

- Make sure the engine is turned off and the vehicle is in Park or the Parking Brake is set.

Required Tools

- 5/16 or 8mm socket/nut driver

- Flat head screw driver

-X-Acto knife

- Phillips Head screw driver

Step 1

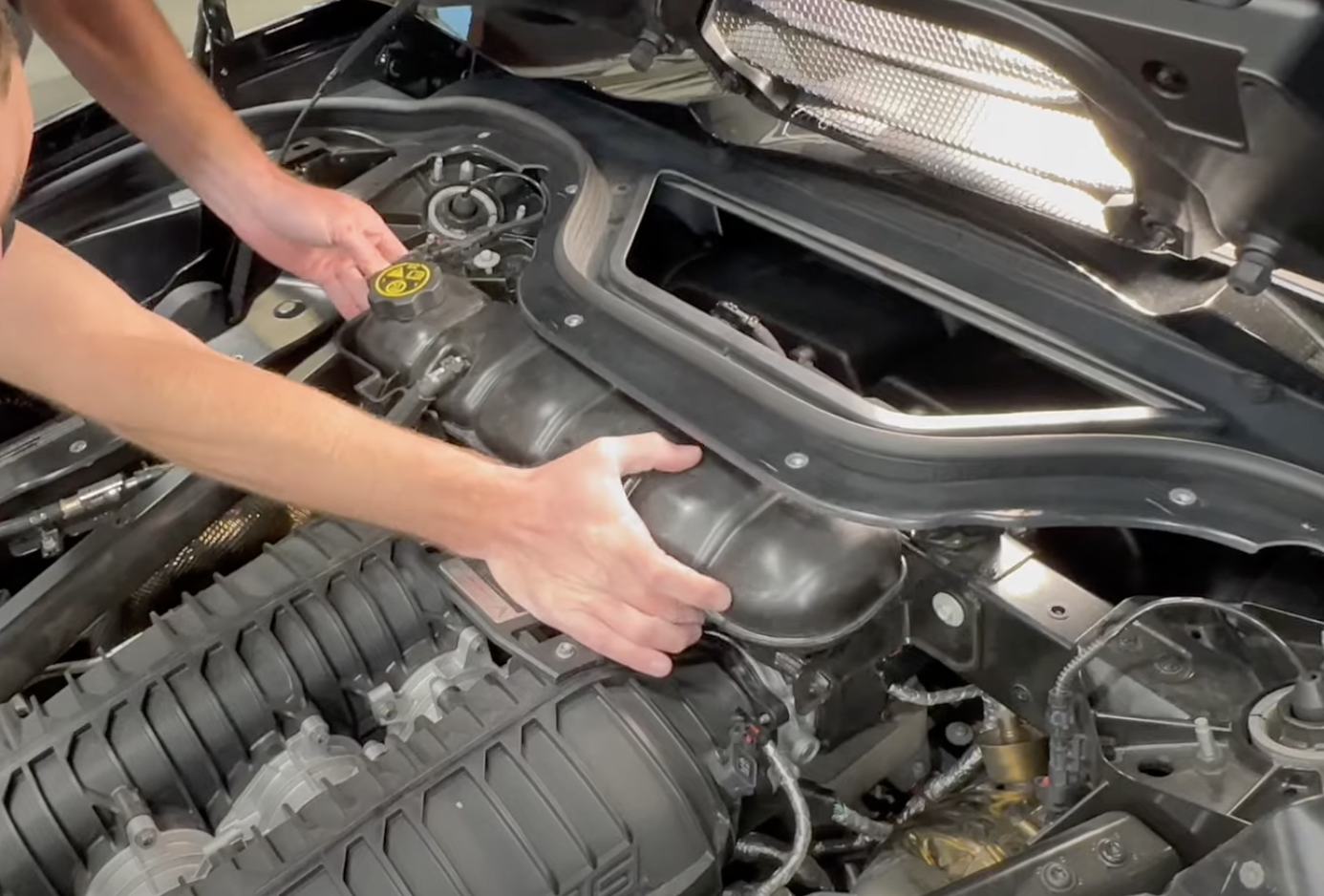

Remove the engine cover from the vehicle. Save the bolts for later.

Step 2

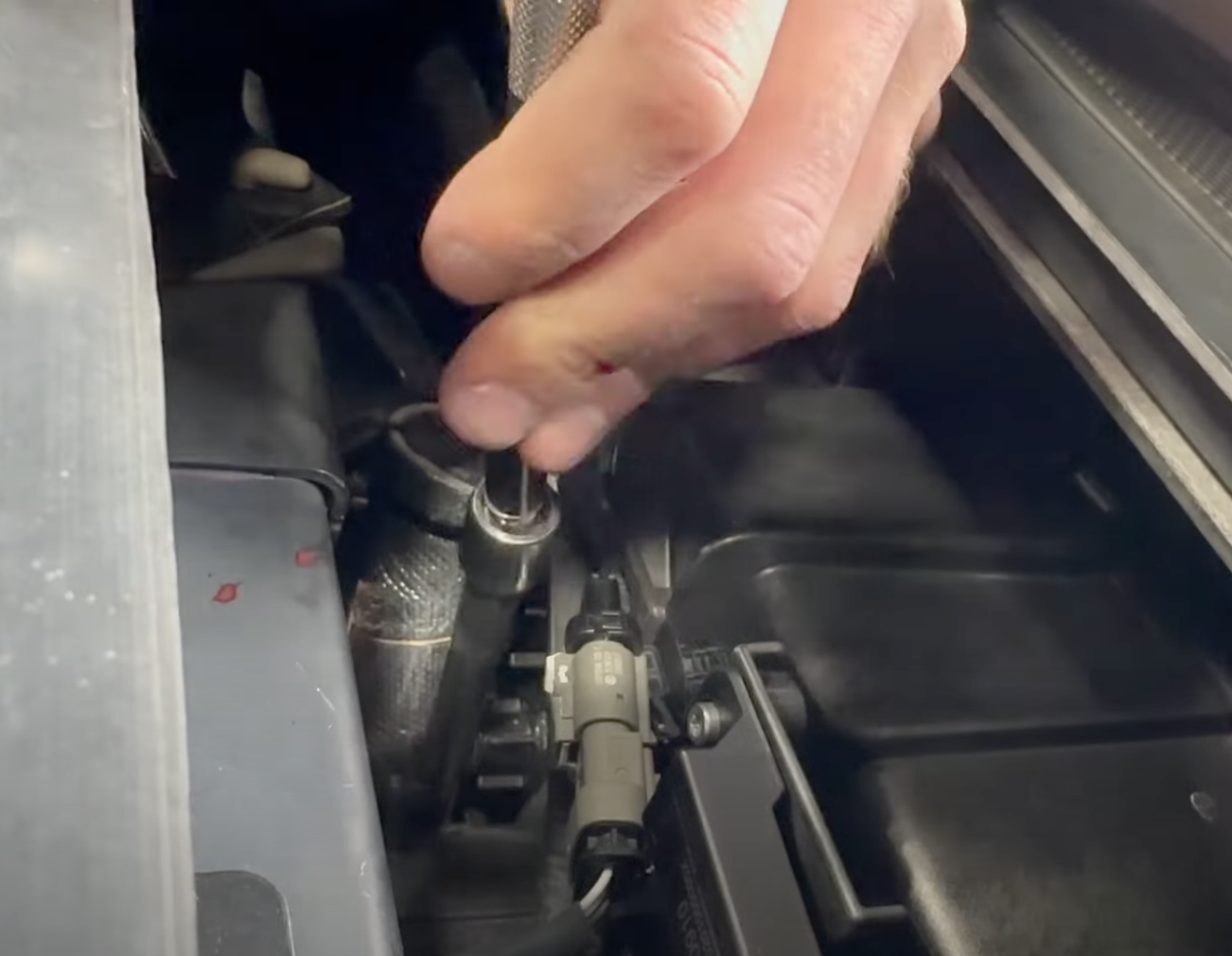

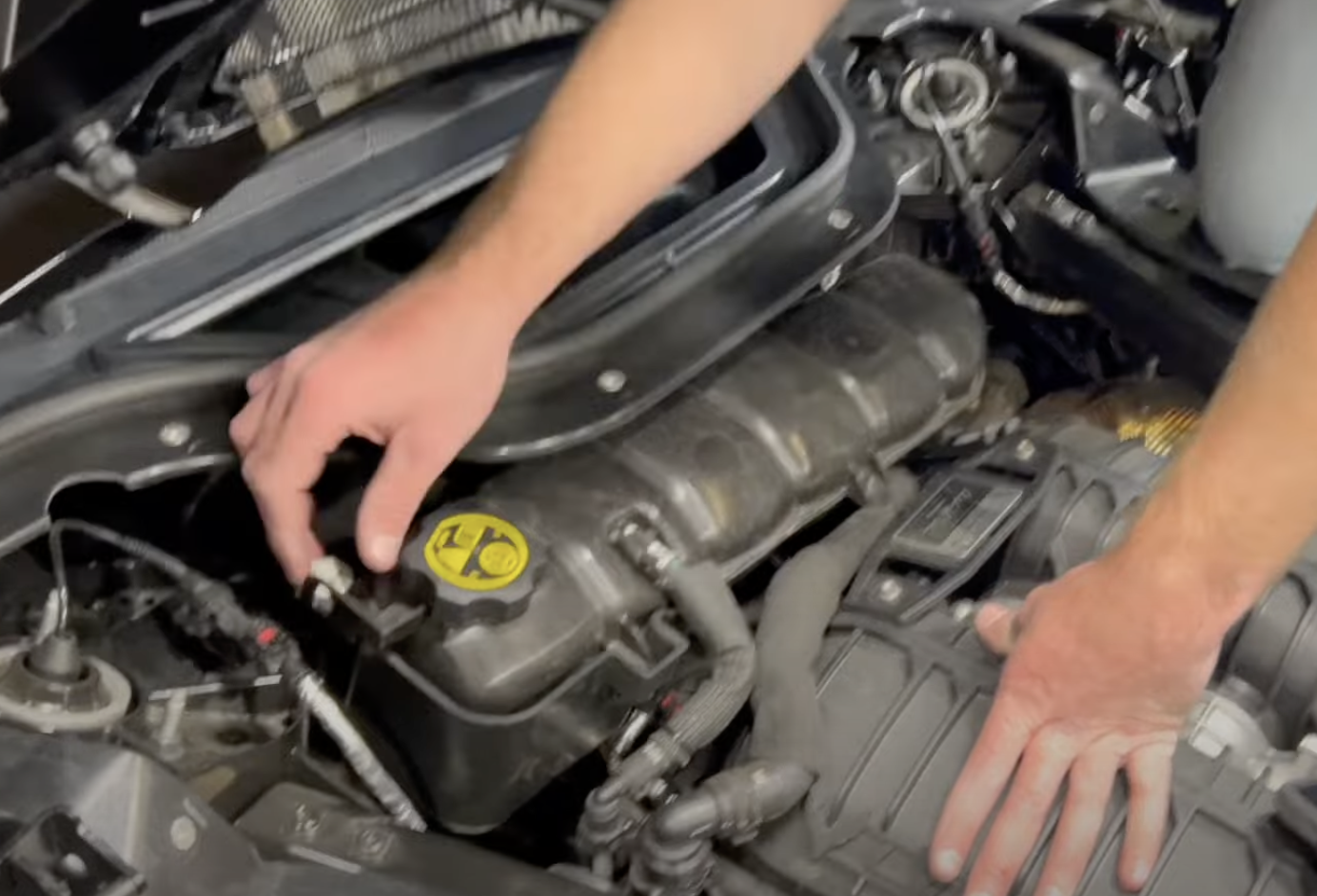

Remove the 10mm bolt and slide the coolant tank out of the way.

Step 3

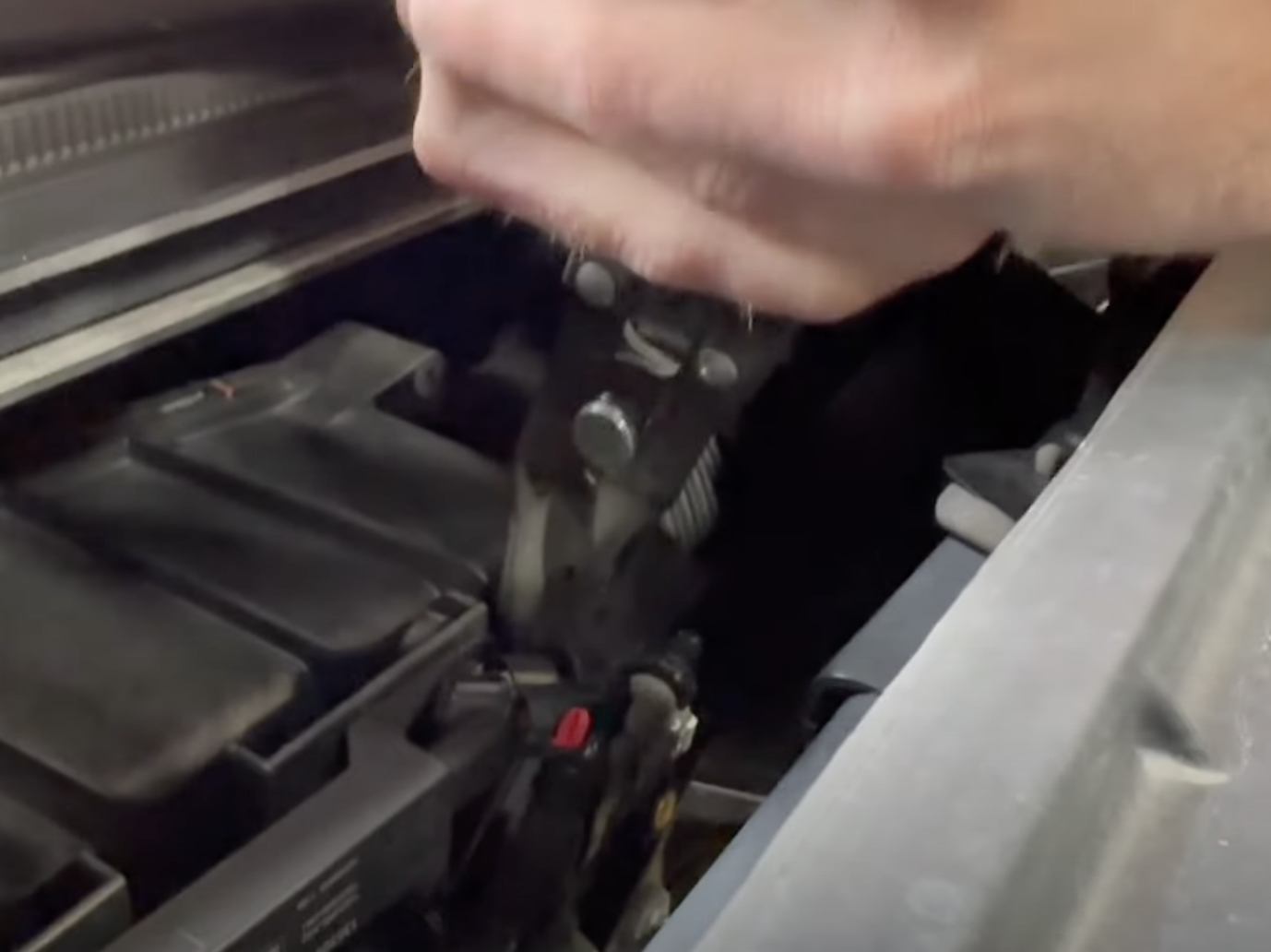

Disconnect and sensor by disengaging the red locking tab and sliding up on the tab with a pick.

Step 4

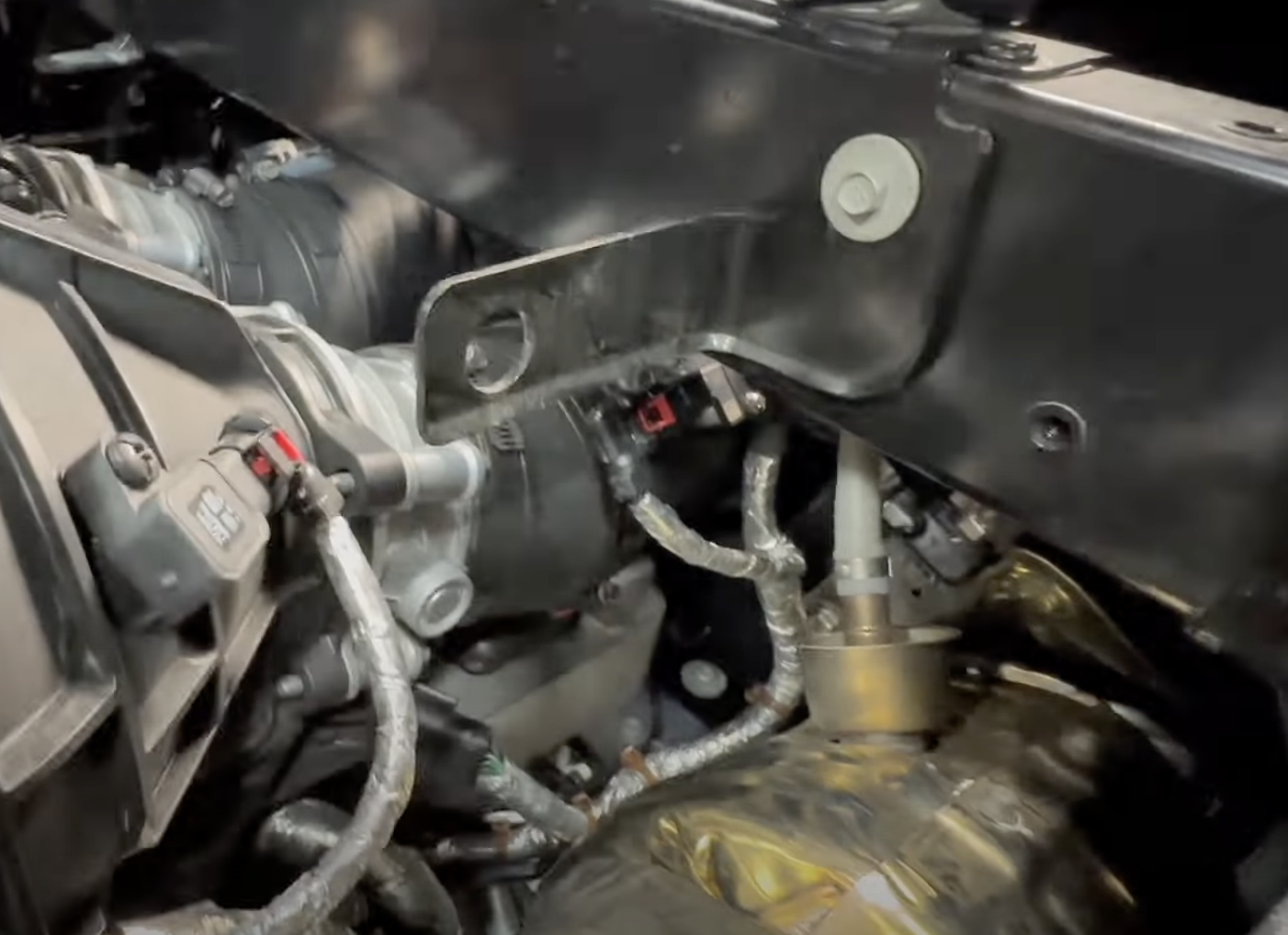

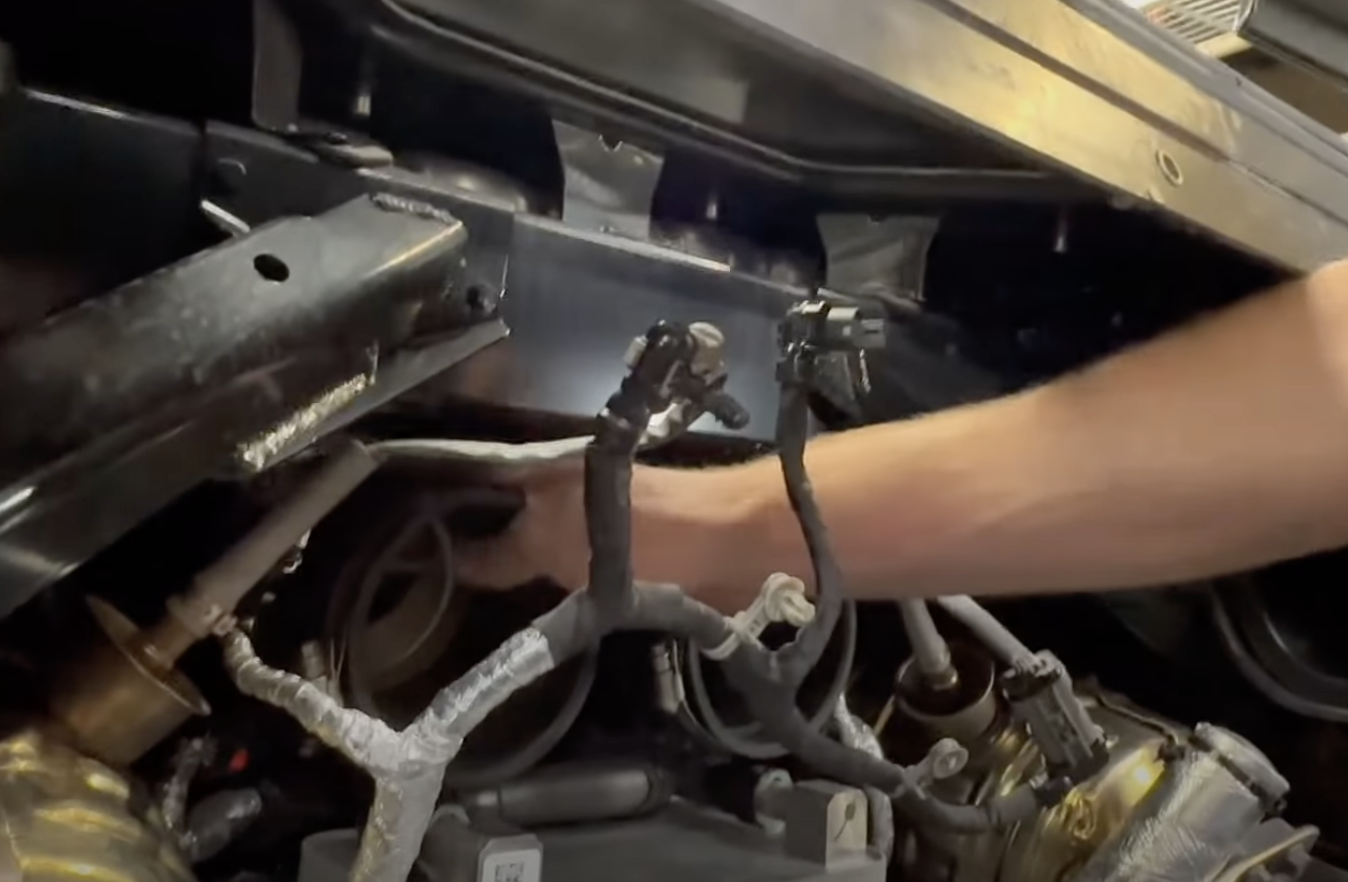

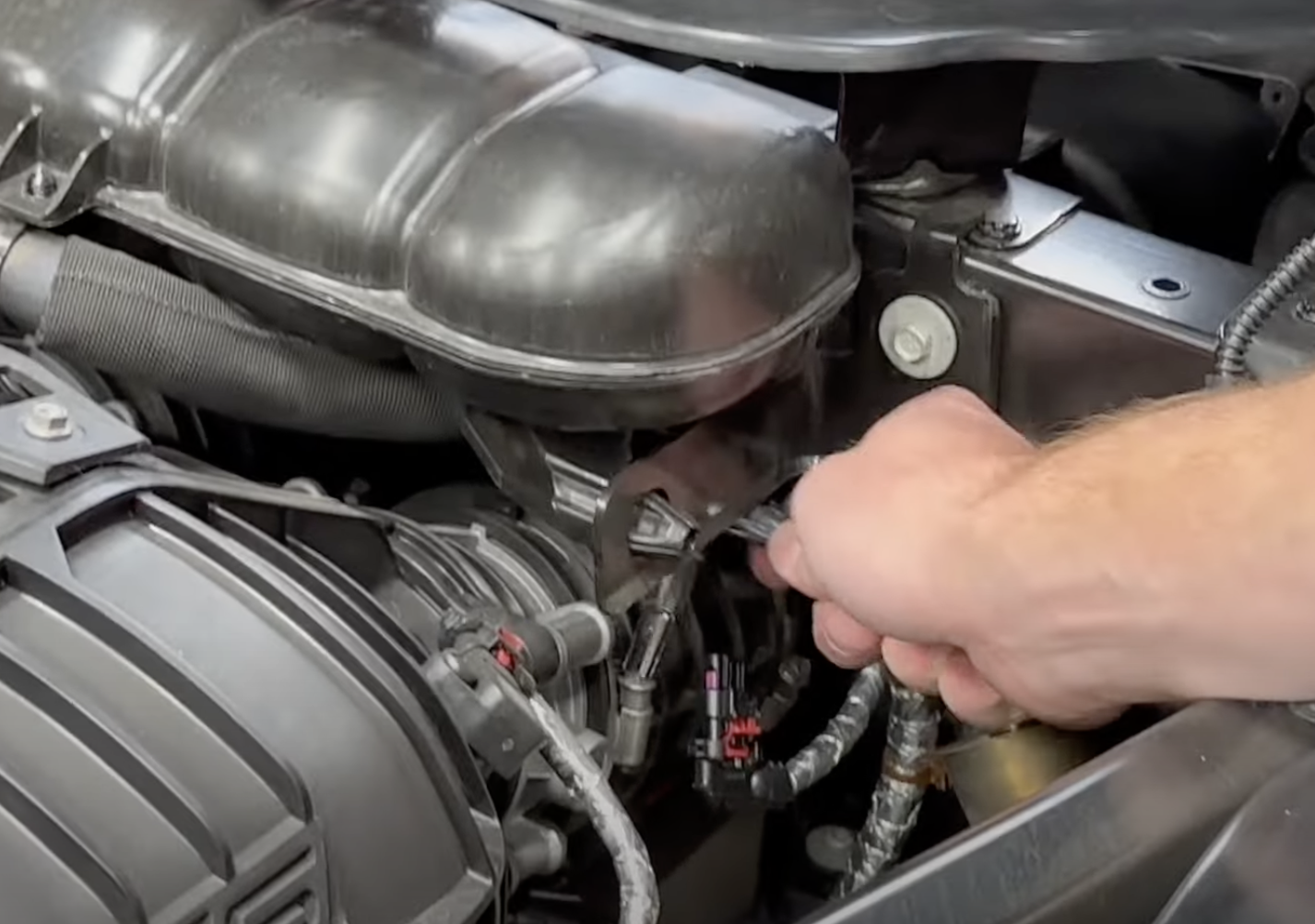

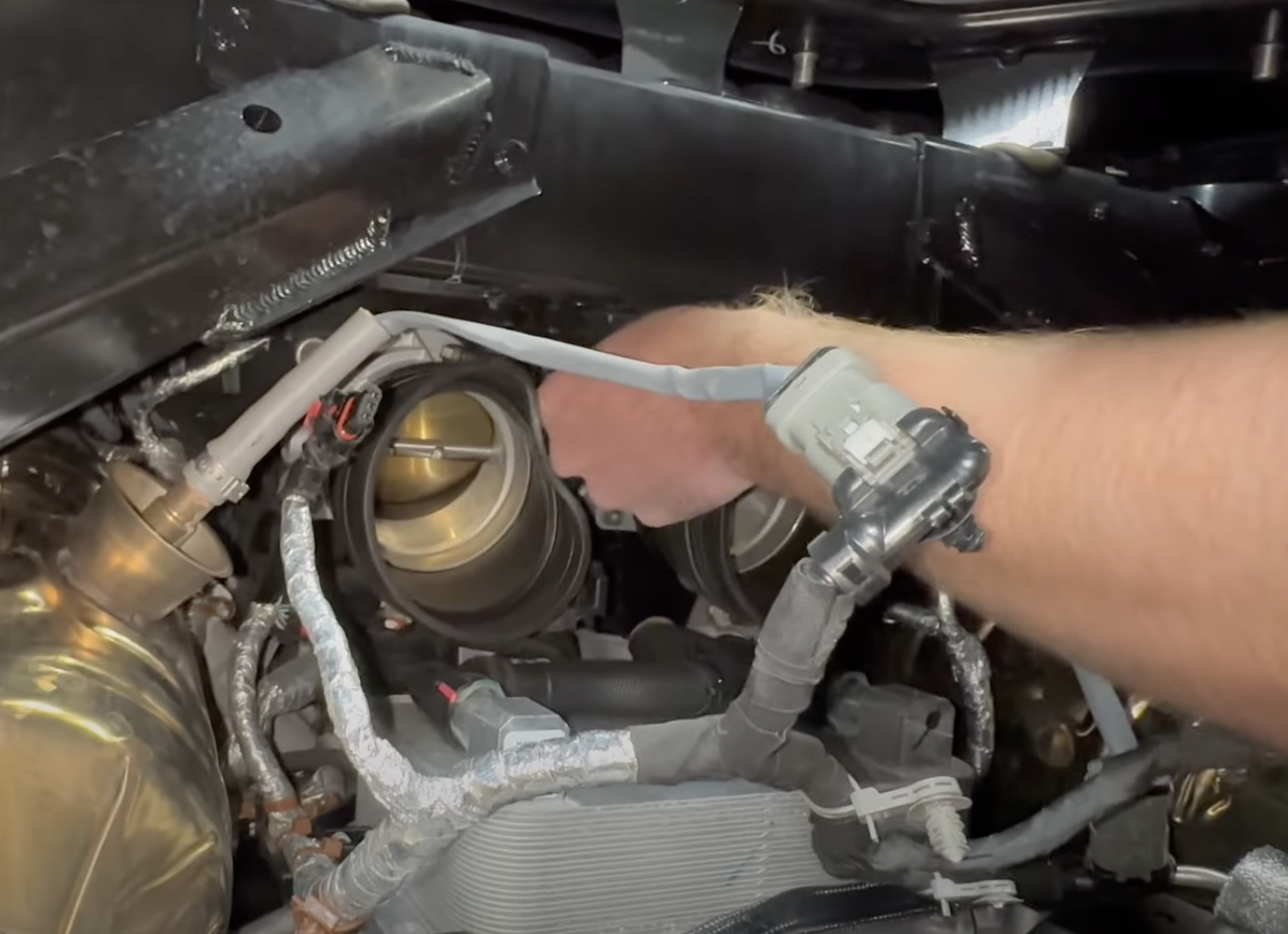

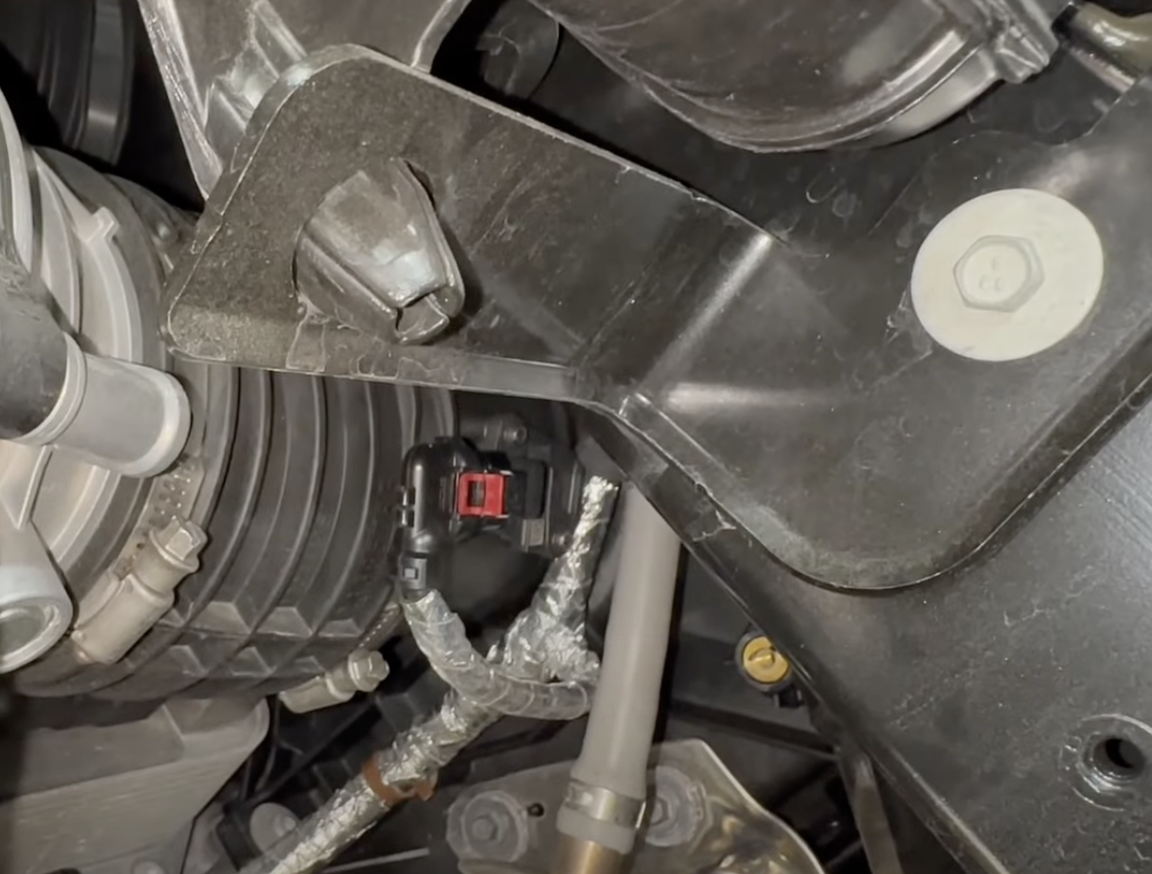

Disconnect the MAF harnesses as seen in the image. To see how to remove, please refer to our install video starting at 2:30.

https://www.youtube.com/watch?v=A6O_6W3S2fg&t=6s

Step 5

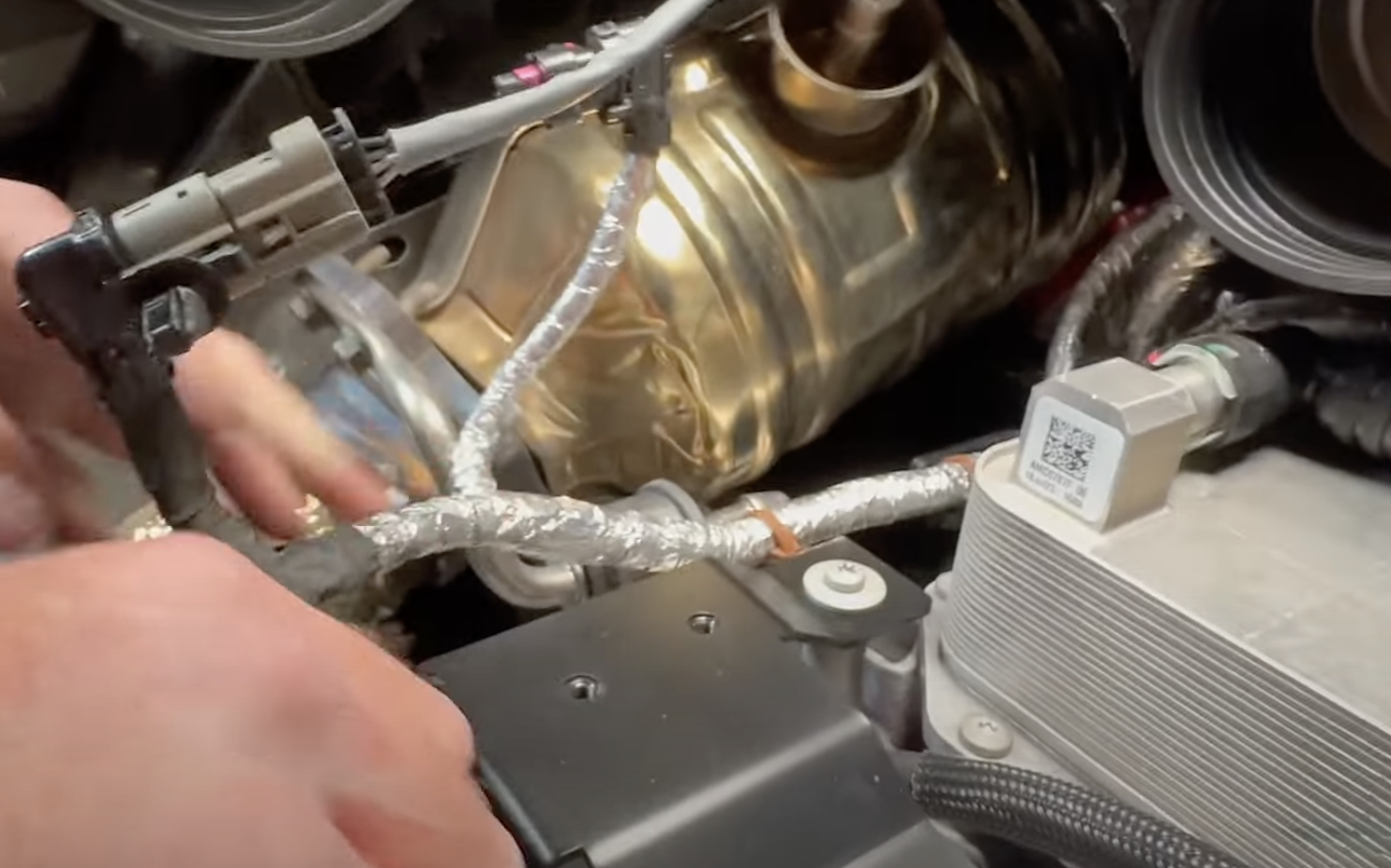

Remove the 02 sensors by unclipping each one.

Step 6

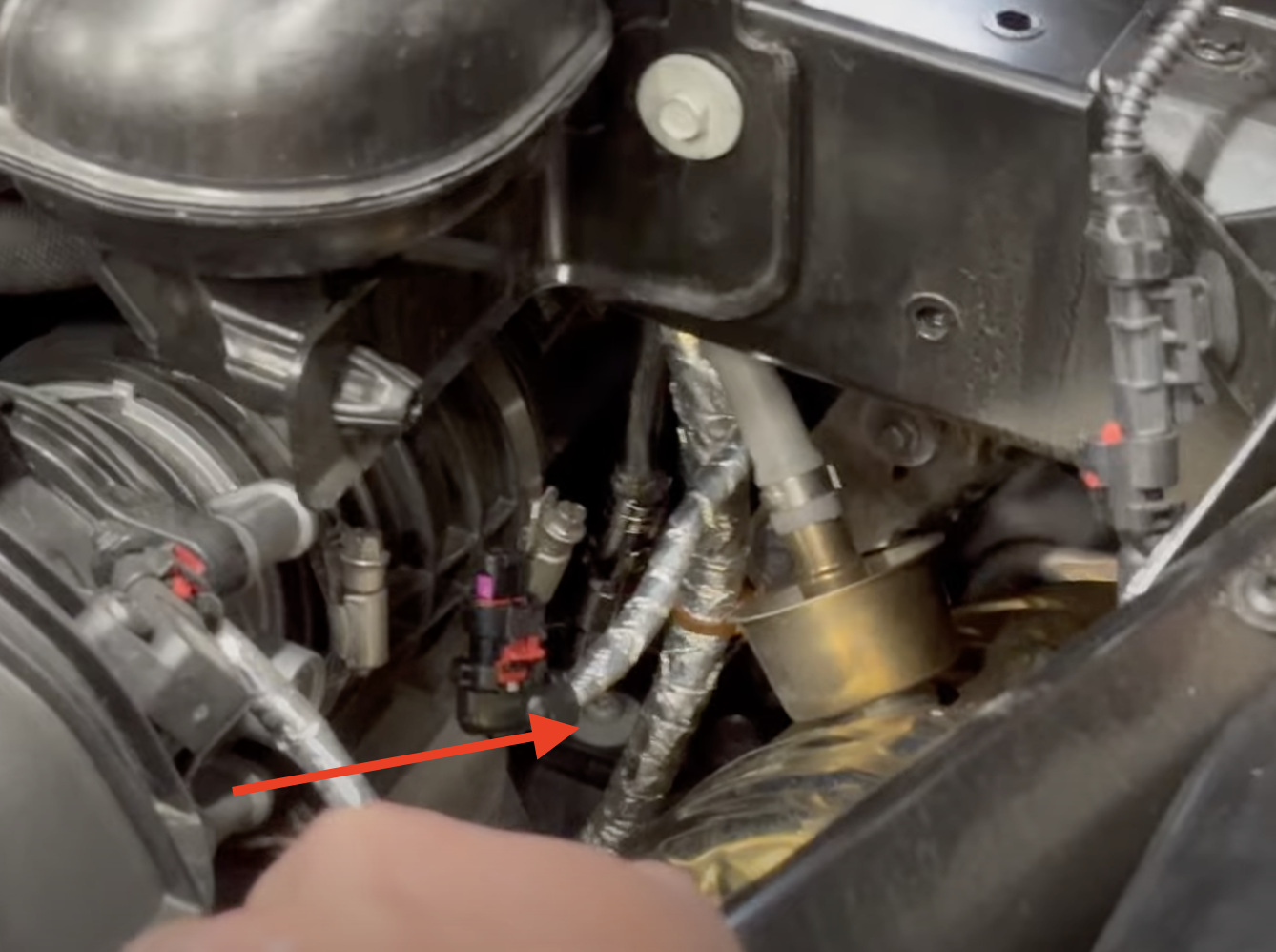

With a panel popper, remove the two grey push rivets seen in the image.

Step 7

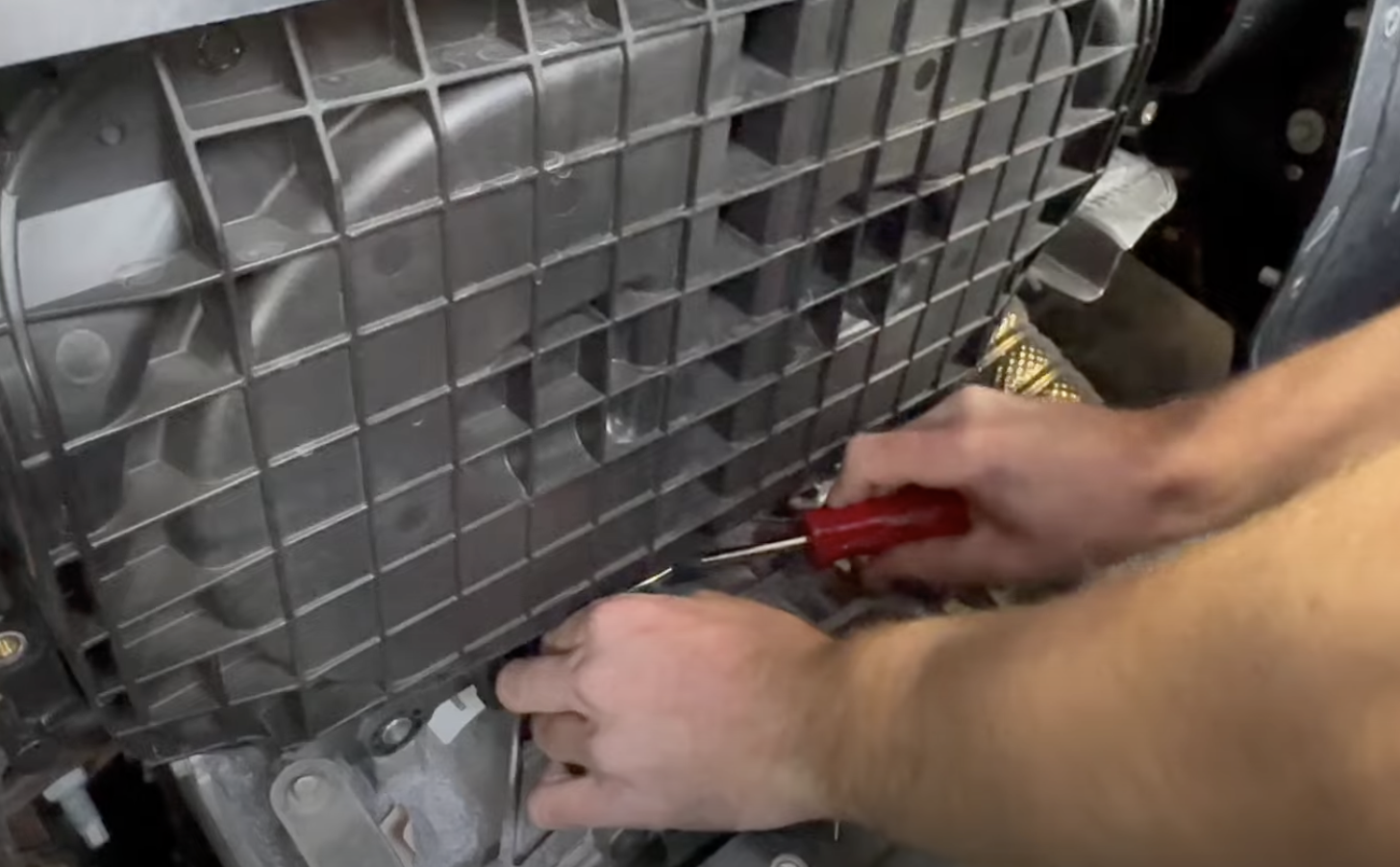

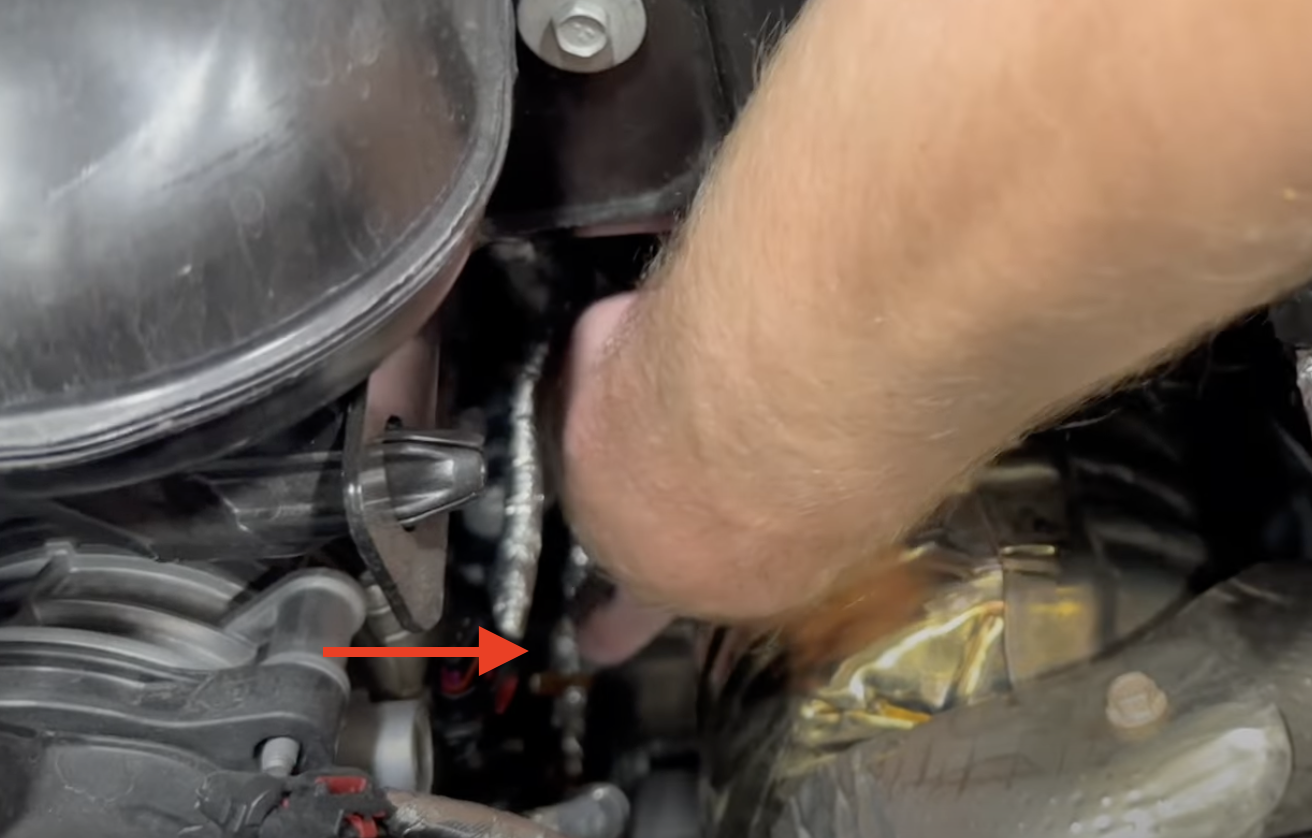

Remove the two brown/orange push rivets that secure down the bottom harnesses tp the airbox.

Step 8

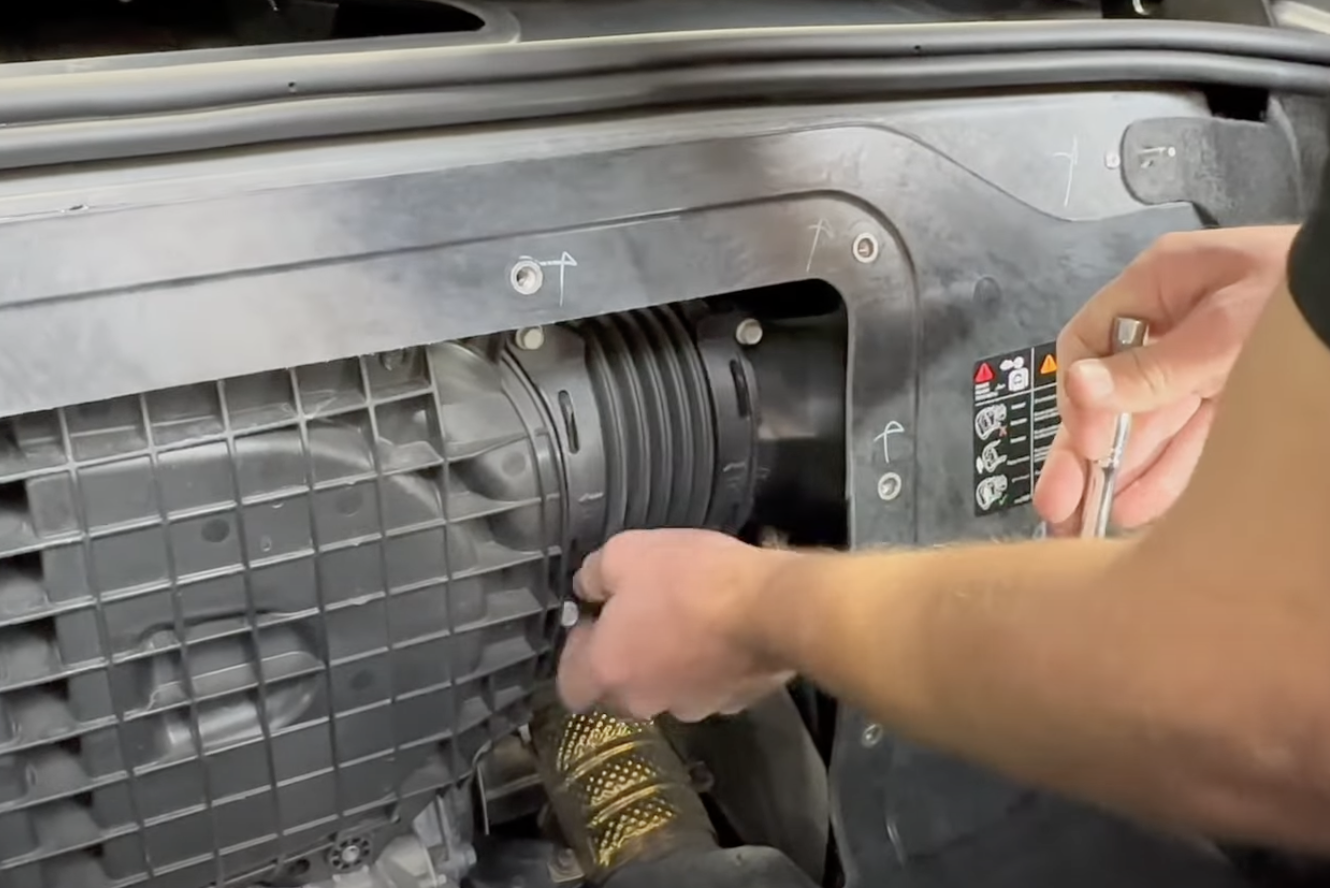

Loosen the hose clamps that are on the couplers.

Step 9

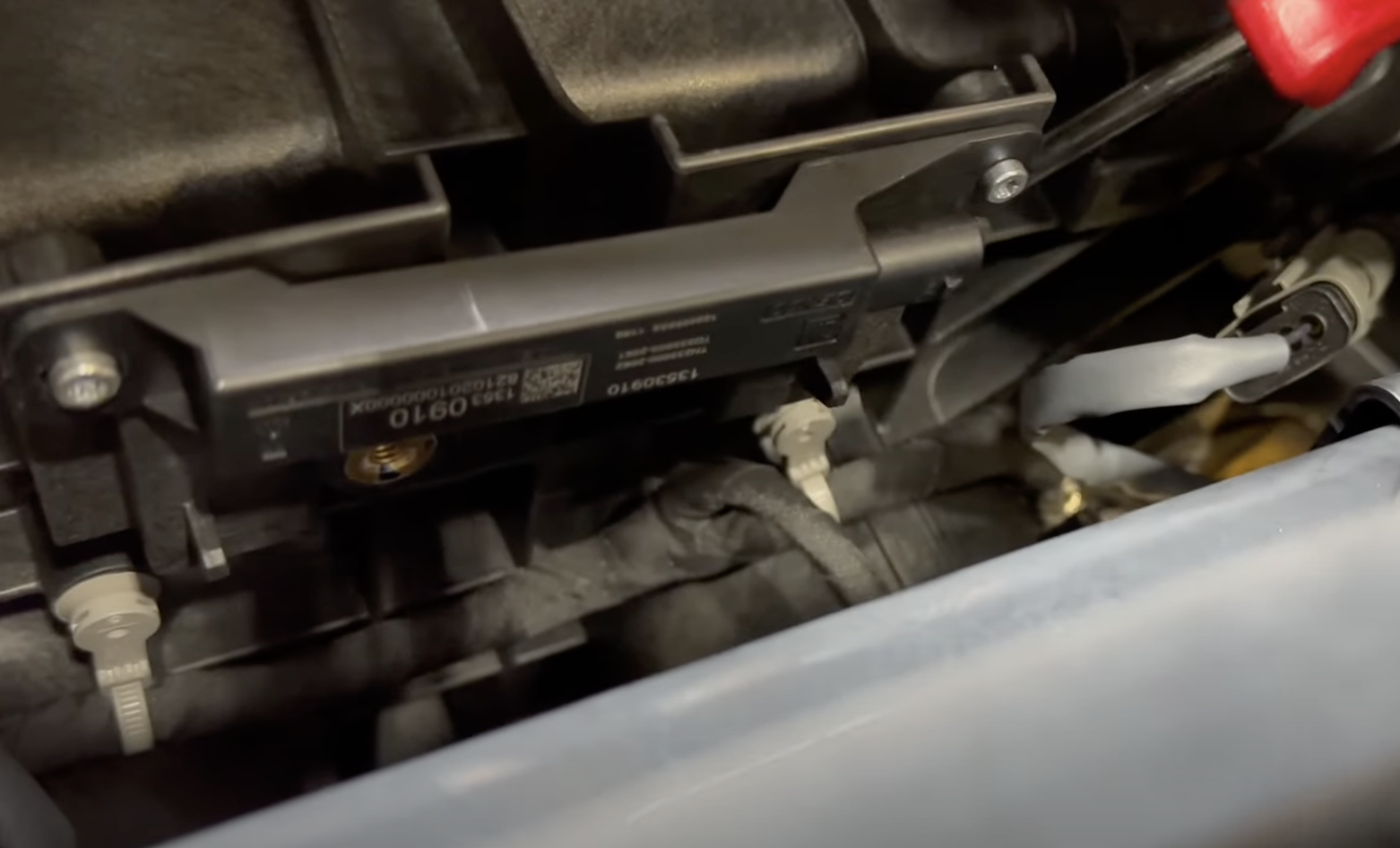

Remove the screw on the drivers side as seen in the image. Do not lose this.

Step 10

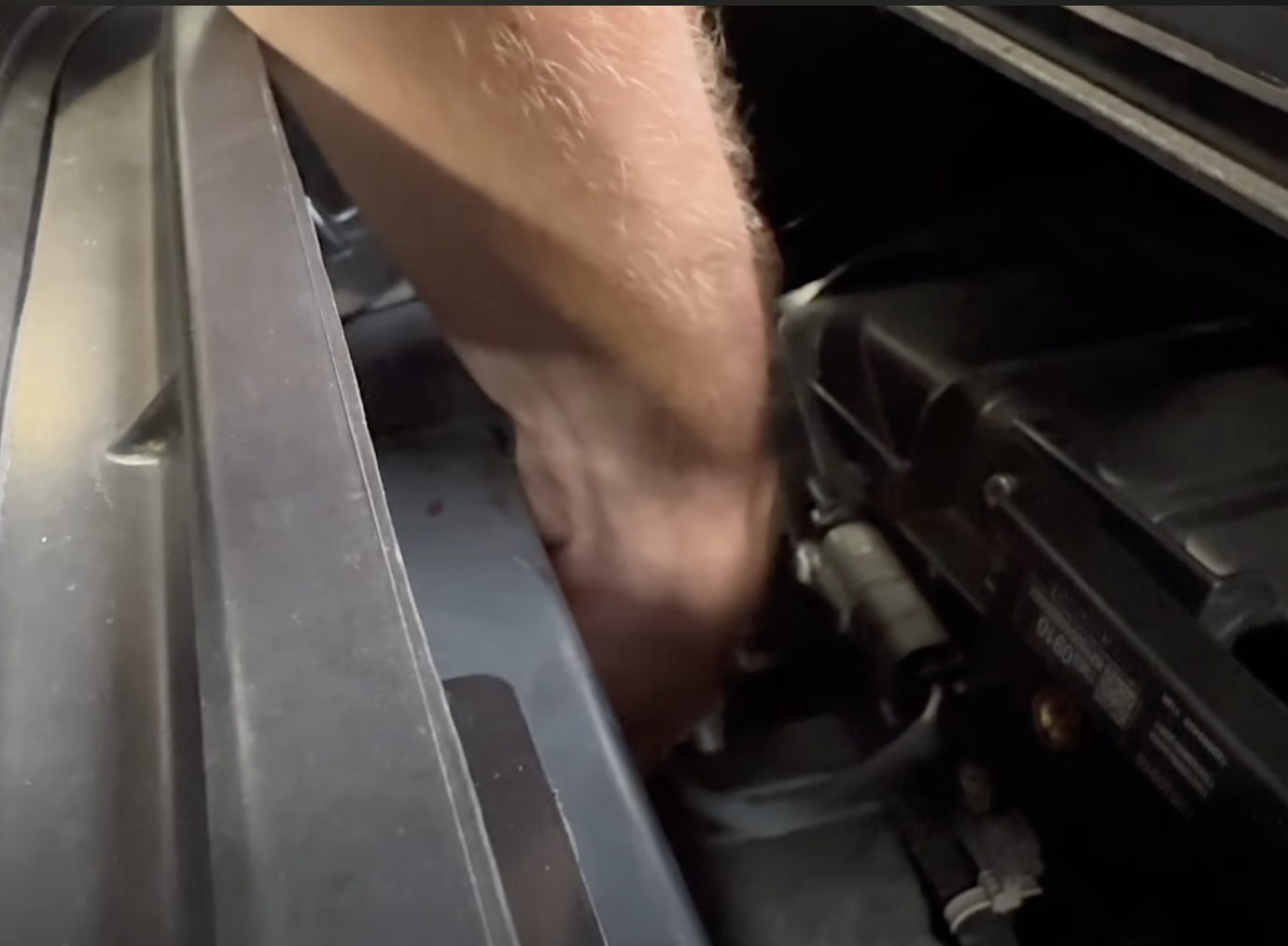

To get to the passenger side bottom airbox mount bolt, remove the canister.

Step 11

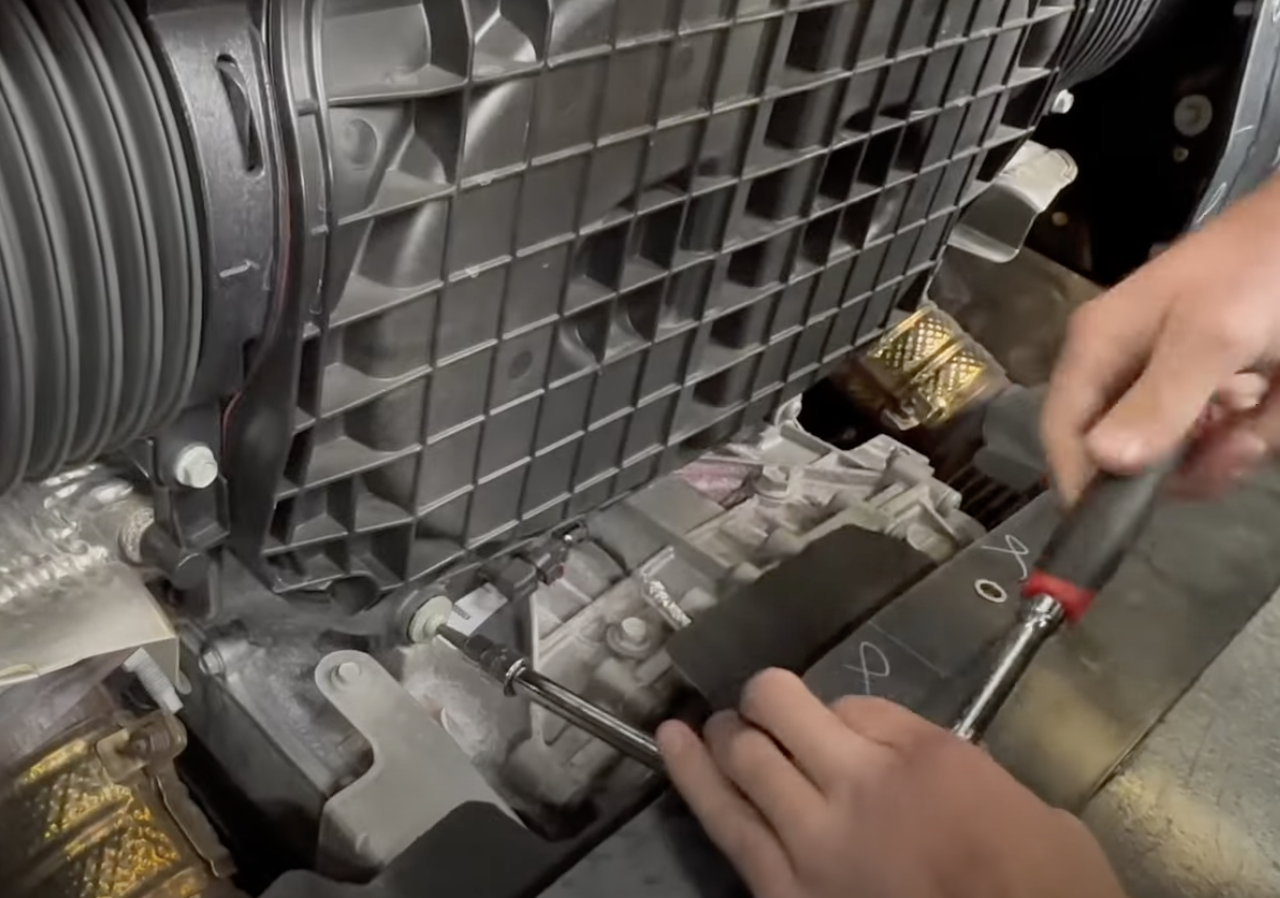

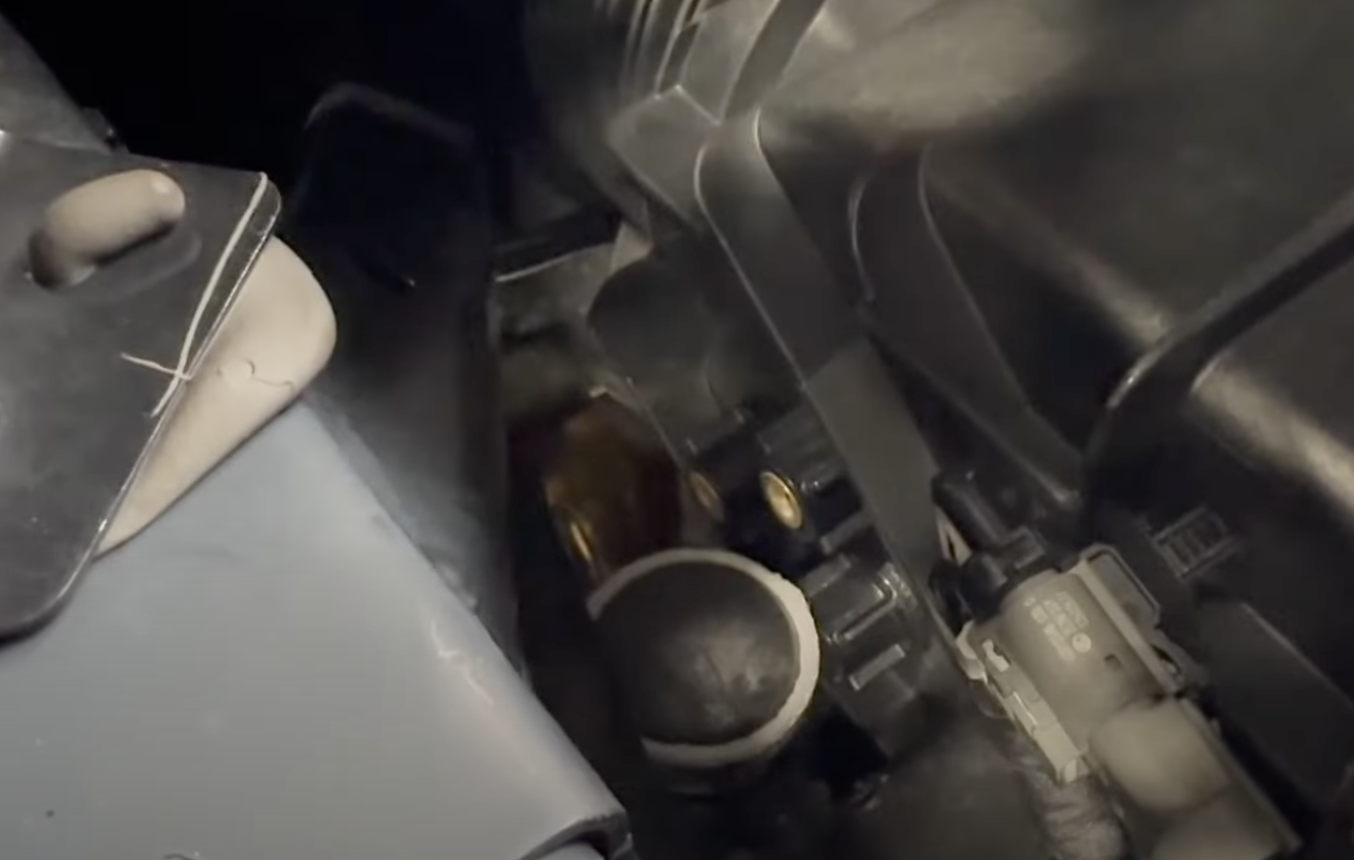

Now remove the bottom bolt once there is clearance.

Step 12

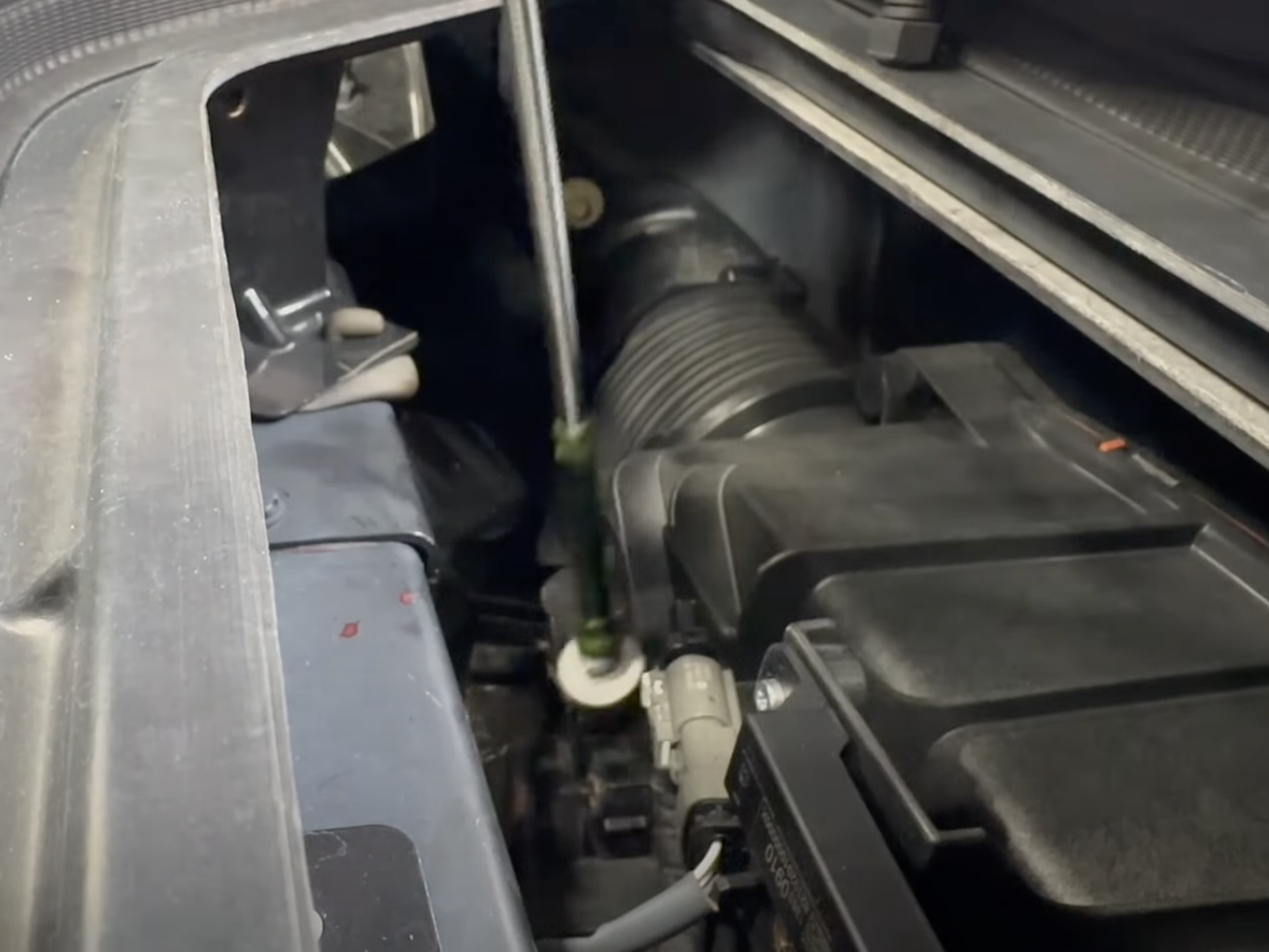

Now take a magnet or claw tool and remove the bolt. Do not skip this steps, otherwise you will lose the bolt.

Step 13

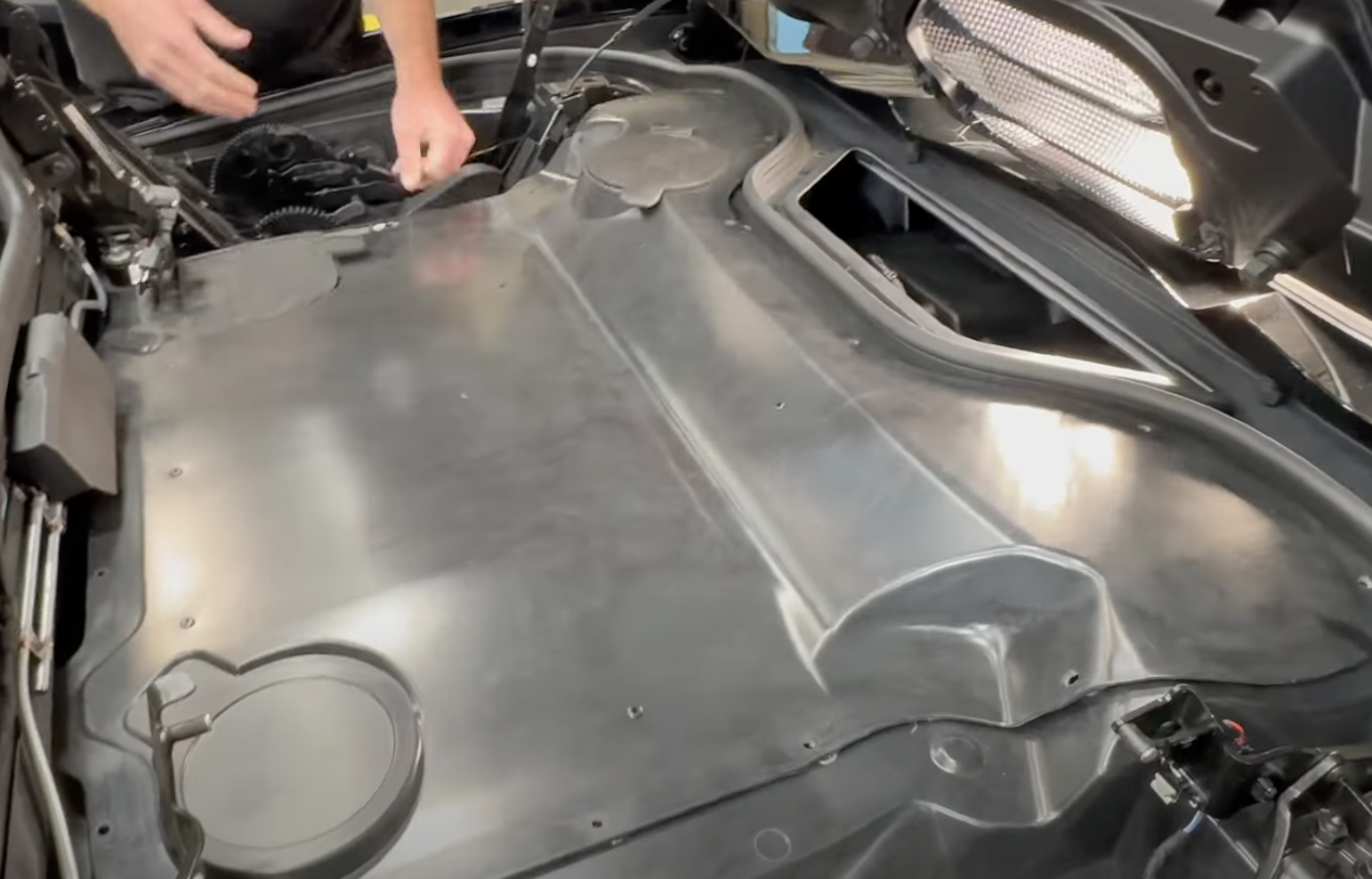

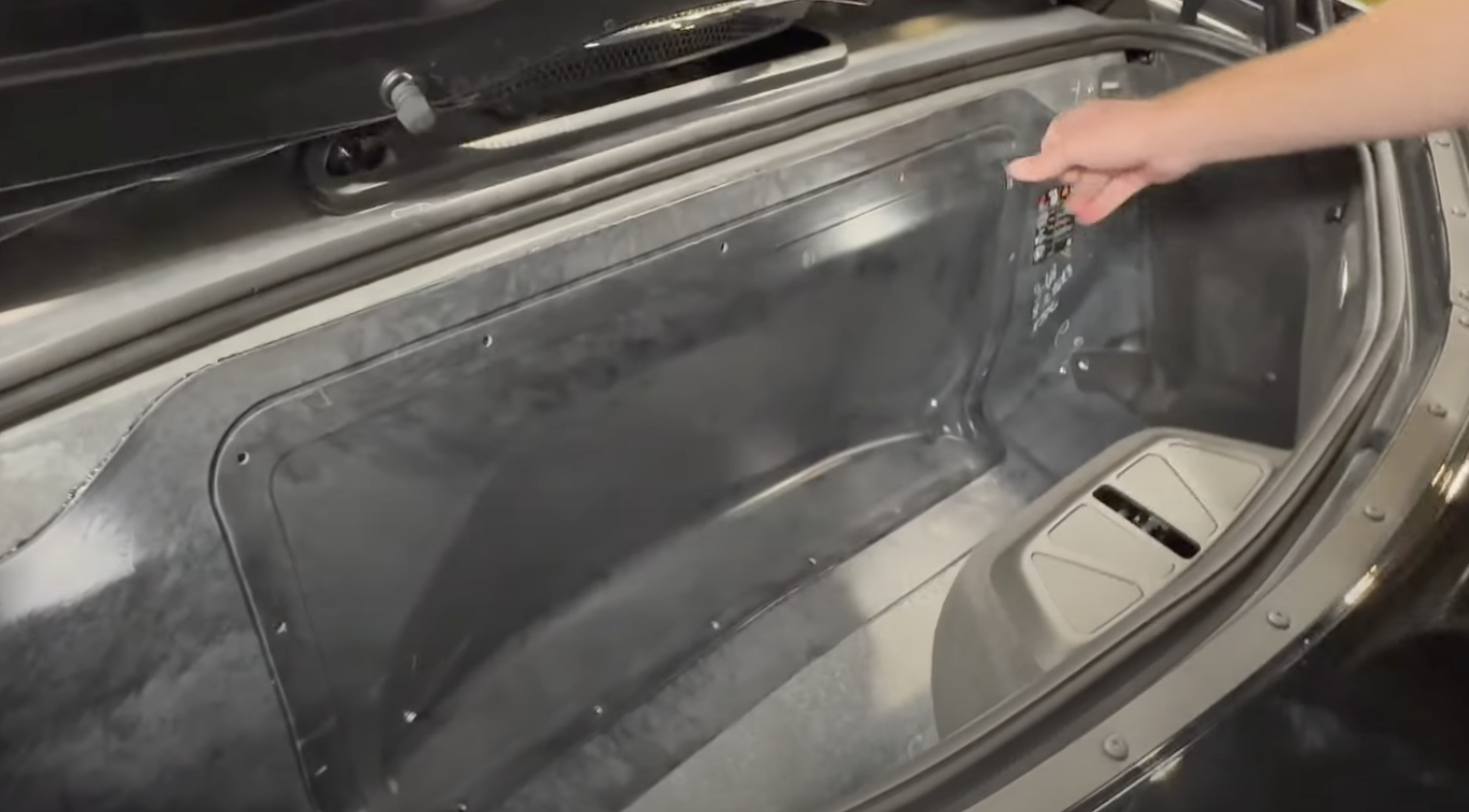

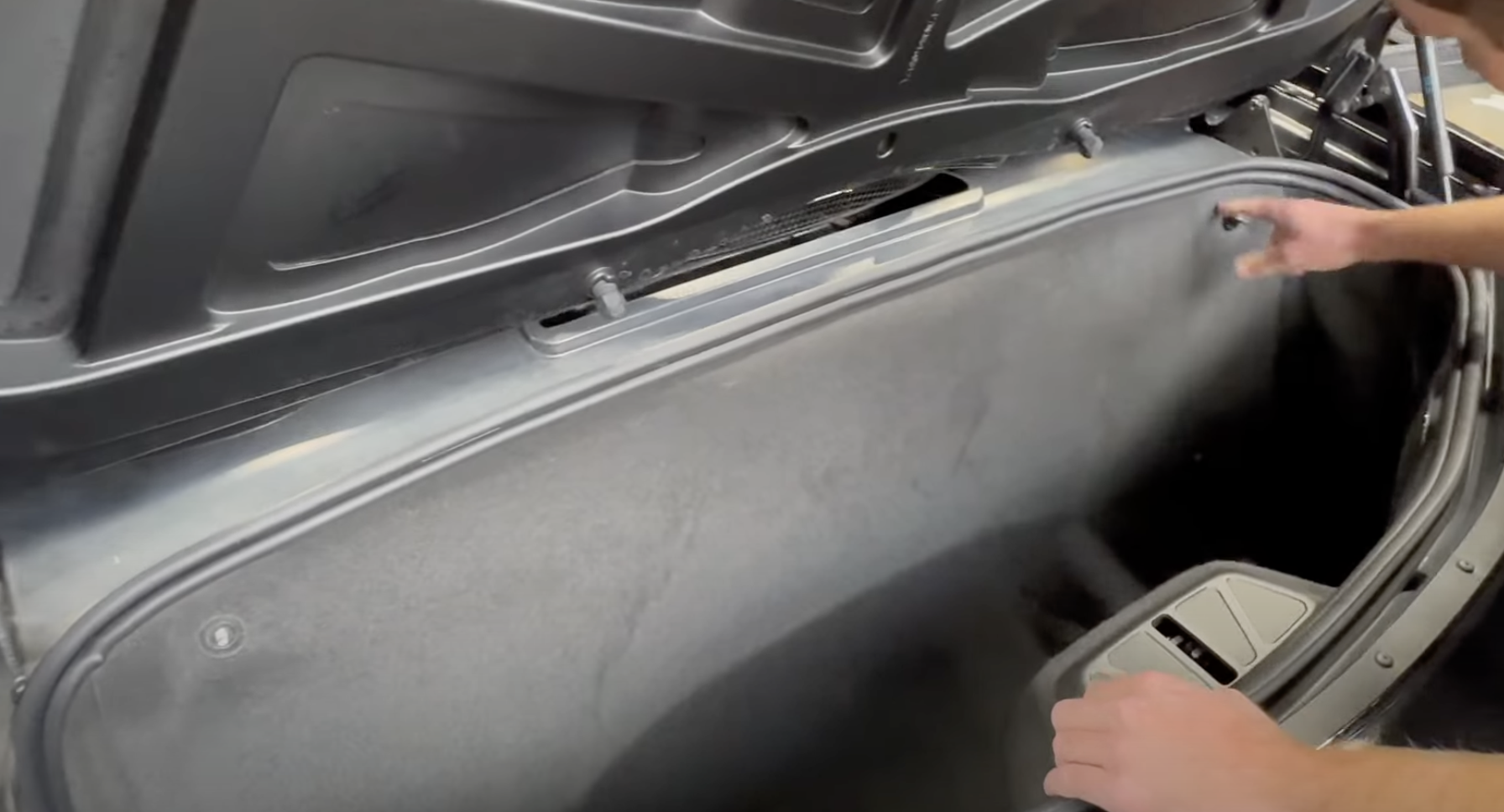

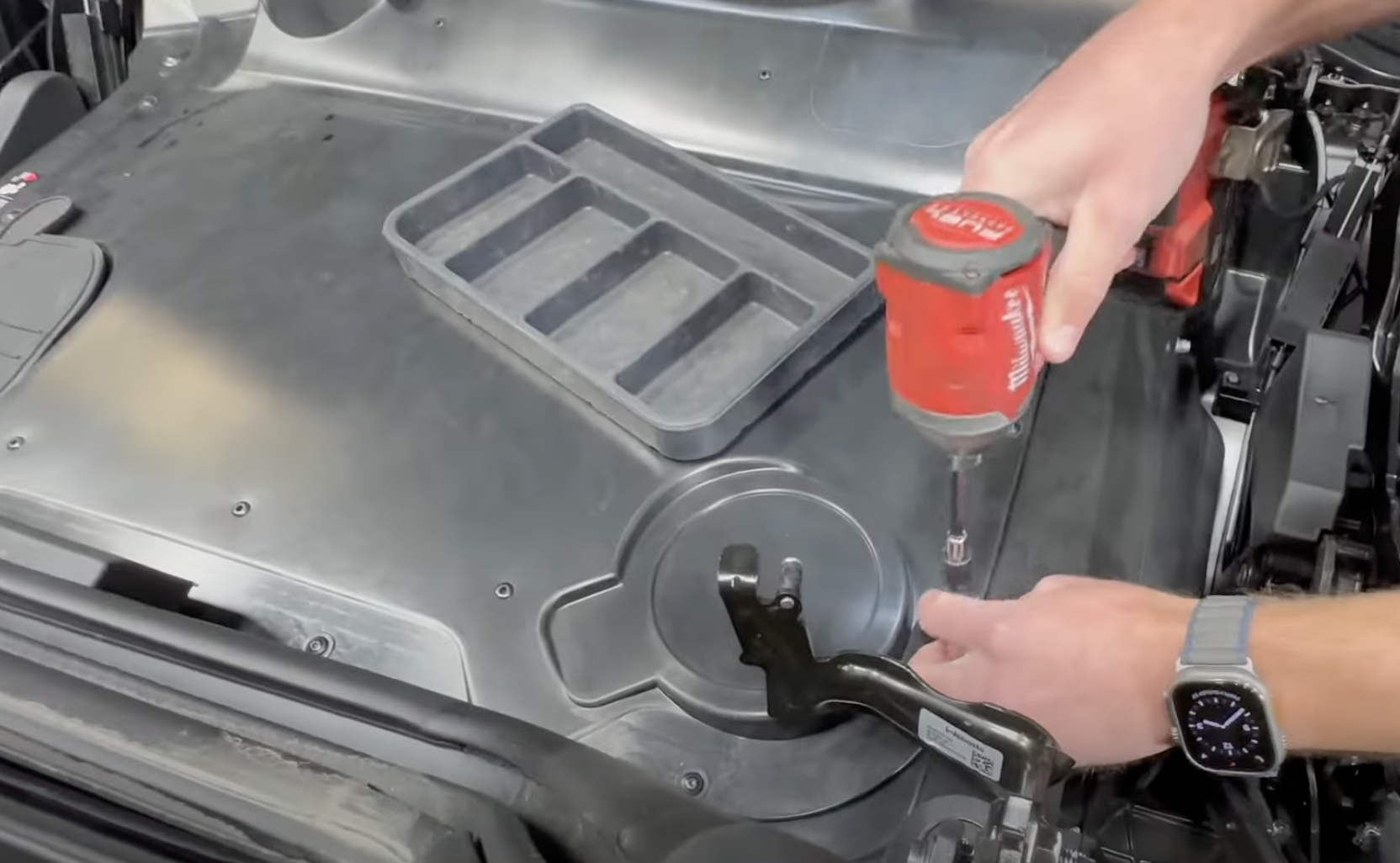

Remove the trunk cover carpet.

Step 14

Now remove the screws that hold down the trunk cover.

STEP 15

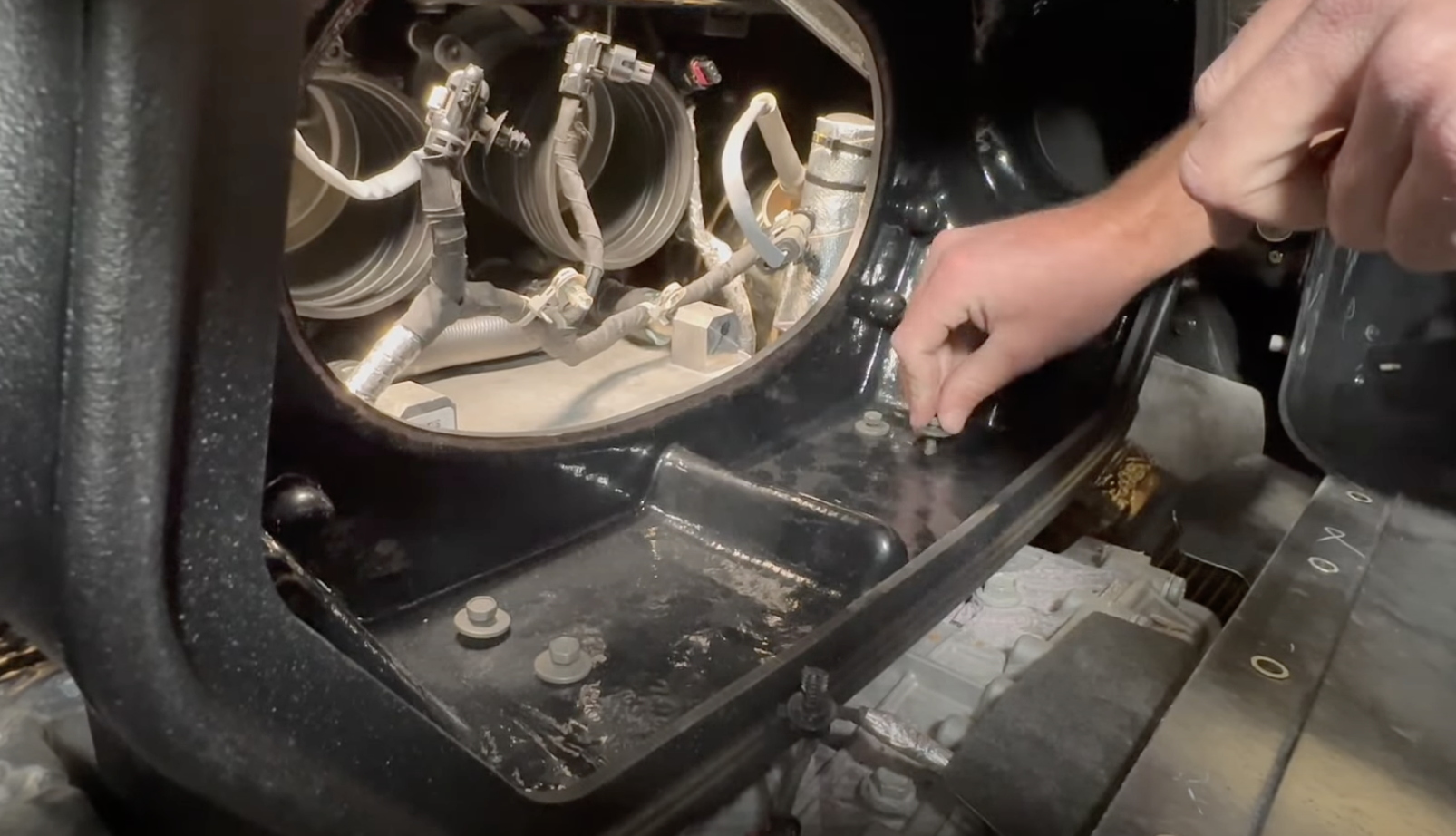

Remove the final two airbox mounting bolts.

STEP 16

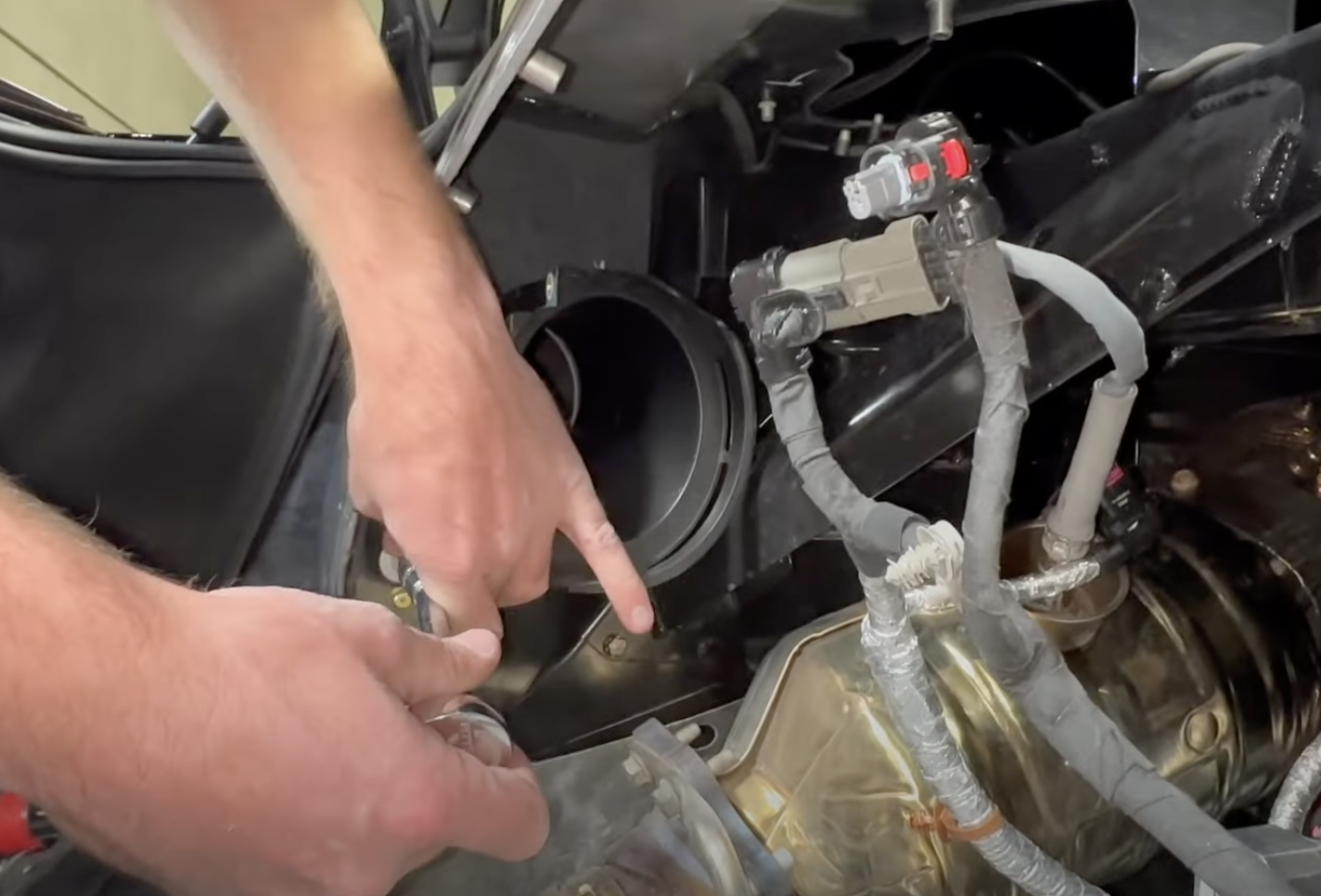

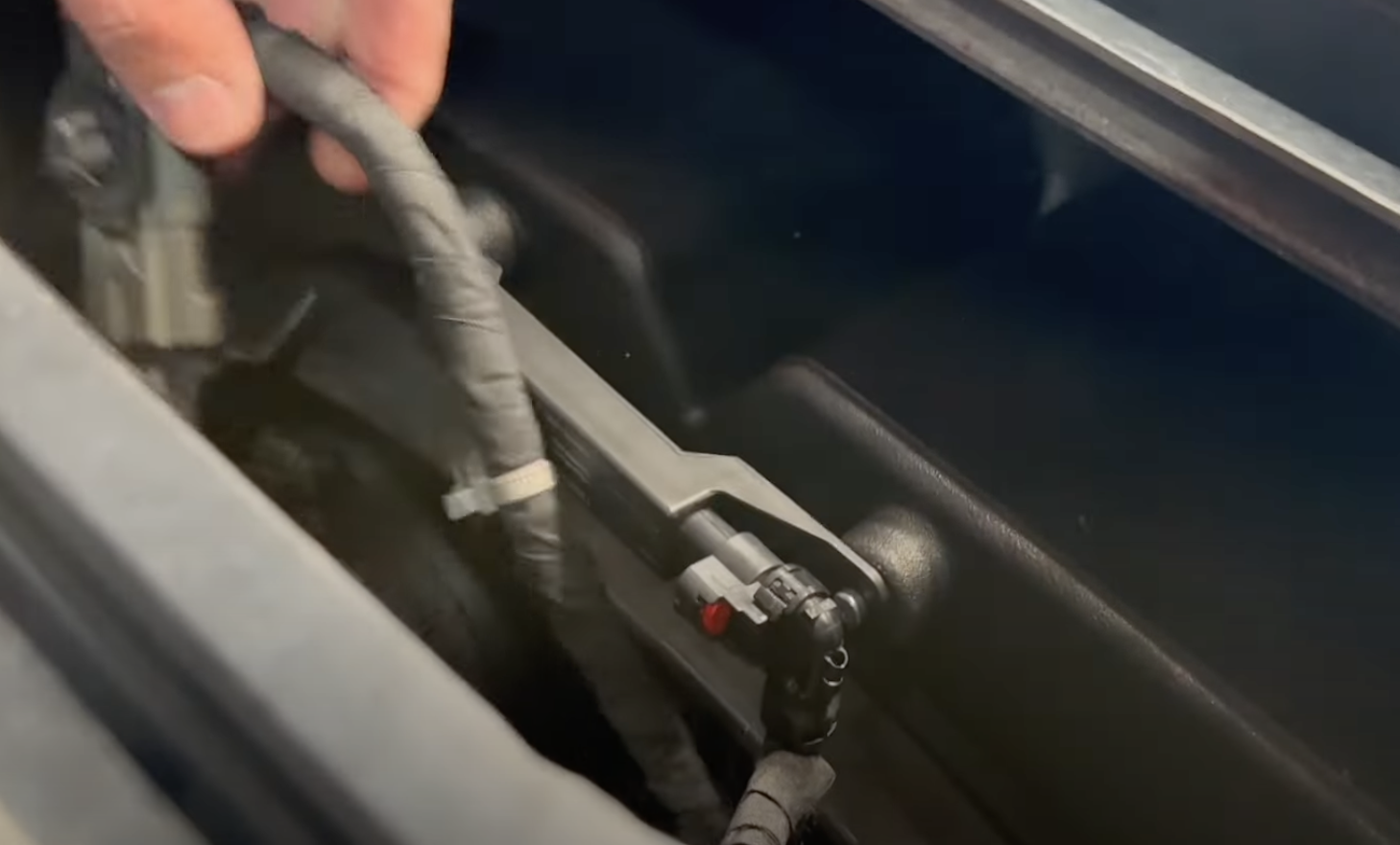

Slide the red clip on the sensor then remove the harness.

STEP 17

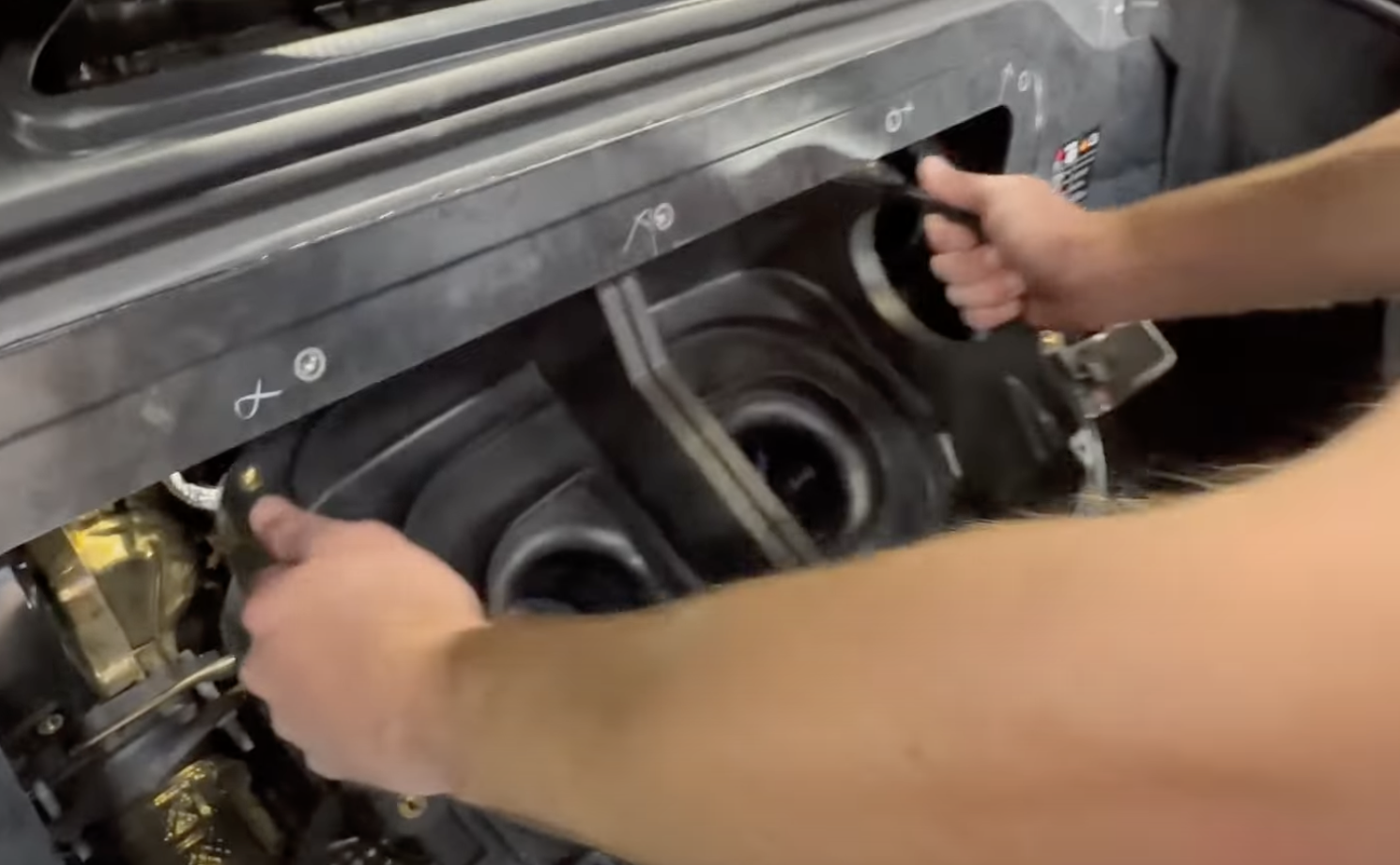

Remove all the bolts that hold down the factory scoops.

Step 18

Remove the last push rivet holding down the bottom of the box.

STEP 19

Remove the passenger side MAF sensor.

STEP 20

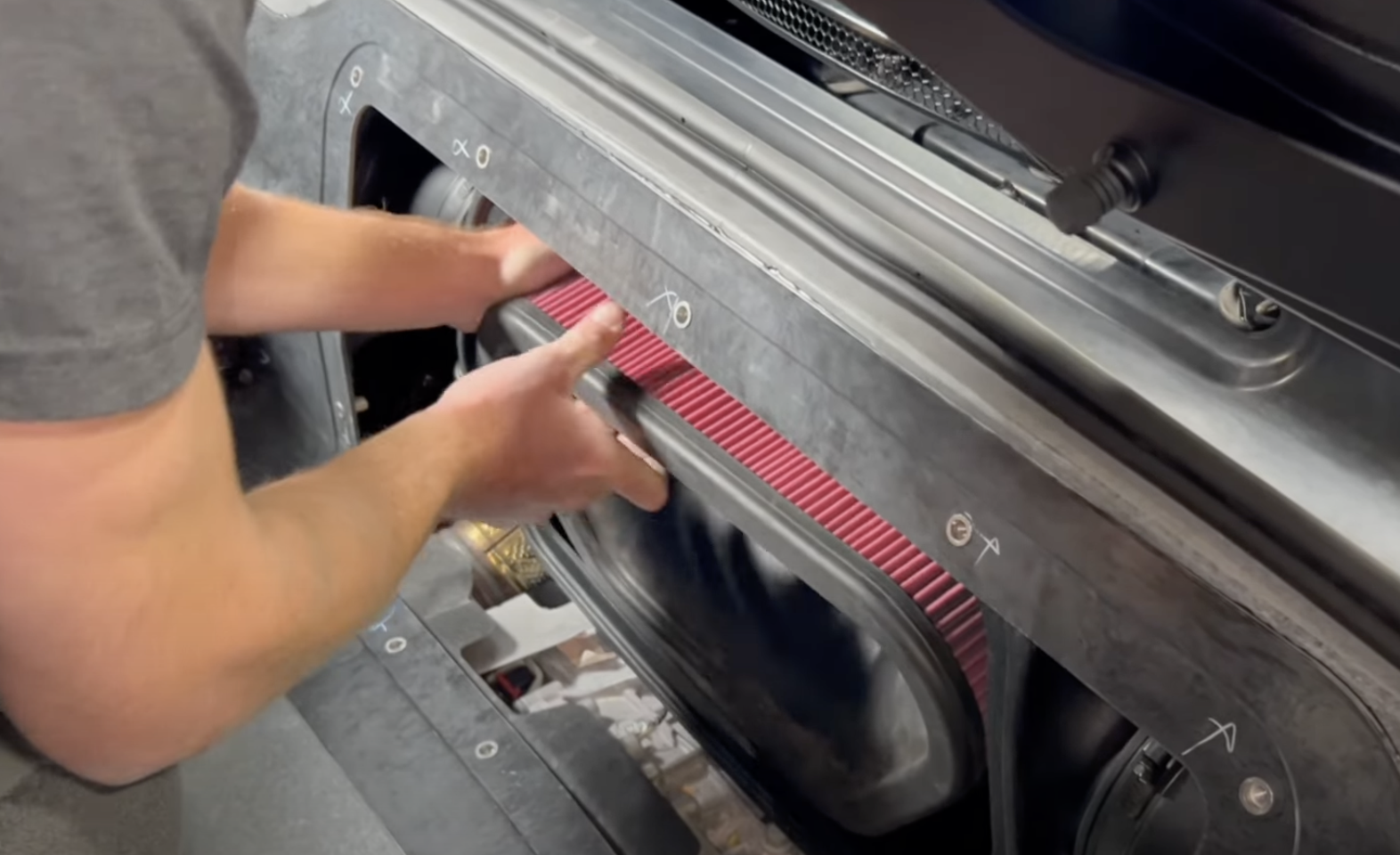

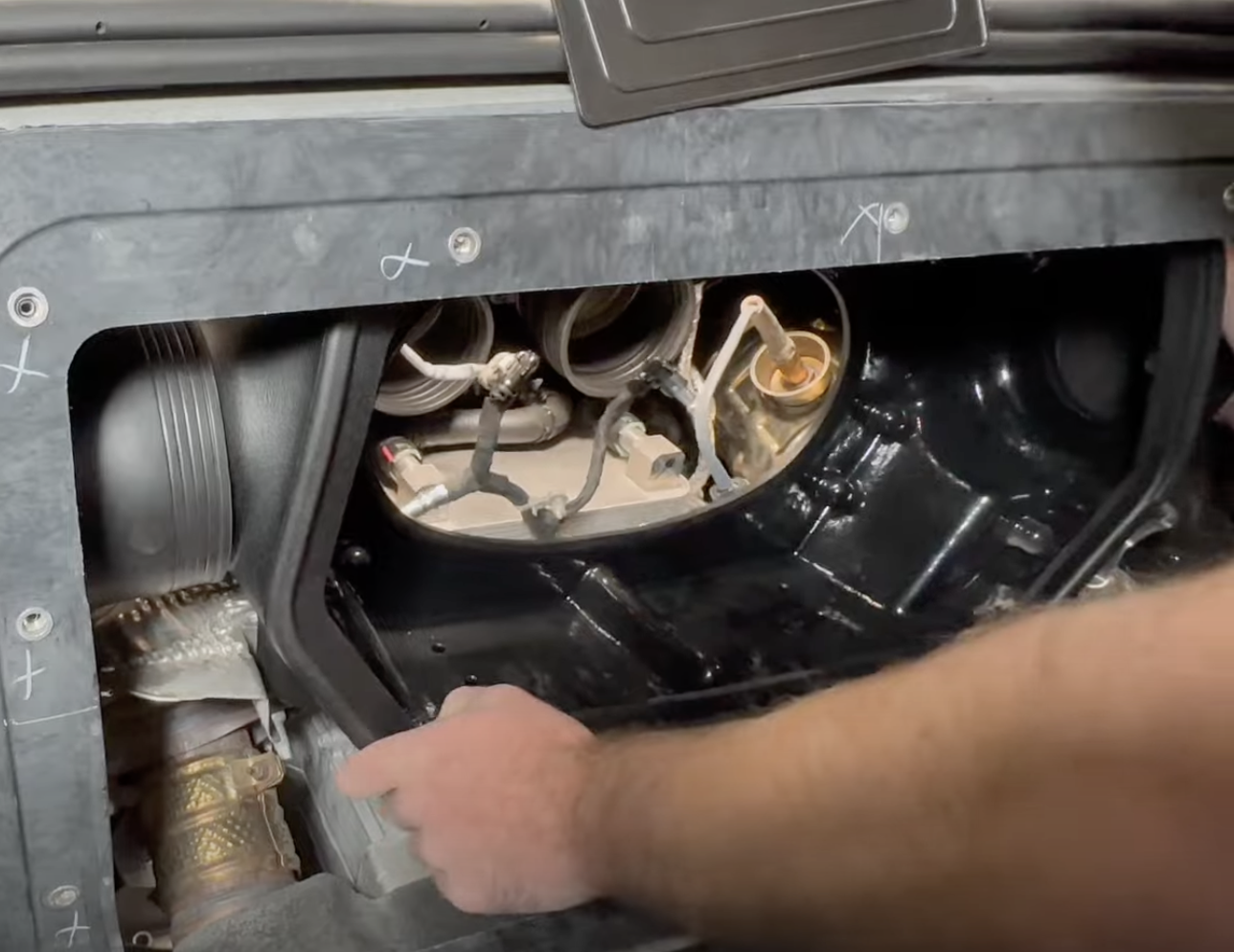

To remove the stock airbox, unclip the lid off the airbox and remove the filters. This will give you the clearance to remove the whole airbox.

STEP 21

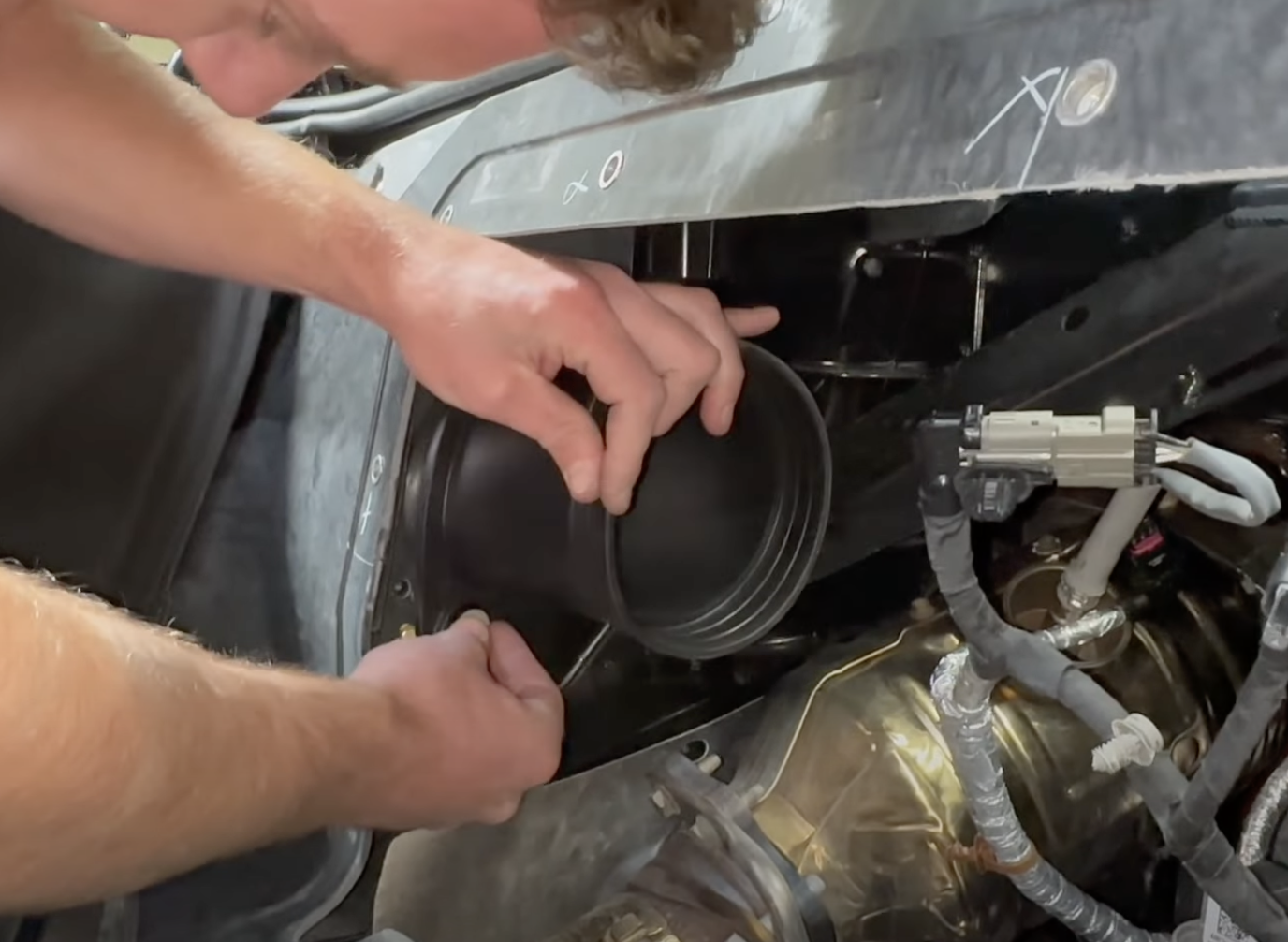

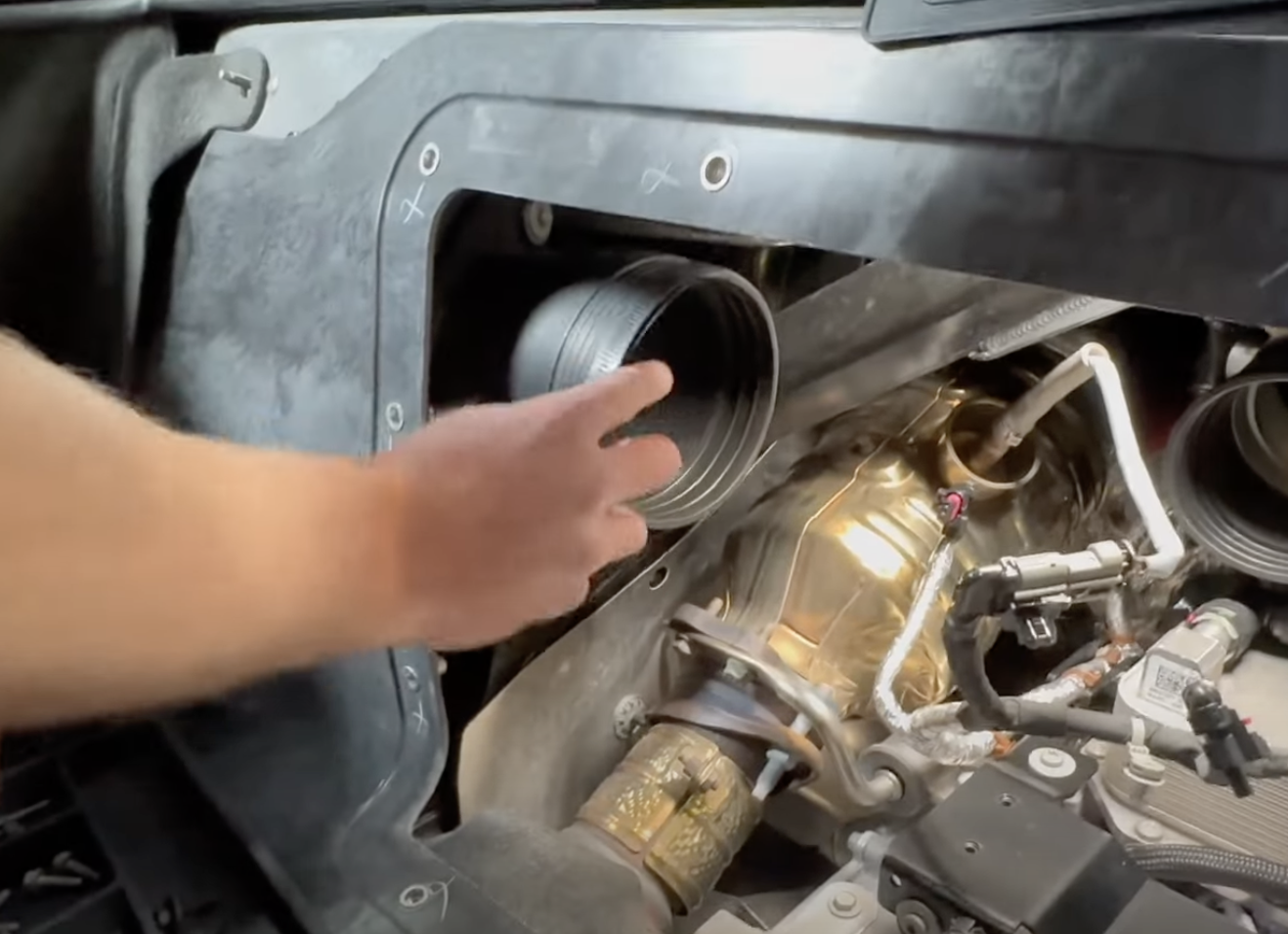

Remove both couplers from the vehicle.

STEP 22

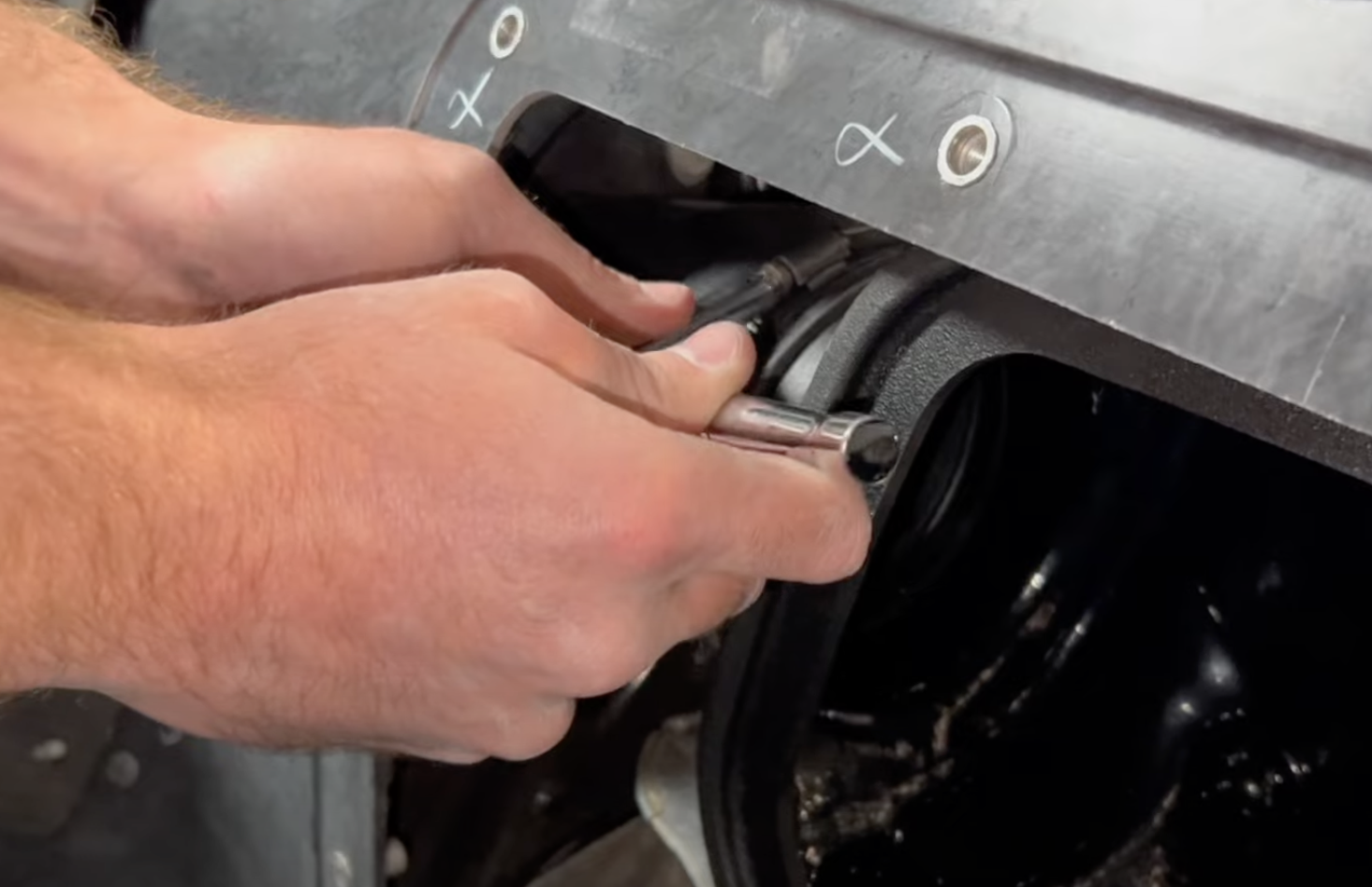

Remove the 10mm bolts that secure down the factory scoops. (on both driver and passenger side)

STEP 23

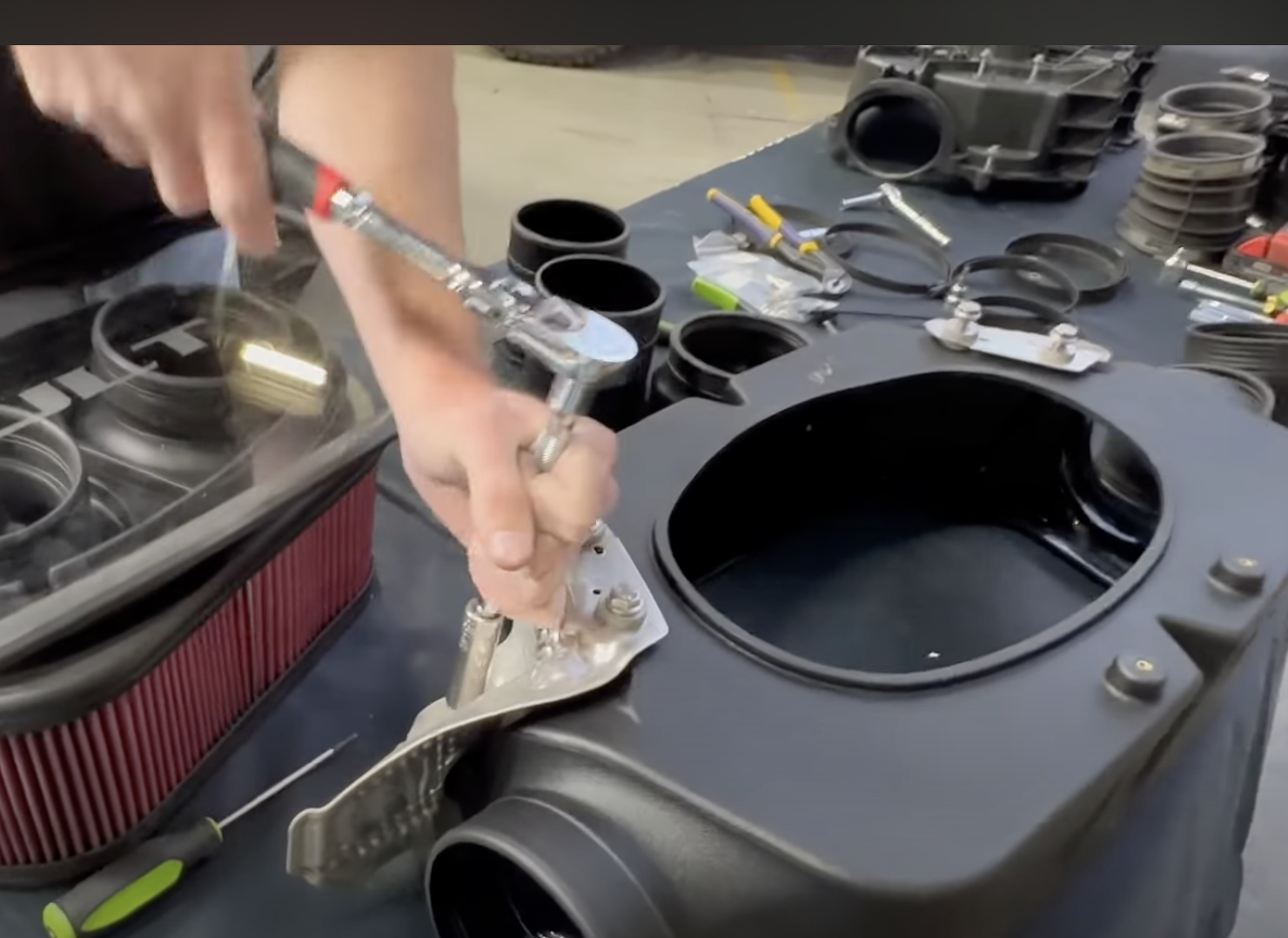

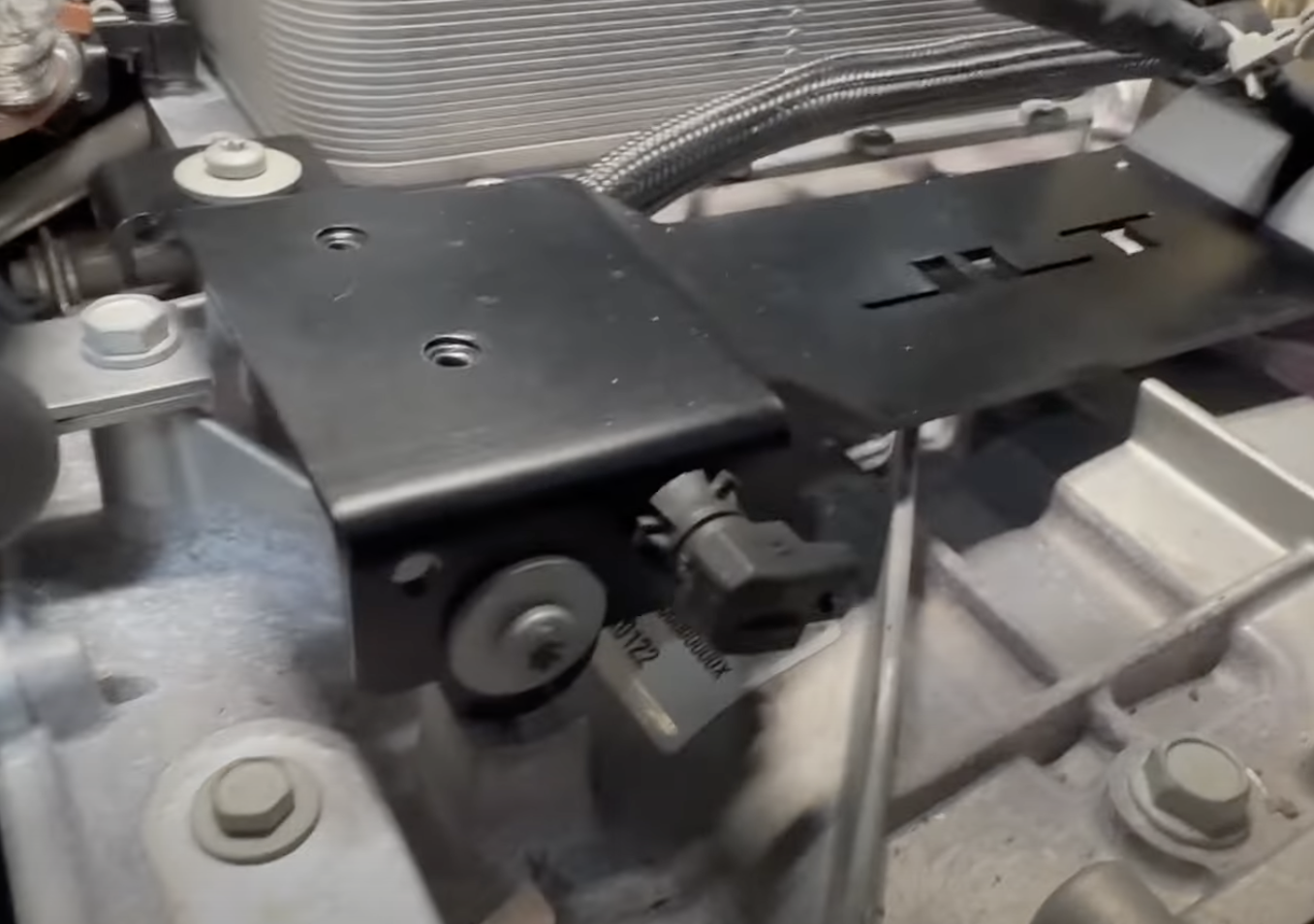

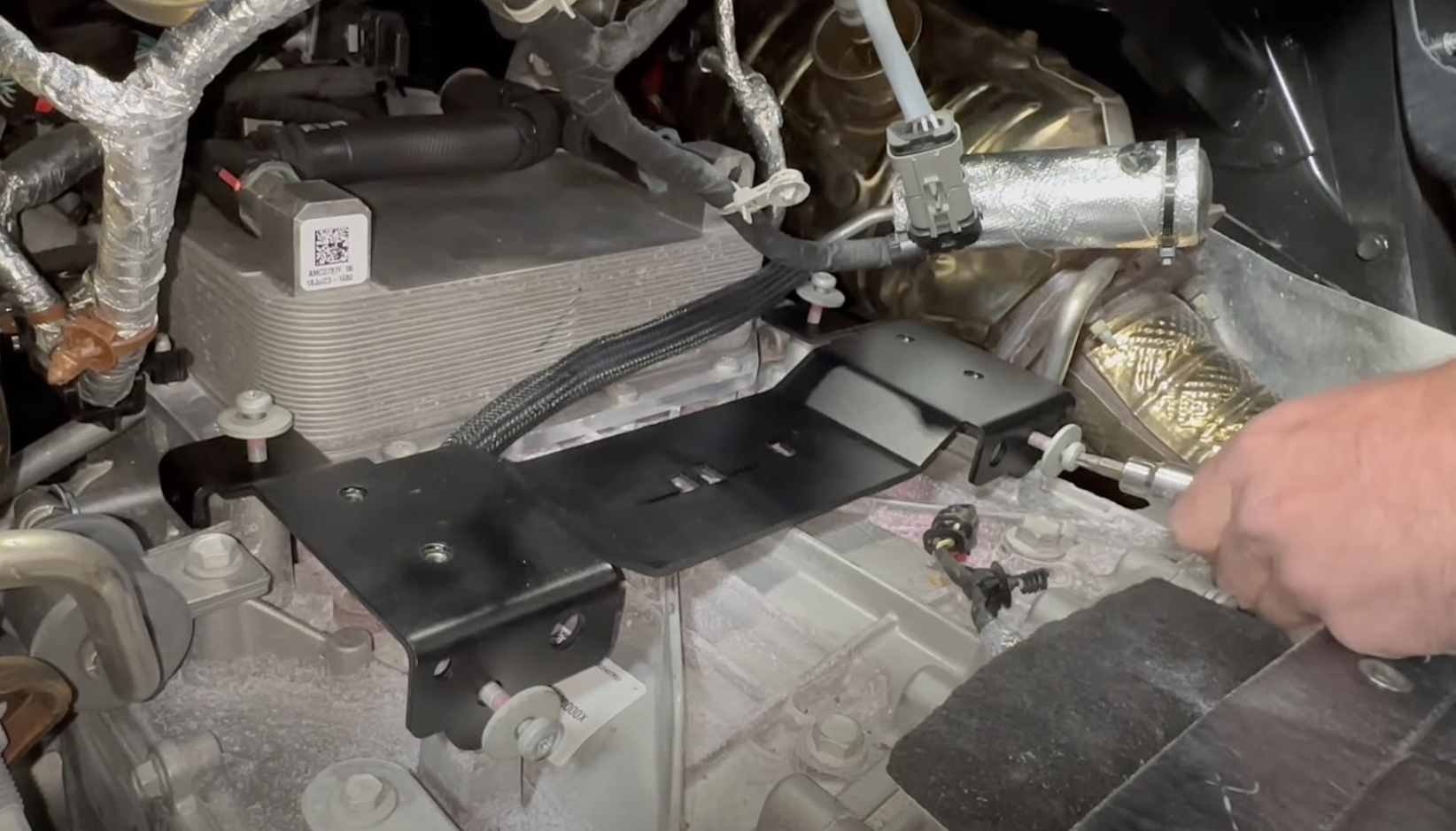

Install the JLT bracket and secure down.

STEP 24

Install the JLT scoops and secure down with the bolts. They will be labeled left and right.

STEP 25

Transfer the heat shield to the JLT airbox.

STEP 25B

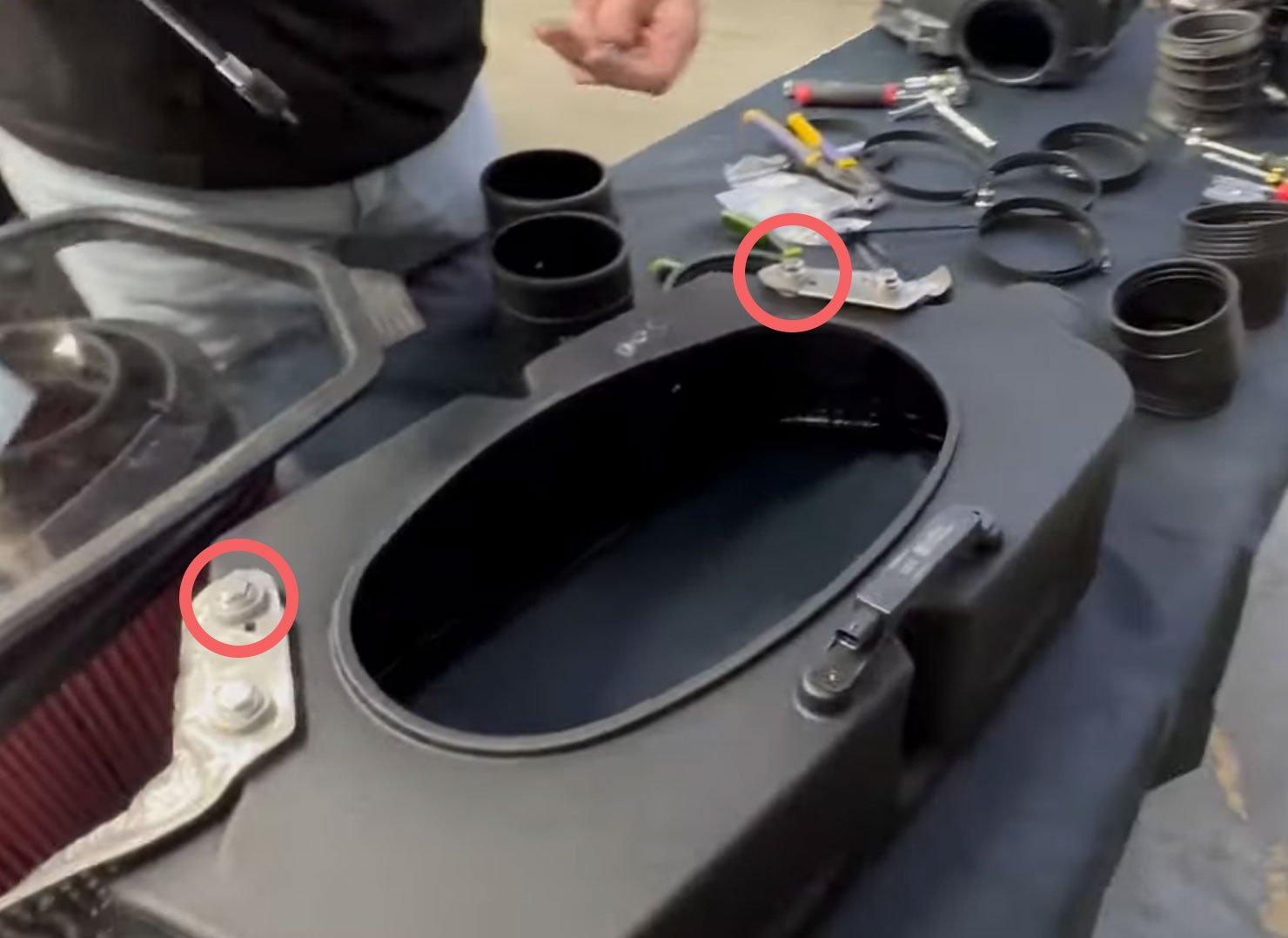

If you have the Fabspeed High Flow Cats, you will need to leave out the bottom bolt on the heat shields as these would contact the O2 sensor.

STEP 26

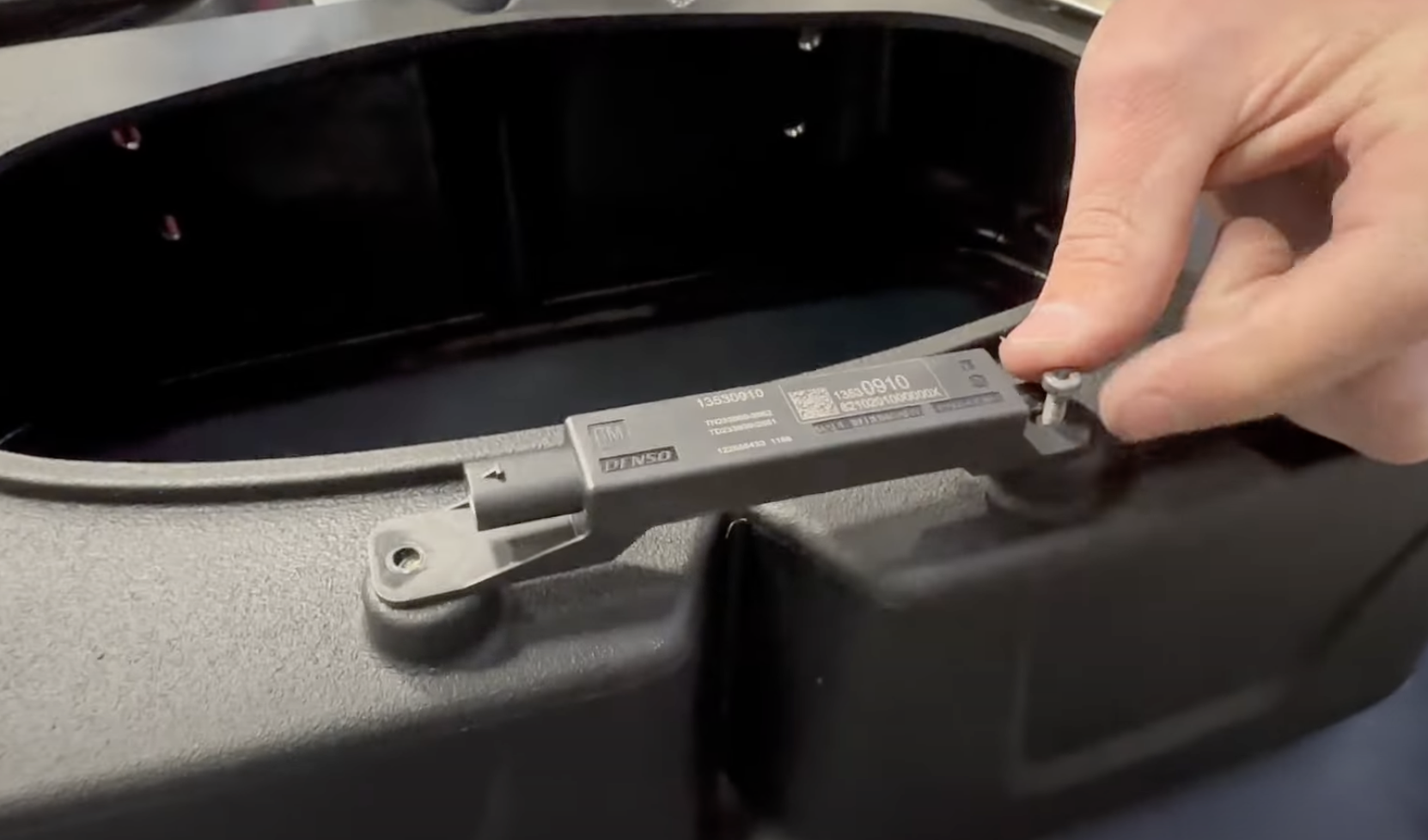

Transfer the gps antena to the jlt airbox.

STEP 27

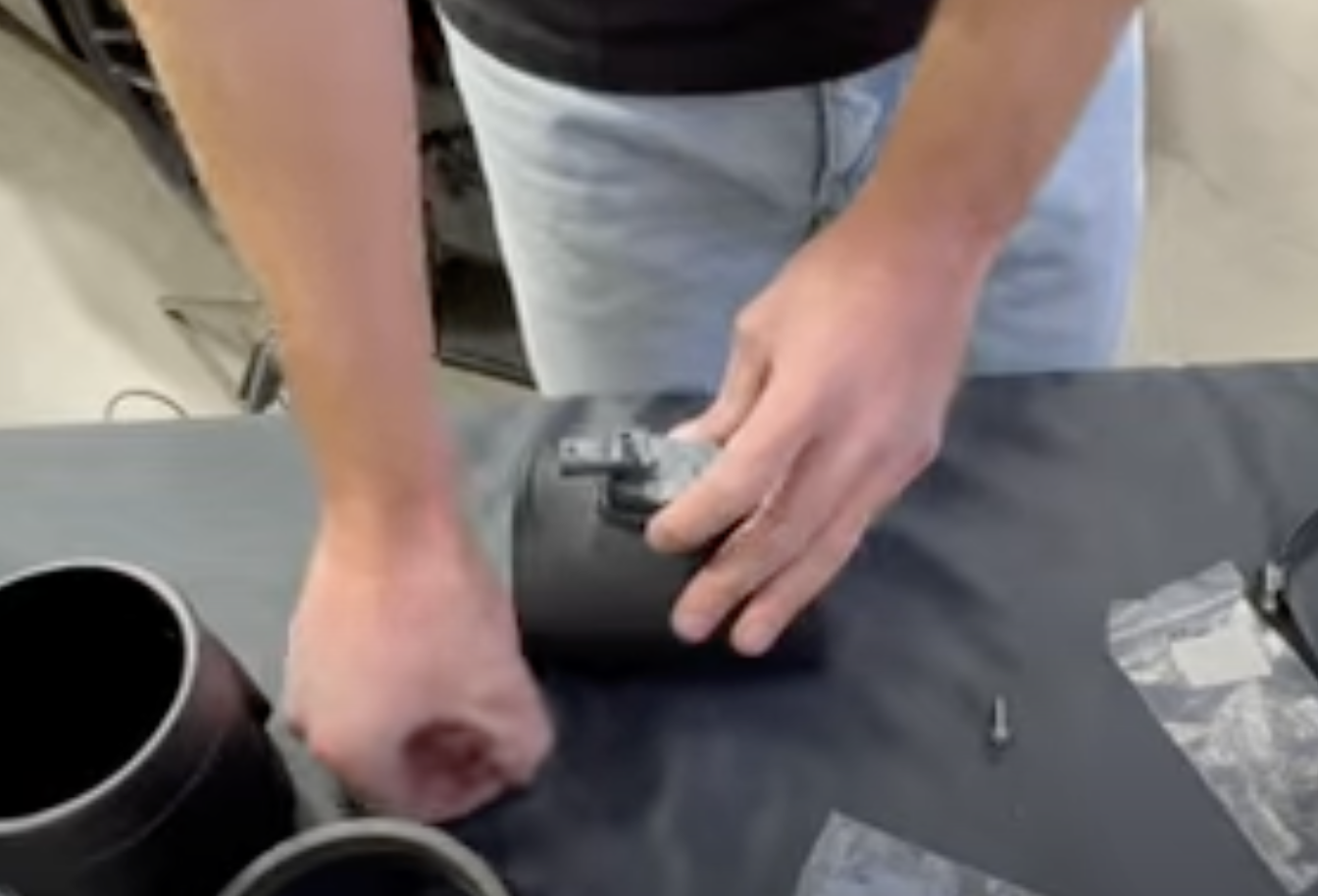

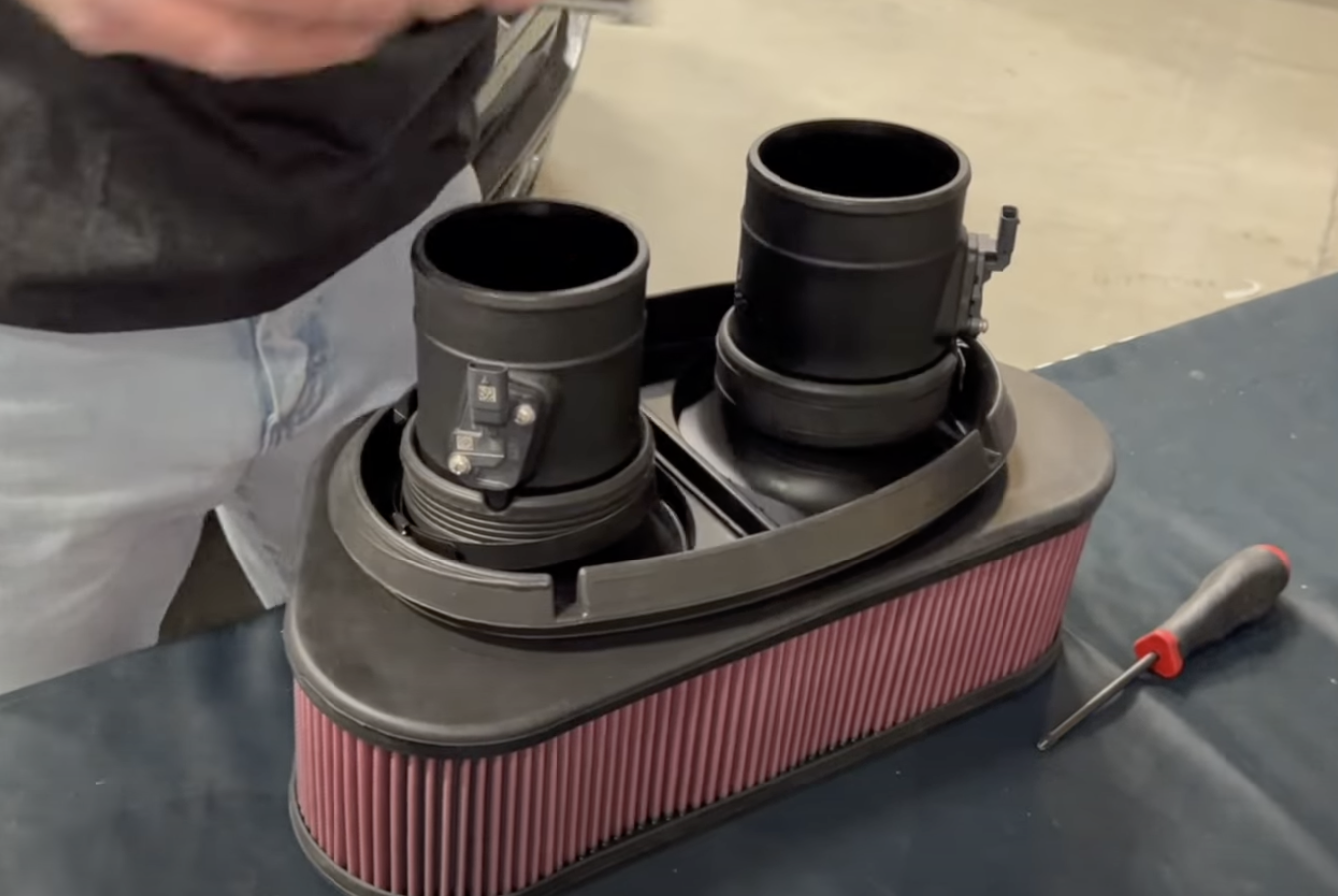

Transfer the MAF sensors and install them onto the JLT tubes.

STEP 28

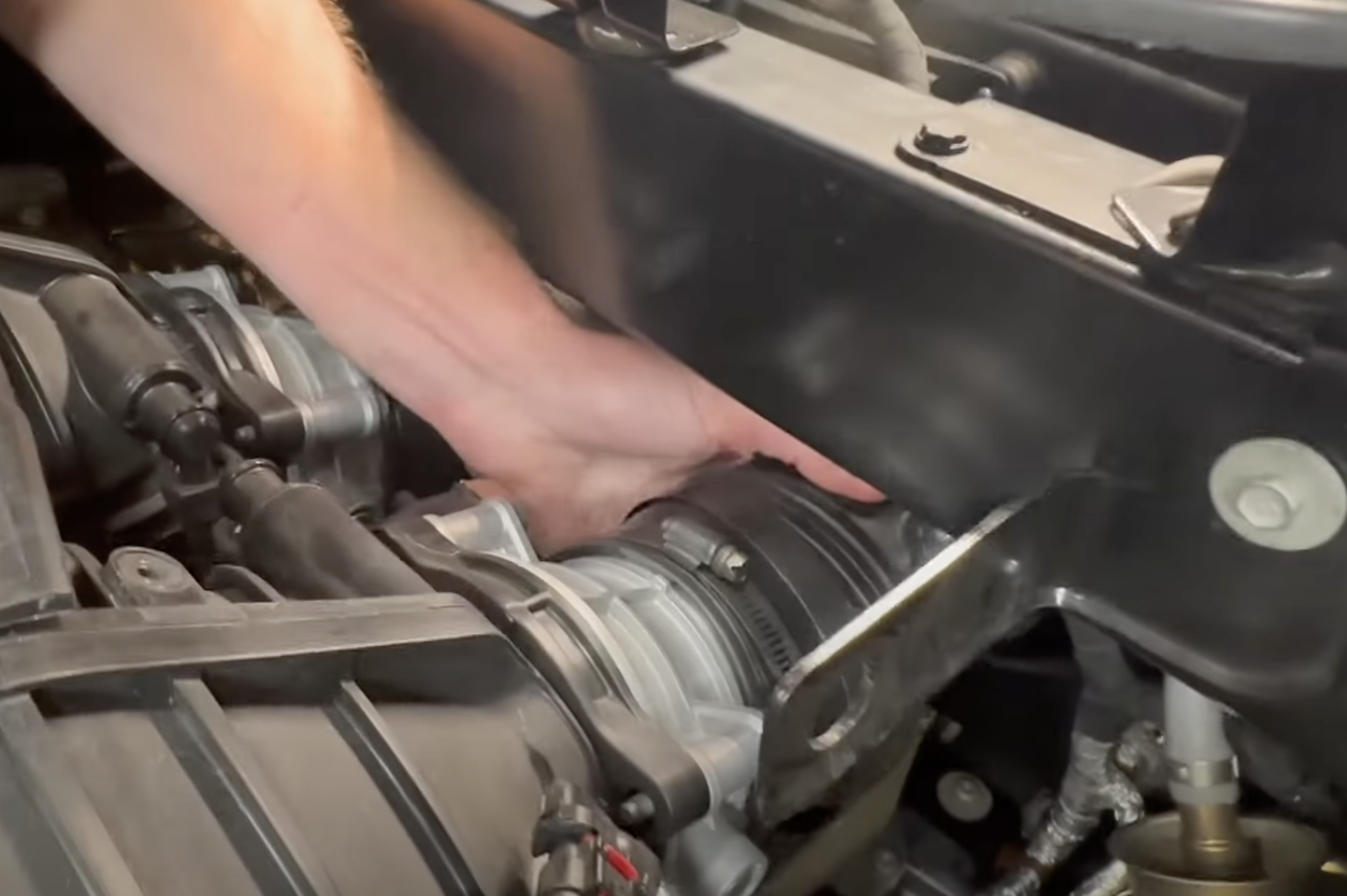

Install the JLT hose clamps and couplers onto the vehicle.

STEP 29

Remove the sensor from the stock airbox and install it onto thr JLT bracket.

STEP 30

Clip this line back in.

If you broke the brown/orange push rivet, we supply extra.



STEP 31

Install the hose clamps onto the scoops.

STEP 32

Install the JLT airbox into the vehicle.

STEP 33

Install the 10mm into the bottom on the airbox. tighten down

STEP 34

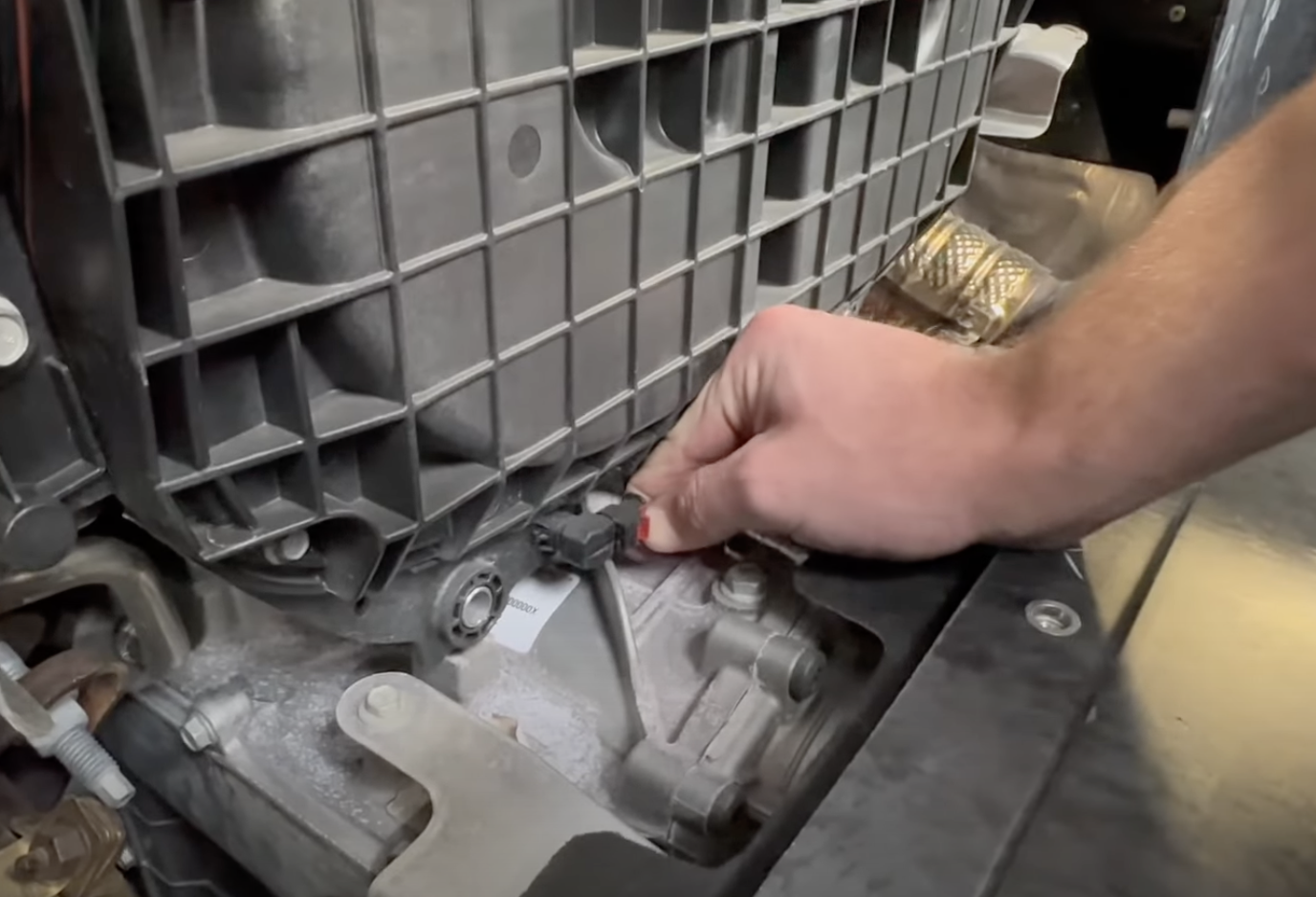

Clip back in the sensor at the bottom of the airbox.

STEP 35

Tighten down the hose clamps that are on the scoops.

STEP 36

Install the tubes into the filter. Then tighten down the hose clamps.

STEP 37

Install the JLT filter into the airbox.

STEP 38

Tighten down the hose clamps on the couplers.

STEP 39

Reconnect the MAF harnesses on both sides on the vehicle.

STEP 40

Reconnect the gps antena.

STEP 41

Reinstall the canister.

STEP 42

Reinstall the coolant tank.

STEP 43

Reinstall the engine cover.

STEP 44

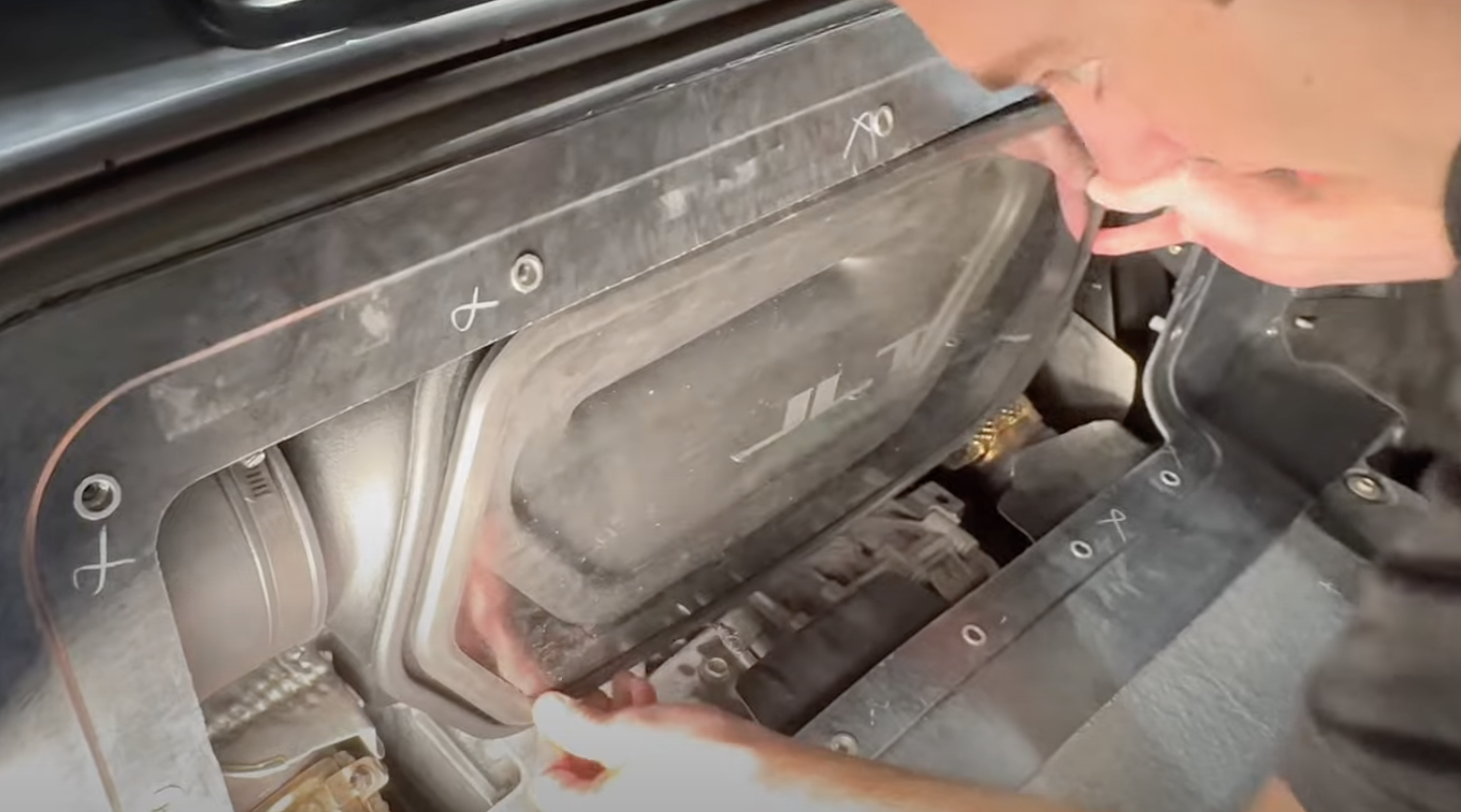

Snap in the JLT clear lid.

STEP 45

Reinstall the trunk cover and carpet.
