Install Instructions for 83-1007

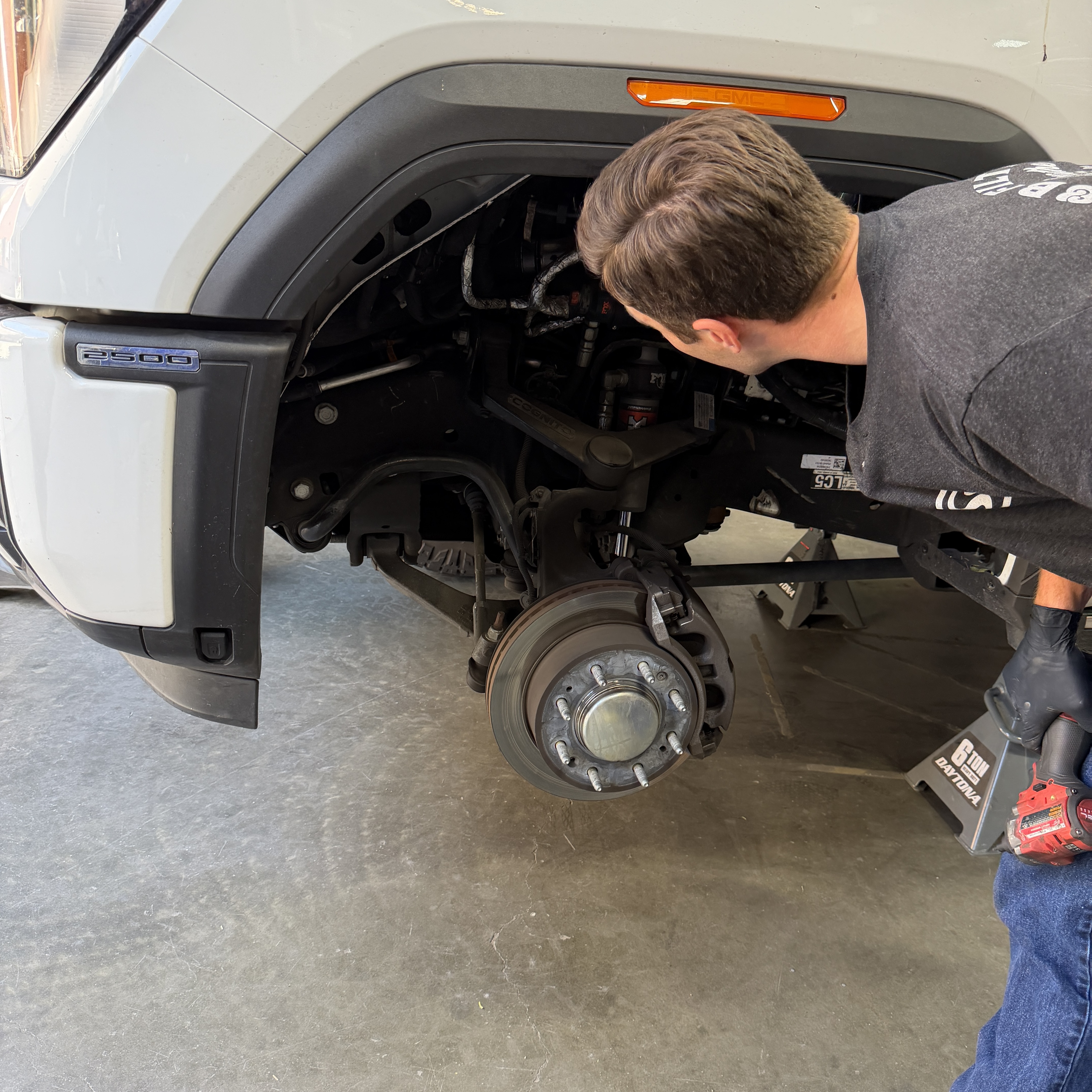

Start by placing the front end of the truck on jack stands or the entire vehicle on a lift.

*This will make the install significantly easier.

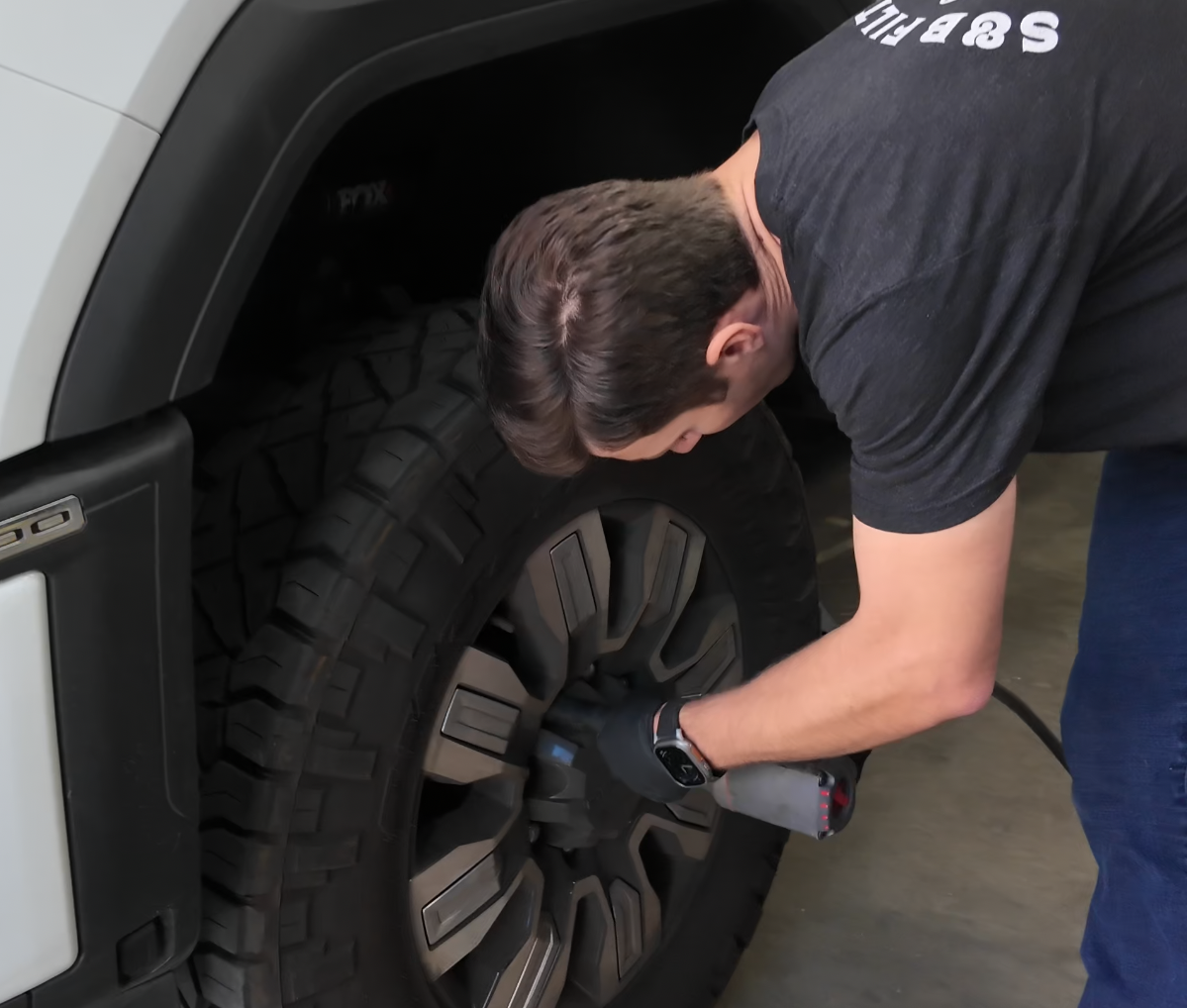

Remove the driver front wheel/tire off of the truck using a 22mm deep socket.

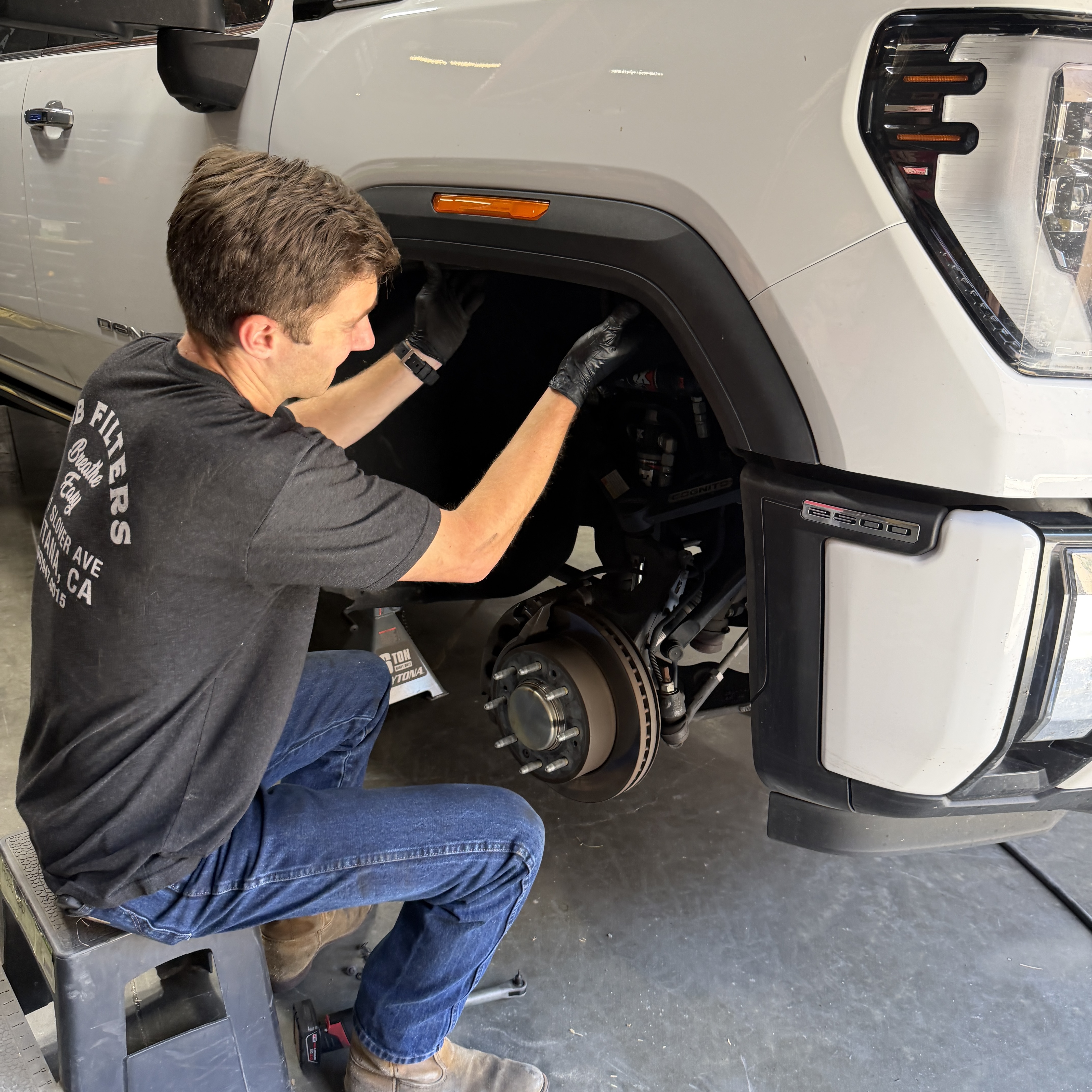

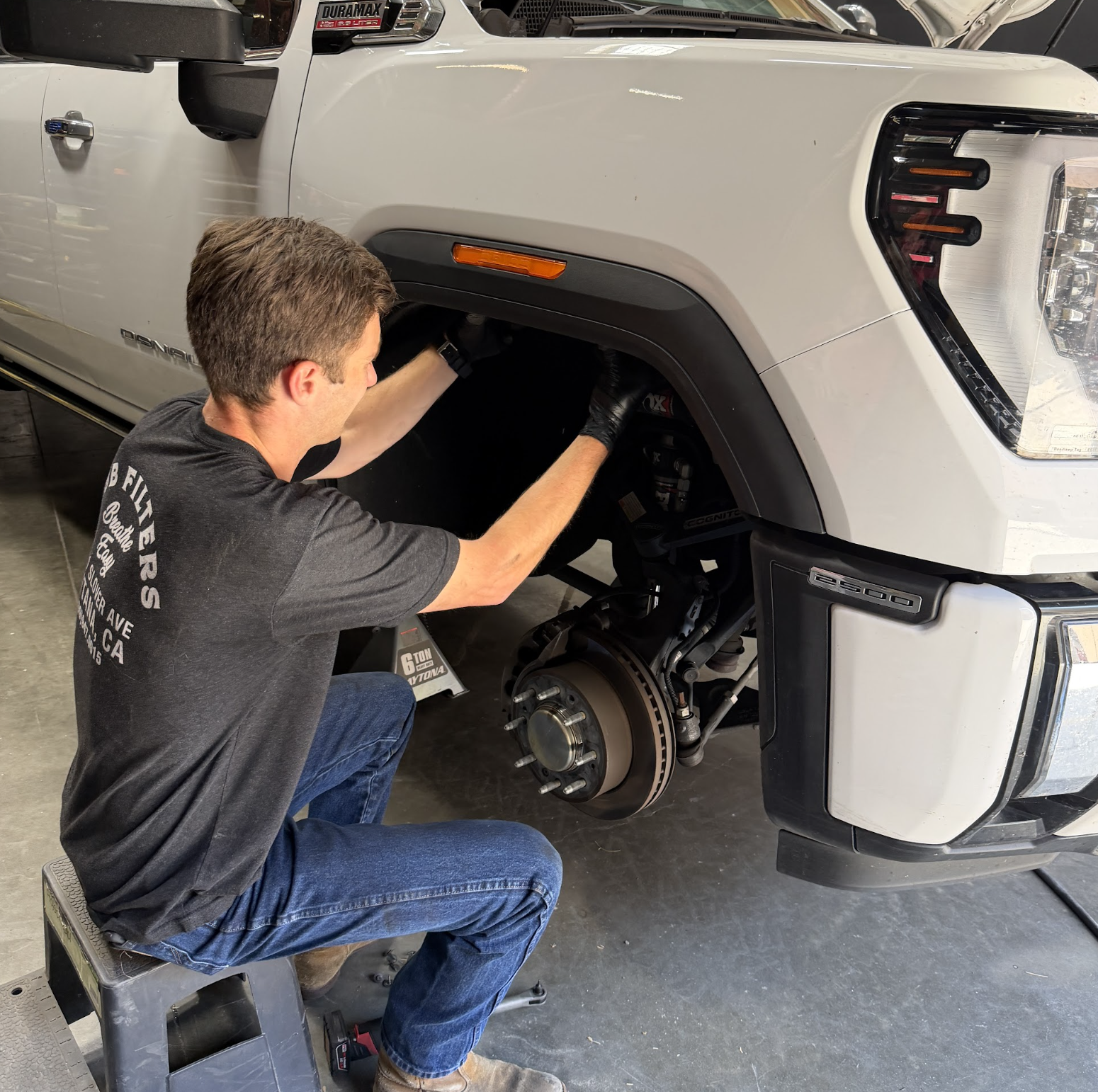

Once the driver side tire is removed, go ahead and take a T15 Torx Bit and remove the screws holding the wheel well liner to the body.

Then once all screws are removed, go ahead and remove the liner from the vehicle.

Next, go over to the passenger side and remove the wheel using a 22mm deep socket.

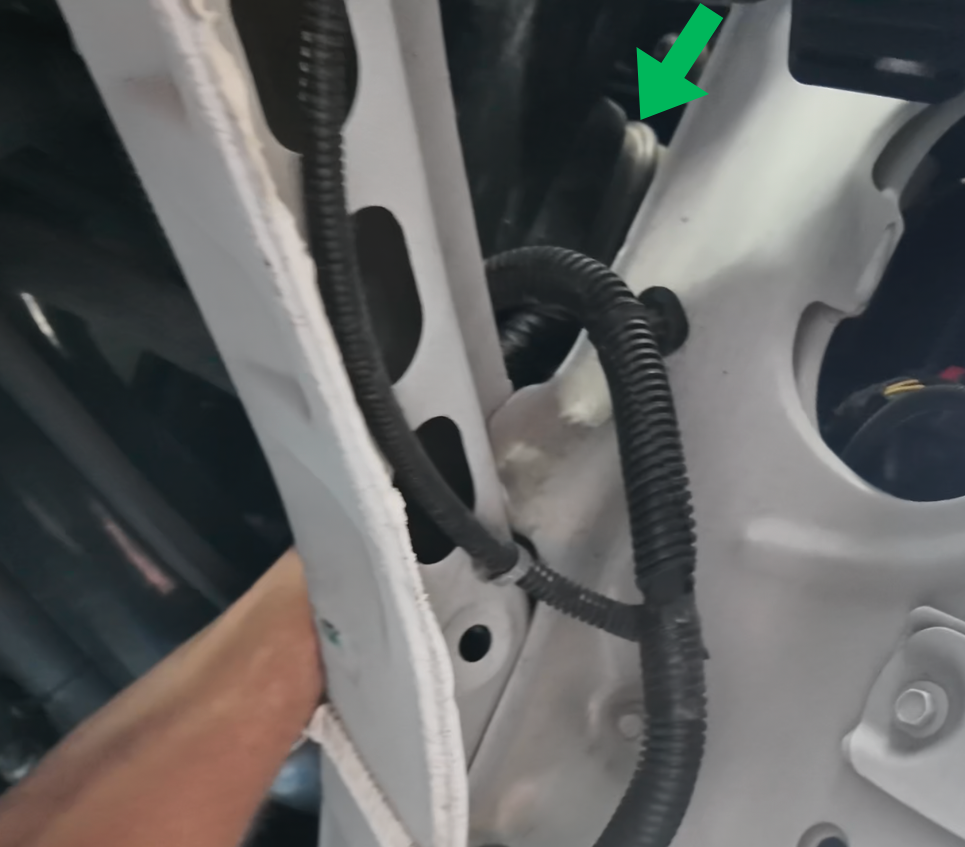

Then repeat the same process of removing the passenger side wheel well liner. The only difference on this side is that their will be (1) push pin at the top that will need to be removed. For this we recommend either a flathead screwdriver or a body panel removal tool.

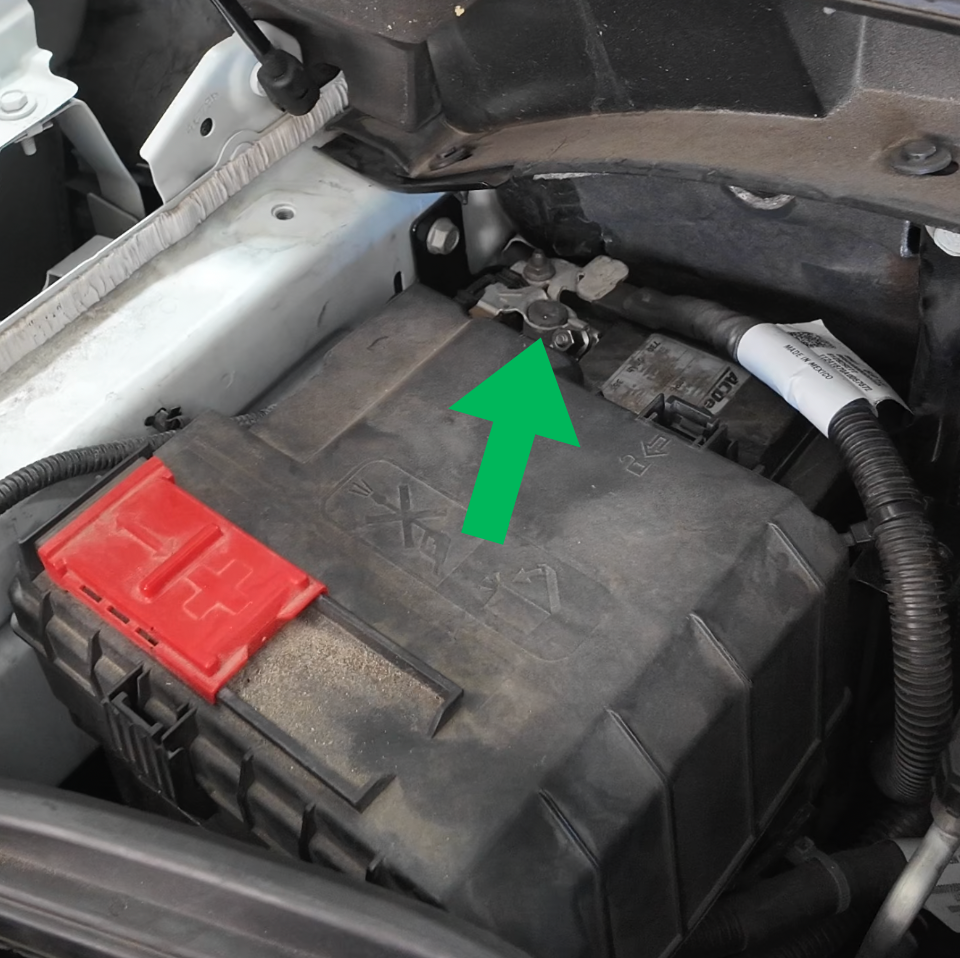

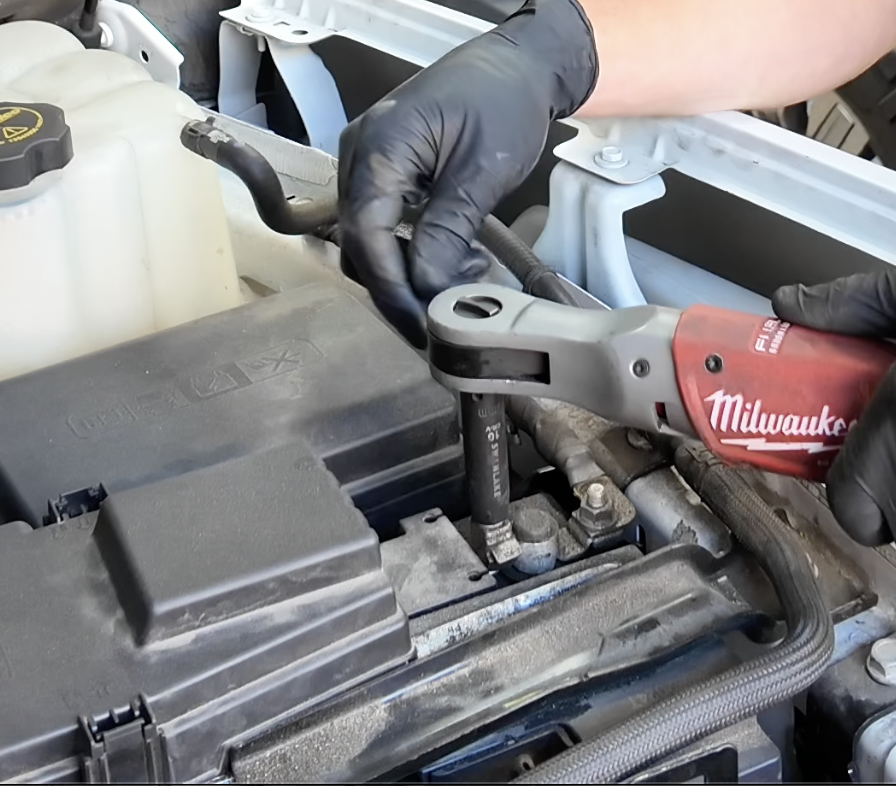

Disconnect the (2) Negative cable off of both batteries using a 10mm socket and/or ratchet wrench.

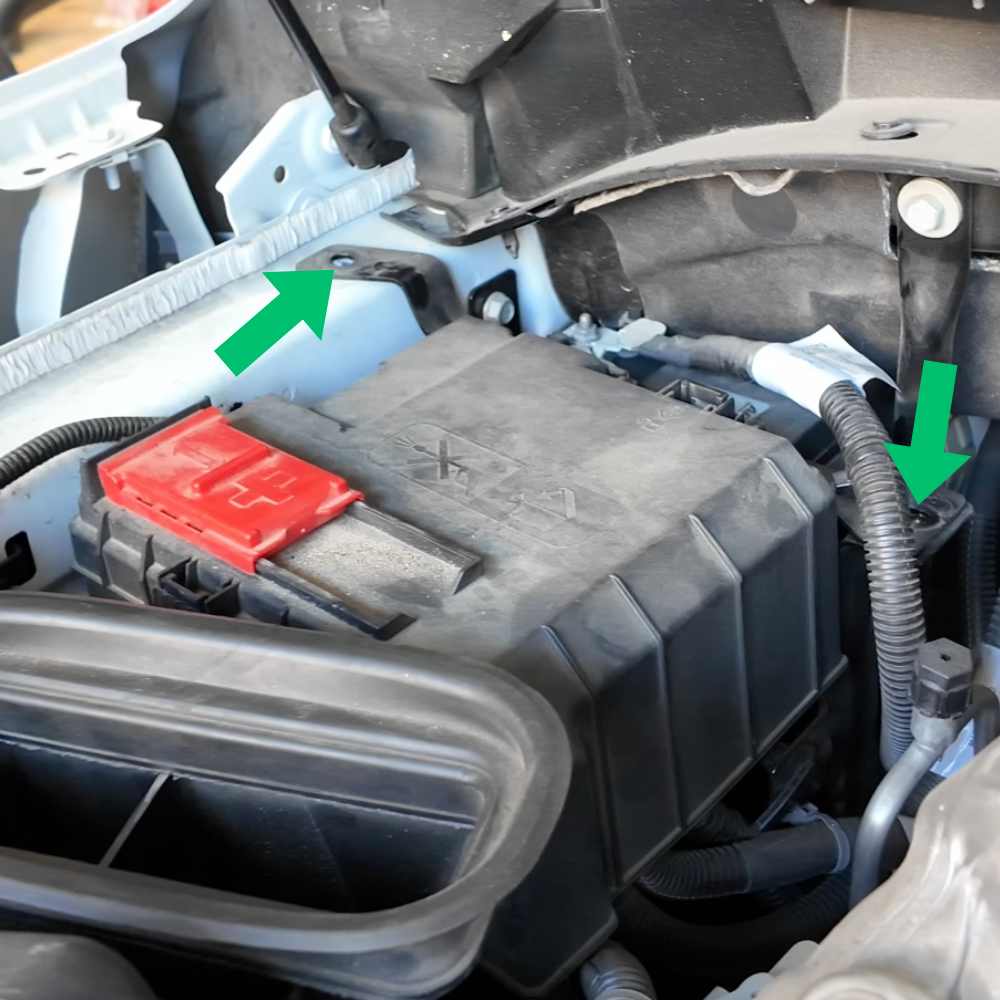

Important: On the passenger side, you'll need to unbolt the support brace using a 13mm 45-degree pivot socket.

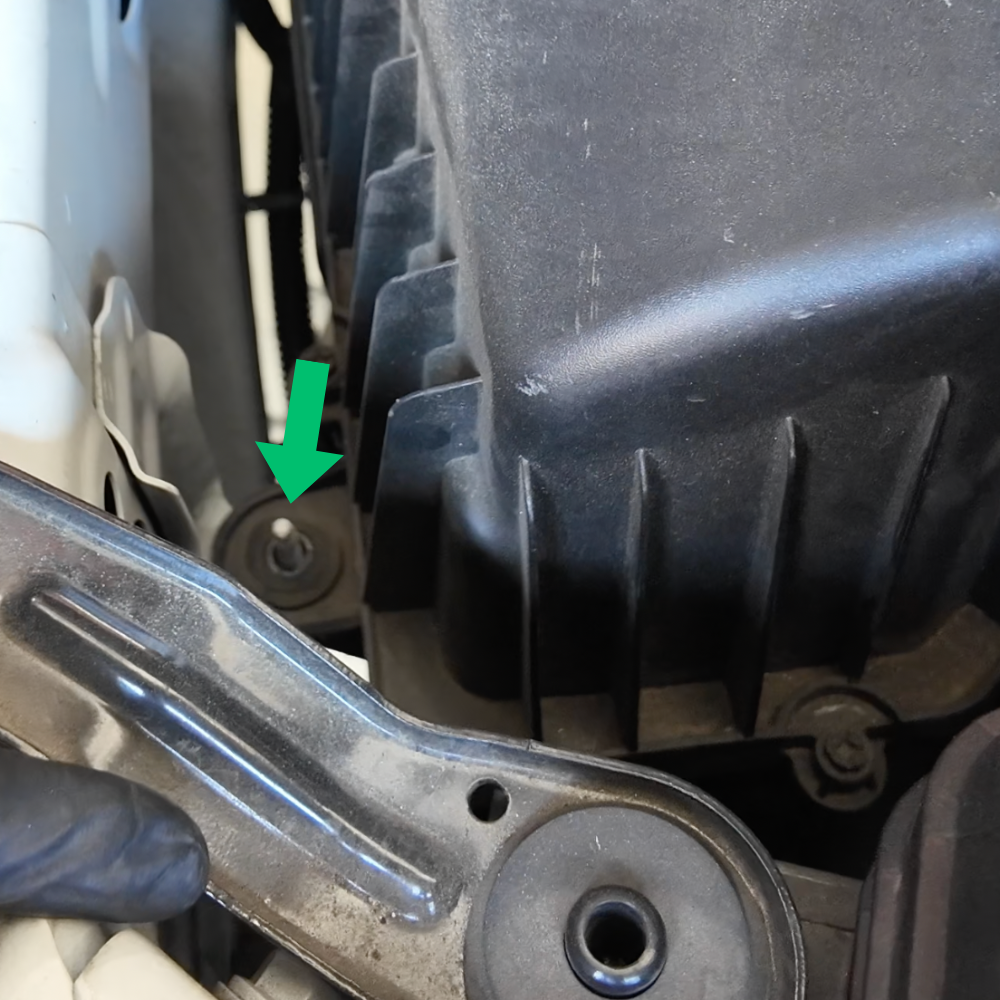

Then remove the bolt located behind the intake tube muffler/baffle.

Next, remove the nut located on the passenger side fender side of the air box

Important: This is only applicable if you are running the stock intake.

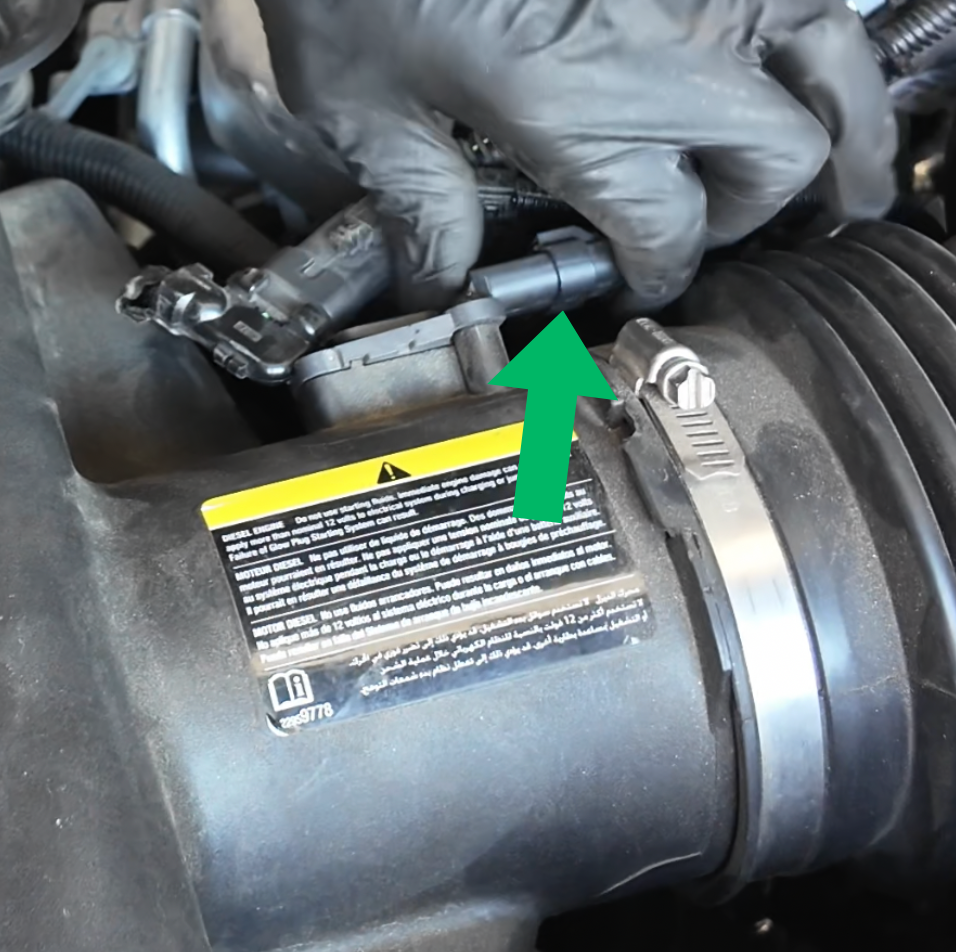

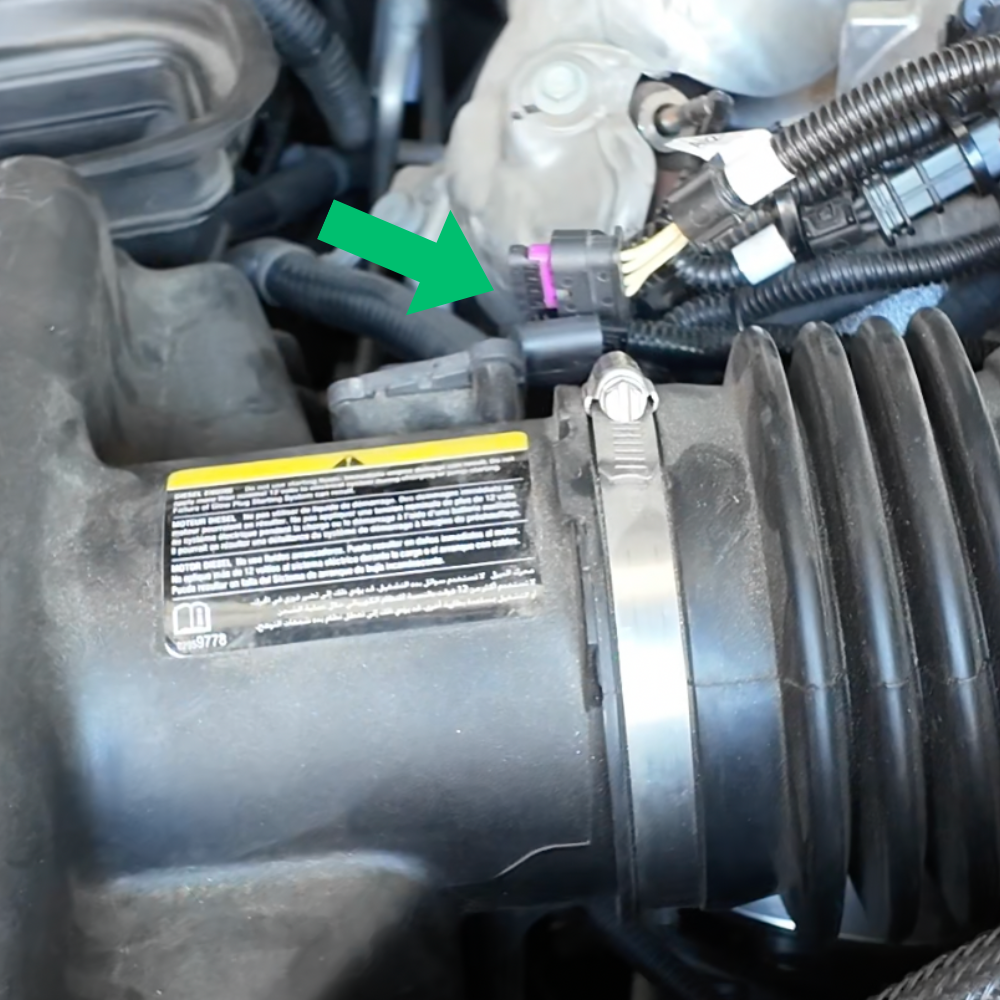

Then disconnect the MAF Sensor from the Intake Tube.

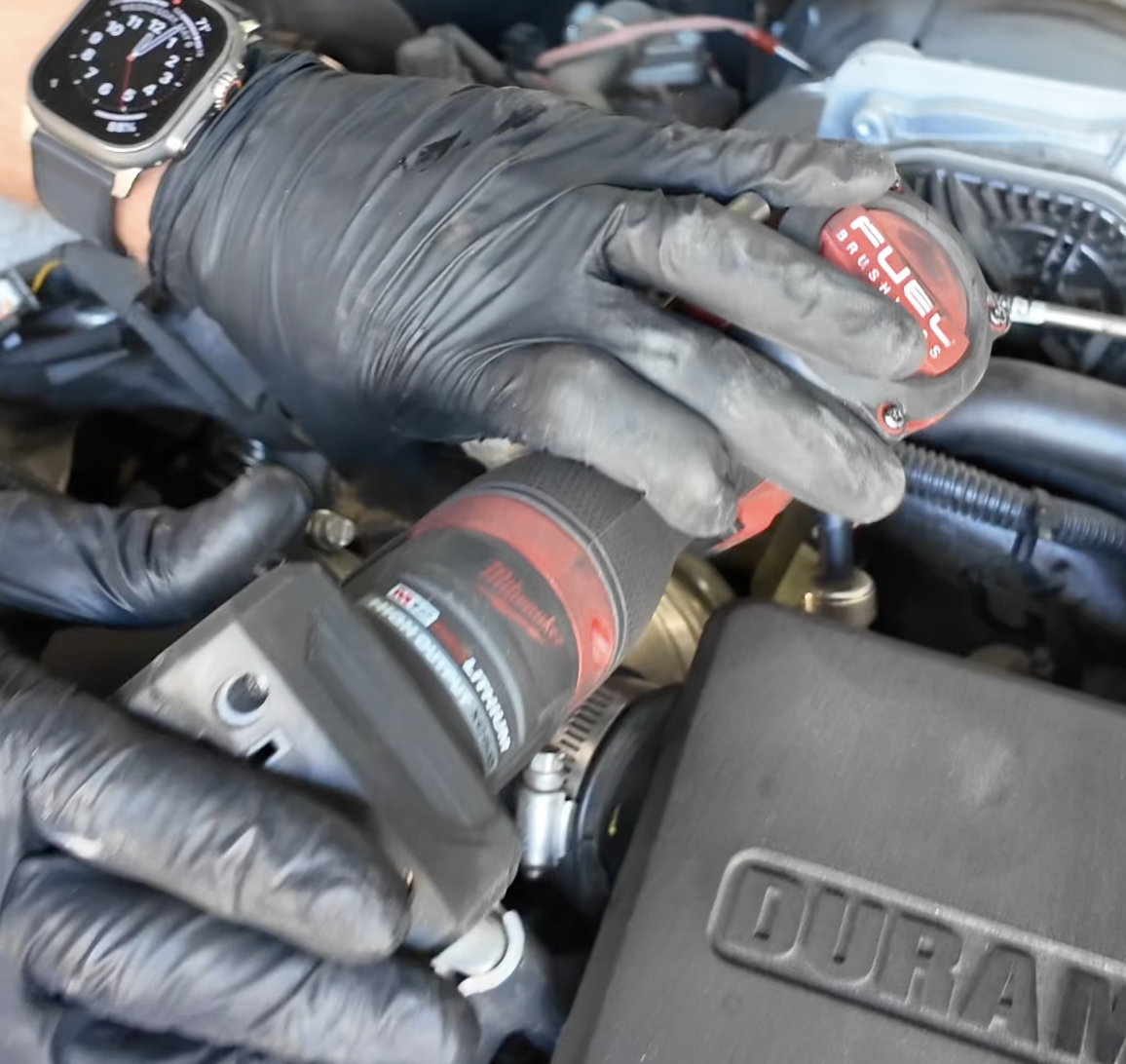

Using a 5/16th socket, loosen the hose clamp and remove the intake tube from the throttle body.

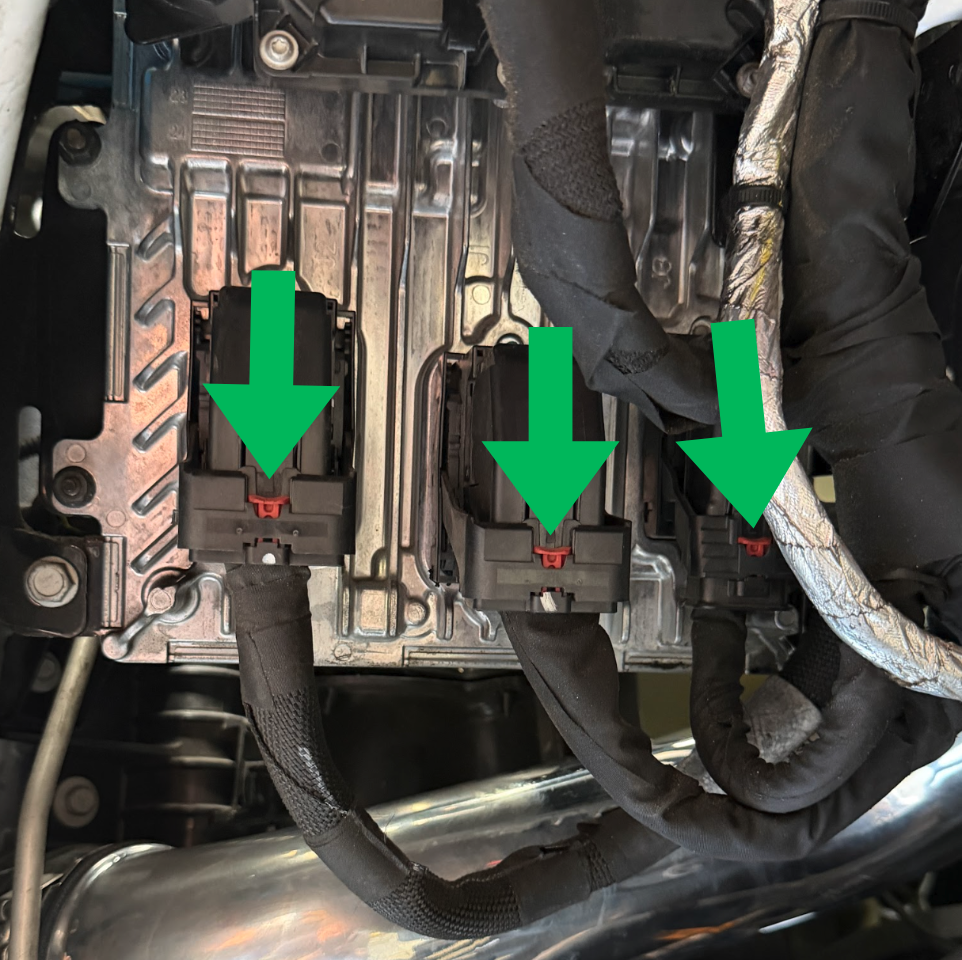

Next, head over to the driver side wheel well. Disconnect the (3) clips connected to the ECM.

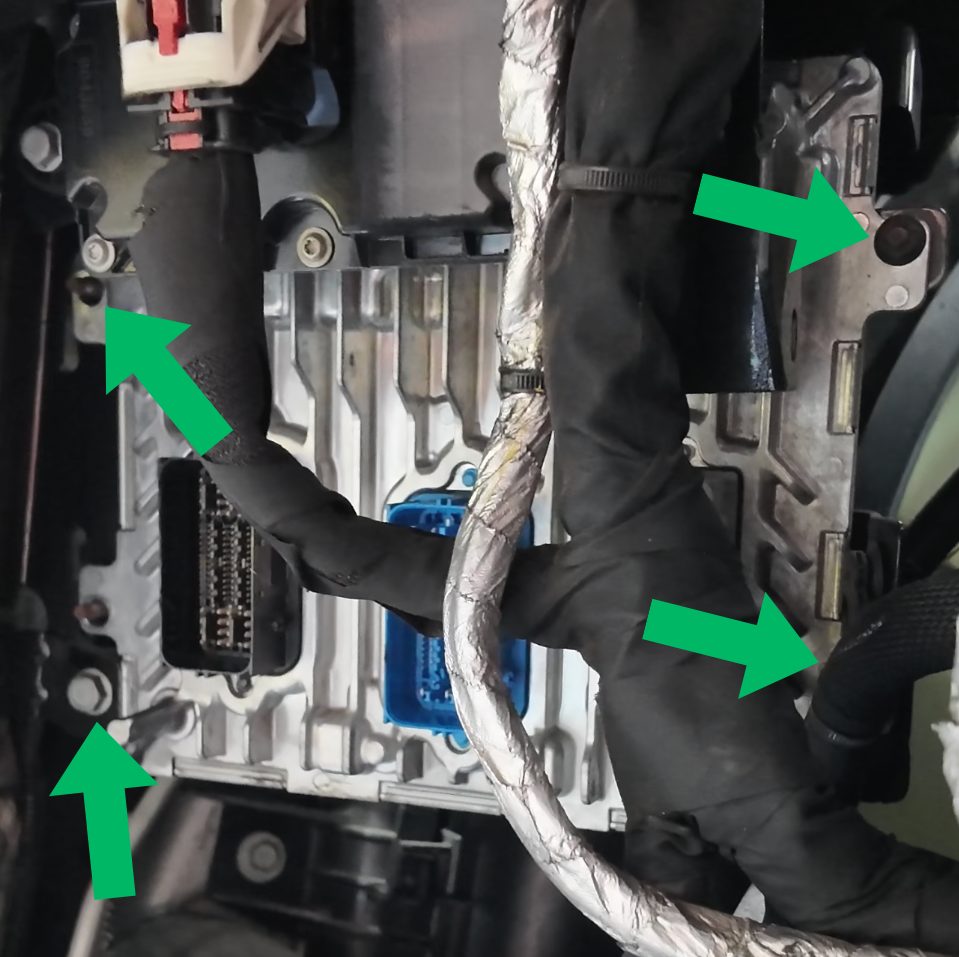

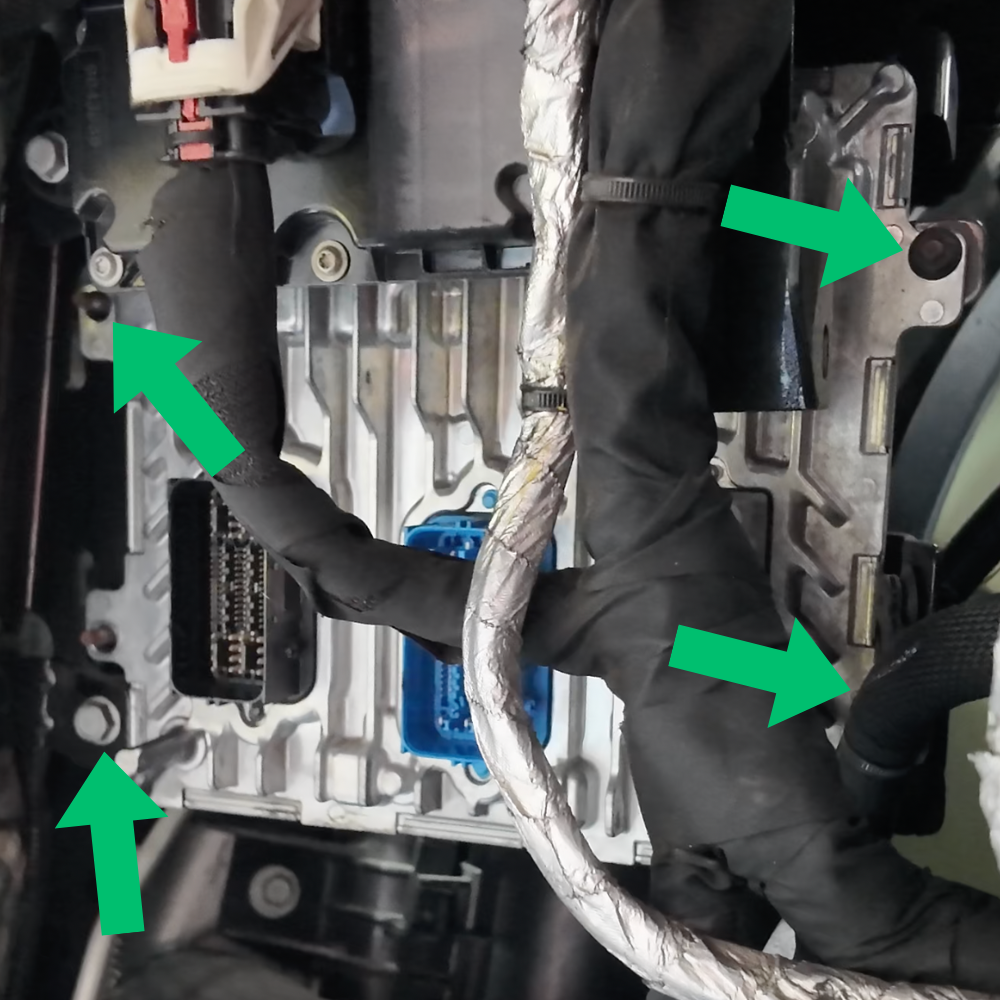

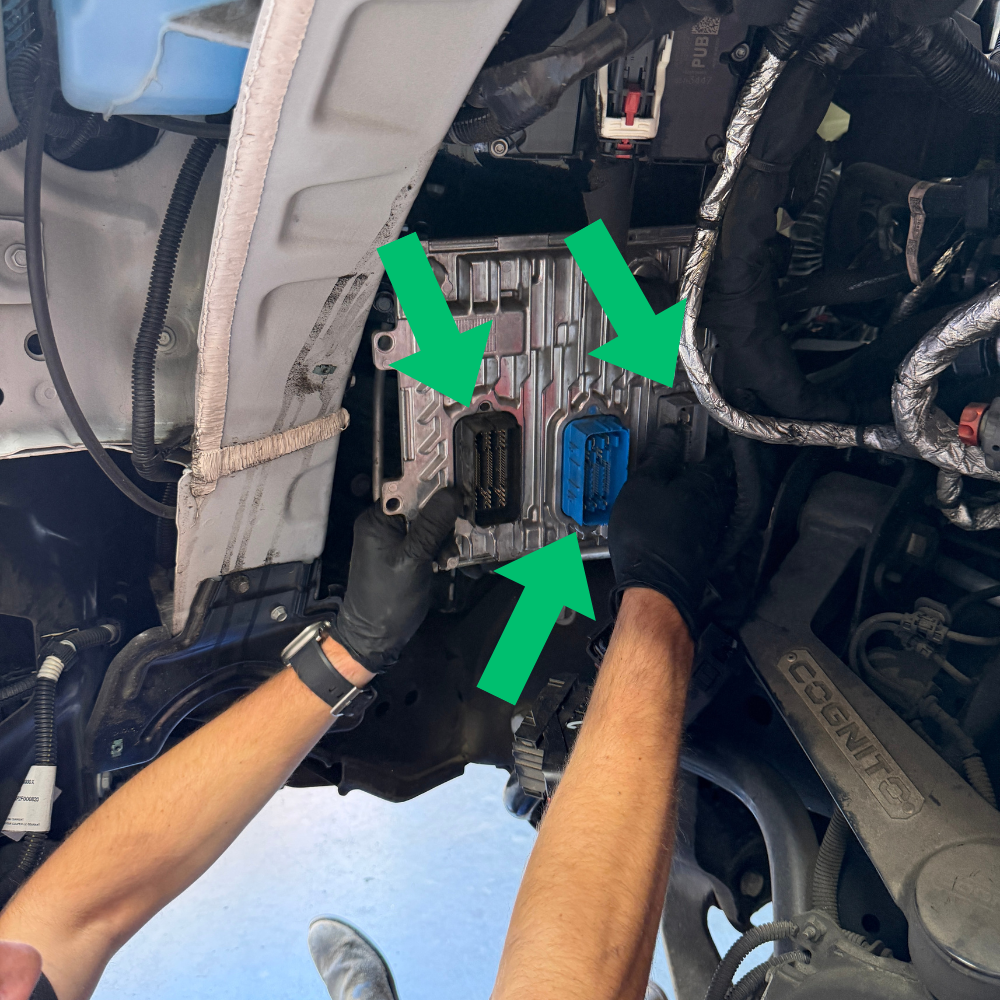

Then unbolt the (4) 10mm nuts on the ECM, then remove the ECM from the engine bay.

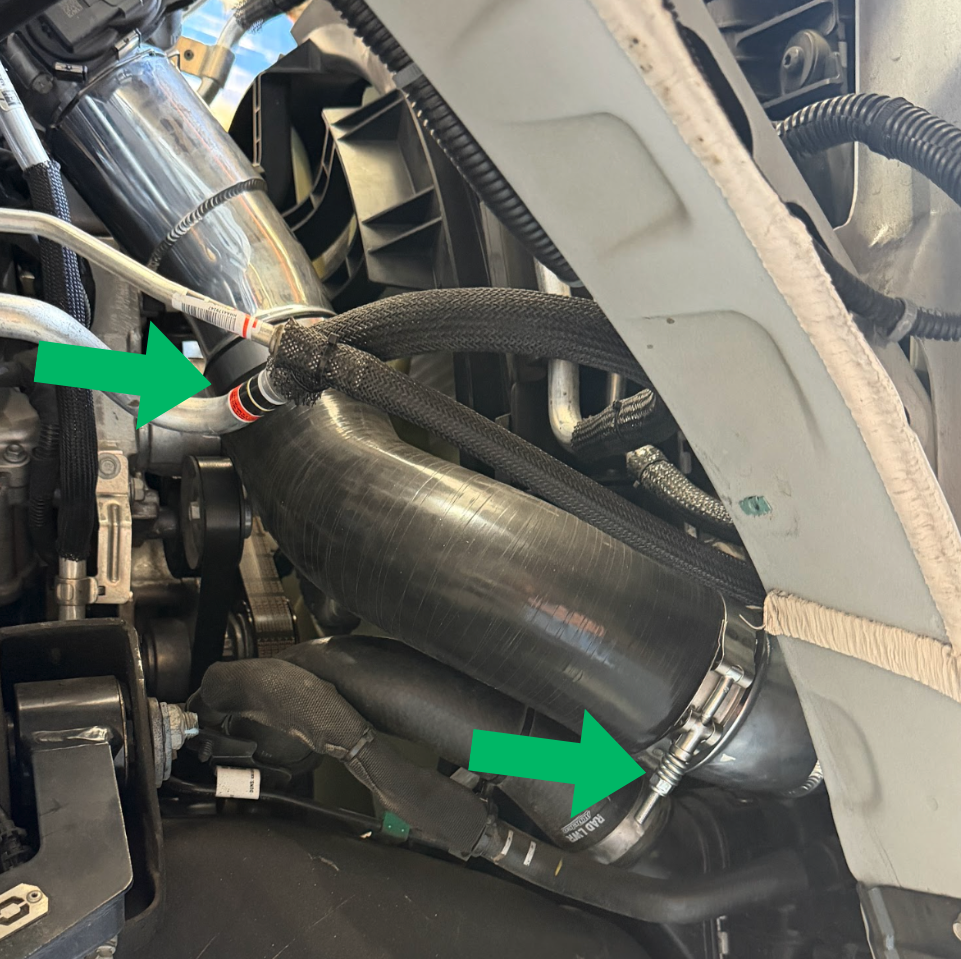

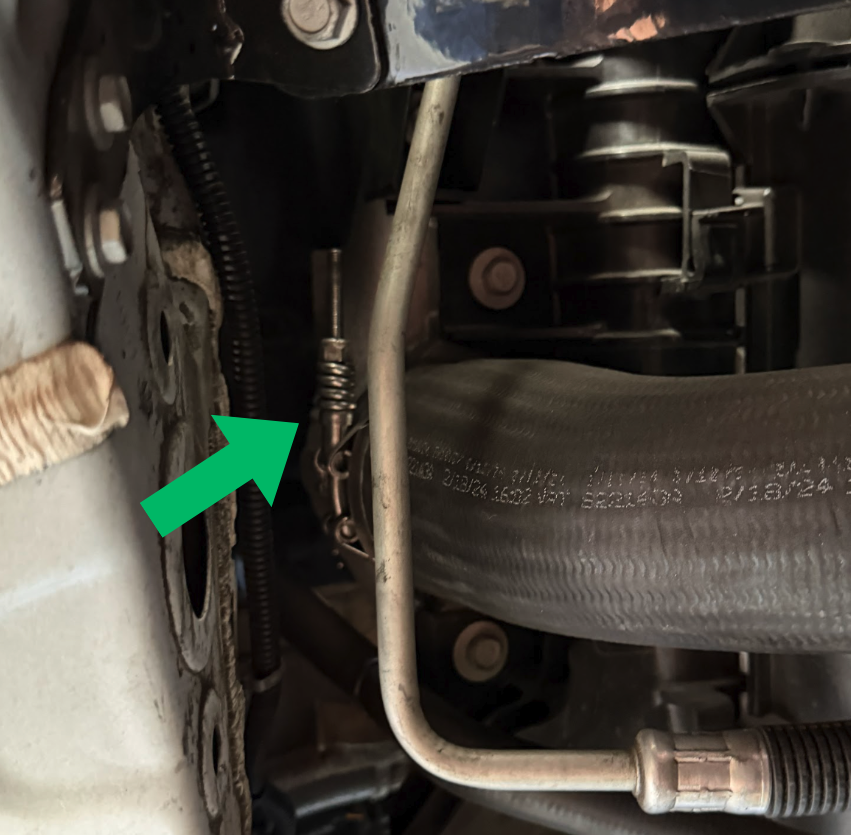

Now, take a 11mm deep socket to remove the lower clamp from the cold side intercooler pipe.

With the clamp removed, go ahead and remove the lower end of the OEM intercooler pipe.

Then loosen the clamp on the top end using an 11mm deep socket.

Then remove the entire OEM cold side intercooler pipe.

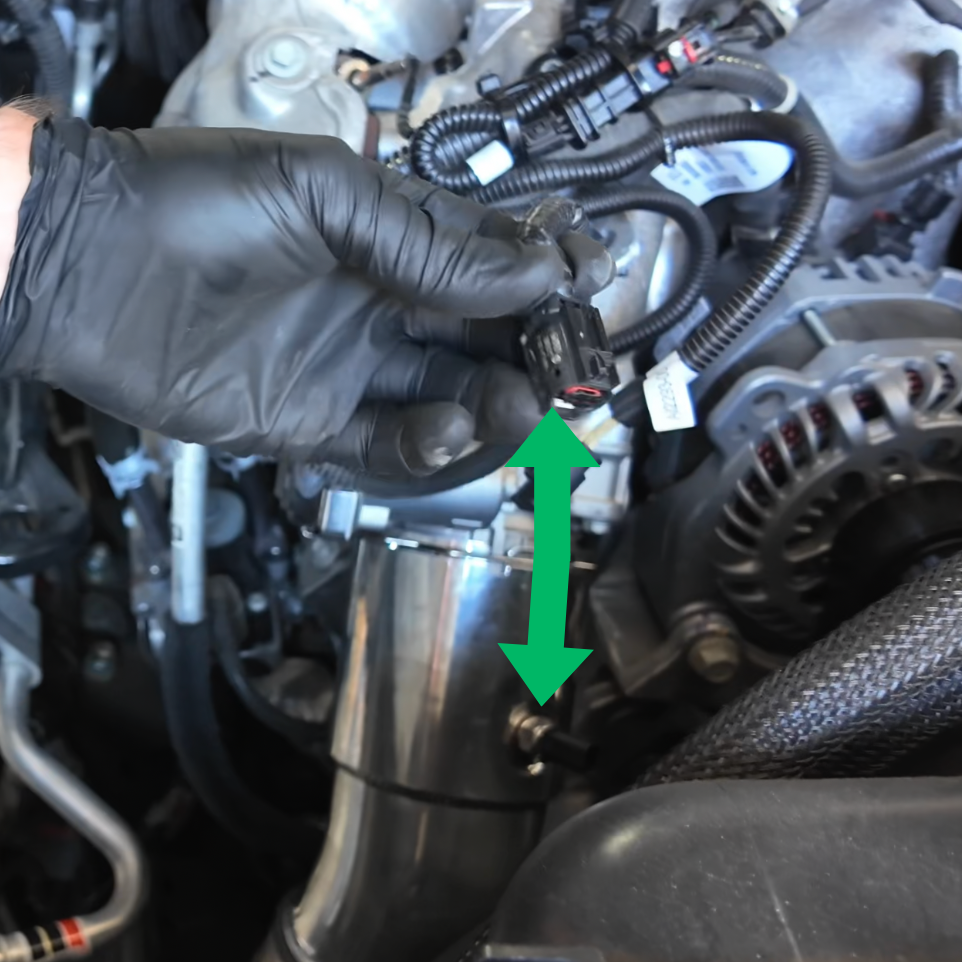

Next, go ahead and go over to the passenger side (hot side) and disconnect the temperature sensor from the OEM hot side pipe.

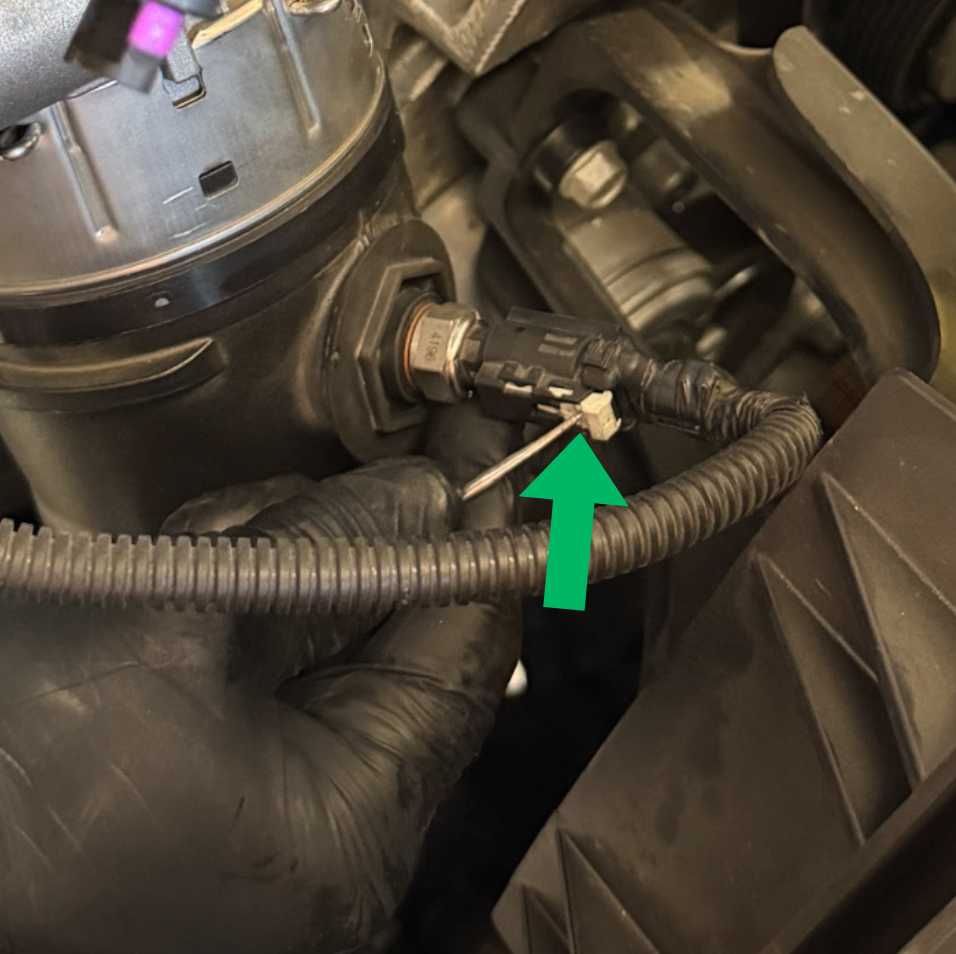

Tip: We recommend using a pick tool to disconnect the white tab on the connector, then you can fully remove the connector from the sensor.

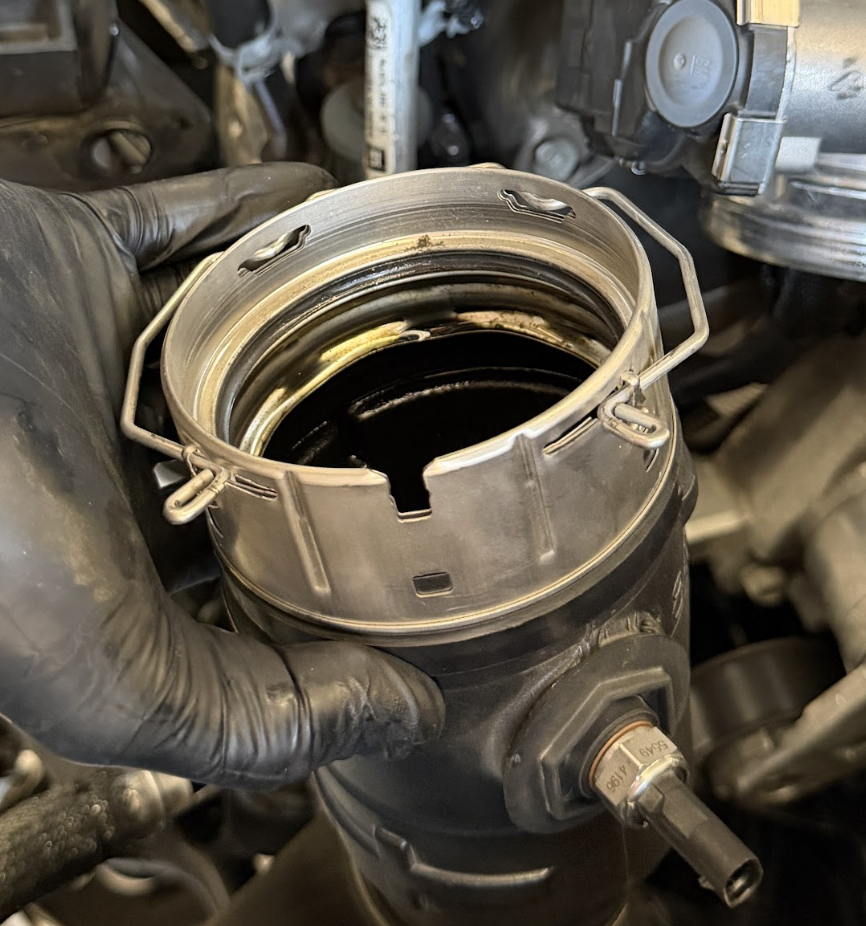

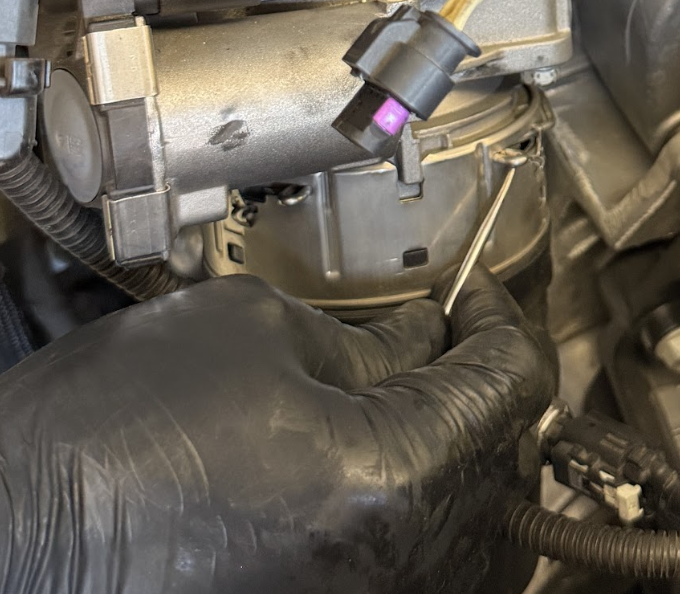

Using a pick tool, go ahead and undo the retention clip on the factory Hot Side Collar.

Now on the lower end of the factory Hot Side Pipe, go ahead and undo the retention clip as done in the step above.

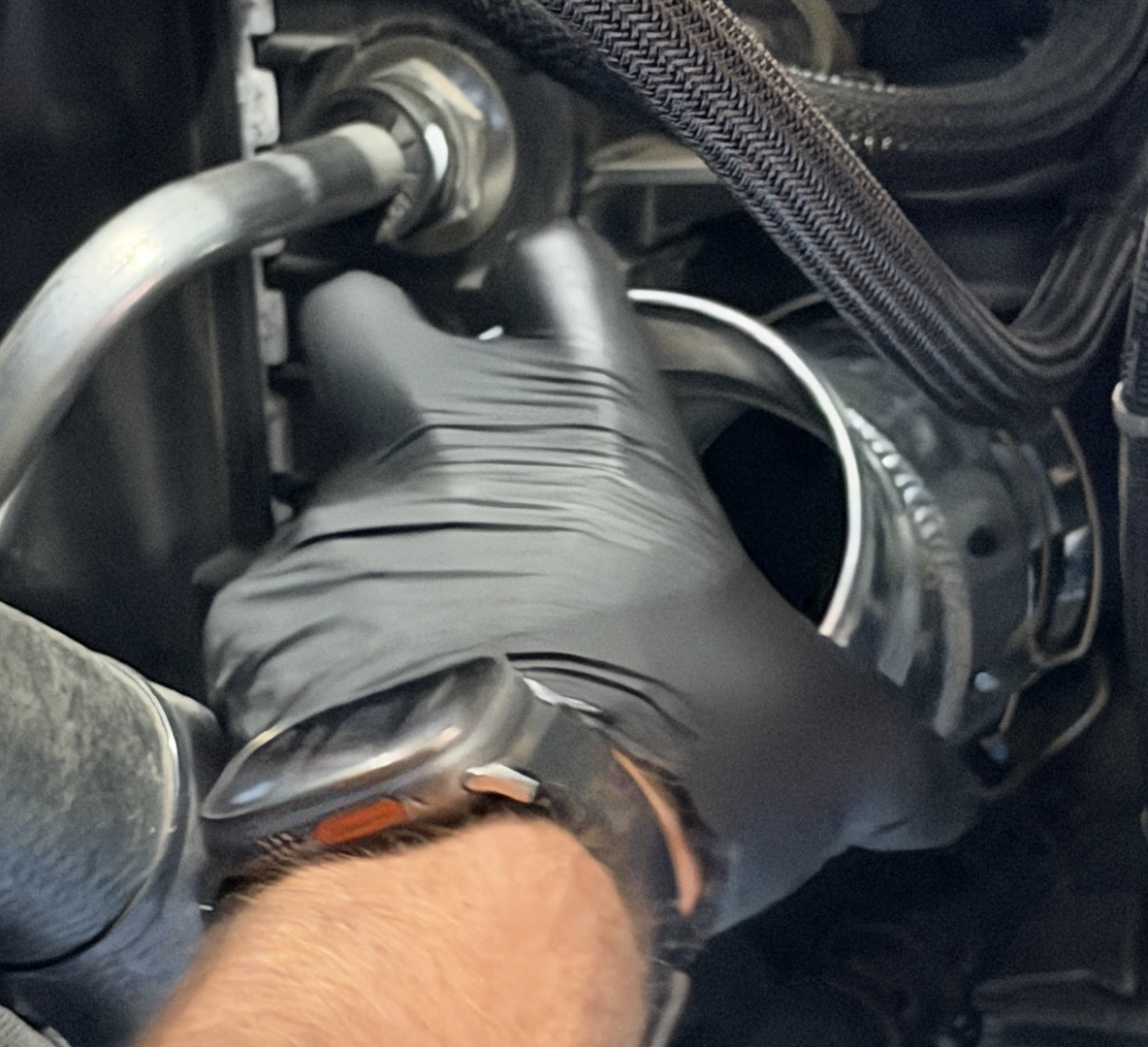

Once the lower retention clip in undone, go ahead and pull the lower intercooler pipe off the intercooler inlet.

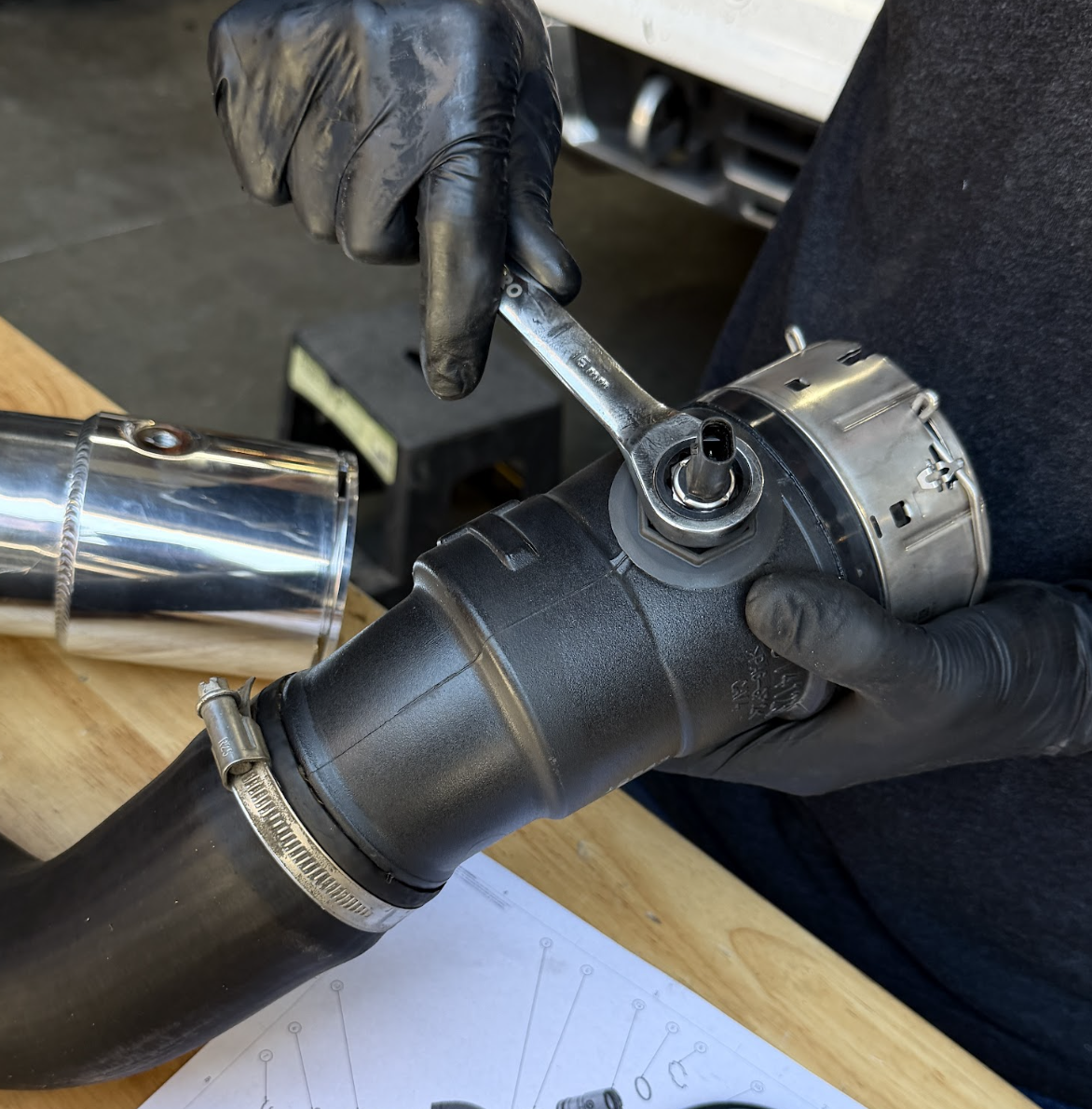

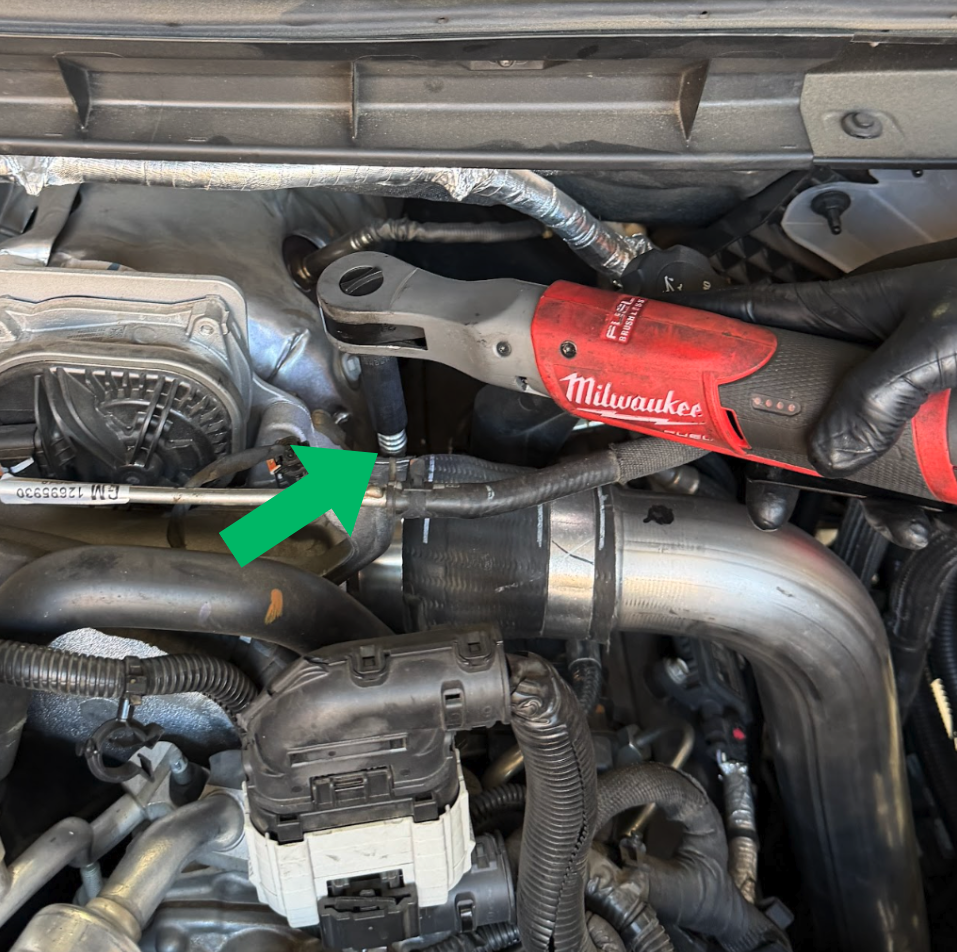

Using a 16mm wrench or deep socket, go ahead and uninstall the factory temperature sensor from the OEM hot side intercooler pipe.

This will be transferred to the S&B hot side pipe in a future step.

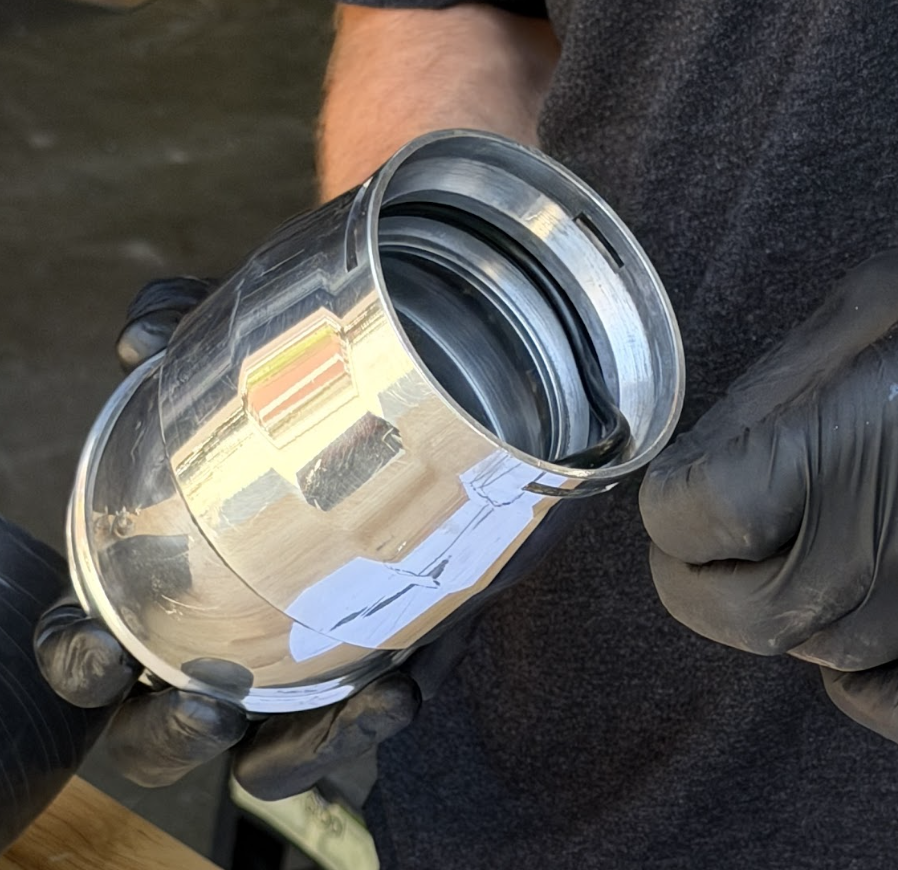

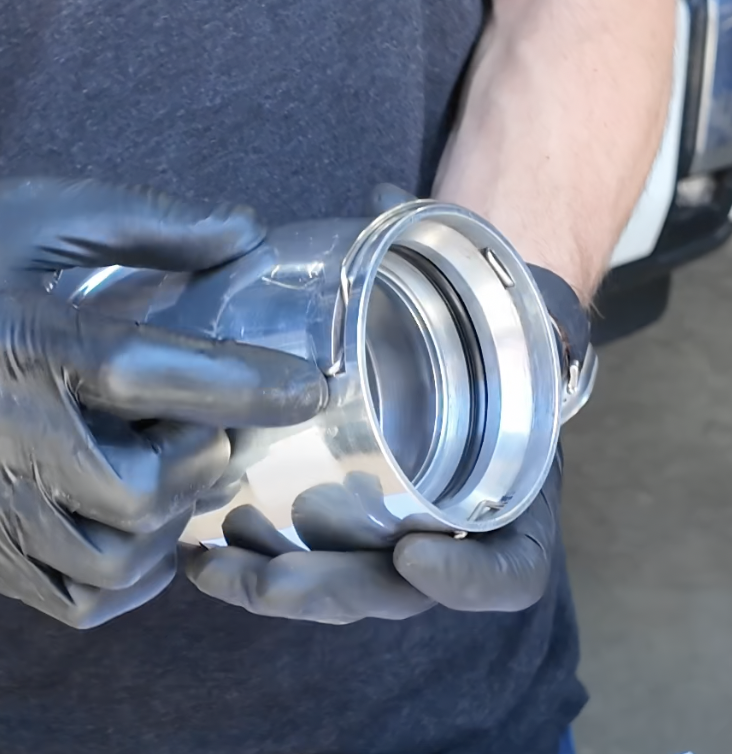

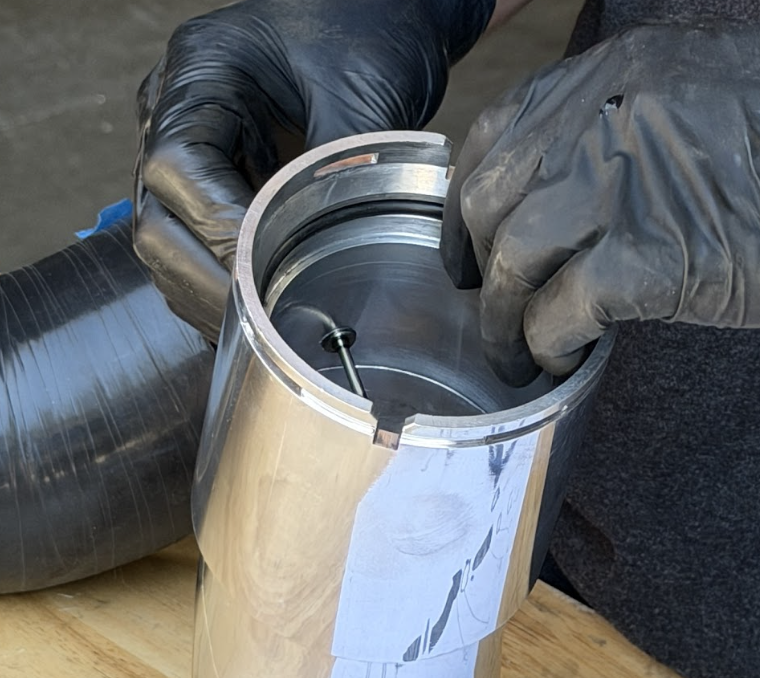

Take the larger of the two provided O-Rings and install it into the groove in the hot side collar, where the temp sensor is located.

Tip: We recommend placing some oil on the O-Rings to make the install easier.

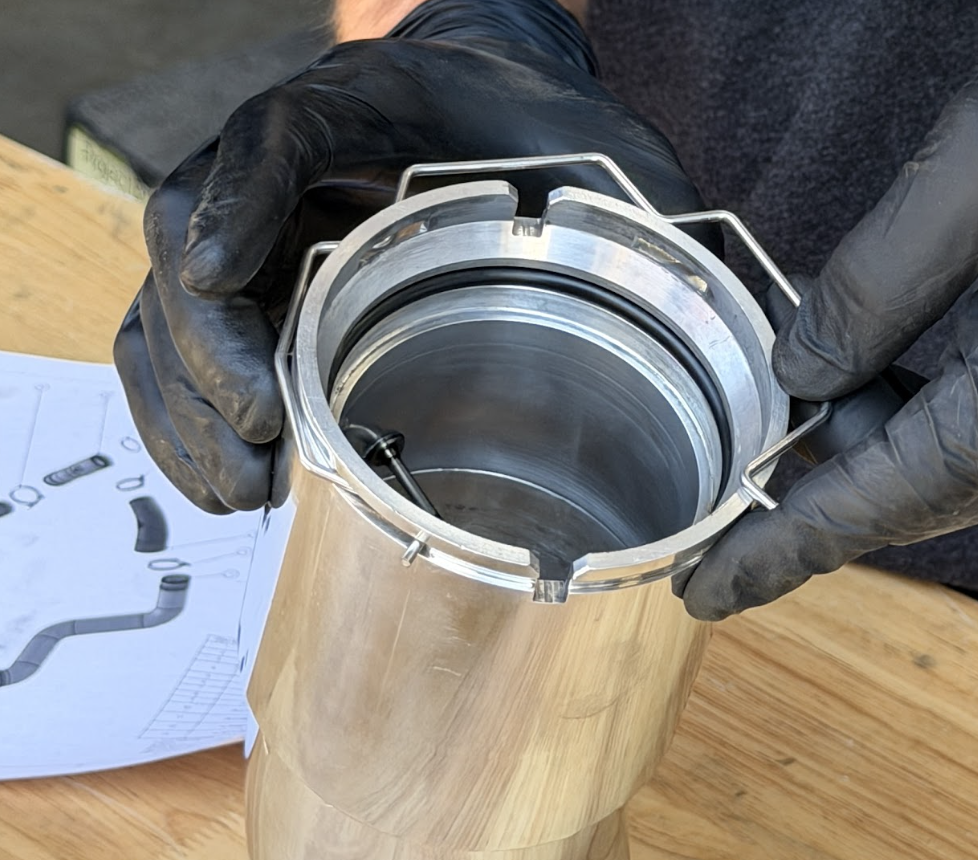

Then install the larger of the two provided retention clips onto the larger of the two collars.

Take the smaller of the two provided O-Rings and install it into the smaller collar for the hot side.

Tip: We recommend placing some oil on the O-Rings to make the install easier.

Then install the smallest of the two provided retention clips onto the smaller of the two collars.

Now, go ahead and install the S&B lower hot side collar onto the intercooler inlet.

Now it's time to install the S&B hot side pipe onto the lower S&B collar.

Install the Upper Hot Side S&B Collar onto the rest of the S&B Hot Side Intercooler Pipe assembly.

Then orientate the collar to index with the intake, and once the retention clip audibly clips into position, you're now ready to install the (2) provided T-bolt clamps.

We recommend breaking down the (2) T-Bolt Clamps to make the install process that much easier.

Now, using an 11mm deep socket, tighten down the two T-bolt clamps.

Once done, the Hot Side is now complete.

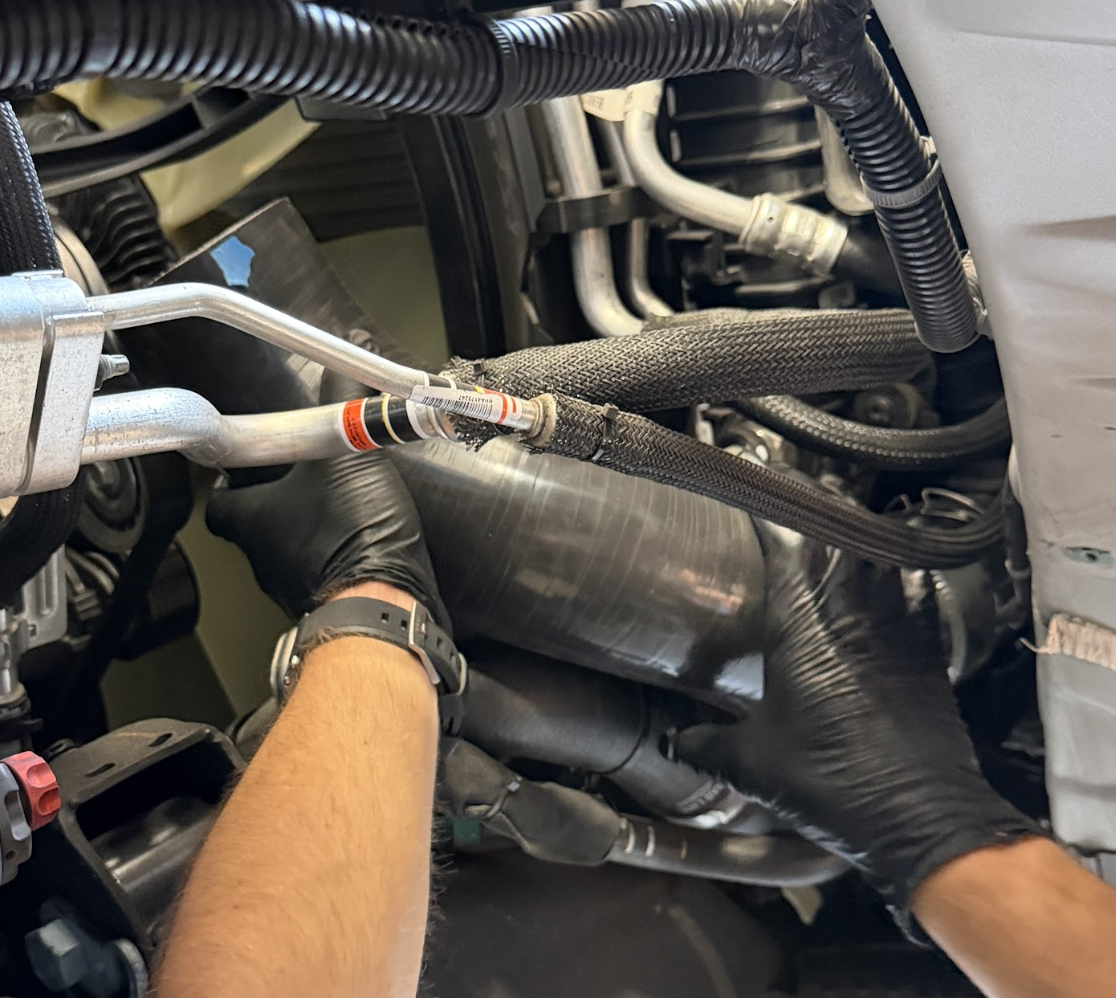

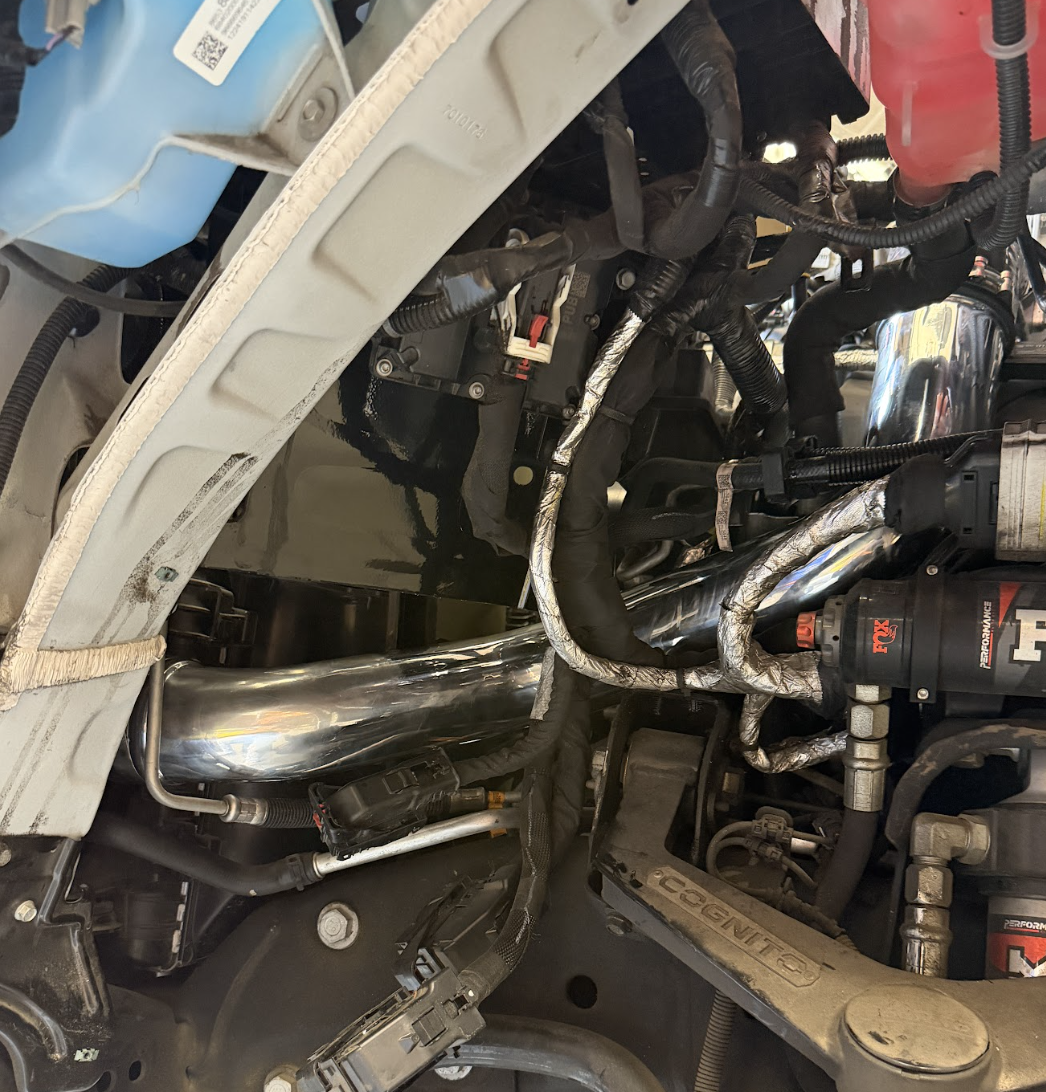

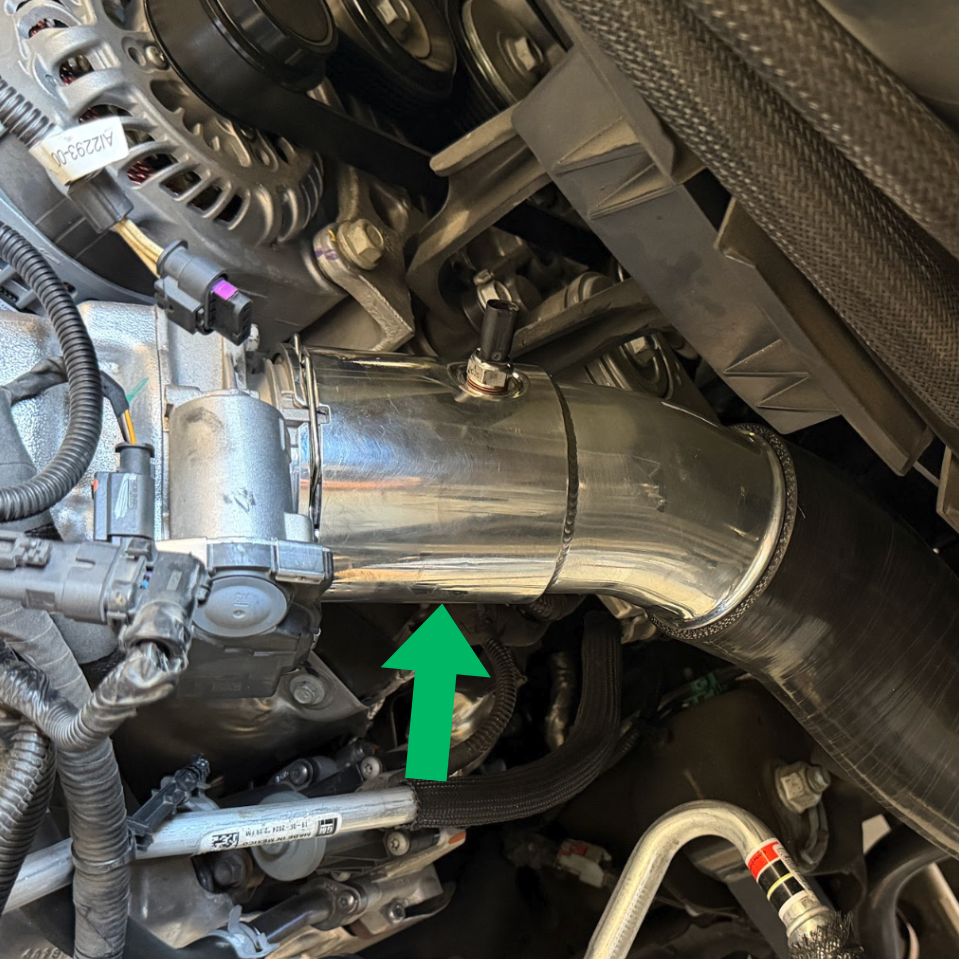

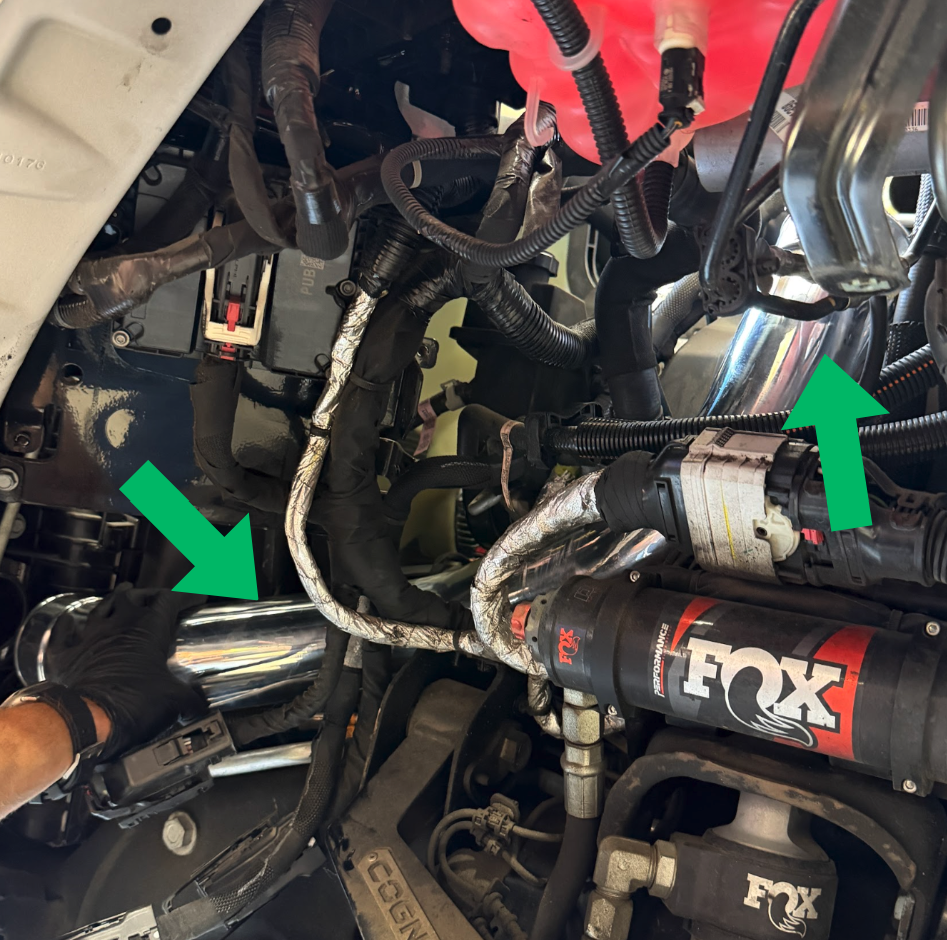

Now, go ahead and take the S&B Cold Side Intercooler Pipe and fish it up and through the driver side wheel-well.

Next, take the provided step-down coupler and assemble it with two T-bolt clamps.

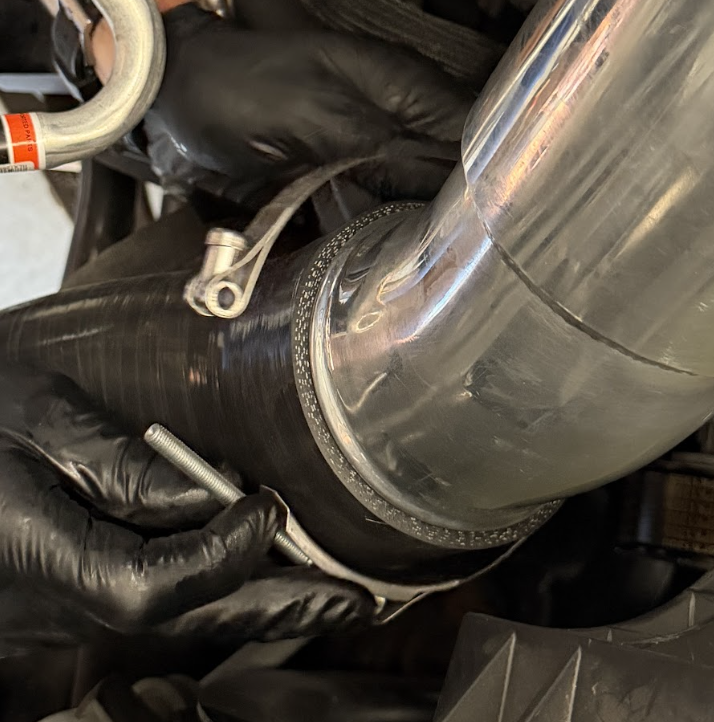

Then mount this on the Intercooler outlet and lower end of the S&B Cold Side Intercooler Pipe.

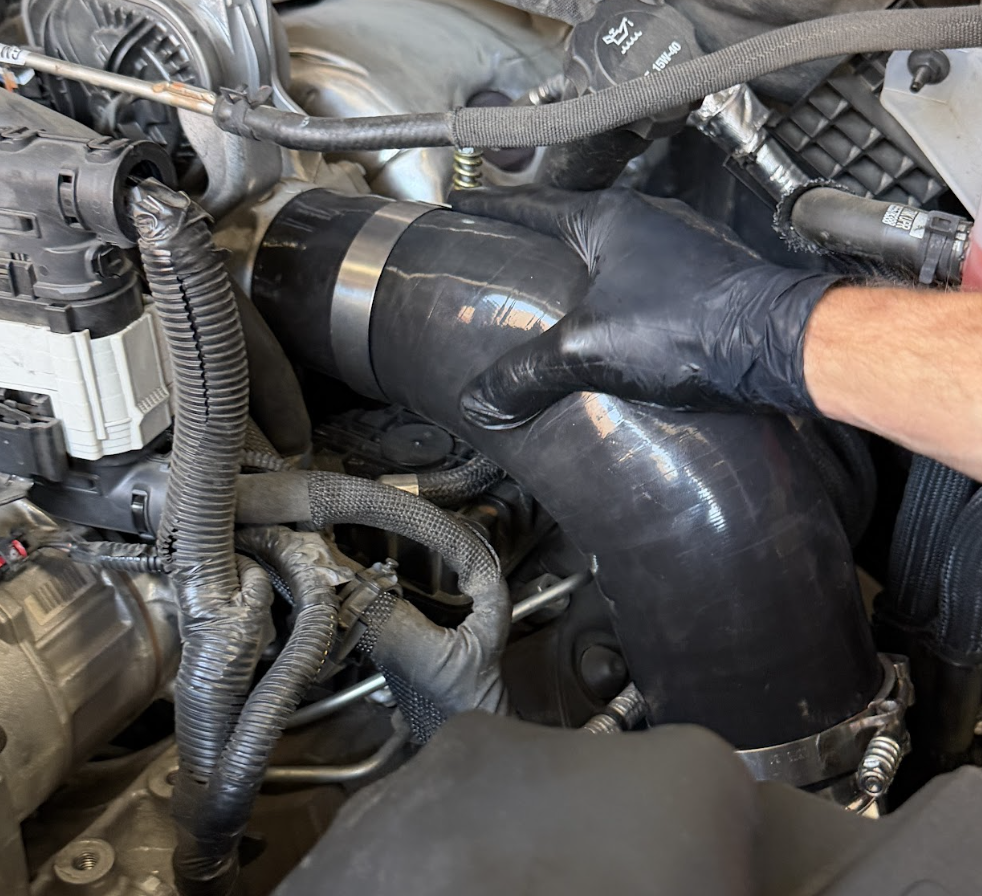

Next, take the 90 degree S&B hose and loosely install the remaining (2) T-bolt clamps onto the bend.

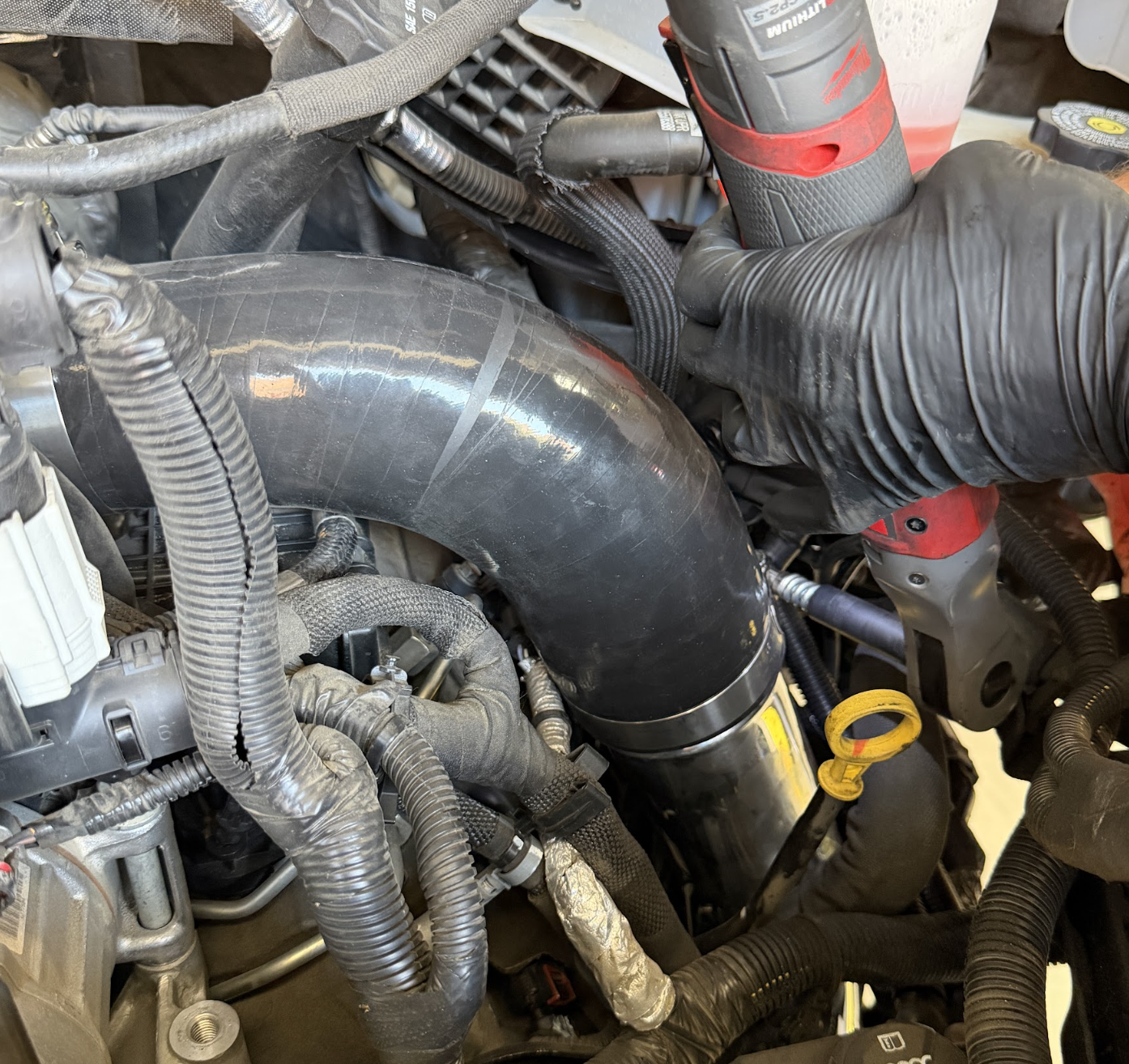

Then, go ahead and mount onto the aluminum S&B Cold Side Pipe onto the turbo inlet.

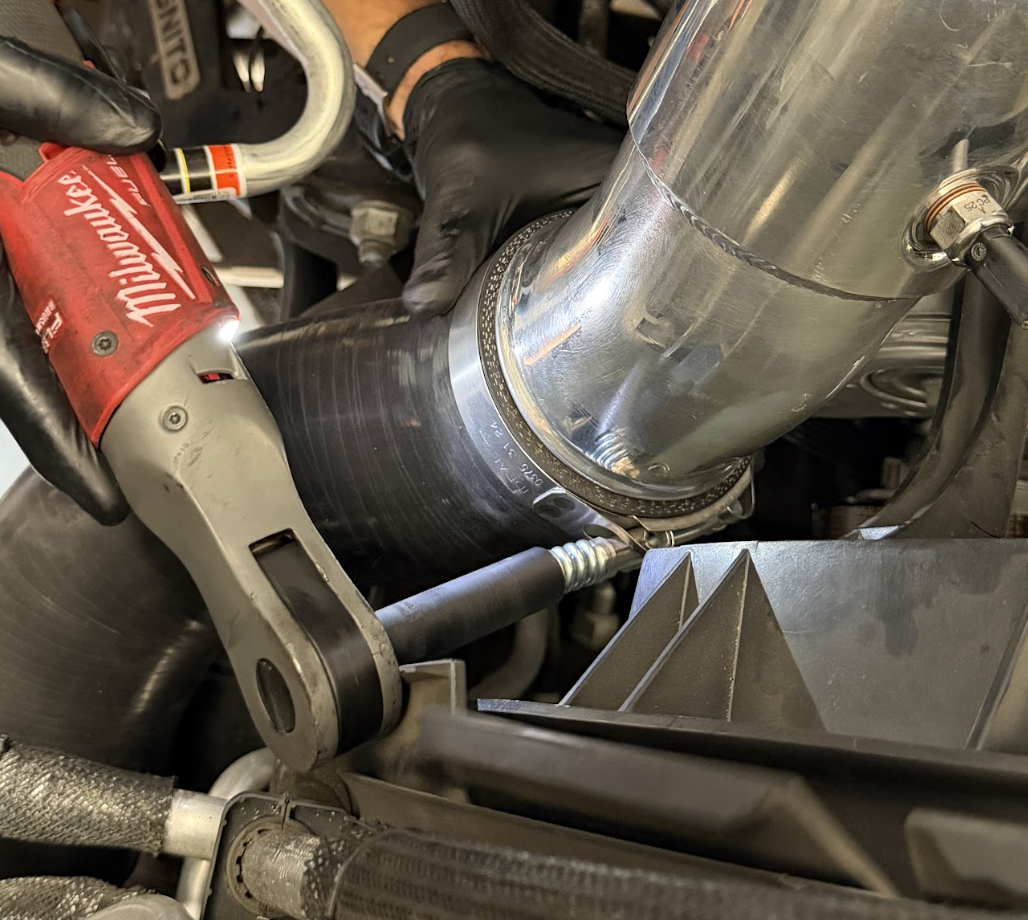

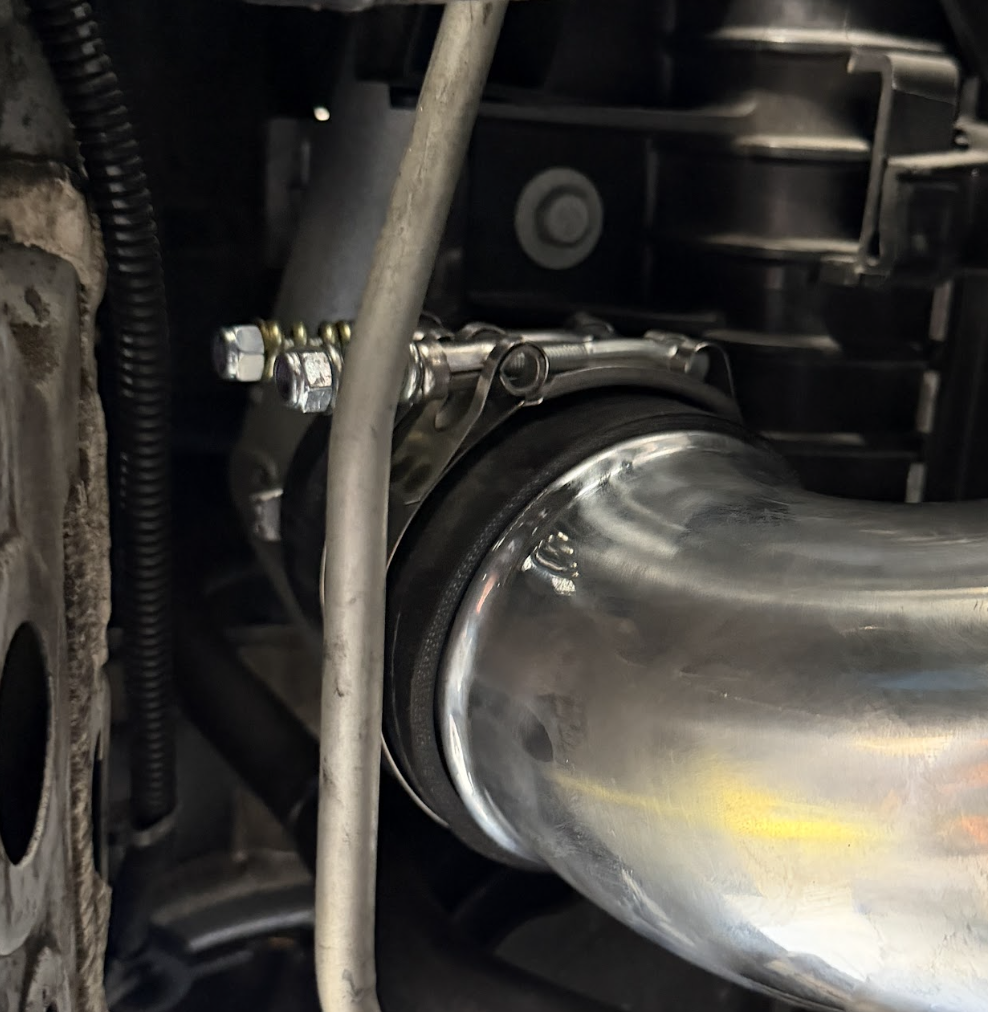

Tighten down all T-bolt Clamps on both the Hot & Cold Side Intercooler Pipes.

Torque down all T-Bolt Clamps to 75 Inch Lbs.

Plug the Temperature Sensor back into the Hot Side Intercooler Pipe.

Re-install the Air intake. Start by tightening down the hose clamp on the throttle body.

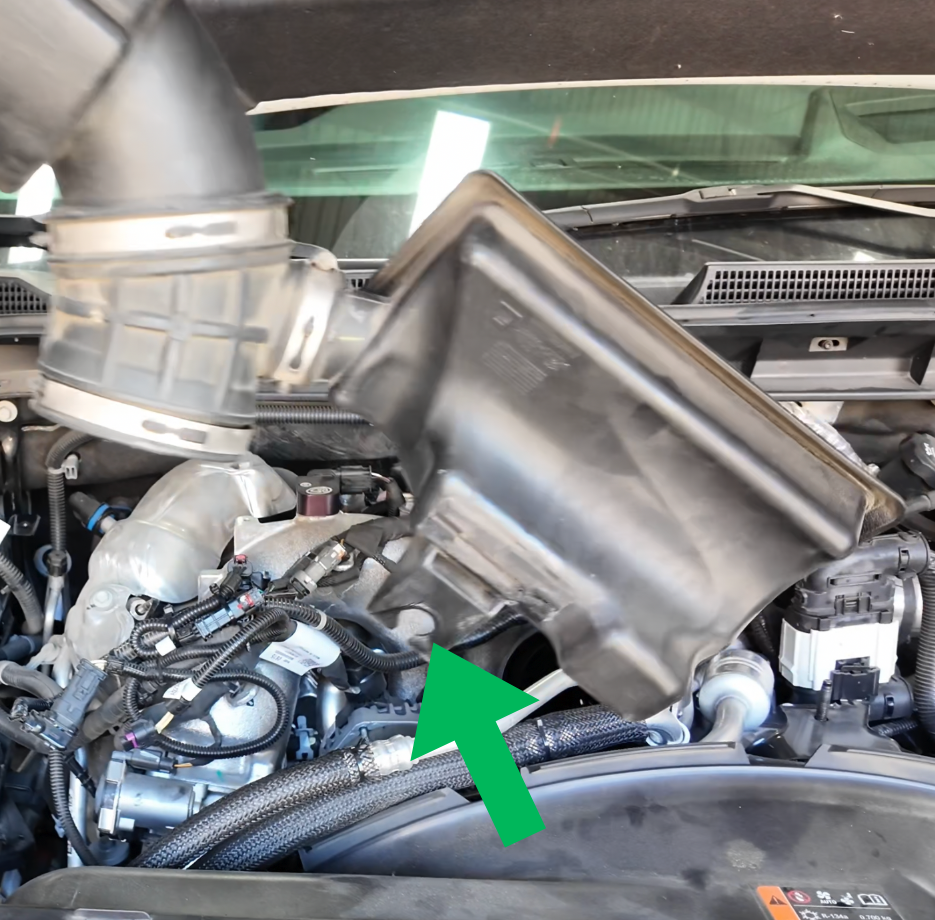

Line up the air scoop onto the air box.

Tip: you can access this part by going through the passenger side front wheel-well.

Re-install the factory bolt next to the factory air box (next to the fender).

Note: If you have an S&B Air Box, this step does not apply.

Re-install the MAF Sensor.

Now, it's time to re-install the ECM.

Once its back in position, thread the (4) nuts on by hand then tighten them down.

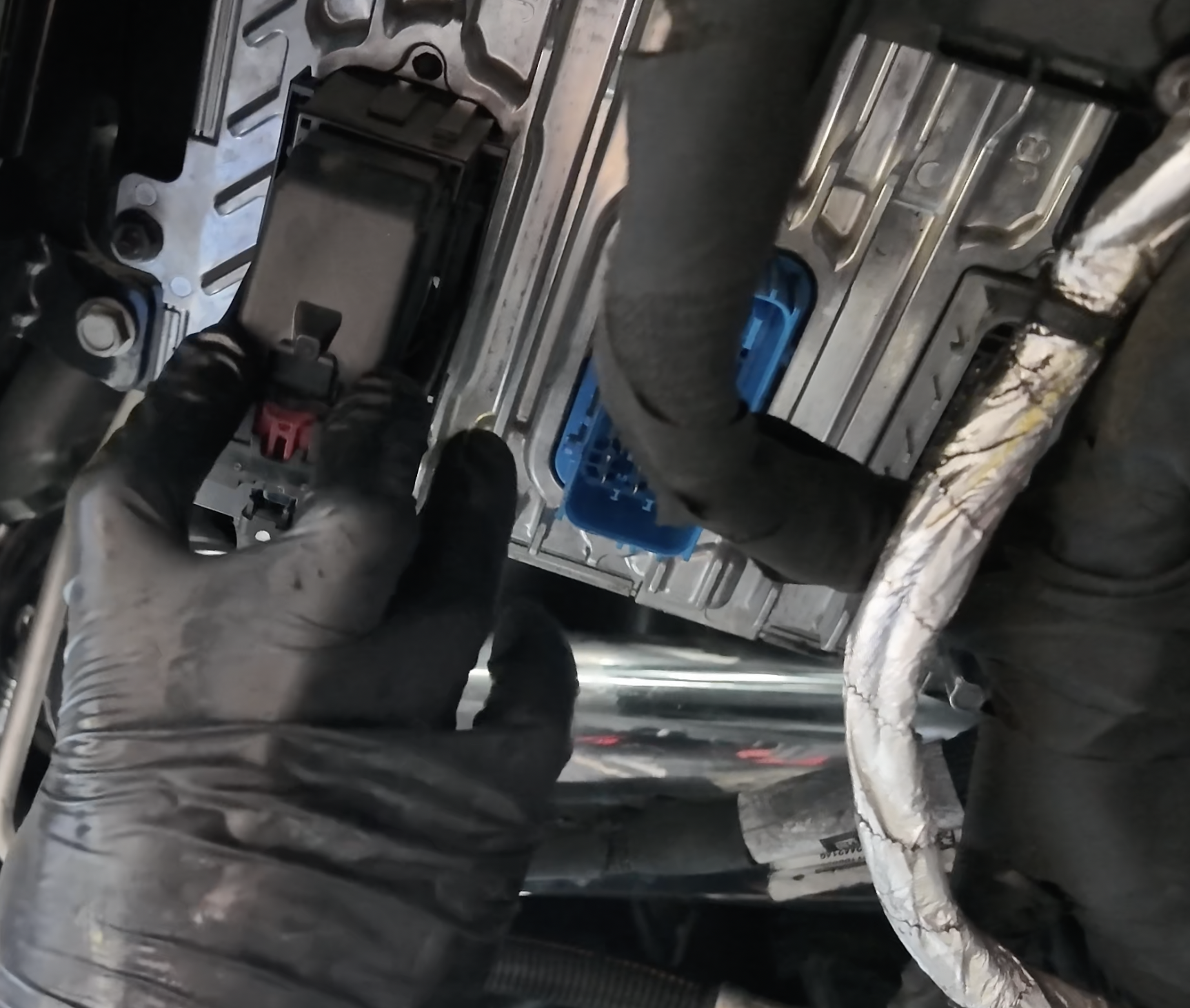

Reconnect the three connectors back into place.

Each connector is color coded. Connect Black to Black, Blue to Blue, & Grey to Grey.

Push each connector into place. Once the connector handle begins to move downward, go ahead push the handle down until you hear a click.

Then push the red pin down to fully lock the connector into place.

*Proceed to do this for all (3) Connectors.

Check to make sure you have a good amount of clearance around each intercooler pipe.

Install the driver's side wheel-well liner screws using a T15 Torx bit.

Install the passenger side wheel-well liner screws using a T15 Torx bit.

Then re-install the single push-pin located at the top of the wheel-well.

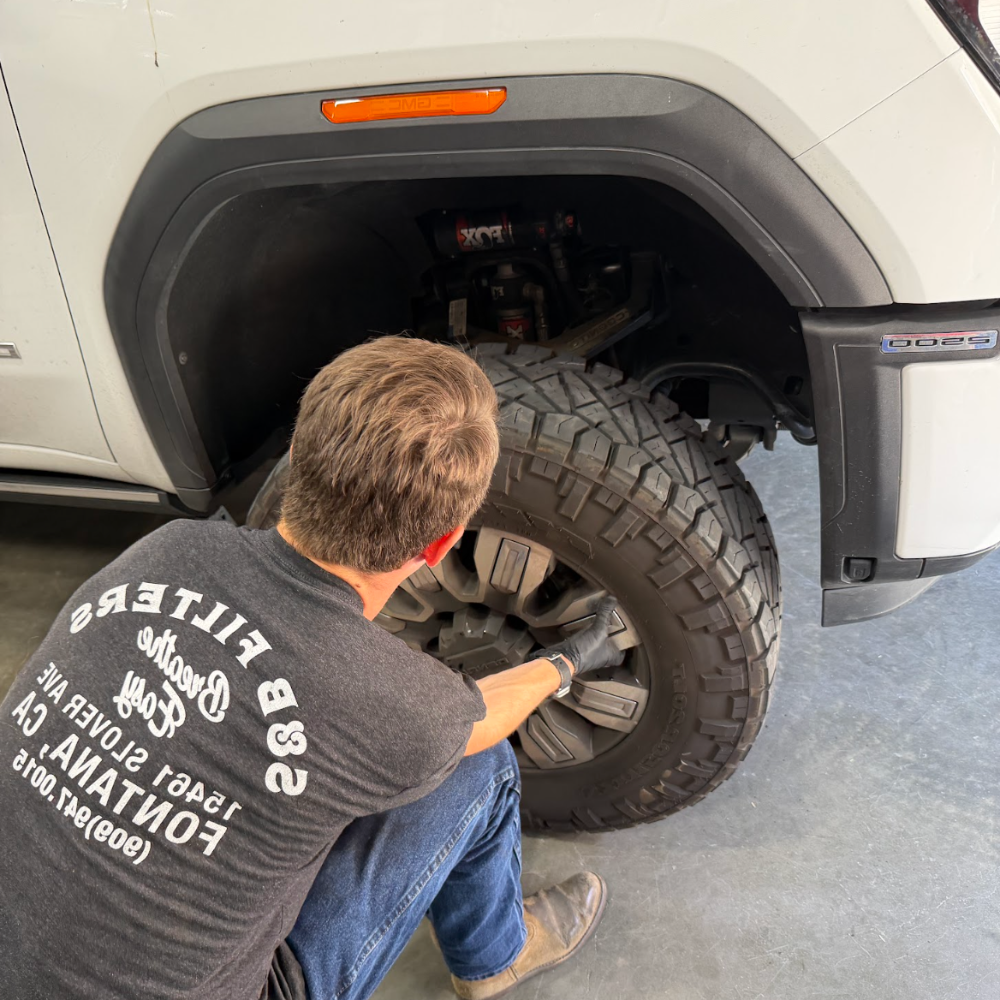

Mount and torque down your wheels to factory torque specs.

Important: After 500 miles, it is recommended to re-torque all the lug nuts to factory torque specifications.

Now it's time to reconnect the batteries.

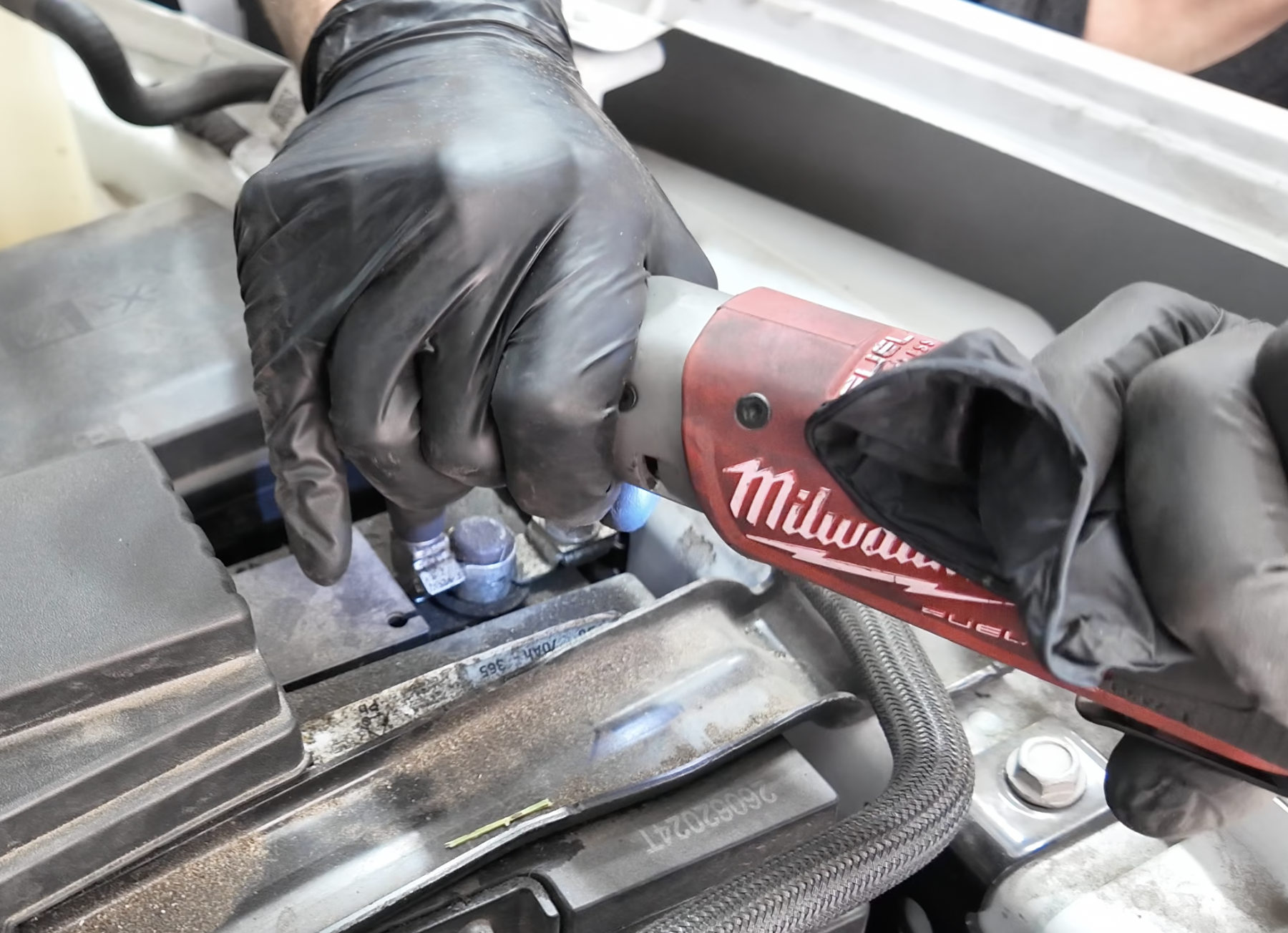

First, start on the passenger side by reconnecting the negative cable to the negative terminal using a 10mm wrench or socket.

Now, go ahead and re-install the cross-brace.

Then tighten down the (2) 13mm bolts.

Next, go on over to the driver's side and reconnect the negative cable using a 10mm socket.

Verify that all connection points are tight, secure, and torqued to specification.

Your install is now complete.
