Install Instructions for 71-1002

Print

Before You Start

Kit may not fit with the following Aftermarket Part(s) installed:

Custom or Aftermarket Bumper

  • Please read the entire product guide before proceeding.
  • Ensure all parts are present.
  • If you are missing any of the components, call our customer support at (909) 947-0015.
  • Do not work on your vehicle while the engine is hot.
  • Make sure the engine is turned off and the vehicle is in Park or the Parking Brake is set.

Required Tools

  • 8mm Socket
  • 18mm Deep Socket
  • Electric or Mechanical Ratchet
  • Zip-Ties
  • Wire Cutters
  • Body Panel Removal Tool

Step 1

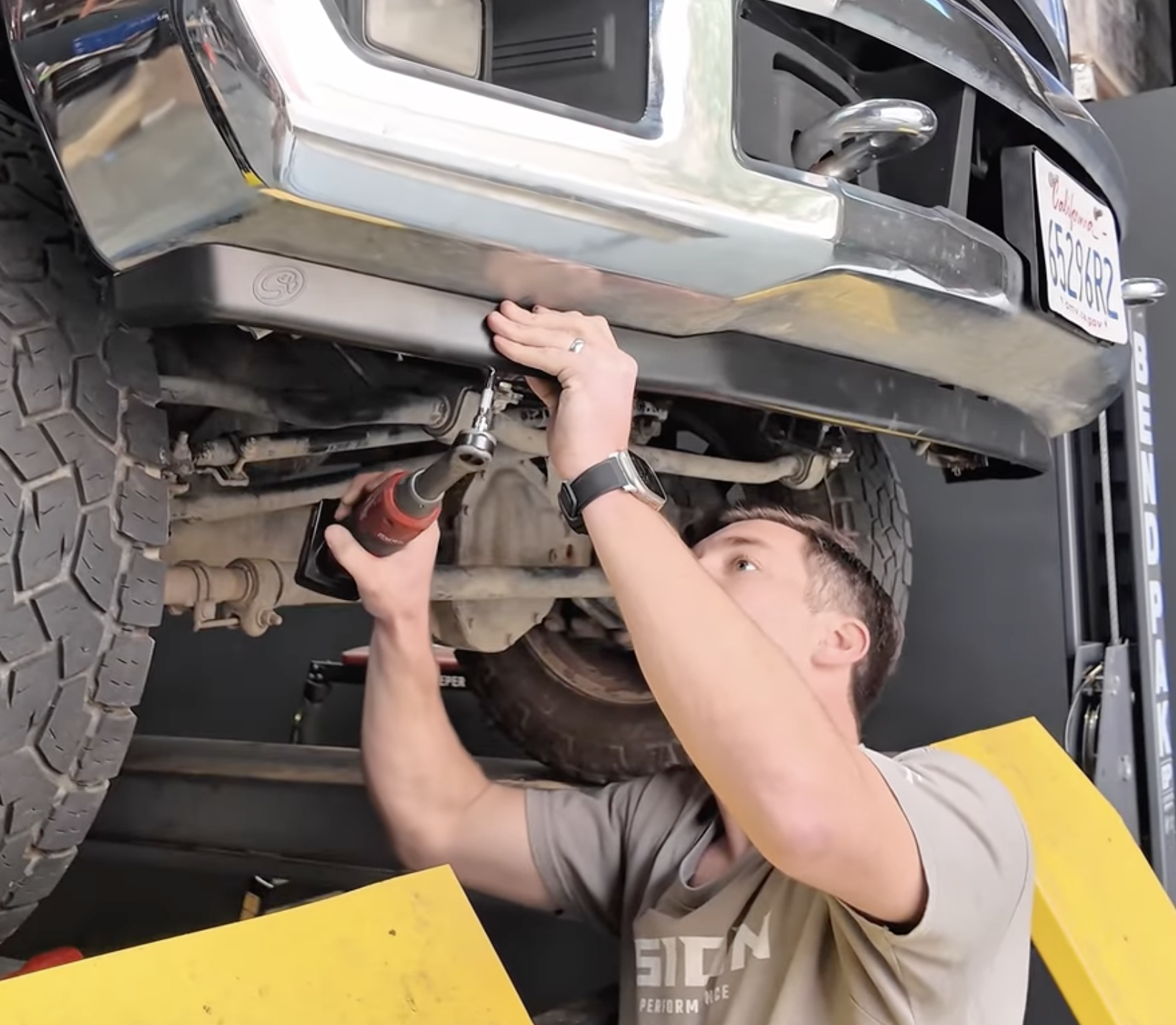

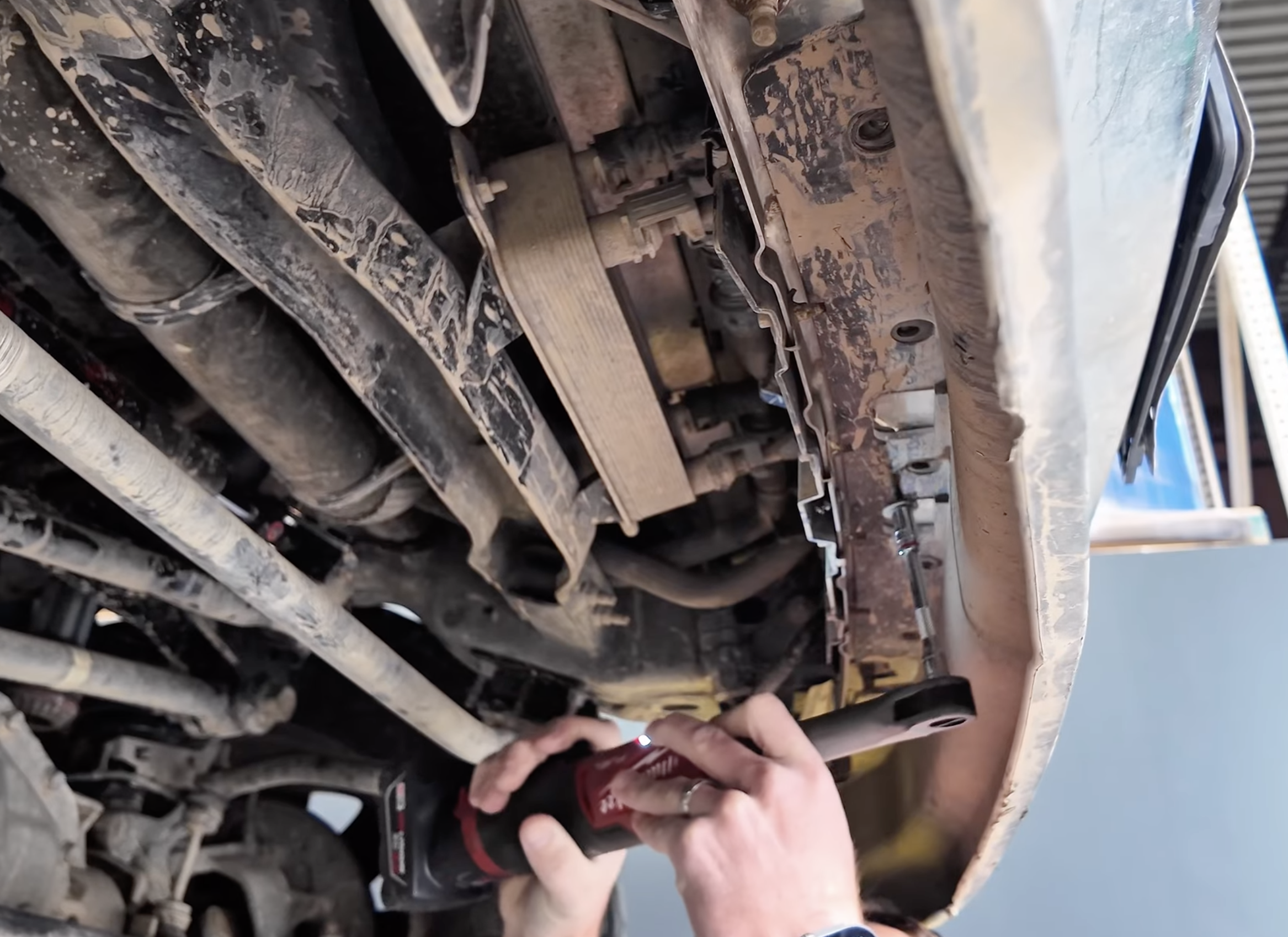

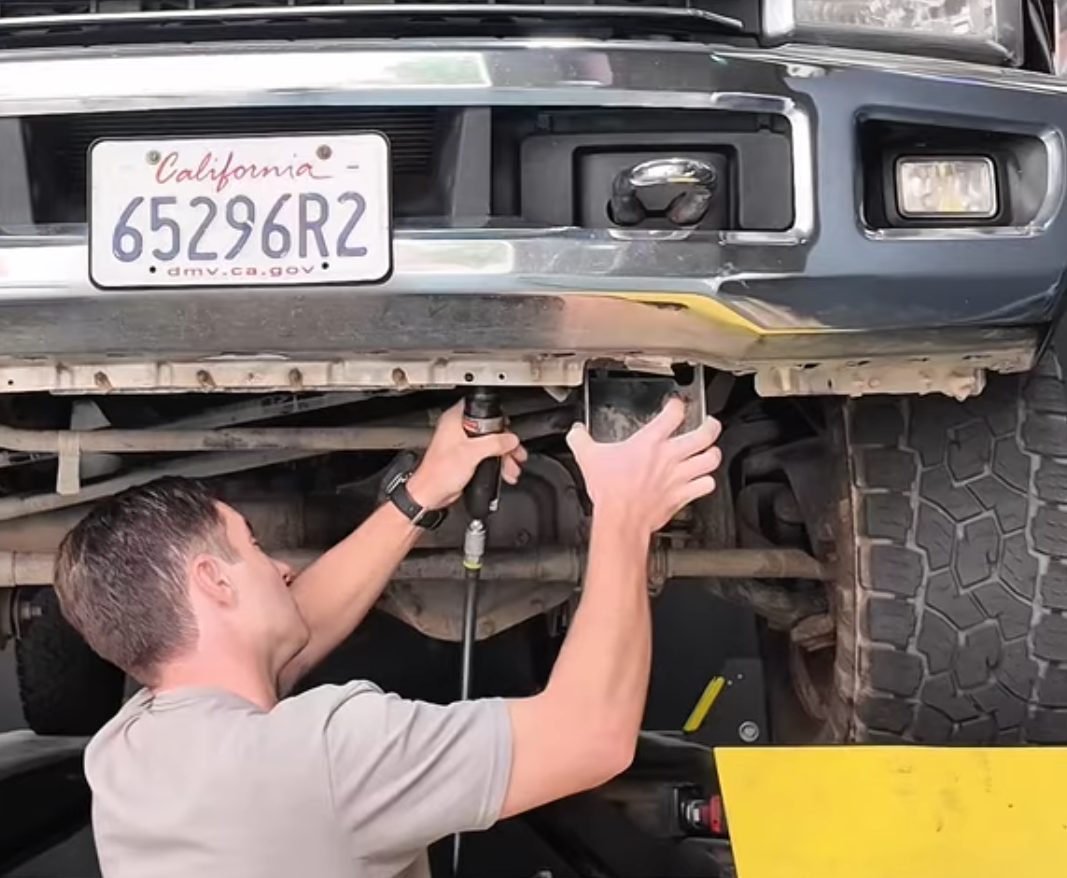

Using an 8mm Socket and Electric Ratchet, go ahead and work your way down the underside of the factory valance.

Step 2

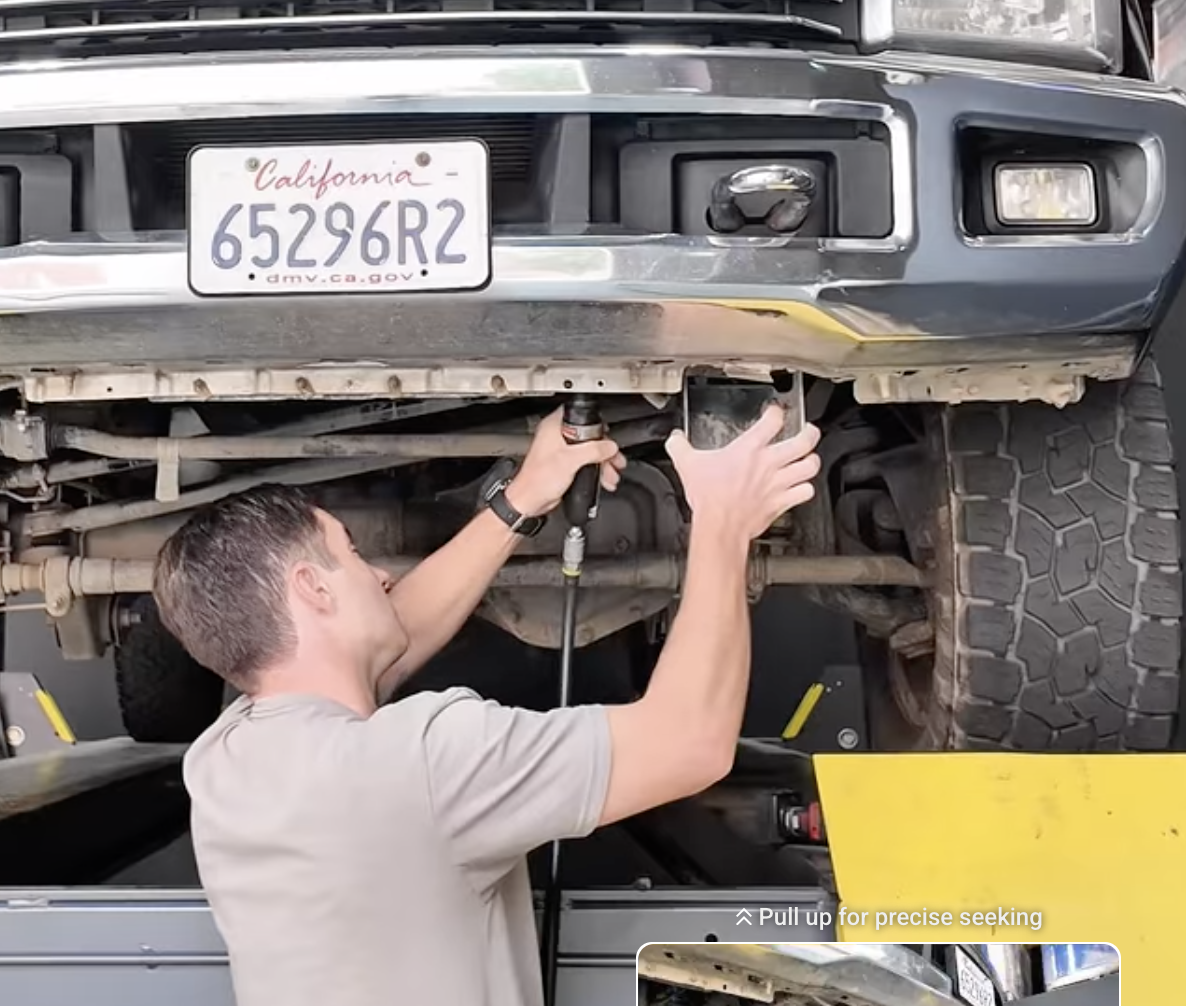

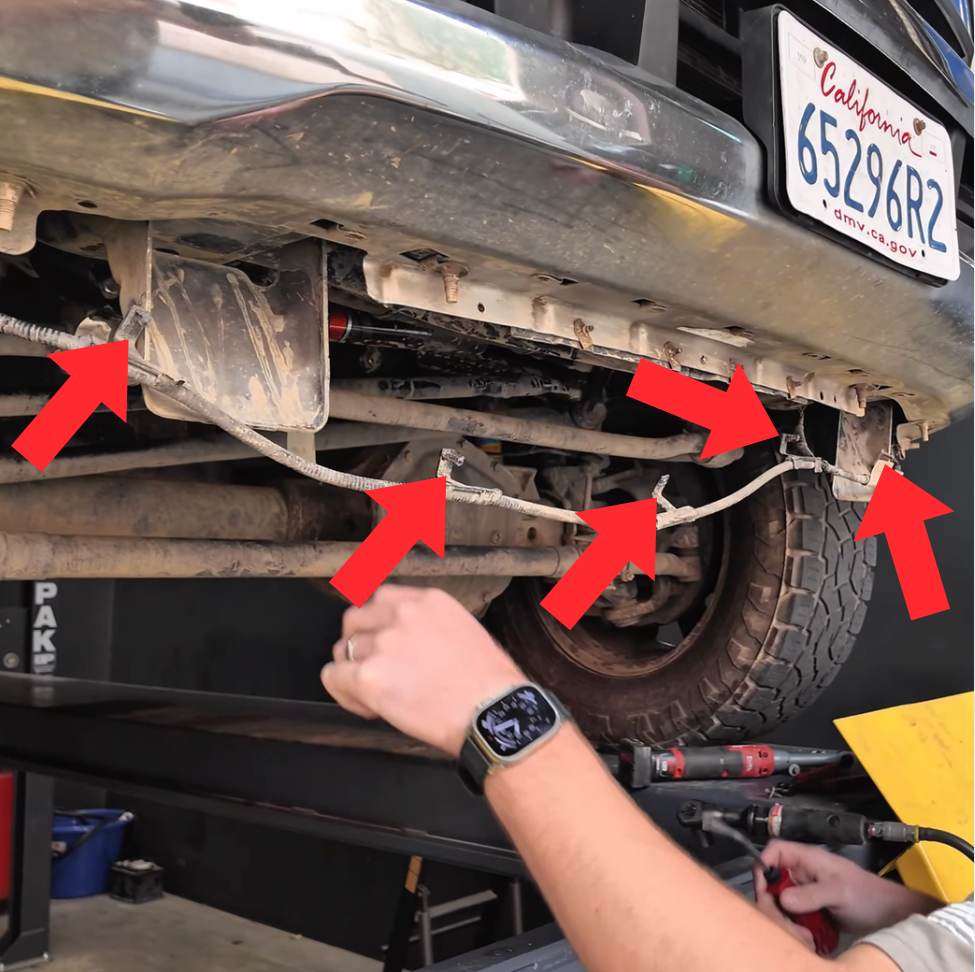

Next, remove the 5x clips (1 on each side of valance, 3 in the middle) holding the wiring harness. This can be done using a body panel removal tool.

Step 3

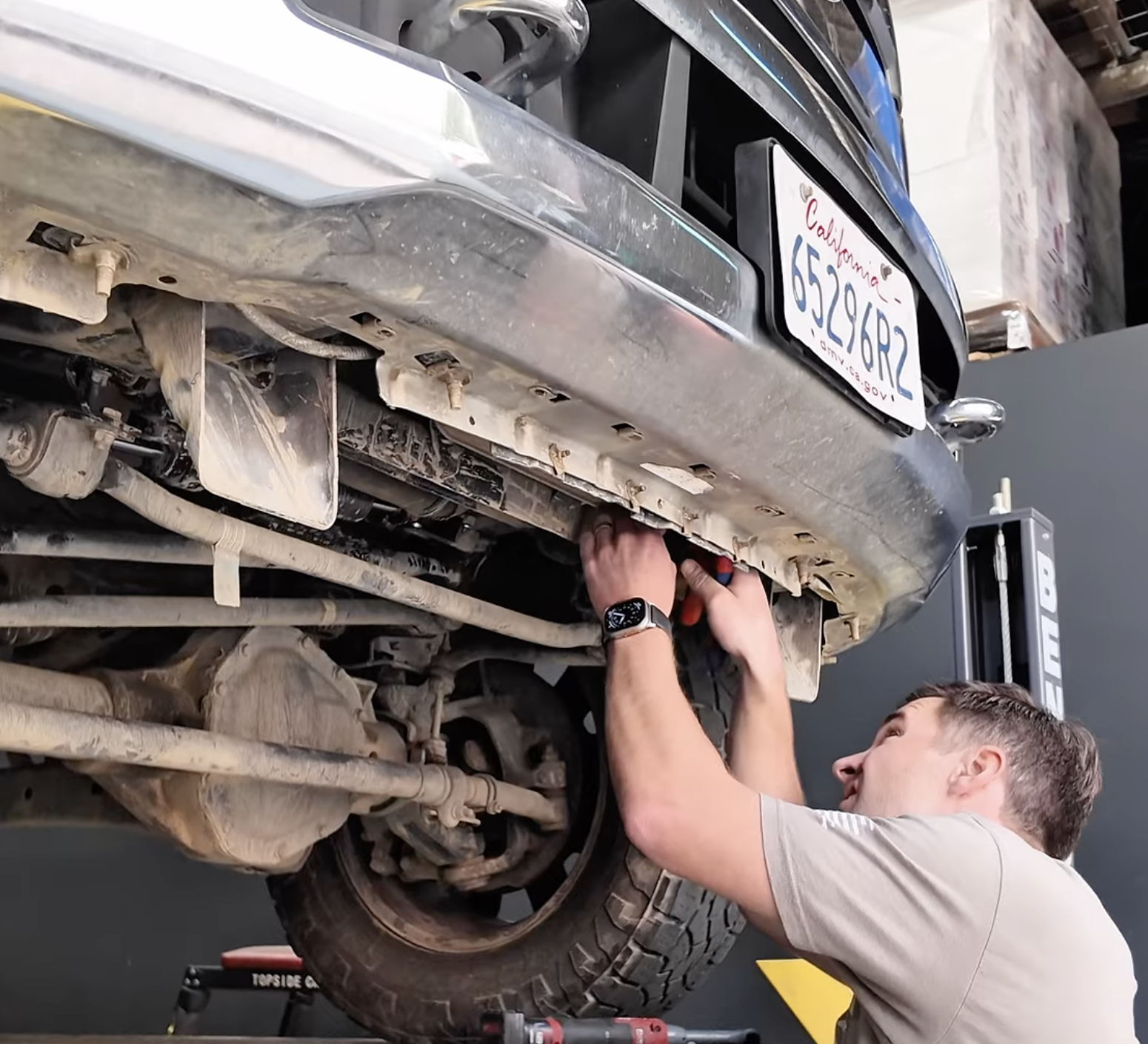

Then zip-tie the harness up into the front bumper.

Step 4a

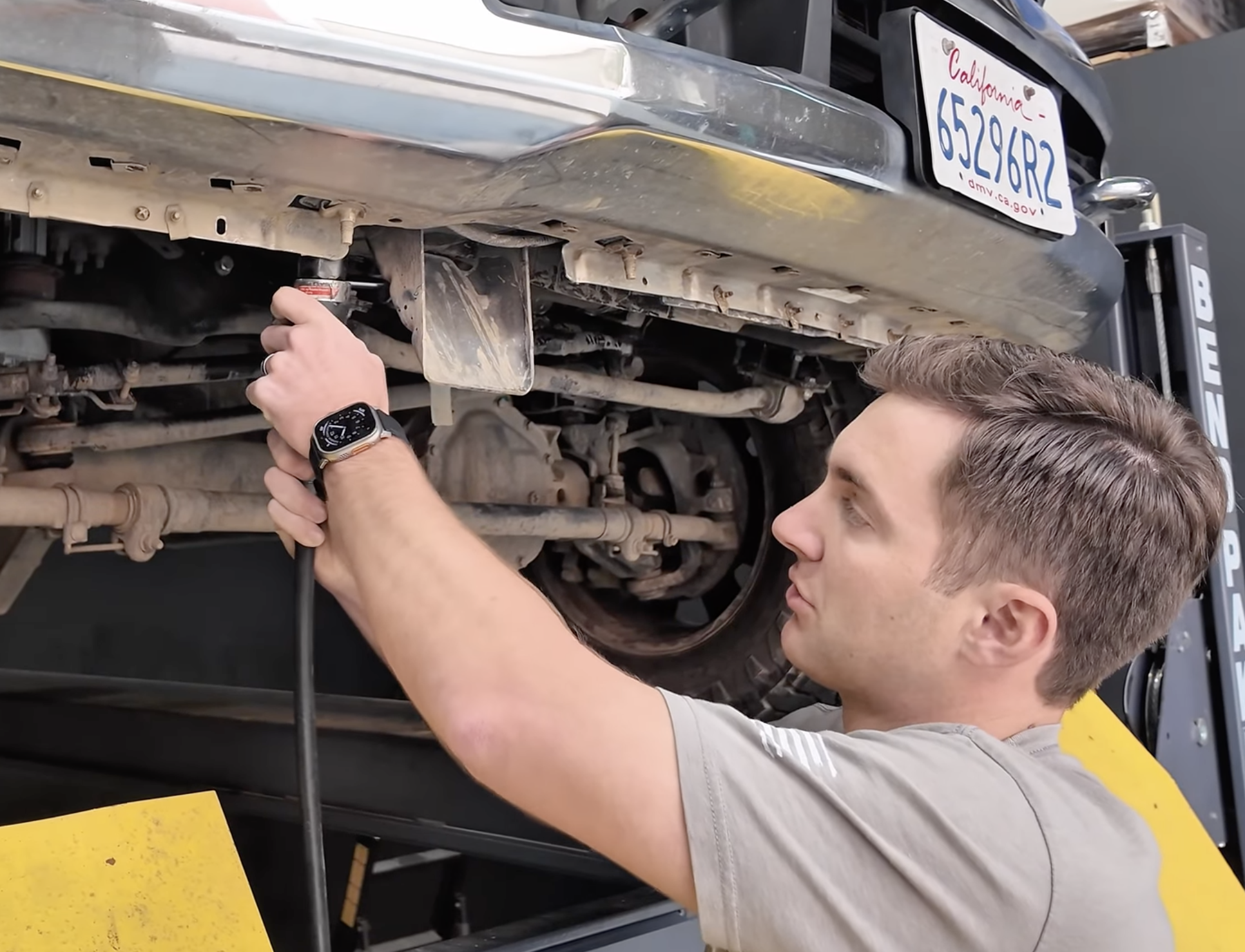

Now it's time to remove the 2x factory bumper brackets using an 18mm deep socket.

Step 4b

Step 5

Using an 8mm socket, go ahead and bolt the S&B Low-Profile Valance into the factory position using the OEM hardware.

Step 6

Verify that all the bolts are tight and secure.

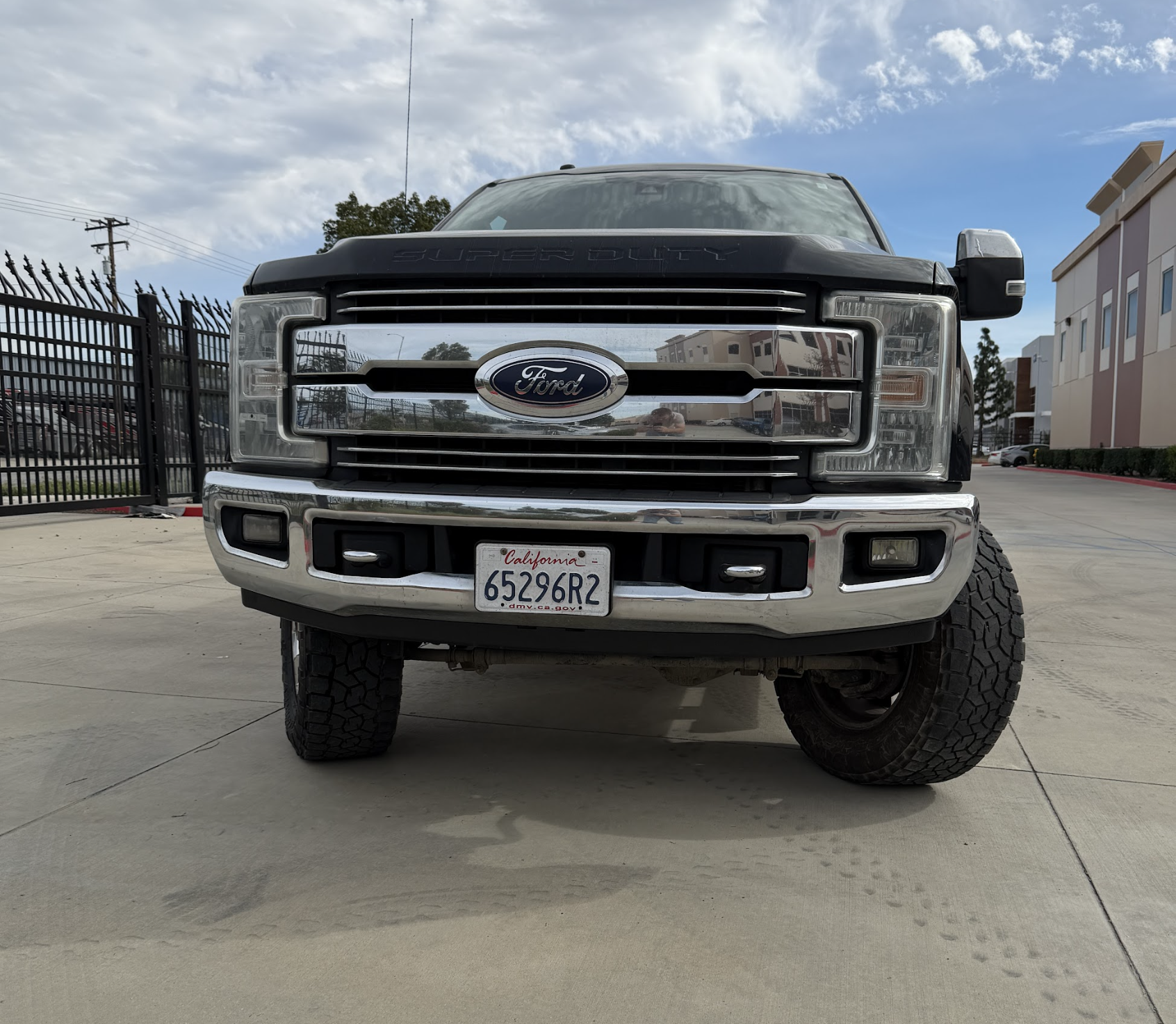

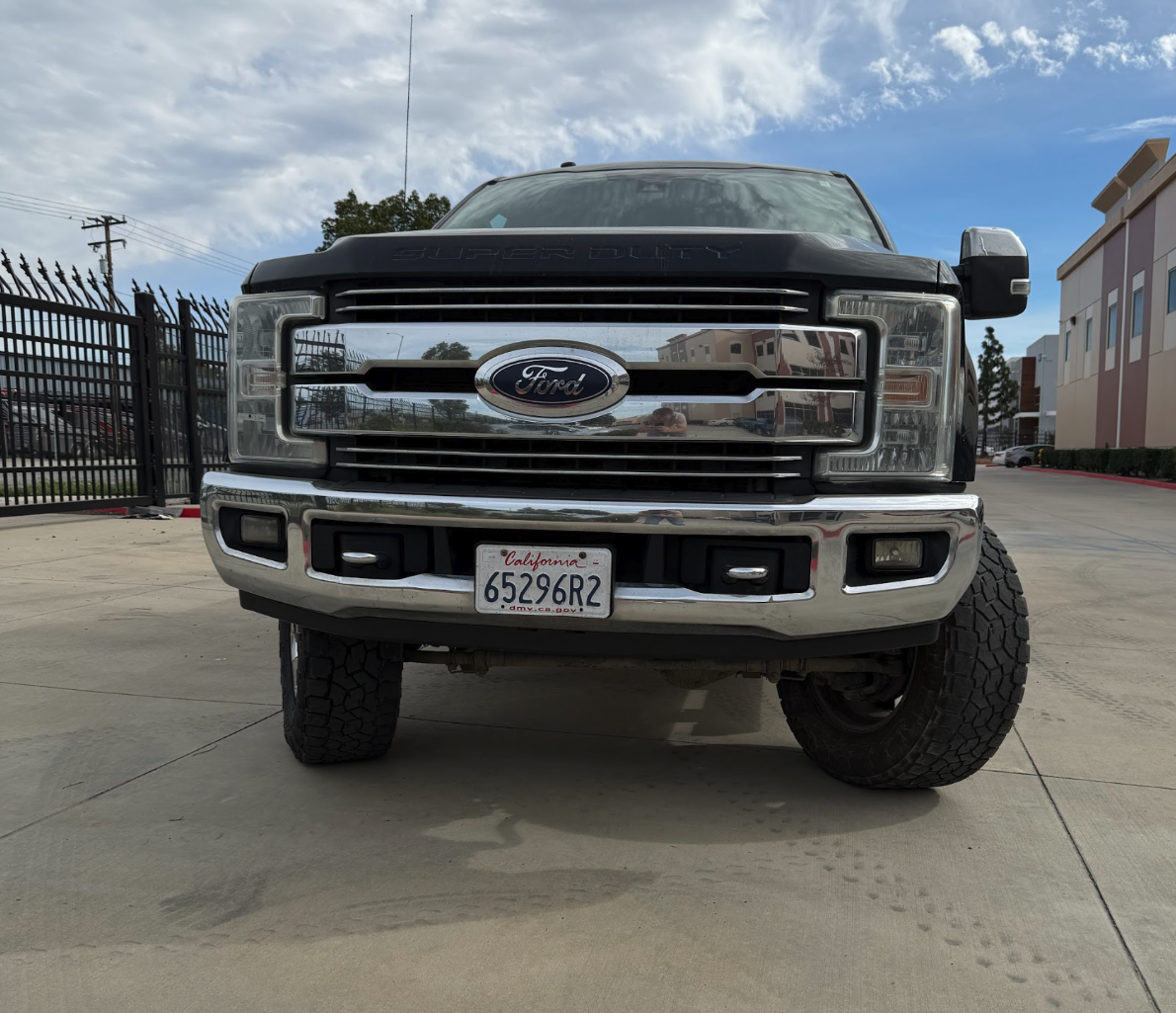

Your install is complete.
