Install Instructions for 71-1001

Print

Before You Start

Kit may not fit with the following Aftermarket Parts installed:

Aftermarket Front Bumper

  • Please read the entire product guide before proceeding.
  • Ensure all parts are present.
  • If you are missing any of the components, call our customer support at (909) 947-0015.
  • Do not work on your vehicle while the engine is hot.
  • Make sure the engine is turned off and the vehicle is in Park or the Parking Brake is set.

*Click here to watch the install instead!

Required Tools

  • Flathead Screwdriver
  • 8mm Shallow Socket
  • 8mm Deep Socket
  • Various Extensions
  • 18mm Shallow Socket
  • 18mm Wrench or Adjustable Crescent Wrench
  • Electric Ratchet
  • Wire Cutters

Before You Begin

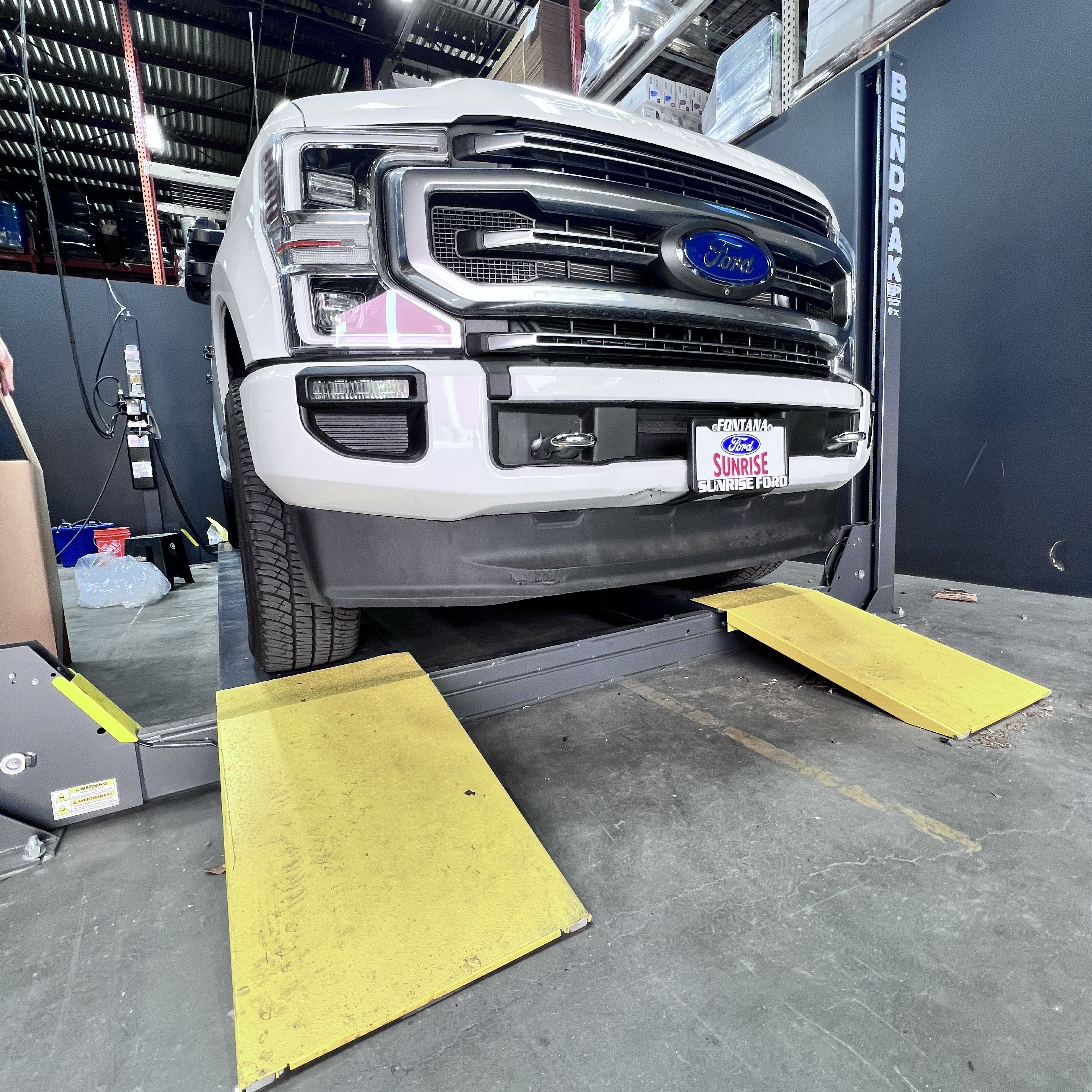

Place the vehicle in park, engage the Parking Brake, and we recommend using wheel chocks.

Step 1

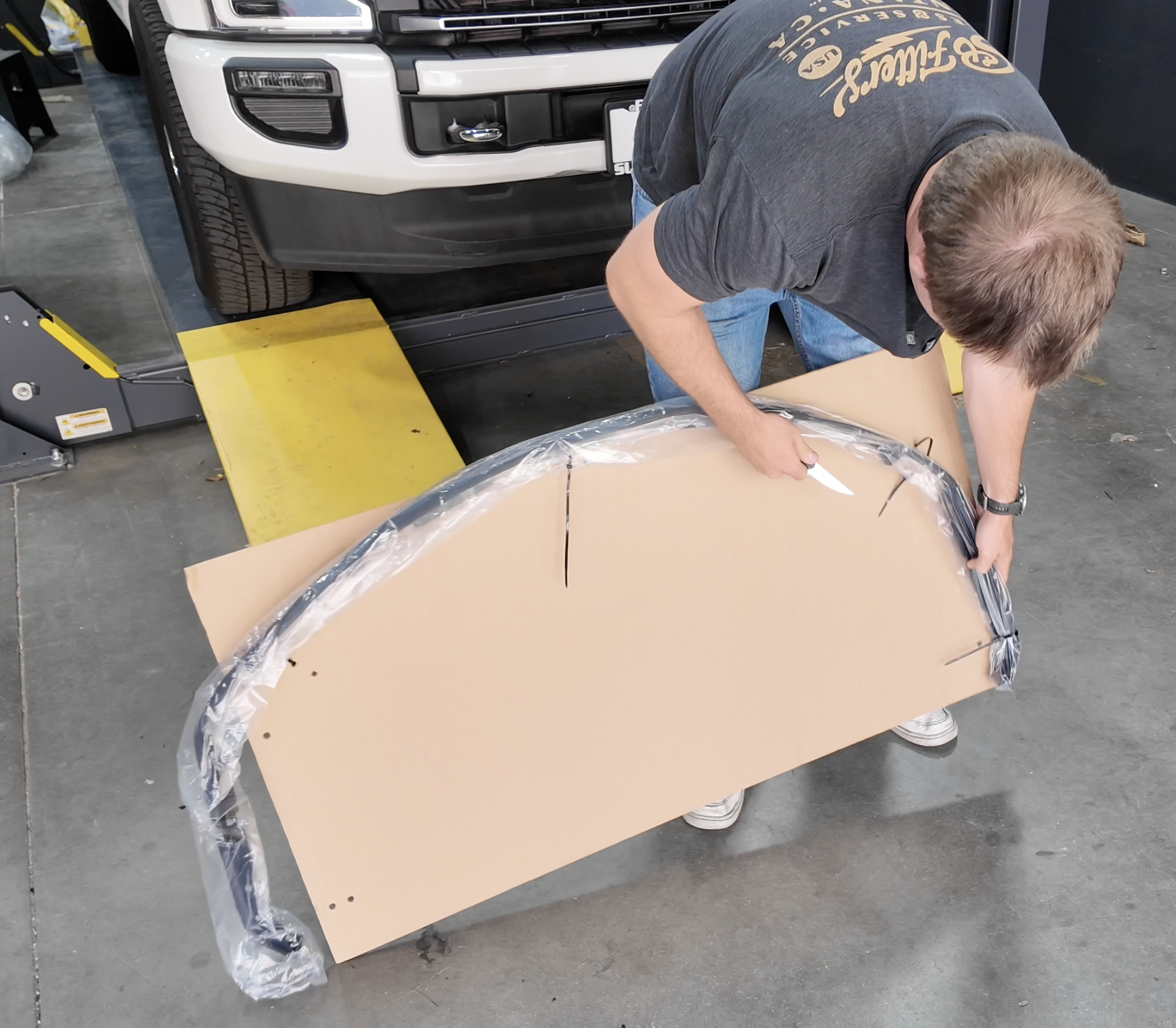

If you haven't done so already, go ahead and remove the S&B valance from the cardboard and allow it to extend fully while you're removing the factory valance.

Step 2

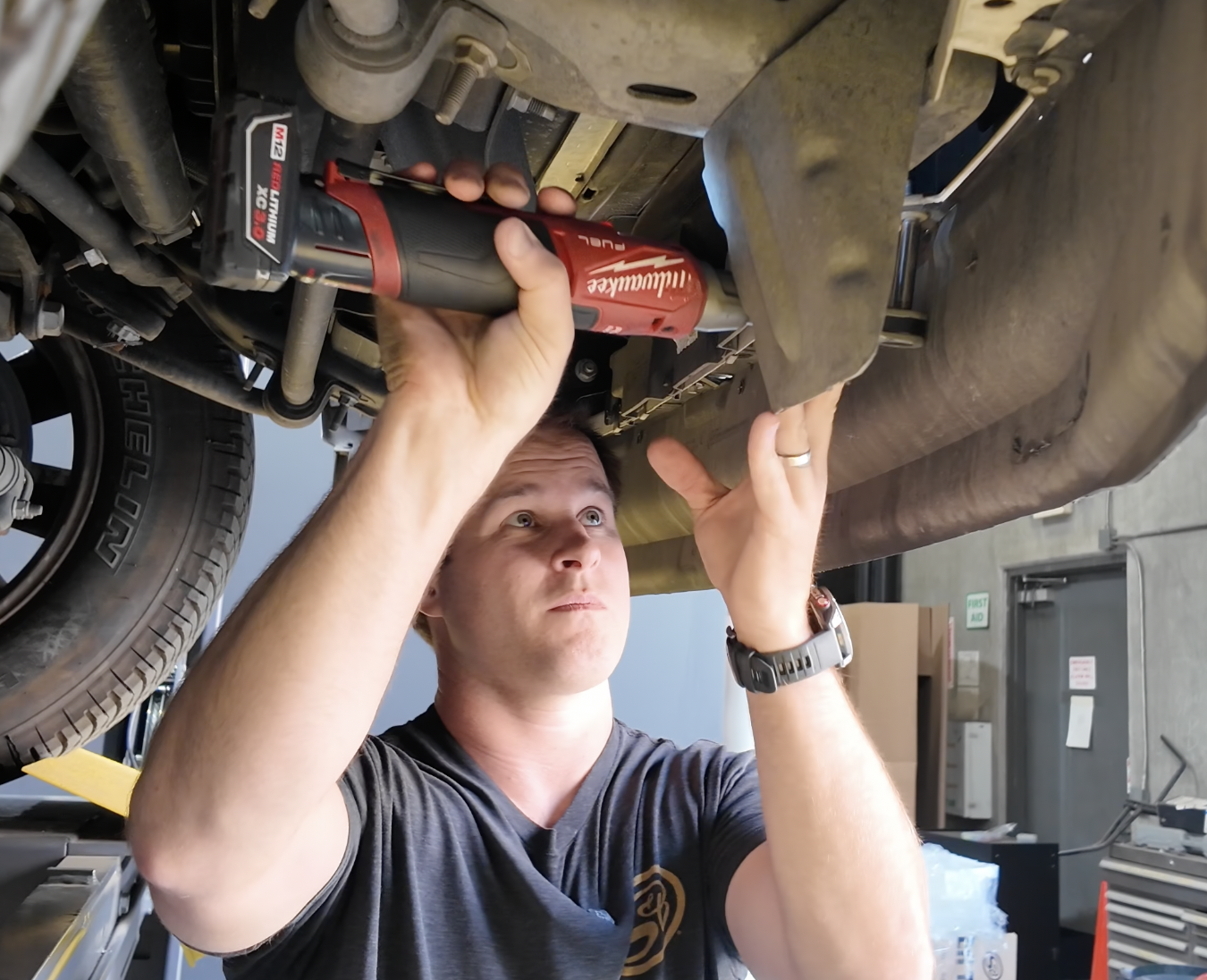

Using an 8mm Socket and Electric Ratchet, it's time to remove all the bolts holding the factory valance to the front bumper.

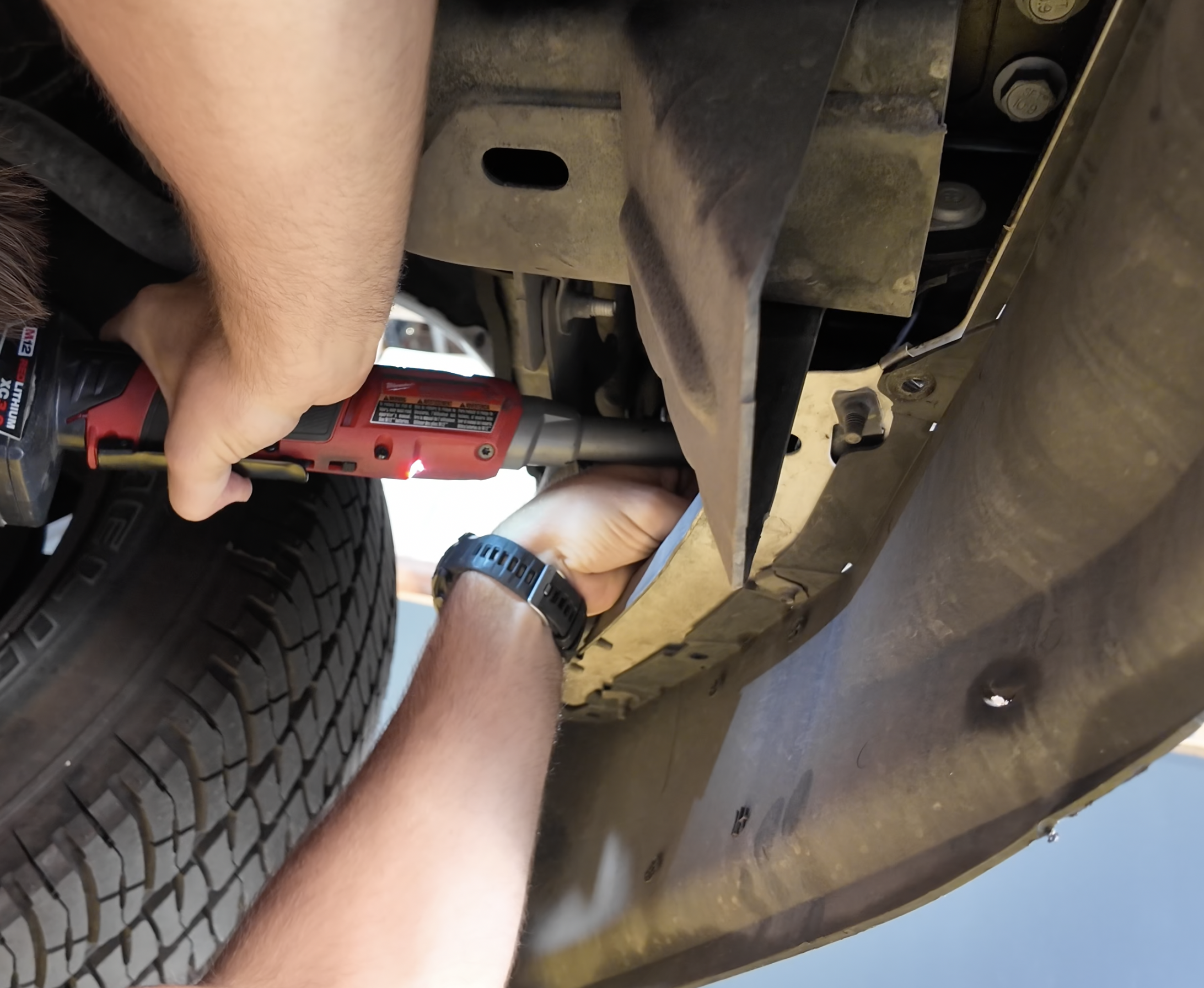

Important: The middle point will be accessible from the bottom, whereas the end bolts will have to be accessed from the top side.

Step 2b

Step 3

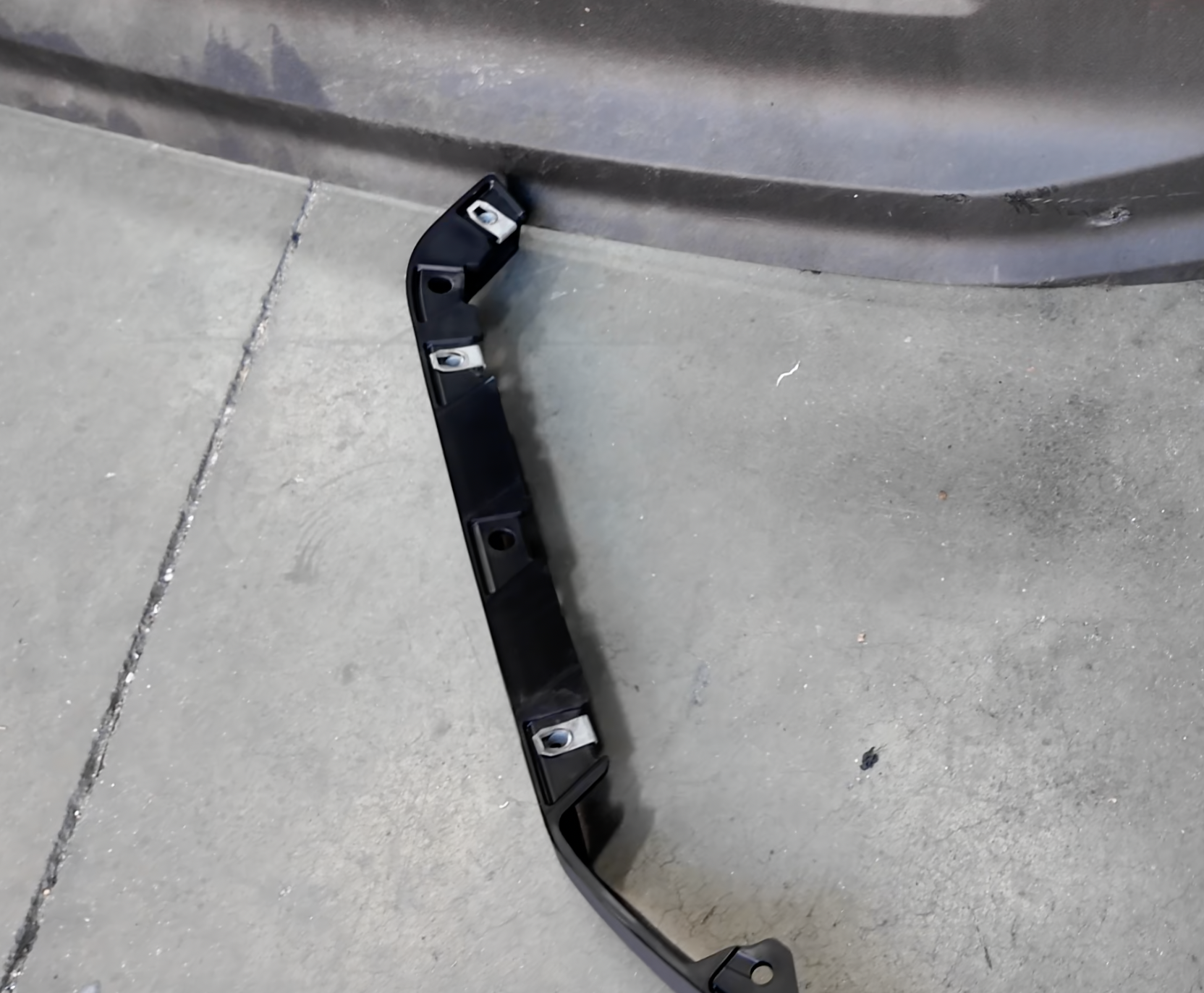

Remove and transfer the OEM clip nuts from the factory valance to the S&B Low Profile Valance. Make sure to match the factory location of each clip nut to the S&B Valance.

There will be (3) Clip Nuts on either end and they will be spaced out as seen in this image.

Step 4

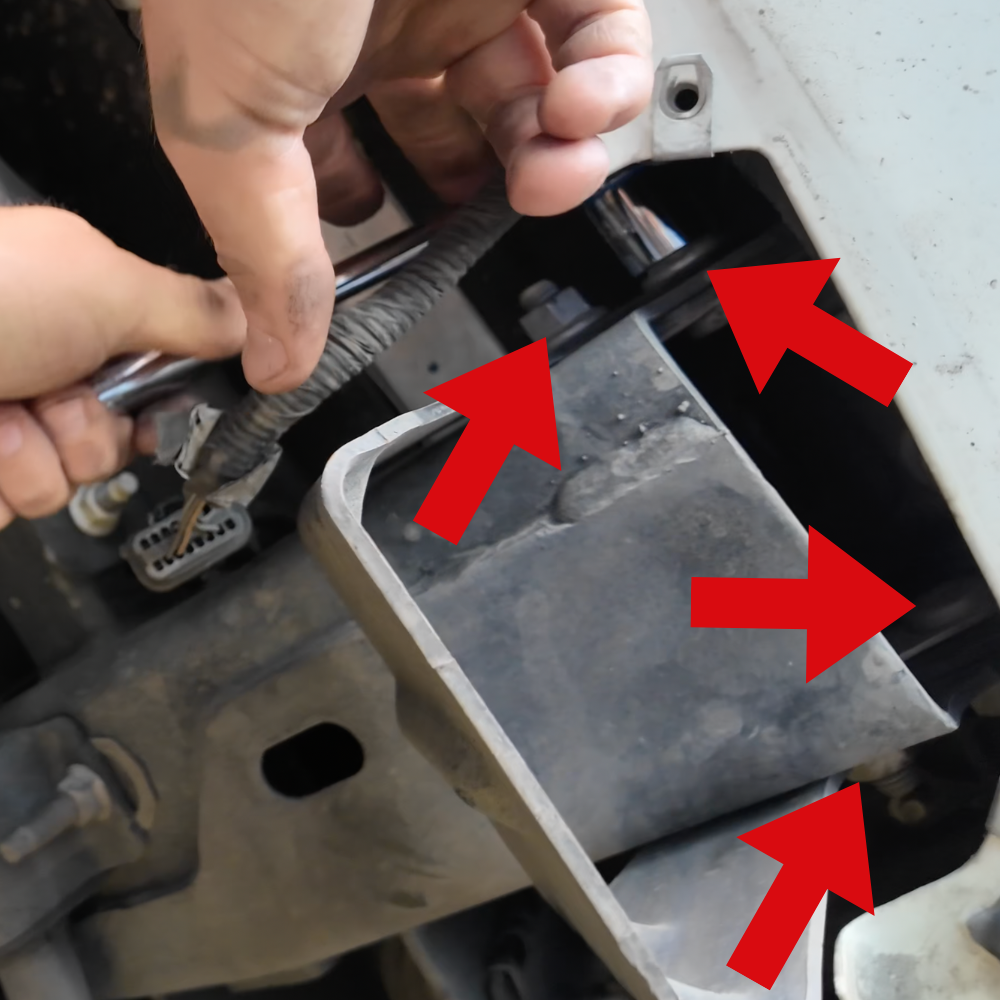

Now, go ahead and unbolt those (2) brackets hanging down from frame rails. To do this, you'll need a ratchet and 18mm Shallow Socket and 18mm Wrench.

There will be (4) nuts to undo on both brackets.

Step 5

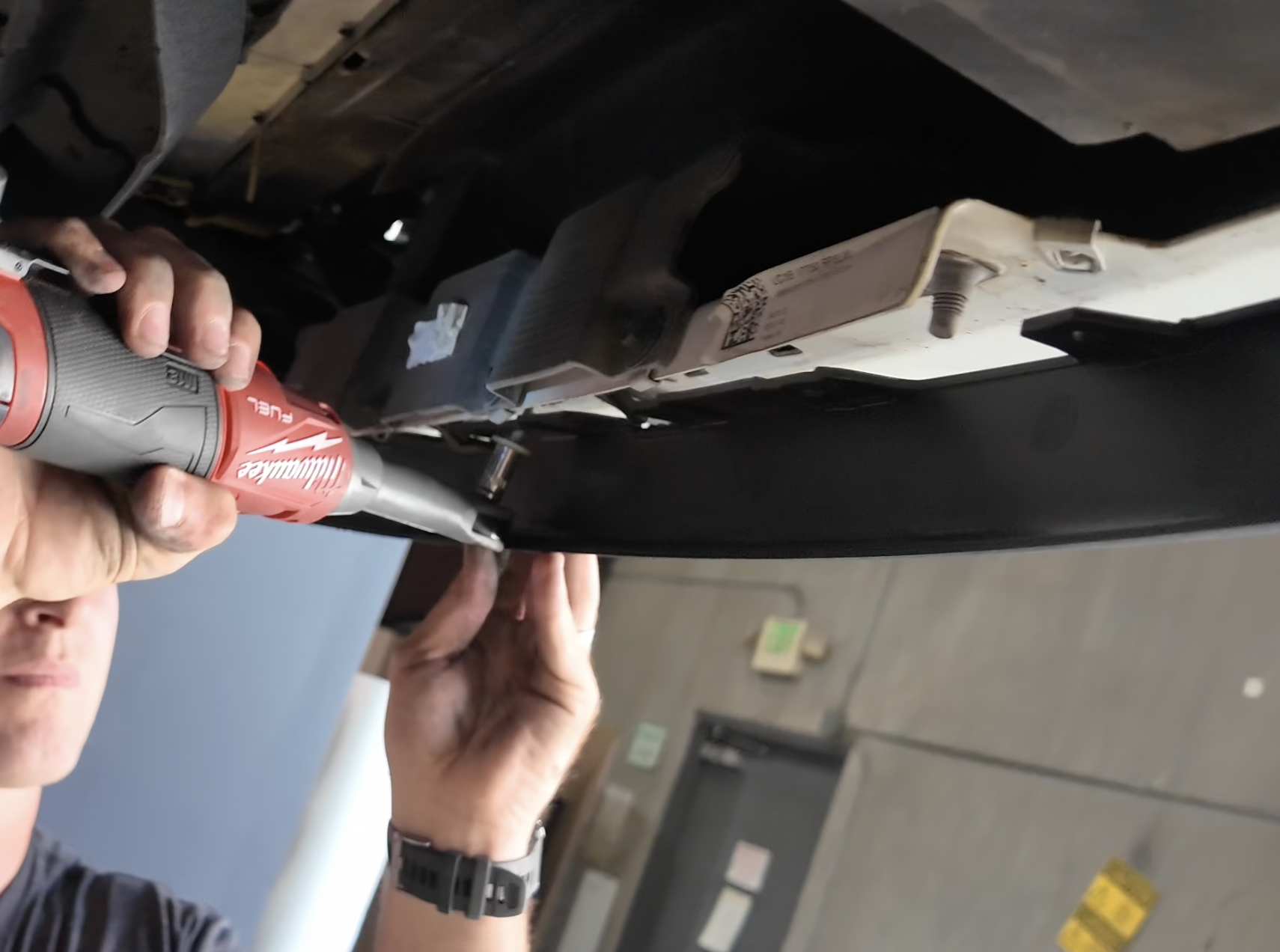

Now, go ahead and install the S&B Low-Profile Valance onto the front bumper using an 8mm Socket and Ratchet.

Step 6

Verify that all bolts are tight and secure in their position and that no clip nut got skipped.

Your install is now complete.
