Install Instructions for 10-1007

Before You Start

  • This tank will not fit on trucks that come equipped with the a factory 50 gallon tank
  • Please read the entire product guide before proceeding

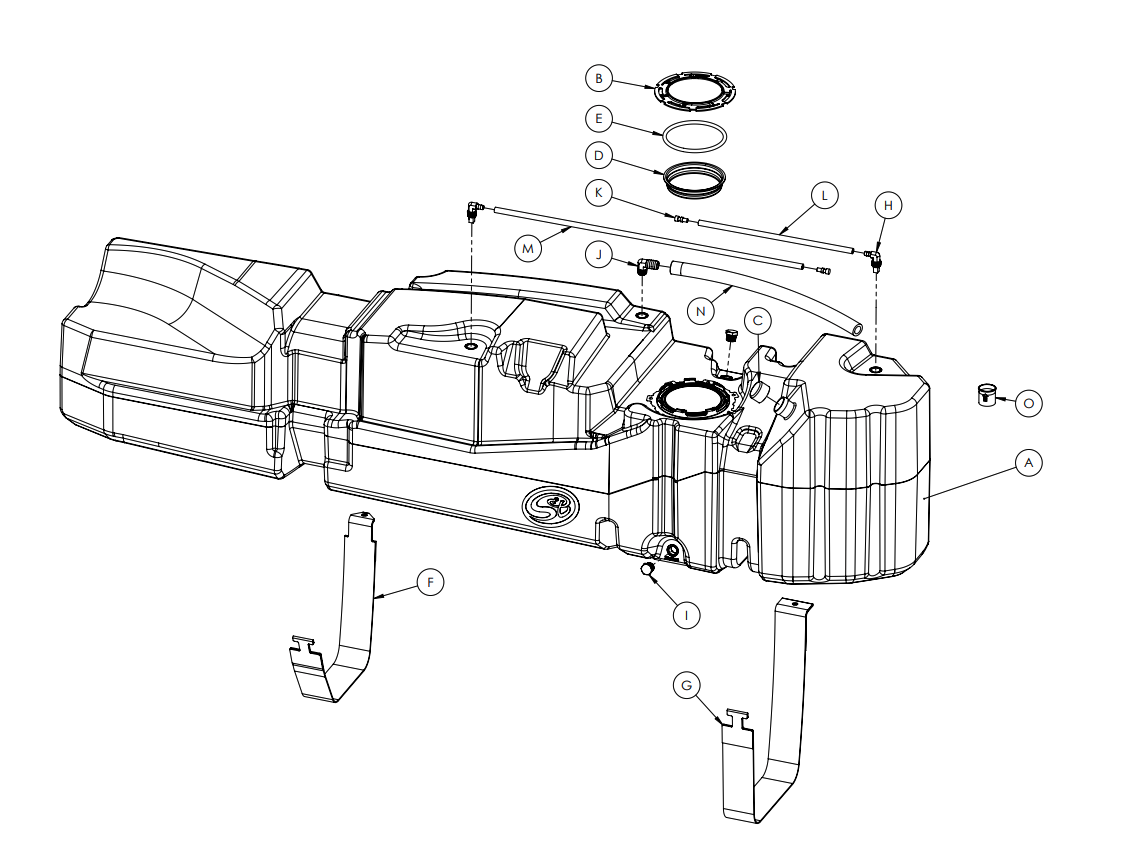

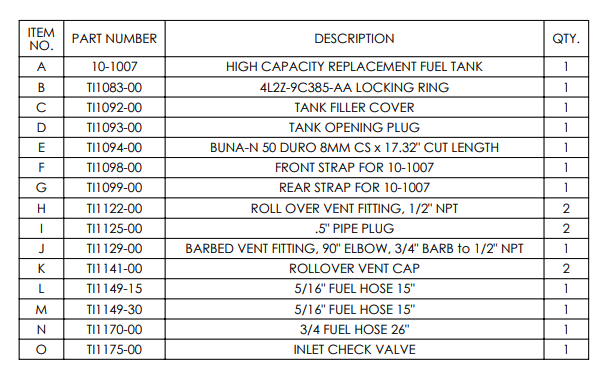

  • Ensure all parts are present.
  • If you are missing any parts, please call or text us at (909)-675-1313
  • Do not work on your vehicle while the underbody components are hot.
  • Make sure the vehicle is in park or the parking brake is set if you plan on working on the ground. If working on a lift, make sure the vehicle is lifted safely and securely.
  • Drain your original fuel tank before beginning the S&B Installation process. S&B Tanks recommends removing only an empty or near empty tank for your safety. We recommend using a siphon or electronic transfer pump.

    - Disconnect and isolate both of the negative battery cables

    - Before installing S&B Tank, conduct pressure test to ensure o'ring is properly seated.

    - In-bed Auxiliary Fuel Tanks will void the Lifetime Warranty.

    - Nozzle at high flow fuel station may continue to "click off". Tank is designed to work at regular fuel stations.

    - The fuel gauge will continue to work, but the Distance To Empty will still be calculated based on the stock fuel tank capacity. There is no way to change the DTE on the Ram's currently.

Required Tools

  • Flathead Screwdriver
  • Mallet/Hammer
  • 16mm Deep Socket
  • Ratchet
  • 12" Driver Extension

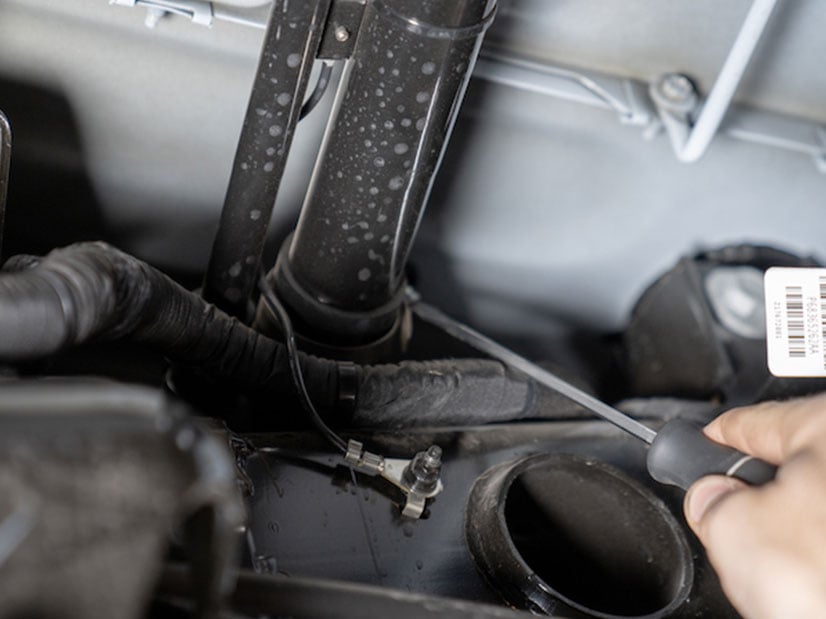

STEP 1

Loosen the hose clamp on the filler hose. The hose clamp on either the tank inlet or the hose clamp connecting the hose to the metal filler neck can be removed. You can find these hose clamps by following the filler neck down from the bed to the tank.

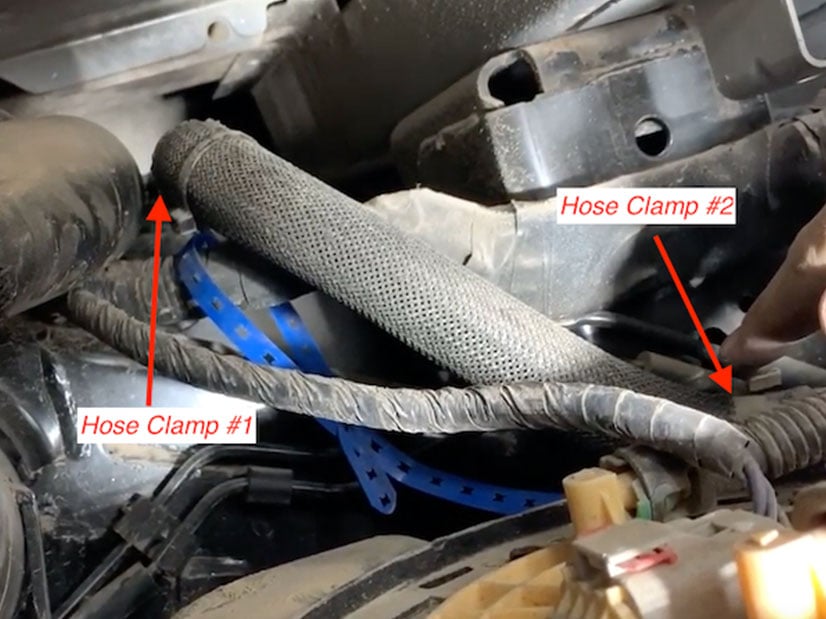

STEP 2

Loosen the hose clamp on the vent hose. The hose clamp that connects the hose to the tank(#2 in the picture) or the hose clamp that connects the vent hose to the metal vent tube(#1 in the picture) can be loosened.

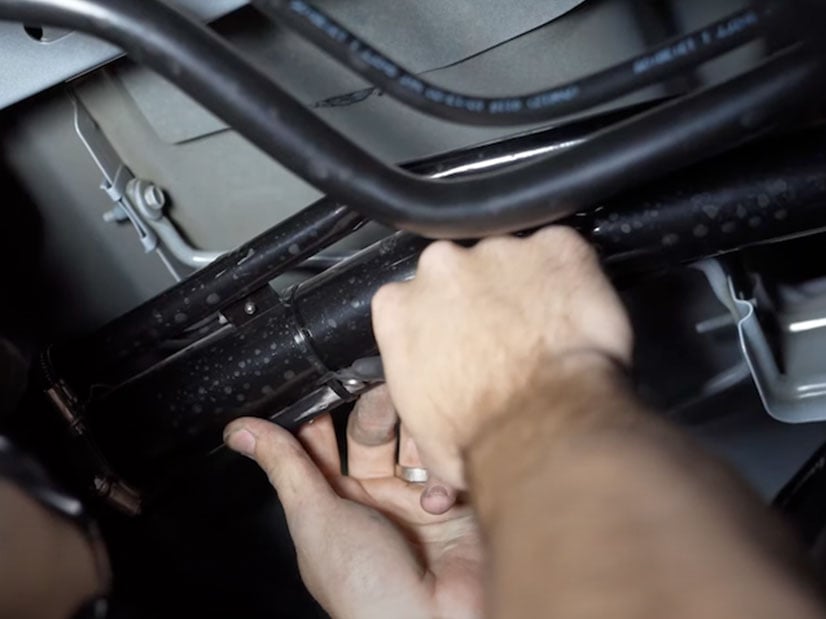

STEP 3

Cut the zip ties holding the rollover valve nylon line to the filler neck. The rollover line assembly will stay attached to the OEM tank and not be reused

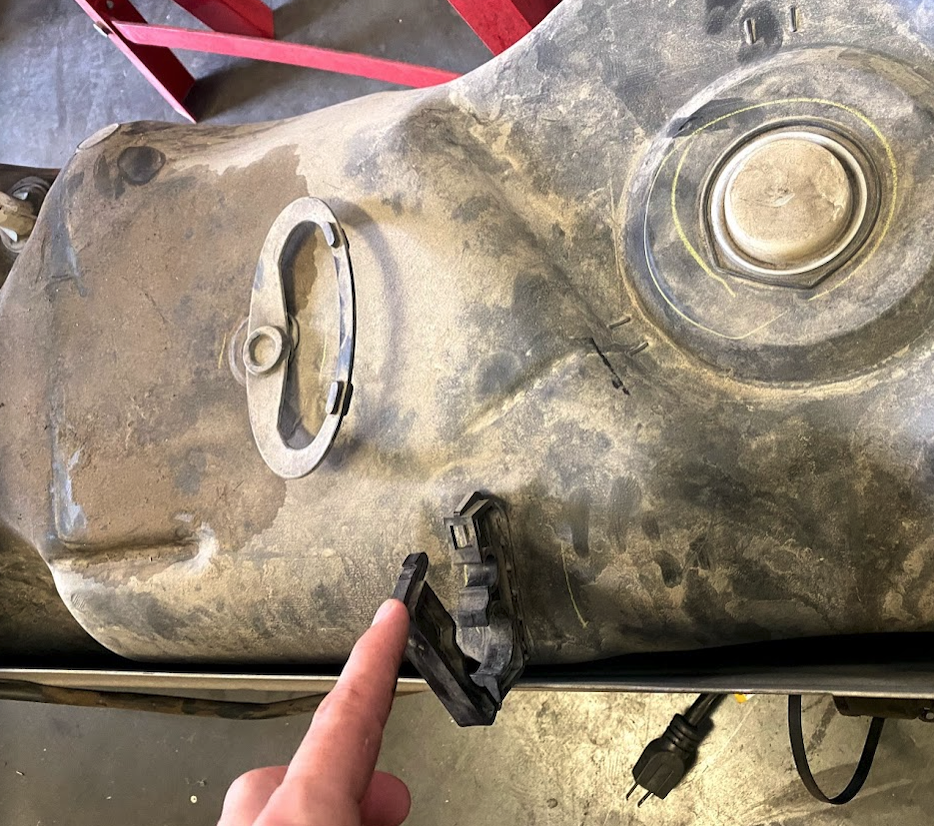

STEP 4

Release the DEF lines from the bracket on the OEM tank


STEP 5

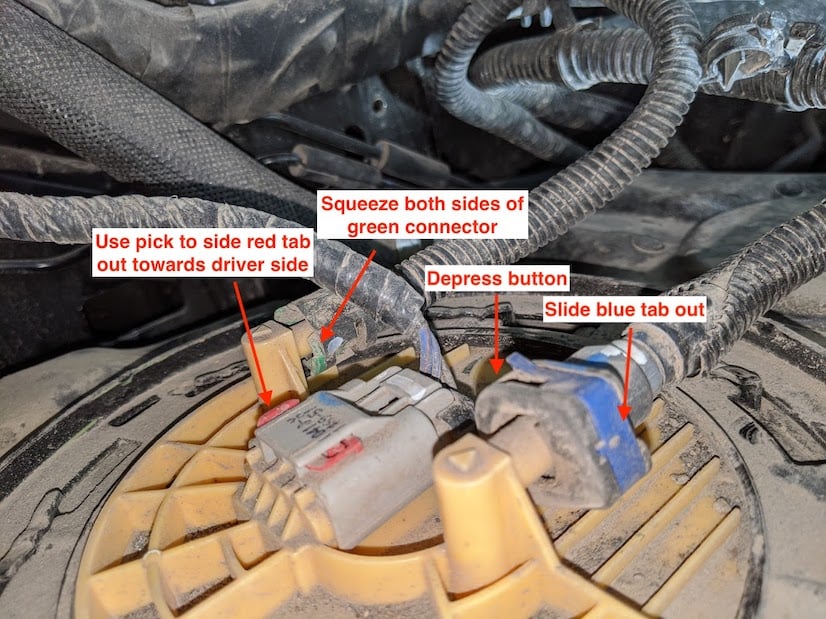

Disconnect the feed line, return line and electrical connector from the sending unit.

Blue Connector: Pull out the blue slide and depress the button at the base of the connector. Push the connecter gently in, then away from the nipple.

Green Connector: Depress both green sides and pull off the connector

Electrical Connector: Slide out the red tab with a pick or flat-head screwdriver then depress the tab on the connector and slide off.


STEP 6

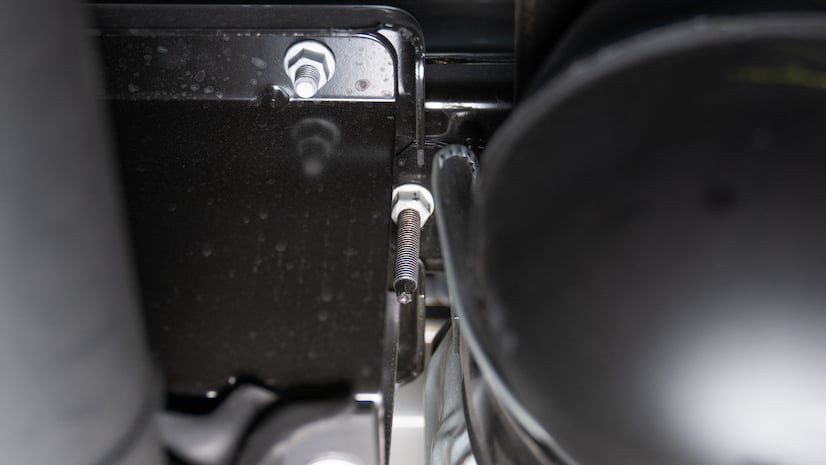

If you are working with the truck on a lift place a jack centered under the tank. Remove the OEM fuel tank straps. These are 16mm nuts that hold the straps to the studs. When removing the straps from the frame side, you will need to push the strap up to release the strap from the cradle.

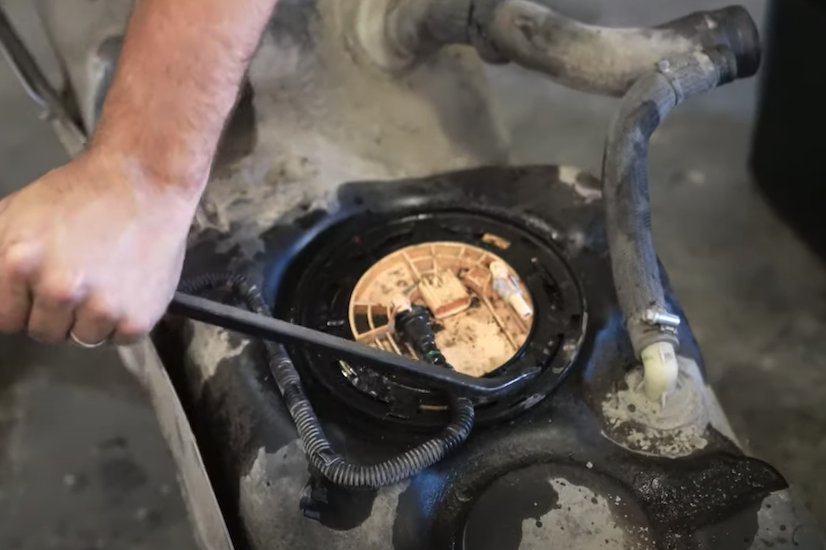

STEP 7

After the tank has been dropped. Remove the OEM fuel sending unit locking ring from the tank by hitting the ring counterclockwise. The OEM o'ring won't be used again.

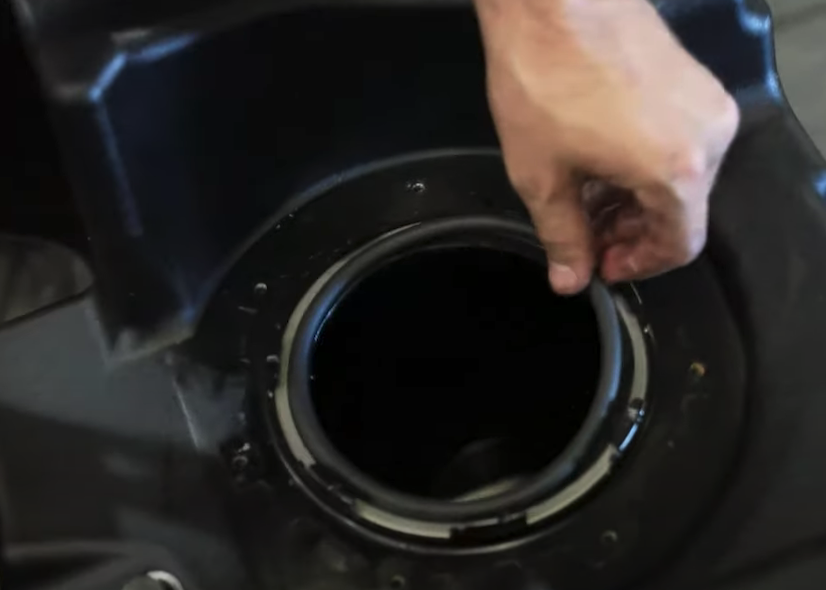

STEP 8

Place the S&B o'ring into the o'ring groove then drop the sending unit into the tank.

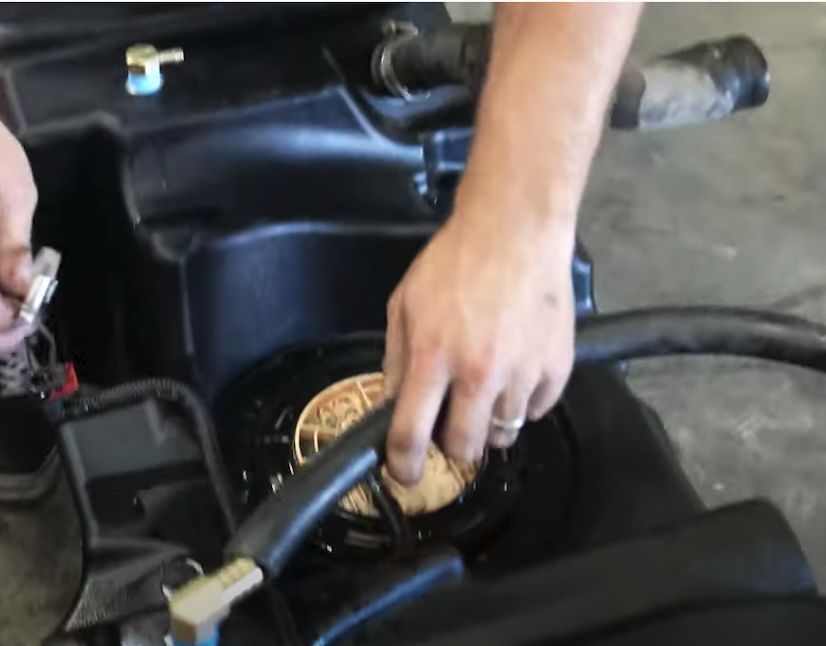

STEP 9

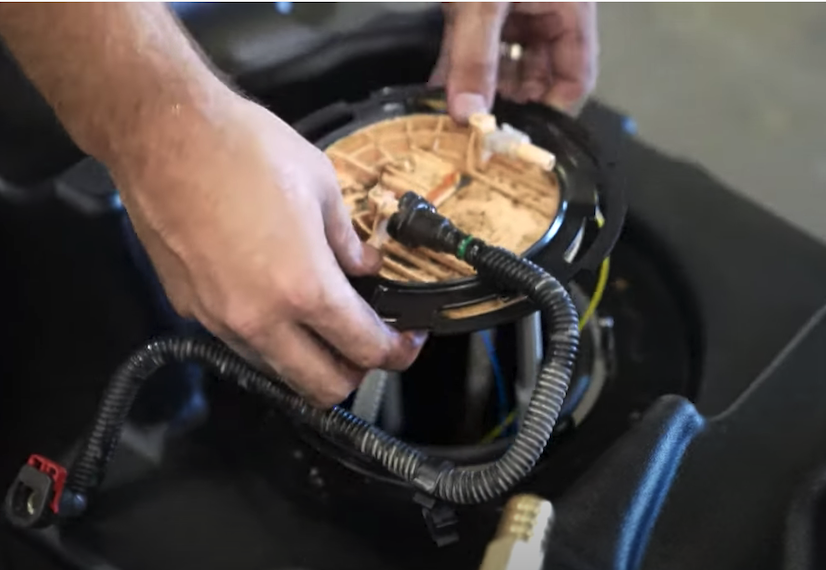

Drop in the OEM sending unit into the S&B Tank. The retaining ring included with the tank will be used.


STEP 10

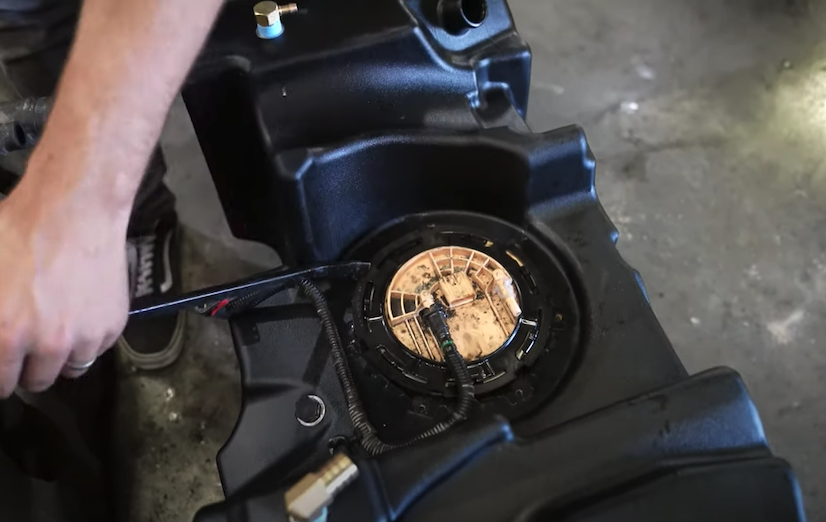

Place the included locking ring over the sending unit flange. First, by pressing down on the ring, get the ring started under the teeth on the tank. Once started, hit the ring clockwise until it passes under the indentation on tank teeth

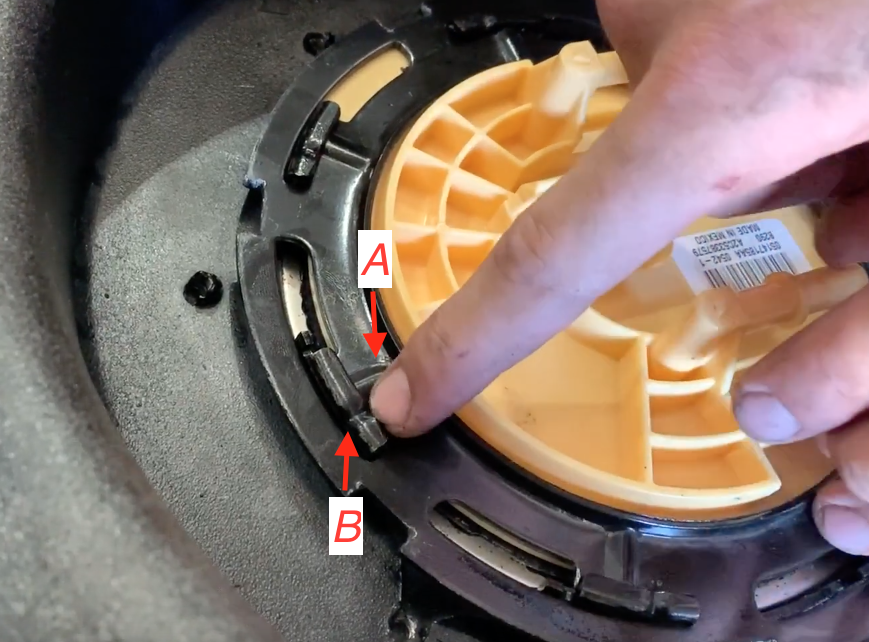

STEP 11

Ensure the locking ring is fully rotated until the rib on the OEM locking ring(point A) is PAST the indentation on the S&B receiving ring(point B).

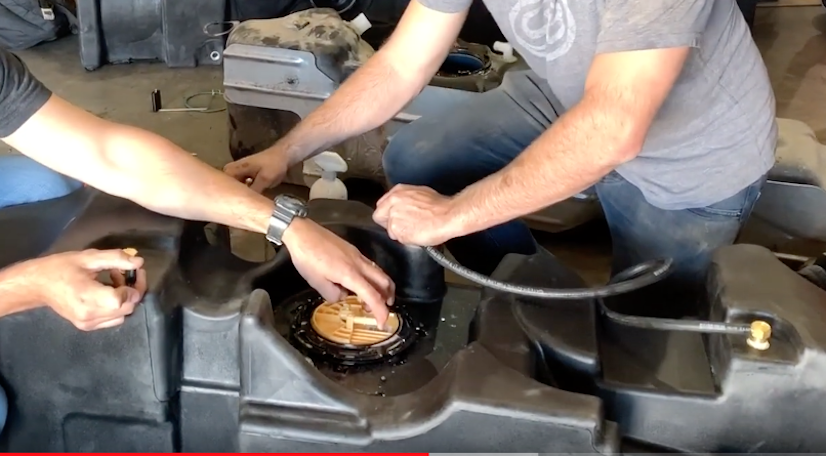

STEP 12

Poke a small hole in the rubber cap covering the filler spout on the S&B Tank, block off the openings in the tank with electrical tape or cover with fingers, spray the sending unit o'ring area with soapy water and pressure test the tank to make sure the o'ring was properly seated and there are no leaks in the tank.


STEP 13

Transfer over the fill hose and put in onto the S&B Tank. Take the vent hose clamp from the OEM tank and reuse this hose clamp with the S&B vent line.


STEP 13B

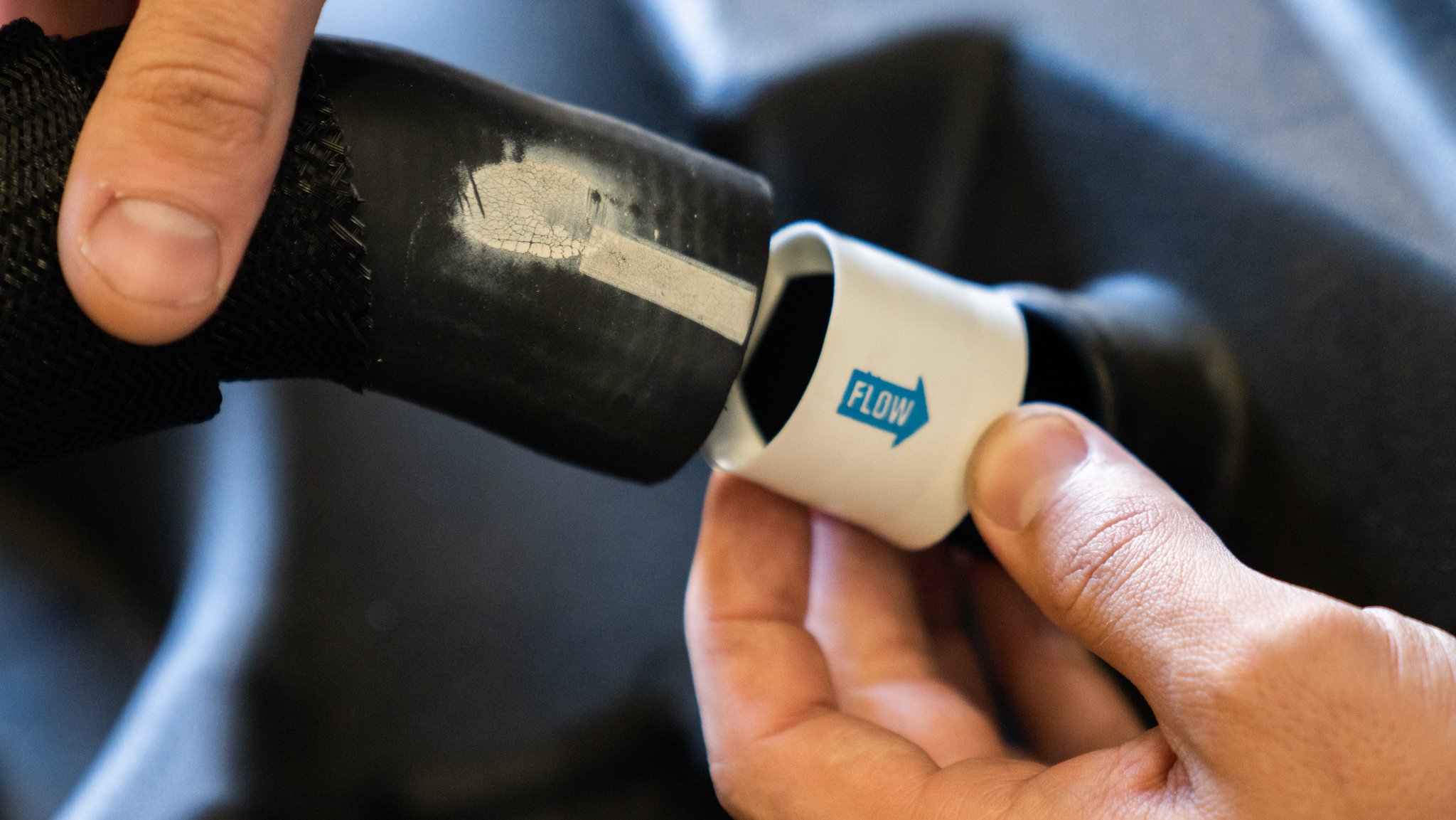

Before putting the filler hose onto the tank, place the white check valve into the filler hose with the blue arrow facing into the tank opening

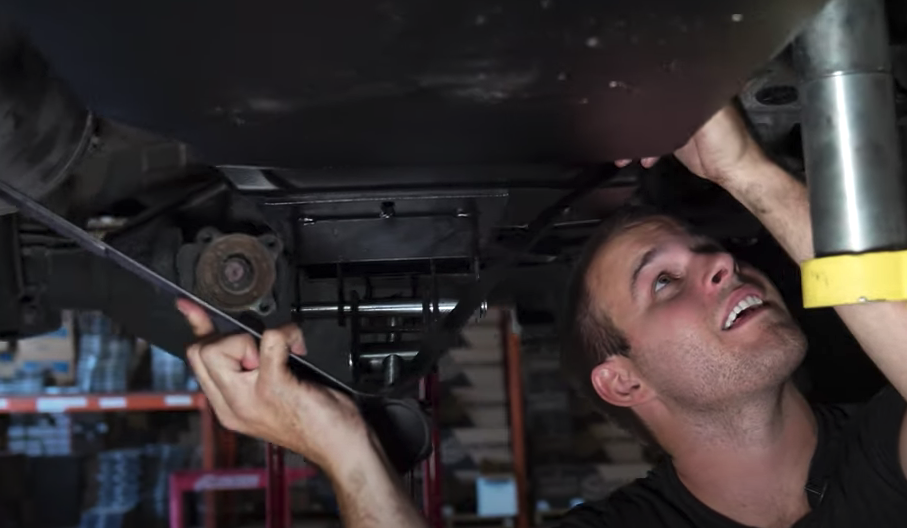

STEP 14

Lift the tank up into position making sure the vent and fill hose goes over the frame. Then install the front and rear straps. The strap bend on the frame side will need to be straightened out to be able to get the strap hooks into the frame. Push the strap hole through the stud on the driveline side and get the nut started. If the fill and vent lines are over the frame and the electrical connectors are free you are fasten the nuts onto the studs then you are ready to tighten the straps


STEP 14B

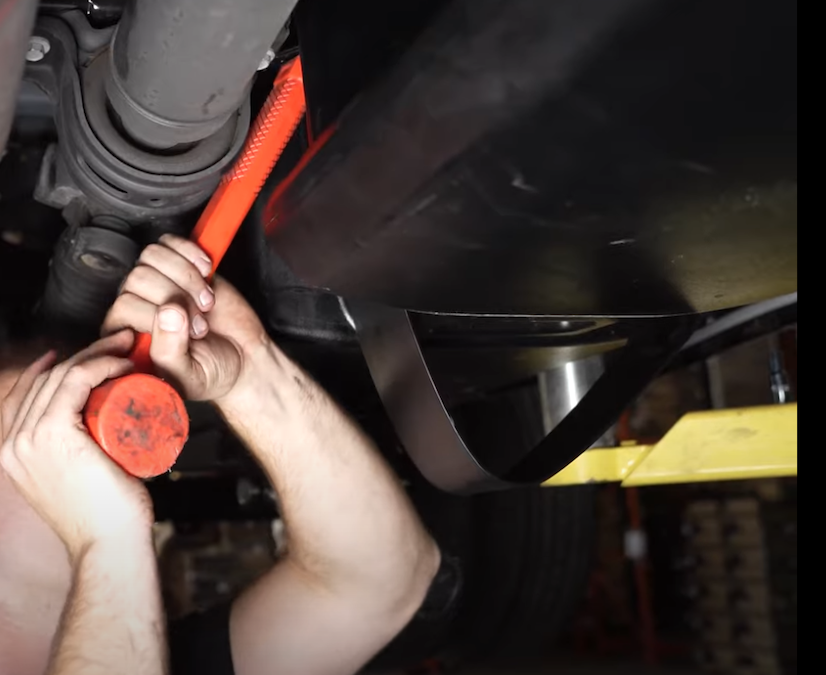

Use the end of a rubber mallet or pry bar to pass the strap past the carrier bearing mount

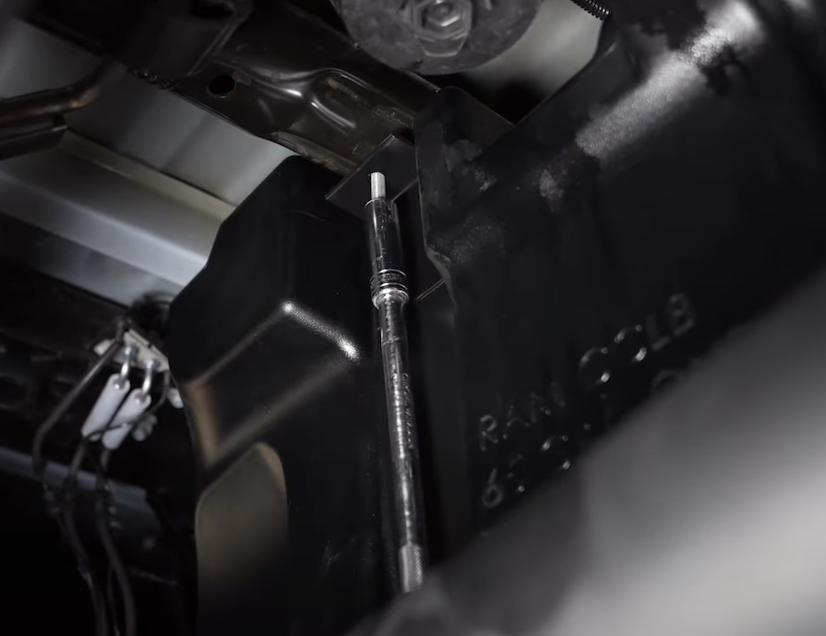

STEP 14C

Tighten the OEM nut to the stud and double check to make sure it is secure(45 ft. lbs).

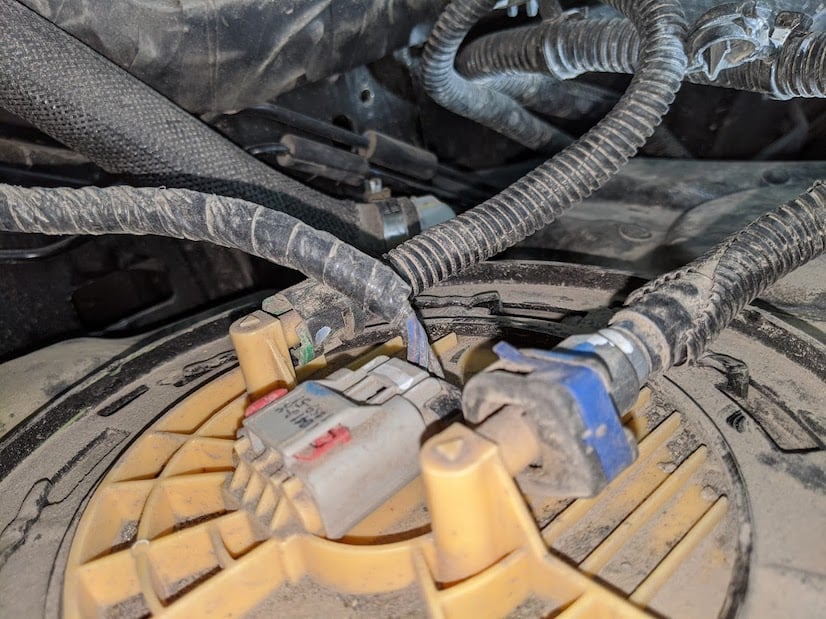

STEP 15

Reconnect the feed line, return line and electrical connector. Make sure the connectors are locked. To make sure they are locked, gently pull on the connectors to make sure they won't come off and are locked in.


STEP 16

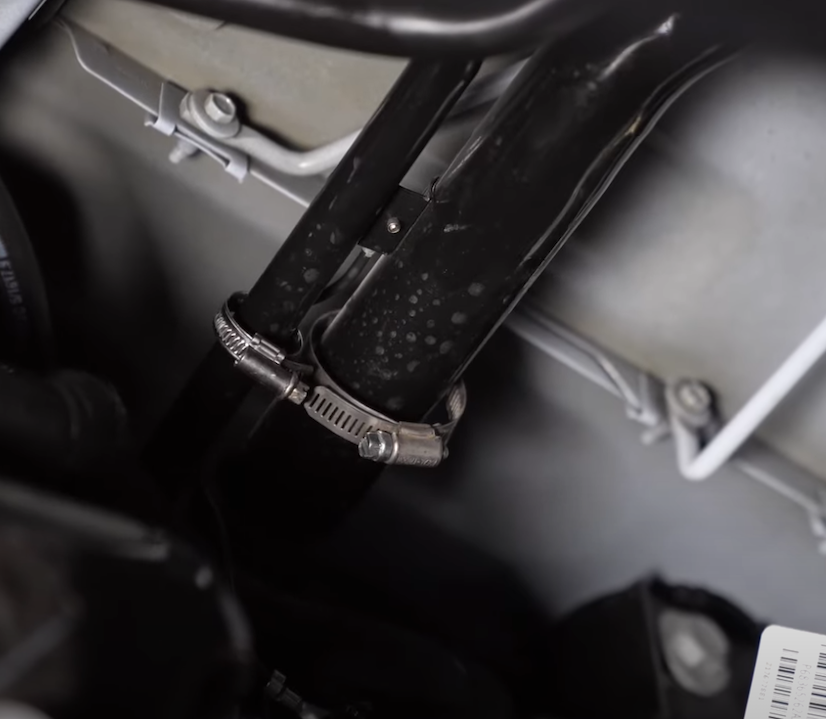

Reinstall the hose clamps on the fill and vent lines.

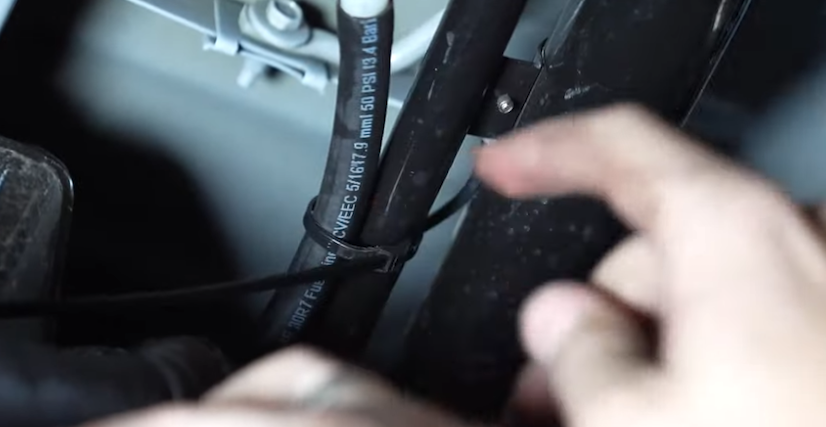

STEP 17

Zip tie the S&B front and rear rollover valve hoses to the filler neck. Once this step is complete, you are ready to put fuel into the tank. Please review the checklist below to make sure you did not forget anything and that the tank is installed properly.


Step 18 FINAL CHECKLIST

This final checklist is very important.

#1 Make sure all nuts are safely fastened and torqued.

#2 Ensure there is proper driveshaft clearance and the straps are tight

#3 Double check fuel line connections, the electrical connection as well as the vent and fill lines.

#4 Lastly, fill the tank full and check for any leaks.

If you have any questions, call or text us at 909.675.1313
